8001701FA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 8001701FA

8001701FA: DescriptionLS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size112KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

8001701FA Overview

LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16

8001701FA Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Other features	CLOCK INHIBIT
Counting direction	RIGHT
series	LS
JESD-30 code	R-GDFP-F16
length	9.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	38 mA
propagation delay (tpd)	46 ns
Certification status	Not Qualified
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	22 MHz
Base Number Matches	1

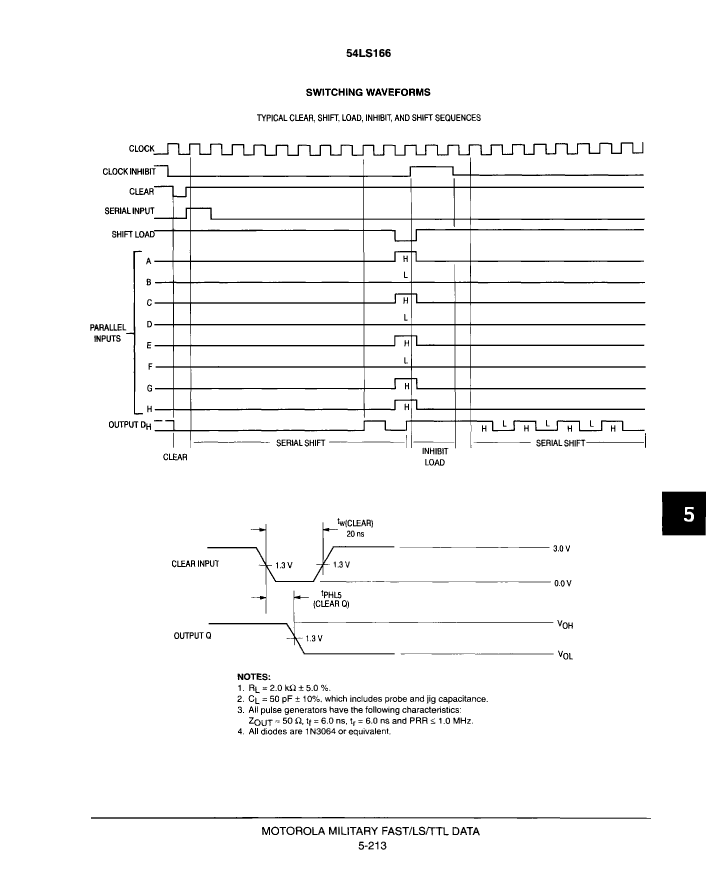

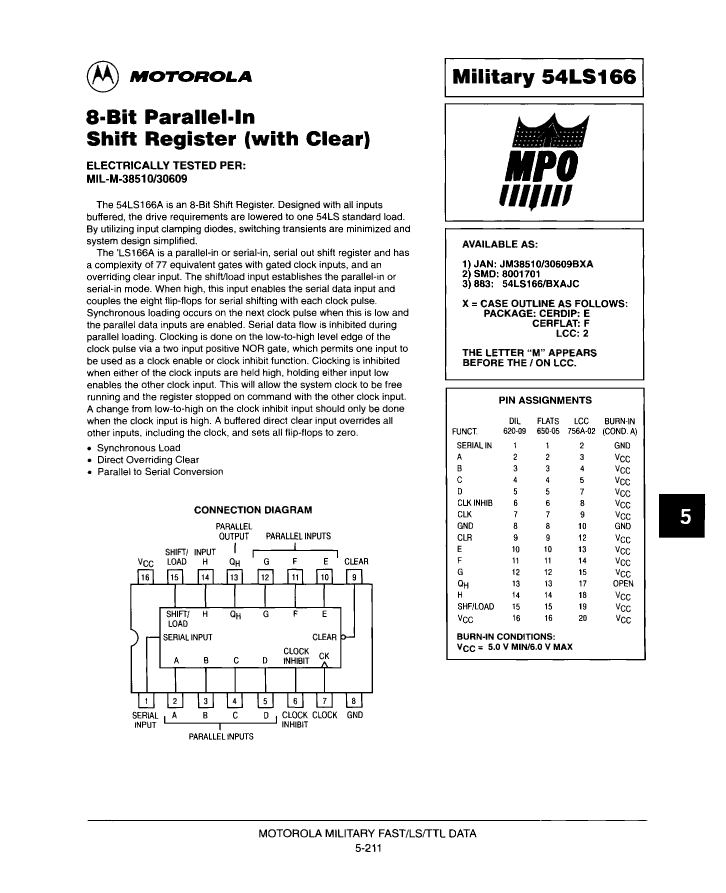

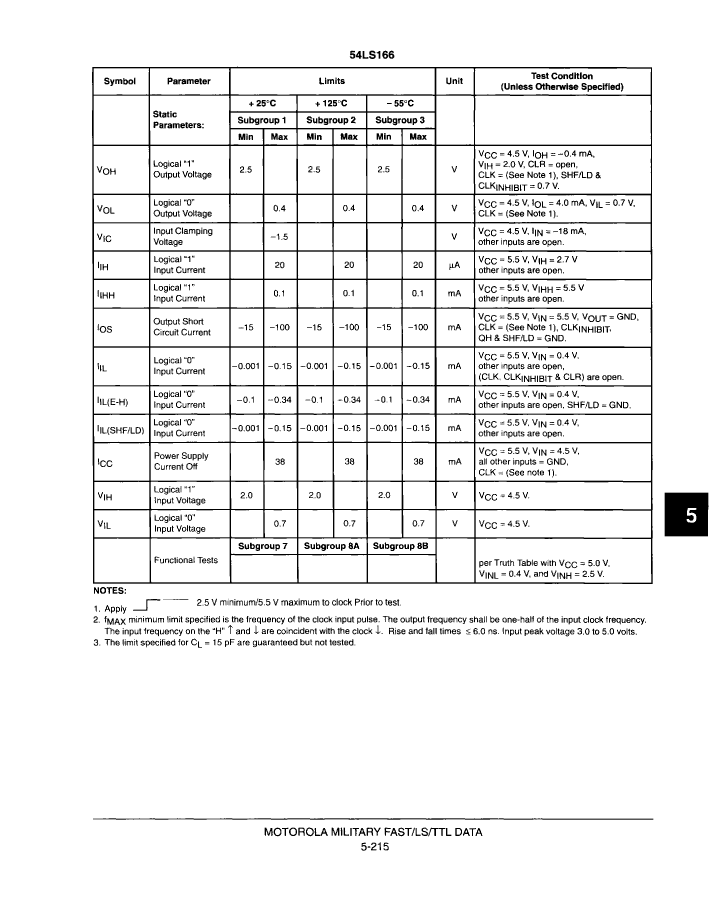

Preview

Download Datasheet

View All

8001701FA Related Products

	8001701FA	54LS166/BEAJC	80017012A	80017012X	8001701FX	8001701EA	54LS166M/B2AJC	54LS166/BFAJC	8001701EX
Description	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16	Parallel In Serial Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP16, CERDIP-16	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	Parallel In Serial Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CQCC20	Parallel In Serial Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP16, CERAMIC, FP-16	Parallel In Serial Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP16, CERDIP-16	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16
package instruction	DFP,	DIP,	QCCN,	QCCN,	DFP,	CERDIP-16	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16
Logic integrated circuit type	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	16	16	20	20	16	16	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	QCCN	QCCN	DFP	DIP	QCCN	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	CHIP CARRIER	FLATPACK	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE
propagation delay (tpd)	46 ns	46 ns	46 ns	46 ns	46 ns	46 ns	46 ns	46 ns	46 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	22 MHz	22 MHz	22 MHz	22 MHz	25 MHz	22 MHz	22 MHz	22 MHz	22 MHz
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	DFP	-	QLCC	-	-	-	QLCC	DFP	DIP
Contacts	16	-	20	-	-	-	20	16	16
Other features	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	-	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT	CLOCK INHIBIT
length	9.65 mm	19.3 mm	8.885 mm	8.885 mm	-	19.3 mm	8.89 mm	9.65 mm	19.3 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	-	-	50 pF	50 pF	50 pF	-
Maximum supply current (ICC)	38 mA	38 mA	38 mA	-	-	38 mA	38 mA	38 mA	-
Maximum seat height	2.15 mm	4.19 mm	1.9 mm	1.9 mm	-	4.19 mm	1.9 mm	2.15 mm	4.19 mm
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	-	2.54 mm	1.27 mm	1.27 mm	2.54 mm
width	6.415 mm	7.62 mm	8.885 mm	8.885 mm	-	7.62 mm	8.89 mm	6.415 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
