1825400-4 datasheet, PDF - EEWORLD Datasheet

1825400-4: DescriptionPUSHBUTTON SWITCH, DPDT, MOMENTARY, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size191KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

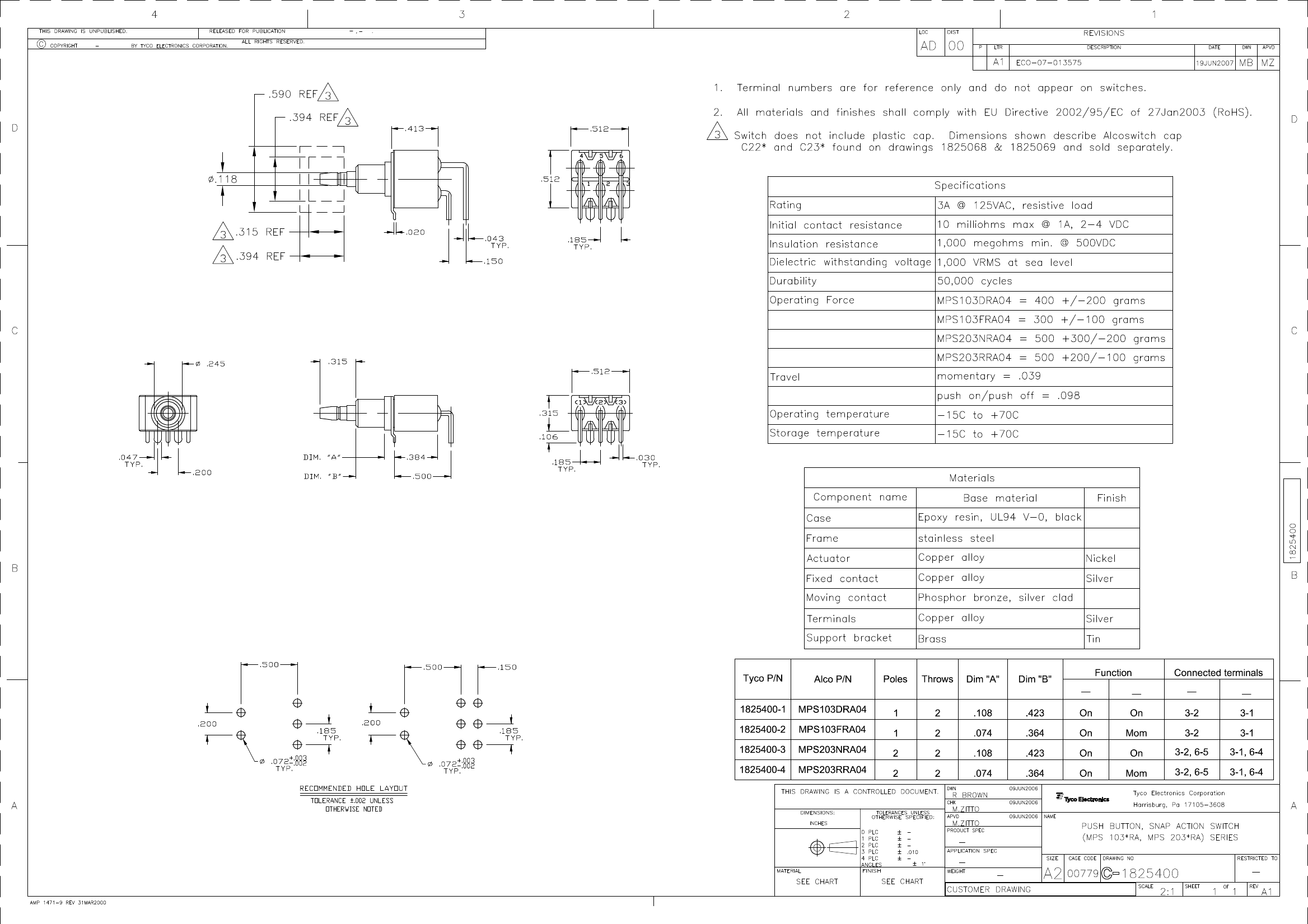

1825400-4 Overview

PUSHBUTTON SWITCH, DPDT, MOMENTARY, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1806385803
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	10.49 mm
body height	13 mm
Body length or diameter	13 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact voltage (AC)	125 V
Electrical life	500000 Cycle(s)
illumination	NON-ILLUMINATED
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	6.86 N
Maximum operating temperature	70 °C
Minimum operating temperature	-15 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

	1825400-4	1825400-3	C0603CG220J500PT
Description	PUSHBUTTON SWITCH, DPDT, MOMENTARY, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	PUSHBUTTON SWITCH, DPDT, LATCHED, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0603, CHIP
Objectid	1806385803	1806385802	8362203119
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	, 0603
Reach Compliance Code	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C	125 °C
Minimum operating temperature	-15 °C	-15 °C	-55 °C
surface mount	NO	NO	YES
Is it Rohs certified?	conform to	conform to	-
body width	10.49 mm	10.49 mm	-
body height	13 mm	13 mm	-
Body length or diameter	13 mm	13 mm	-
Contact (AC) maximum rated R load	3A@125VAC	3A@125VAC	-
Maximum contact current (AC)	3 A	3 A	-
Maximum contact voltage (AC)	125 V	125 V	-
Electrical life	500000 Cycle(s)	500000 Cycle(s)	-
illumination	NON-ILLUMINATED	NON-ILLUMINATED	-
Maximum operating force	6.86 N	7.85 N	-
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	-
Switch action	MOMENTARY	LATCHED	-
switch function	DPDT	DPDT	-
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	-
Termination type	SOLDER	SOLDER	-
