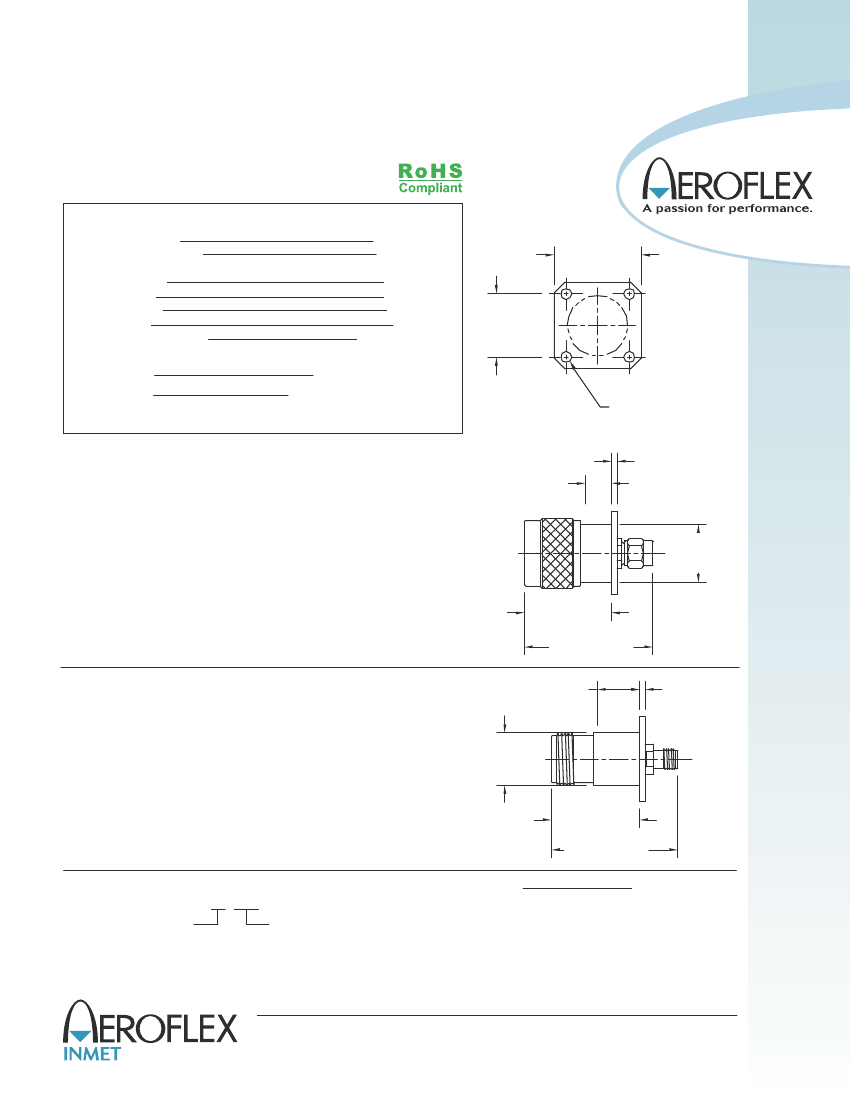

ADAPTERS, BETWEEN SERIES
TYPE N / SMA, up to 18 GHz, Flange Mount
SPECIFICATIONS:
Model: 5306, 5307 5308, 5309
,
Electrical:
Frequency Range
Standard Freq. Values
VSWR
DC - 4 GHz
4 - 8 GHz
8 - 18 GHz
Impedance
Operating Temp Range
DC - 18 GHz
6* & 18 GHz
1.04:1 Max.
1.07:1 Max.
1. 2:1 Max.
1
50 Ohms
-65°C to +125°C
Passivated Stainless Steel
Gold Plated Beryllium Copper
4-HOLE FLANGE
DETAIL - TYP
.
1.00 [25.4]
SQ.
.718 [18.24]
TYP
.
Mechanical:
Connectors
Conductors
Mates with MIL
-STD-348
*For DC - 6 GHz Units add -067 to the Model Number
4X Ø.125[3.18]
THRU
Model Number:
5306
Type N Male / SMA Male
Length: 1.52 ±.06 [38.61 ±1.52]
As Pictured
.065 [1.65]
5/16 Max.
Panel Thickness
Model Number:
5308
Type N Male / SMA Female
Length: 1.48 ±.05 [37 ±1.27]
.59
Not Shown
Ø.69
[17.51]
1.04±.02
[26.35±0.51]
1.52±.06
[38.61±1.52]
Model Number:
5307
Type N Female / SMA Male
Length: 1.54 ±.05 [39. 2±1.27]
1
Not Shown
1/2 Max.
Panel Thickness
.065 [1.65]
Ø.62
[15.75]
Model Number:
5309
Type N Female / SMA Female
Length: 1.50 ±.05 [38. ±1.27]
1
As Pictured
1.05±.02
[26.67±0.51]
1.50±.05
[38.11±1.27]
HOW TO ORDER:
Model Number:
530X-YYY
Base Number
Ordering Examples:
Model Number:
5307
DC - 18 GHz; Type N Fem/SMA Male
Frequency Range
= DC - 18 GHz
Model Number:
5306-067
067 = DC - 6 GHz
DC - 6 GHz; Type N Male/SMA Male
Note: Dimensions in Brackets are Expressed in Millimeteres and are for Reference Only
Type N male connectors can be supplied with coupling nuts unattached to aid in installation
Units featuring very low return loss (VSWR) are also available
5306: REV C
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • inmetsales@aeroflex.com
