94710-05 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 94710-05

Preview

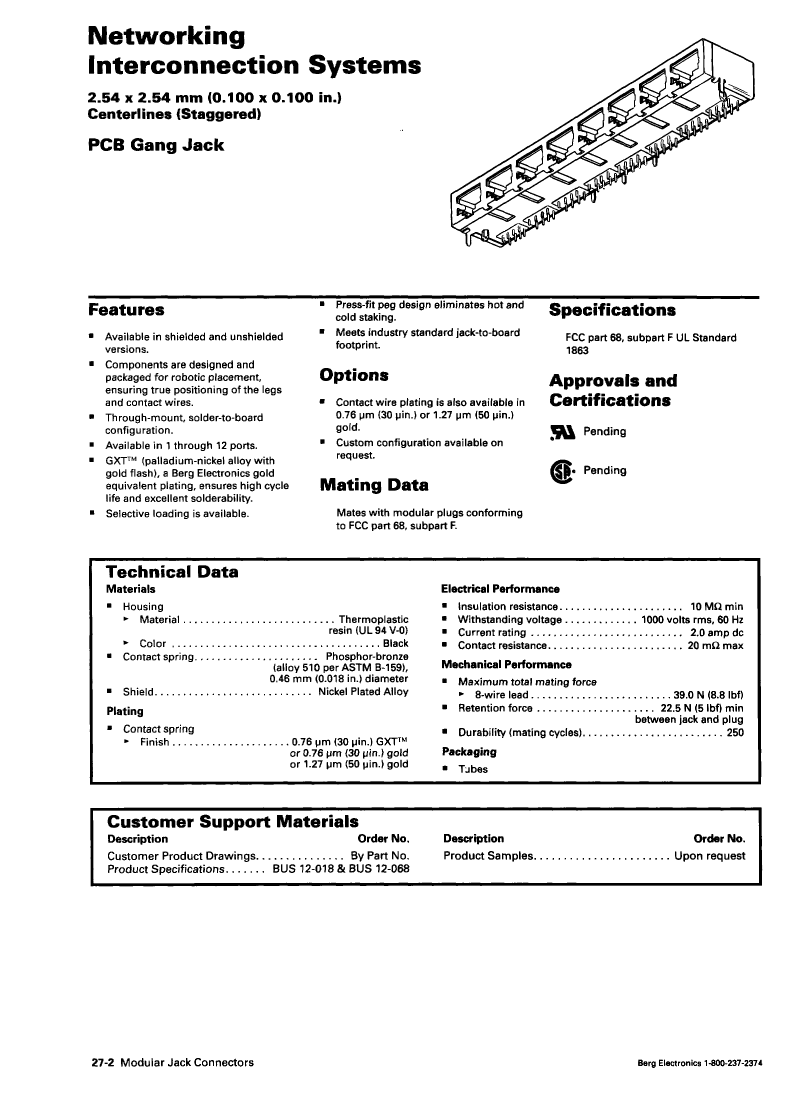

94710-05: DescriptionTelecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack; CategoryThe connector The connector; File Size75KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

94710-05 Overview

Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack

94710-05 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Number of ports	8
Shell material	NICKEL PLATED ALLOY
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

94710-05 Related Products

	94710-05	94710-09	94710-12	94710-08	94710-02	94710-03	94710-04	94710-06	94710-07
Description	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack	Telecom and Datacom Connector, 64 Contact(s), Female, Solder Terminal, Jack
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,	8 PORT, 8-POSITION EACH, DIAMOND PEG, SHIELDED, STAGGERED CONFIGURATION,
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Shell material	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY	NICKEL PLATED ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	64	64	64	64	64	64	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Number of ports	8	-	8	8	8	8	8	8	8
