Part Number

Search

92023-311

Description
Board Connector, 25 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size184KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

92023-311 Overview

Board Connector, 25 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

92023-311 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED
body width0.2 inch
subject depth0.276 inch
body length1.317 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
MIL complianceNO
Manufacturer's serial number92023
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.115 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts25
UL Flammability Code94V-0
Base Number Matches1

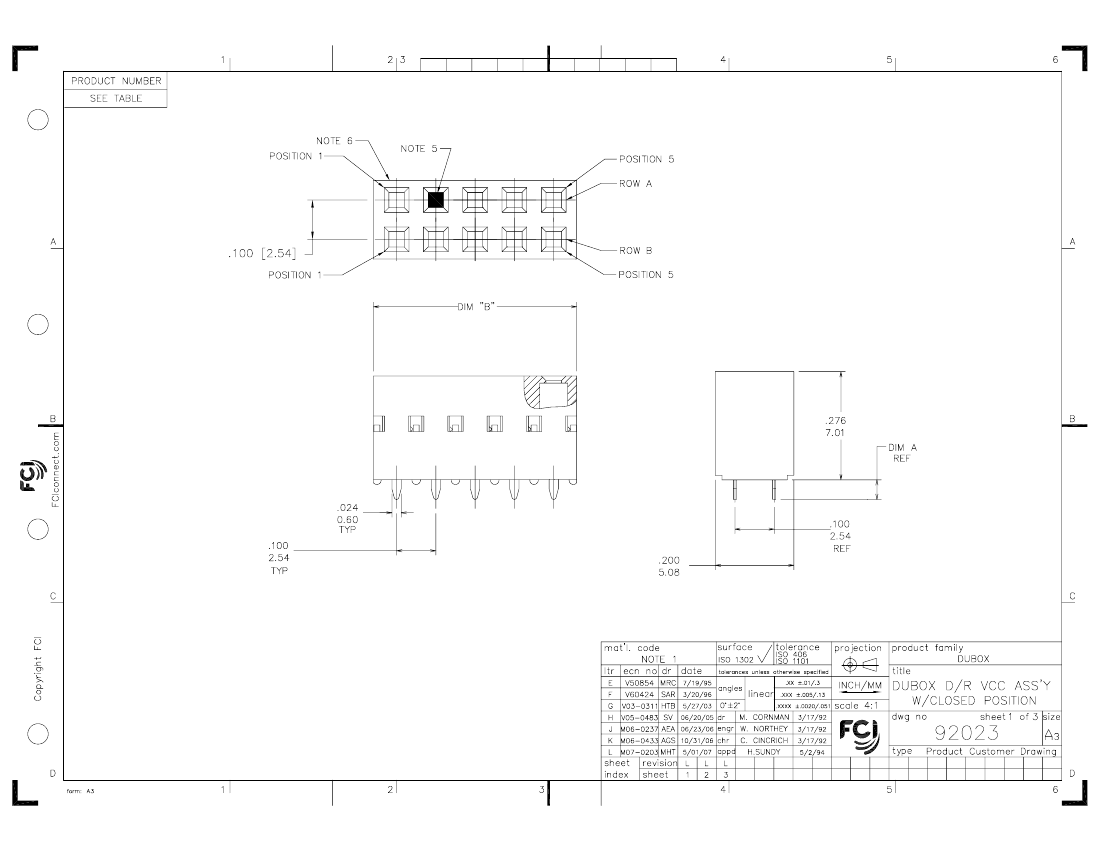

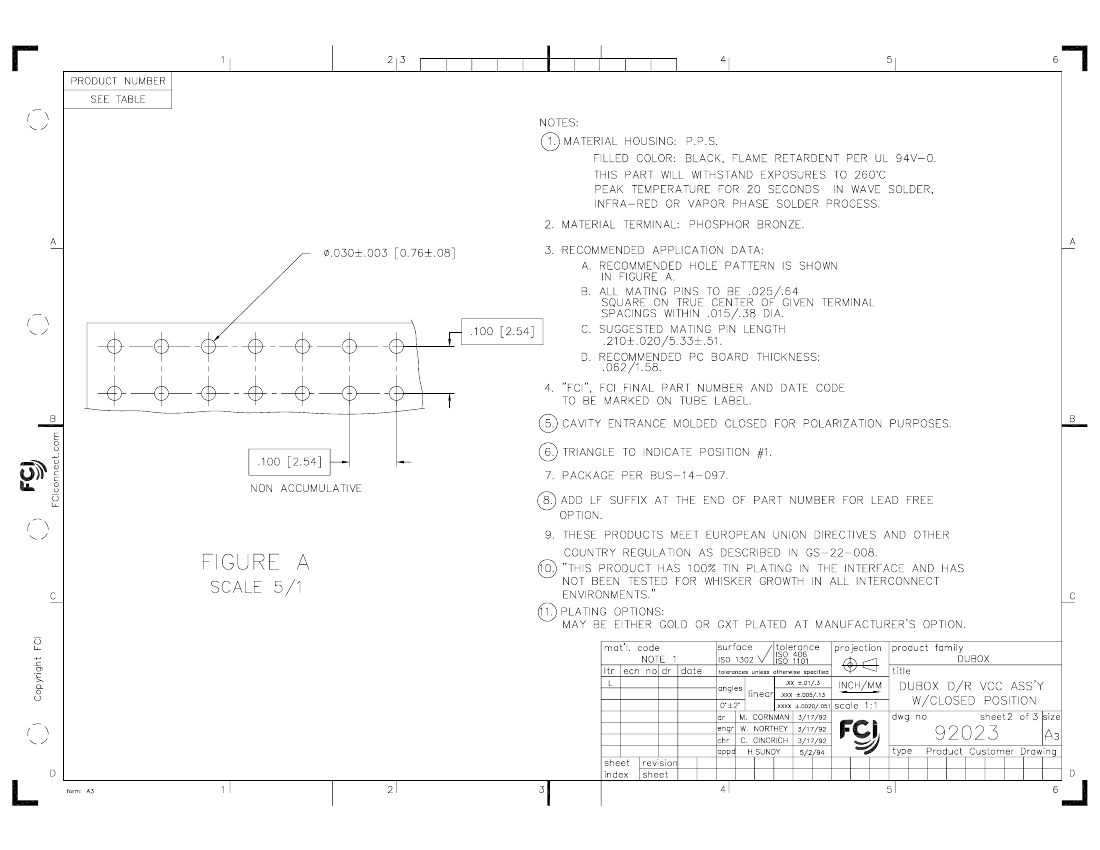

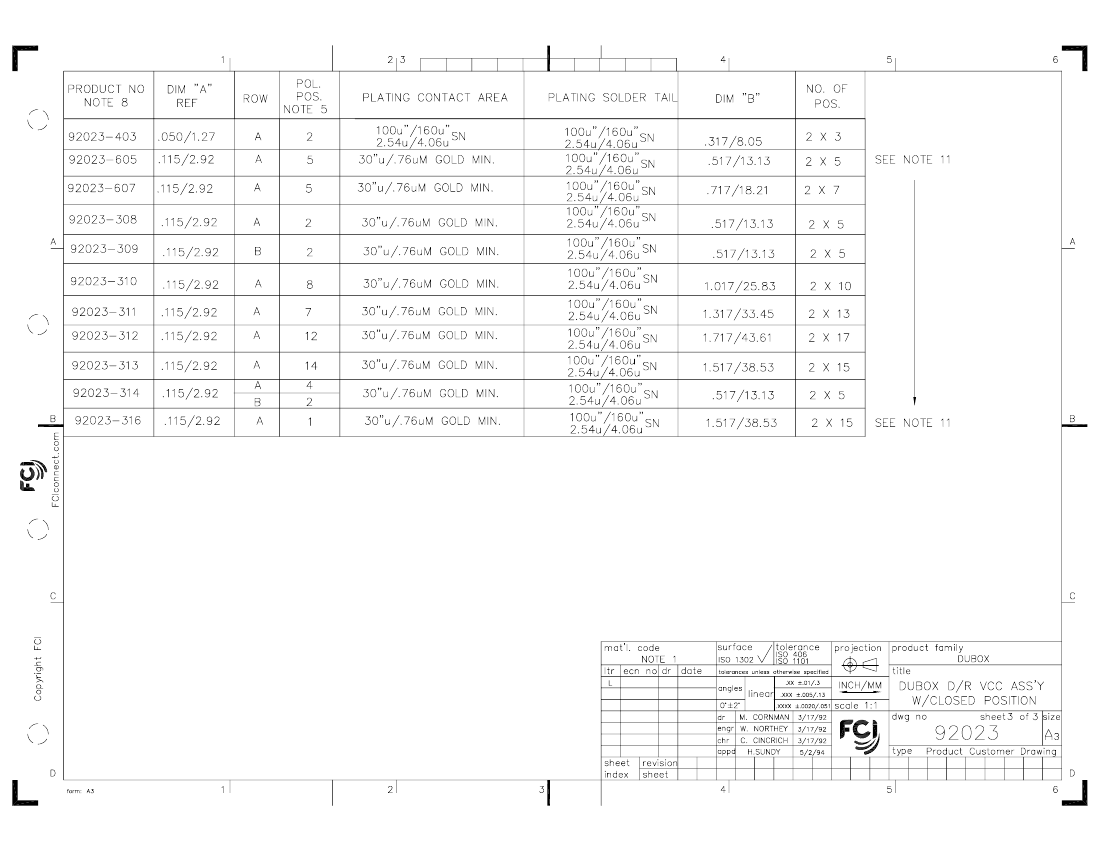

PDM: Rev:L
STATUS:
Released
Printed: Sep 15, 2009
.
