91269-09TR datasheet, PDF - EEWORLD Datasheet

91269-09TR: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

91269-09TR Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (8) OVER NICKEL/GOLD FLASH OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD (8) OVER NICKEL/GOLD FLASH OVER PALLADIUM NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	91269
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

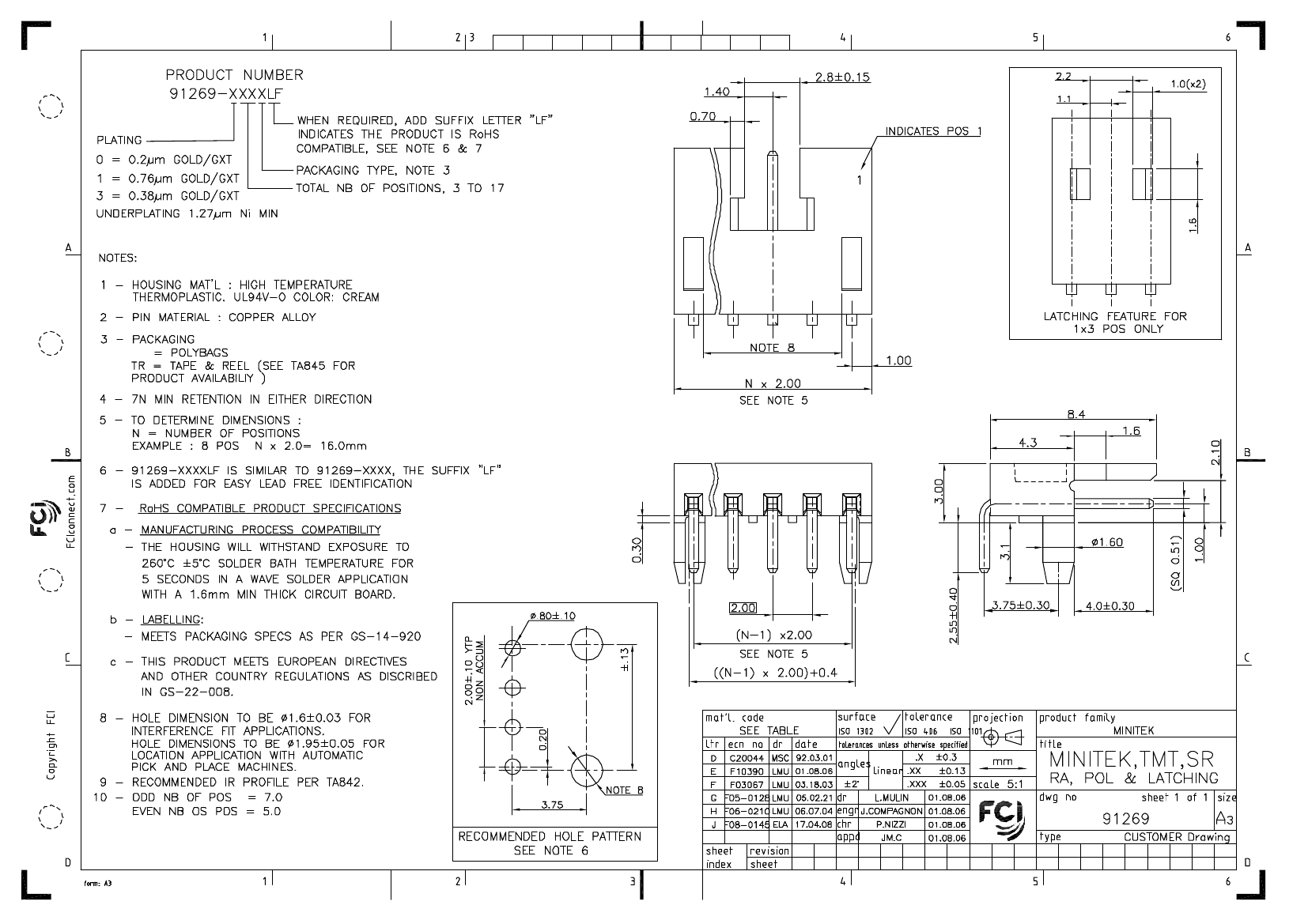

((N-1)x2.00)+0.4)

PDM: Rev:J

STATUS:

Released

Printed: Sep 15, 2009

.
