318-5111-008 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 318-5111-008

Preview

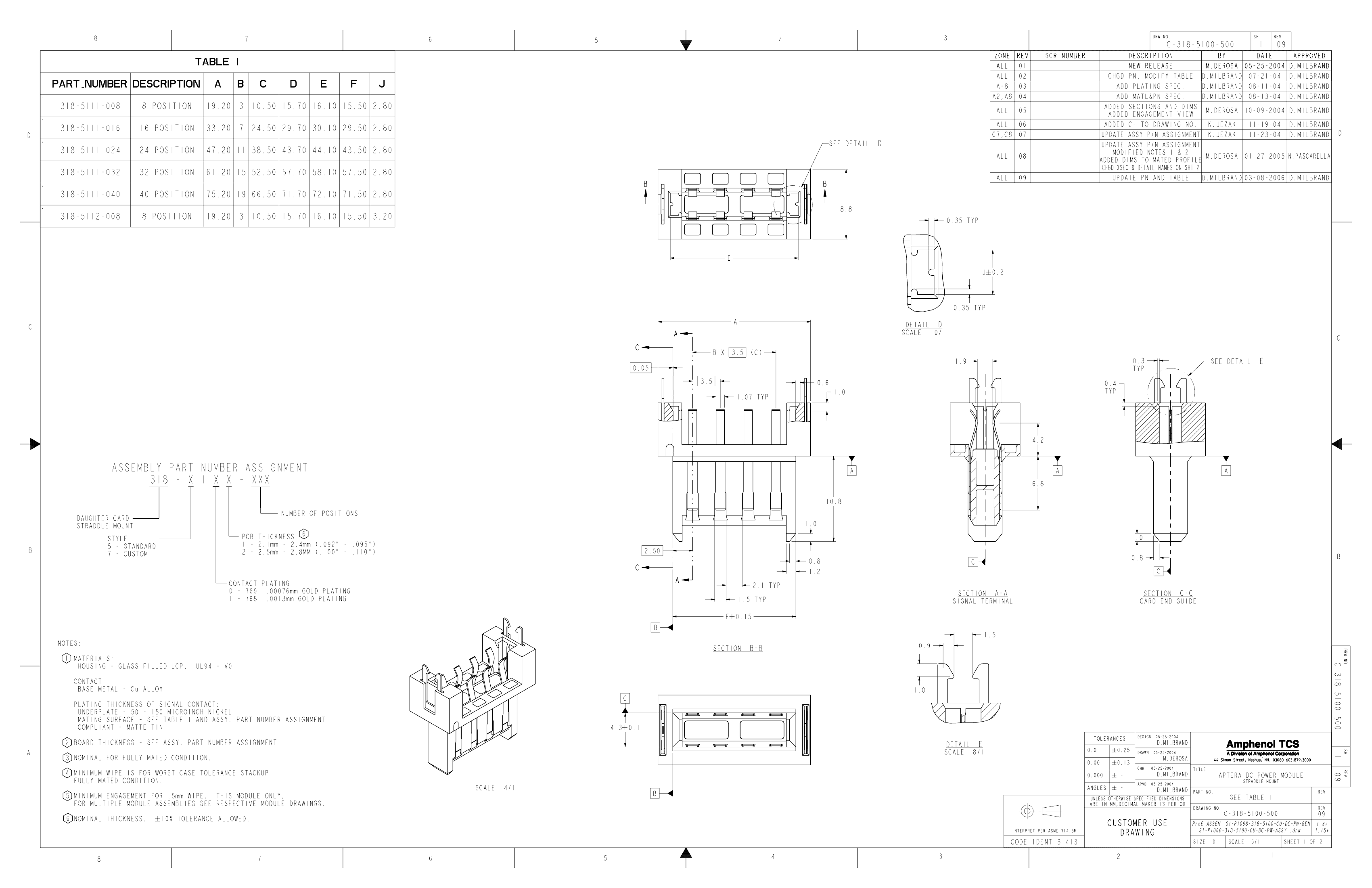

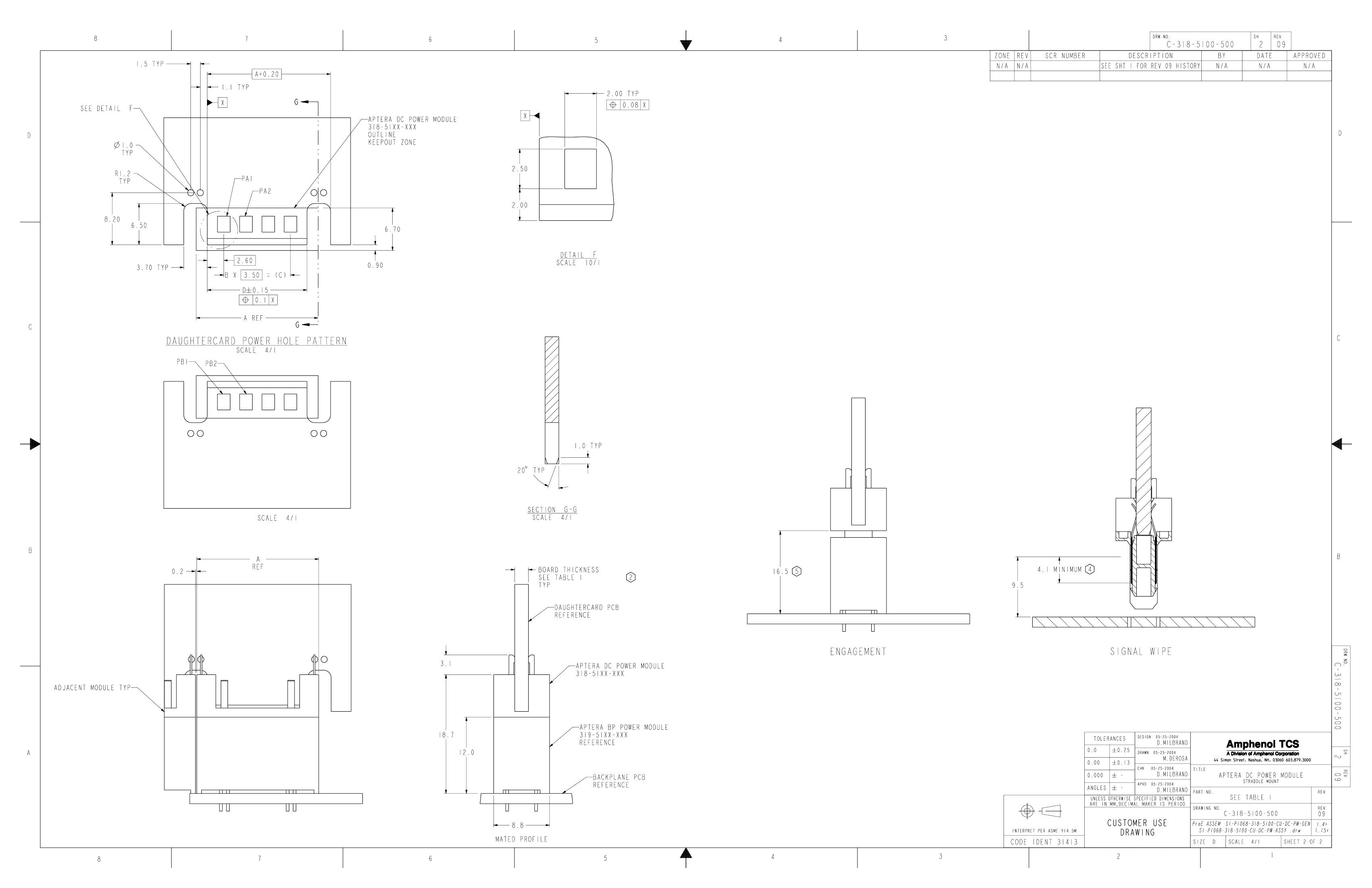

318-5111-008: DescriptionRectangular Power Connector, 8 Contact(s), Female, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size262KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

318-5111-008 Overview

Rectangular Power Connector, 8 Contact(s), Female, Surface Mount Terminal, Receptacle

318-5111-008 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.346 inch
subject depth	0.736 inch
body length	0.756 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	318-511
Plug contact pitch	0.138 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal pitch	3.5052 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

318-5111-008 Related Products

	318-5111-008	318-5111-016	318-5111-024	318-5111-032	318-5111-040	318-5112-008
Description	Rectangular Power Connector, 8 Contact(s), Female, Surface Mount Terminal, Receptacle	Rectangular Power Connector, 16 Contact(s), Female, Surface Mount Terminal, Receptacle	Rectangular Power Connector, 24 Contact(s), Female, Surface Mount Terminal, Receptacle	Rectangular Power Connector, 32 Contact(s), Female, Surface Mount Terminal, Receptacle	Rectangular Power Connector, 40 Contact(s), Female, Surface Mount Terminal, Receptacle	Rectangular Power Connector, 8 Contact(s), Female, Surface Mount Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	NONE	NONE	NONE	NONE	NONE	NONE
body width	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch	0.346 inch
subject depth	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch	0.736 inch
body length	0.756 inch	1.307 inch	1.858 inch	2.409 inch	2.961 inch	0.756 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (51) OVER NICKEL (150)	GOLD (51) OVER NICKEL (150)	GOLD (51) OVER NICKEL (150)	GOLD (51) OVER NICKEL (150)	GOLD (51) OVER NICKEL (150)	GOLD (51) OVER NICKEL (150)
Contact completed and terminated	MATTE TIN OVER NICKEL (150)	MATTE TIN OVER NICKEL (150)	MATTE TIN OVER NICKEL (150)	MATTE TIN OVER NICKEL (150)	MATTE TIN OVER NICKEL (150)	MATTE TIN OVER NICKEL (150)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	318-511	318-511	318-511	318-511	318-511	318-511
Plug contact pitch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal pitch	3.5052 mm	3.5052 mm	3.5052 mm	3.5052 mm	3.5052 mm	3.5052 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	16	24	32	40	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
