75168-308-03

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size132KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

75168-308-03 Overview

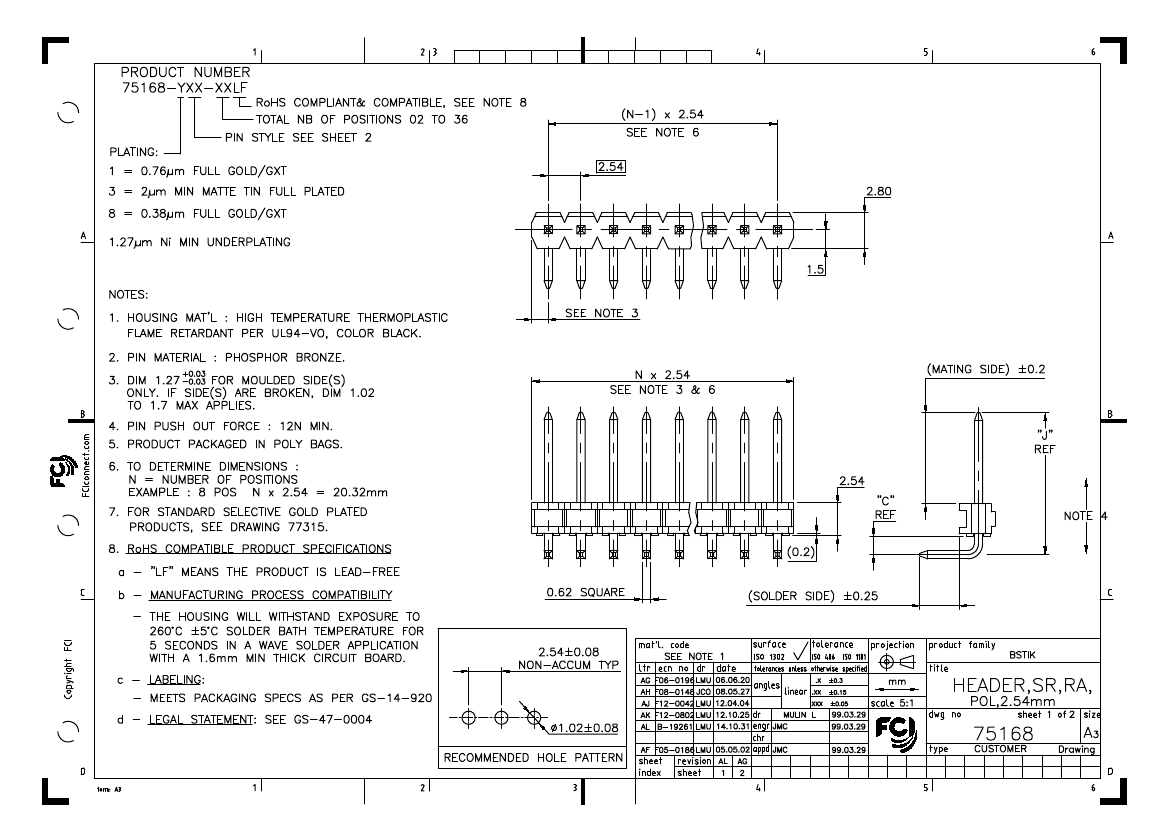

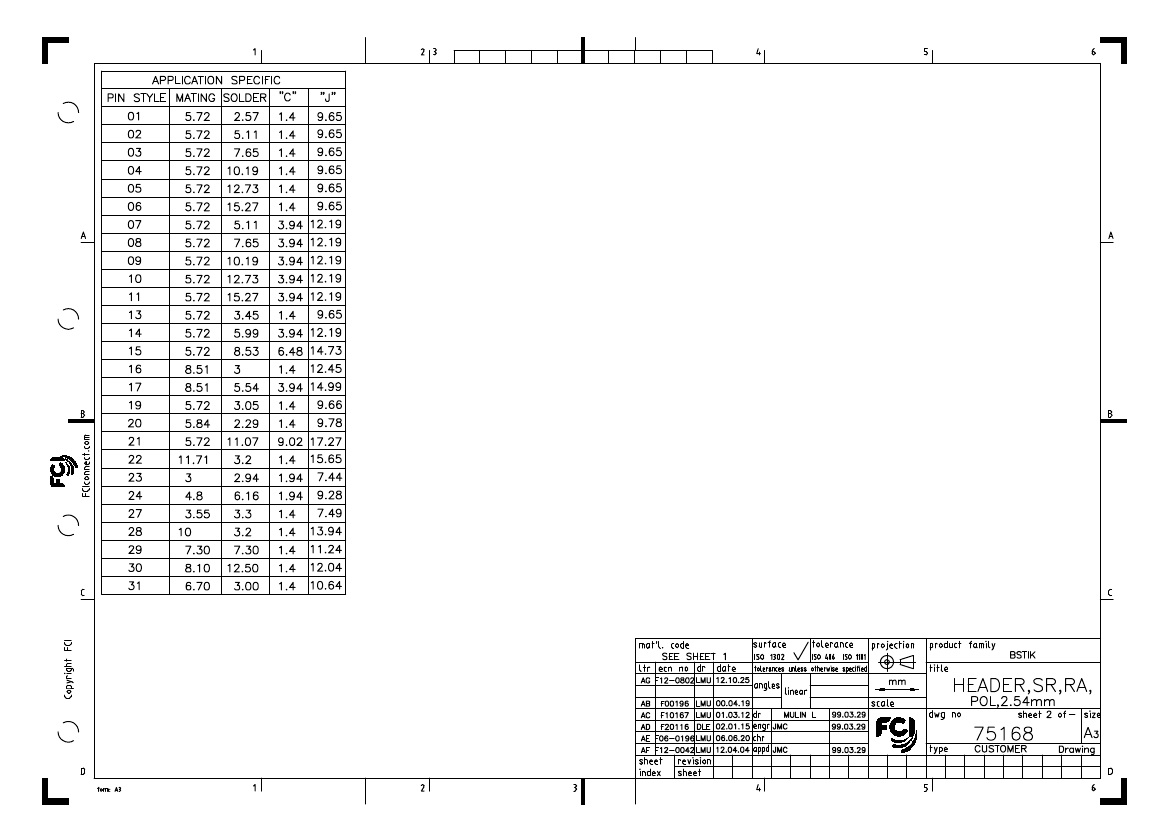

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

75168-308-03 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.11 inch
subject depth0.263 inch
body length0.3 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD (150) OVER NICKEL
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number75168
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1
PDS: Rev :AL
STATUS:Released
Printed: Nov 04, 2014
