85406-127 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 85406-127

Preview

85406-127: DescriptionTelecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size456KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85406-127 Overview

Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle

85406-127 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (118) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85406
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	NYLON46
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

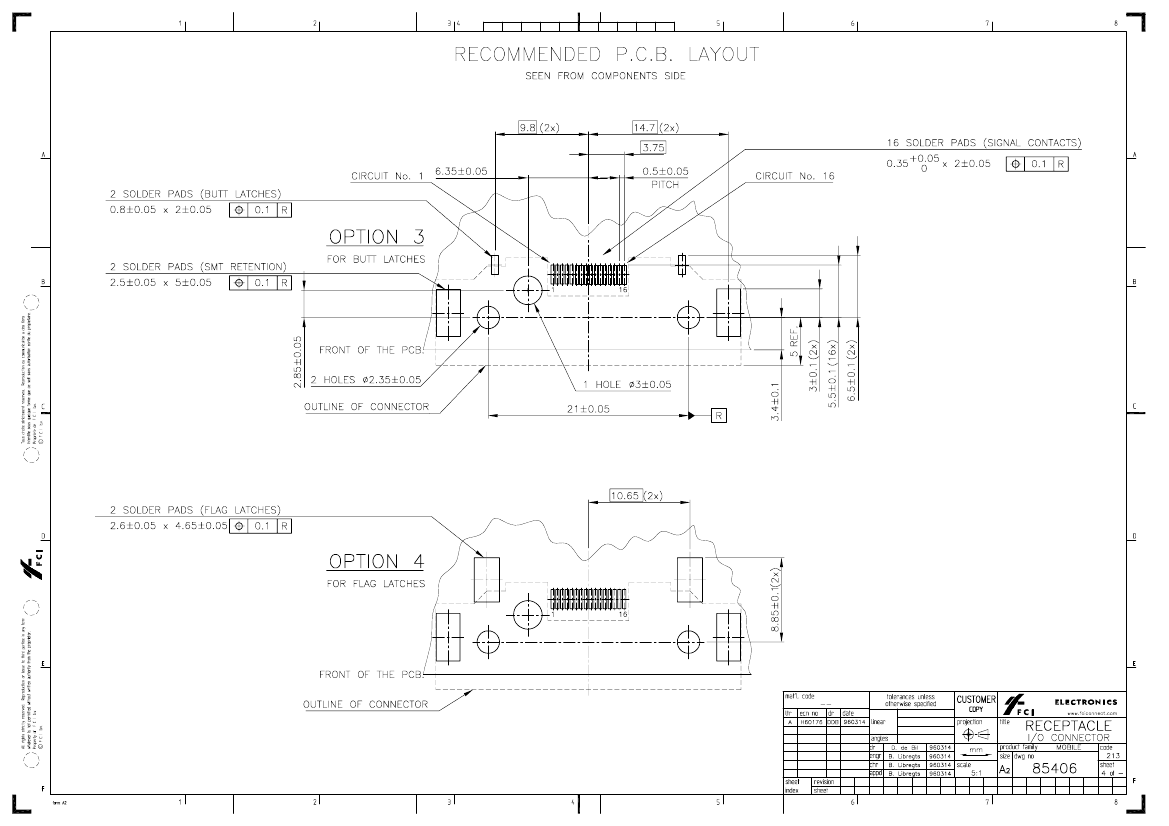

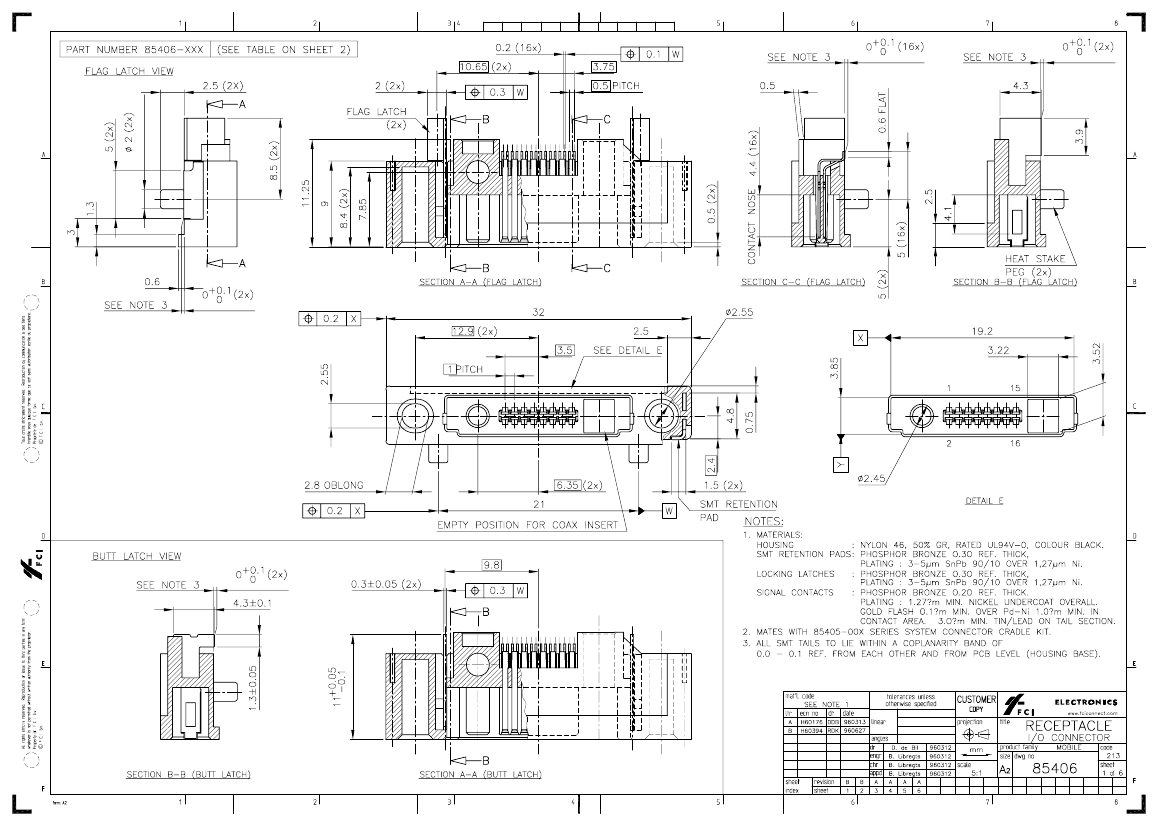

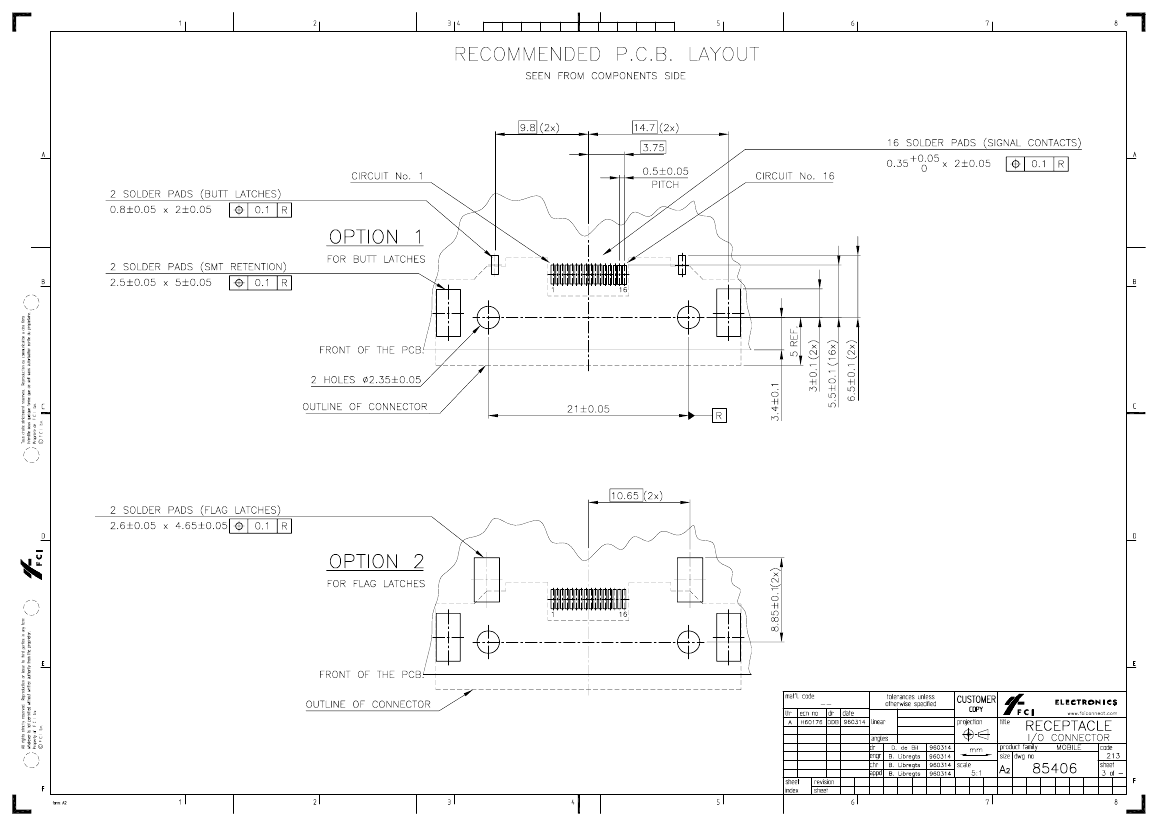

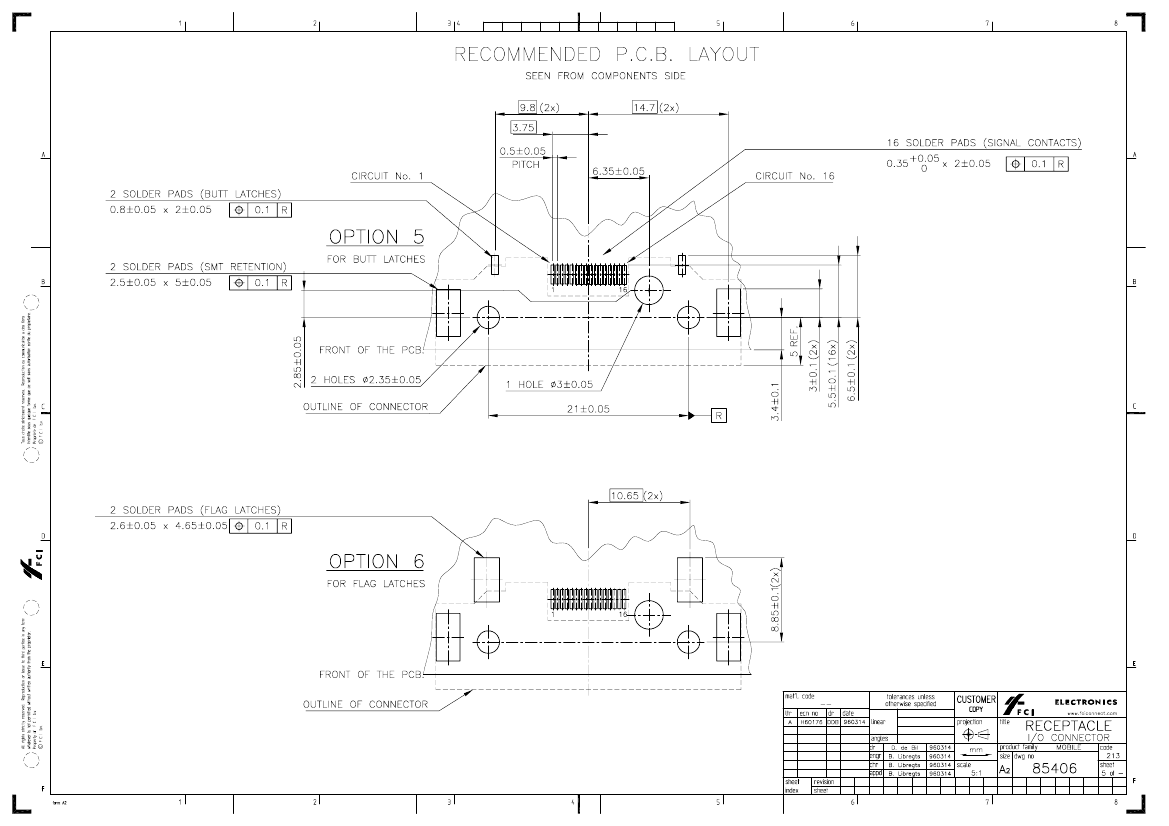

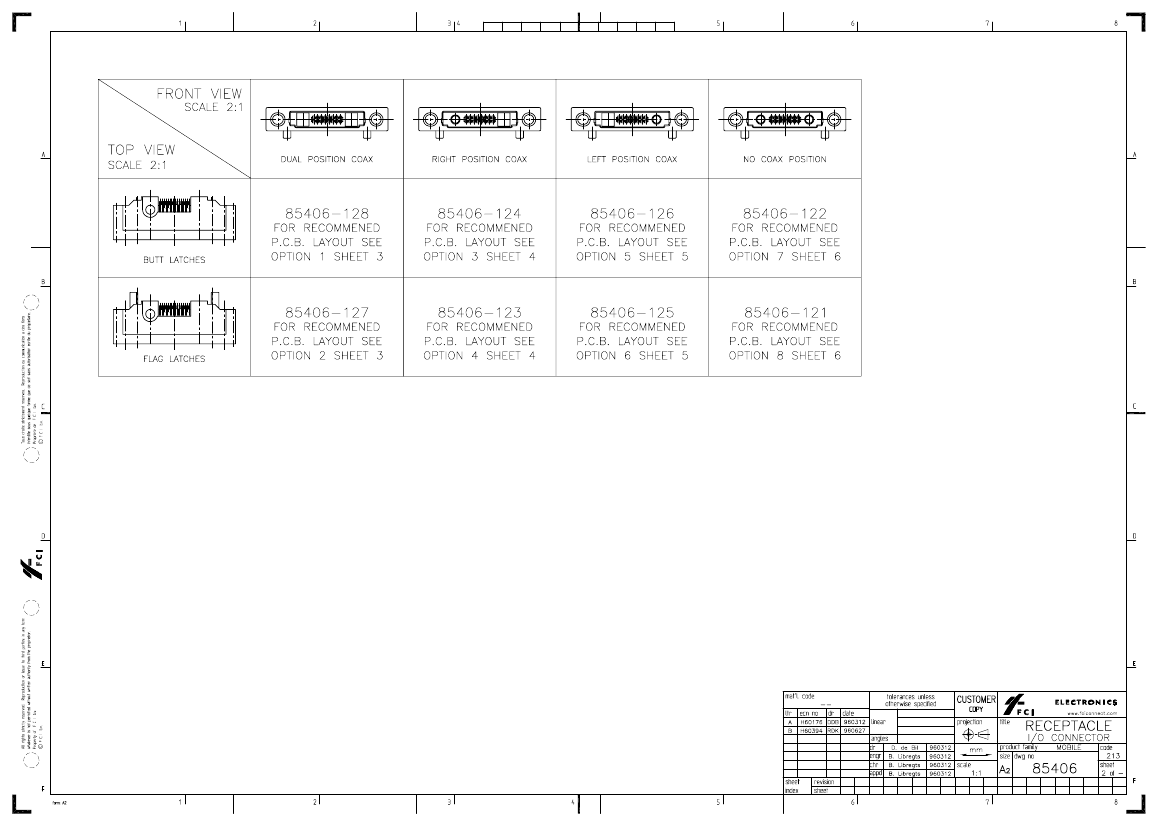

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 29, 2009

.

85406-127 Related Products

	85406-127	85406-121	85406-122	85406-123	85406-124	85406-125	85406-126	85406-128
Description	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL	GOLD FLASH (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL	TIN LEAD (118) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85406	85406	85406	85406	85406	85406	85406	85406
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	NO	NO	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	16	16	17	17	17	17	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
