BTW58-1300R datasheet, PDF - EEWORLD Datasheet

BTW58-1300R: DescriptionGate Turn-Off SCR, 6500mA I(T), 1300V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size672KB，12 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

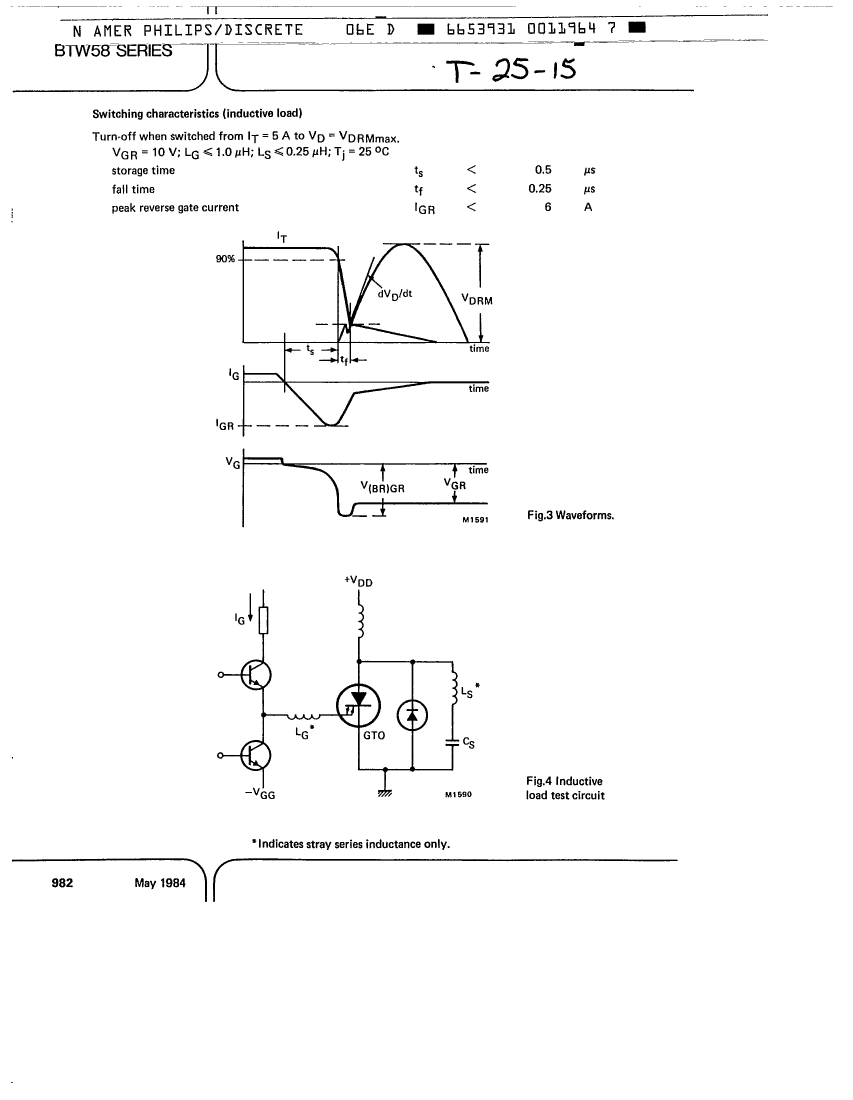

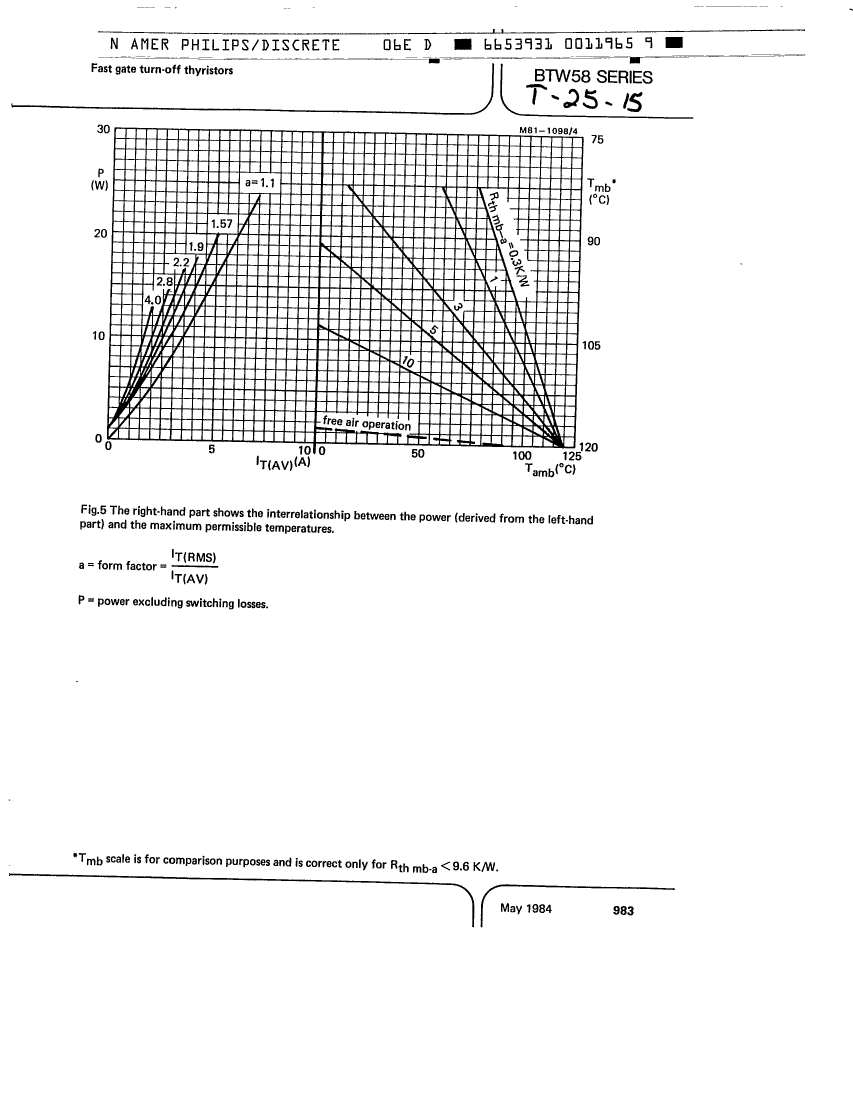

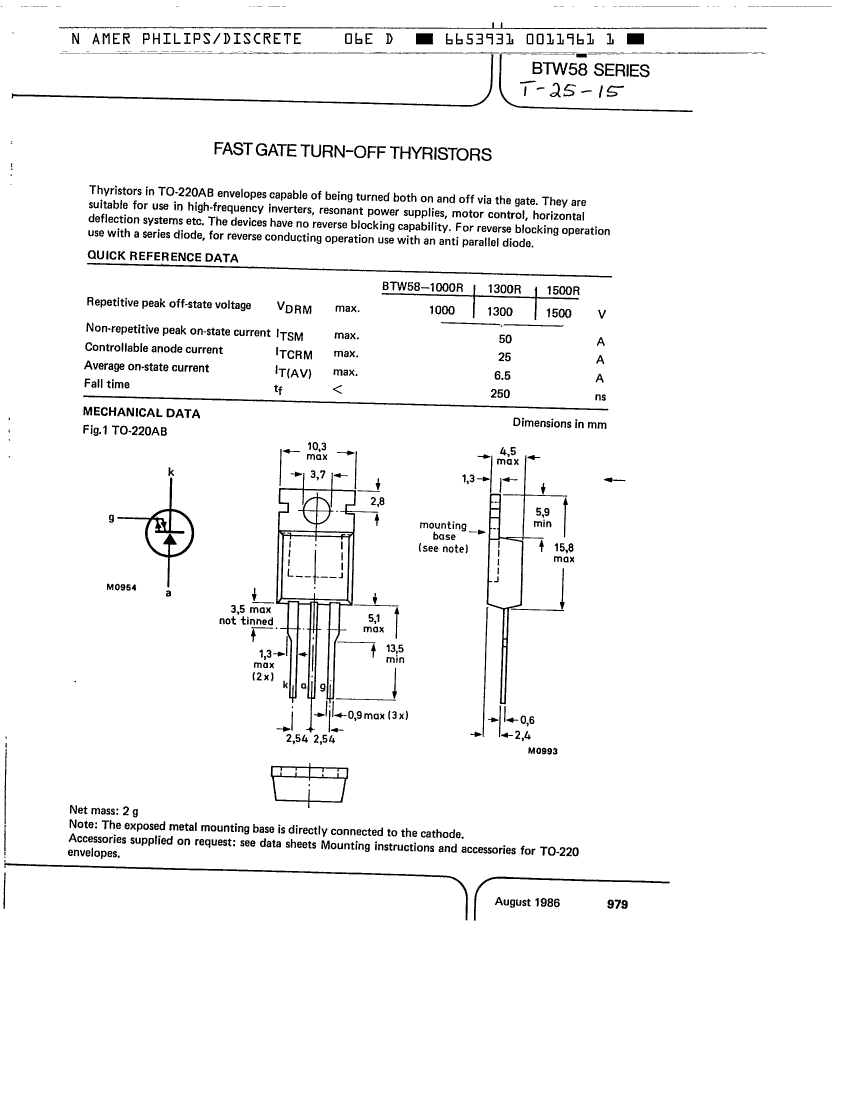

BTW58-1300R Overview

Gate Turn-Off SCR, 6500mA I(T), 1300V V(DRM),

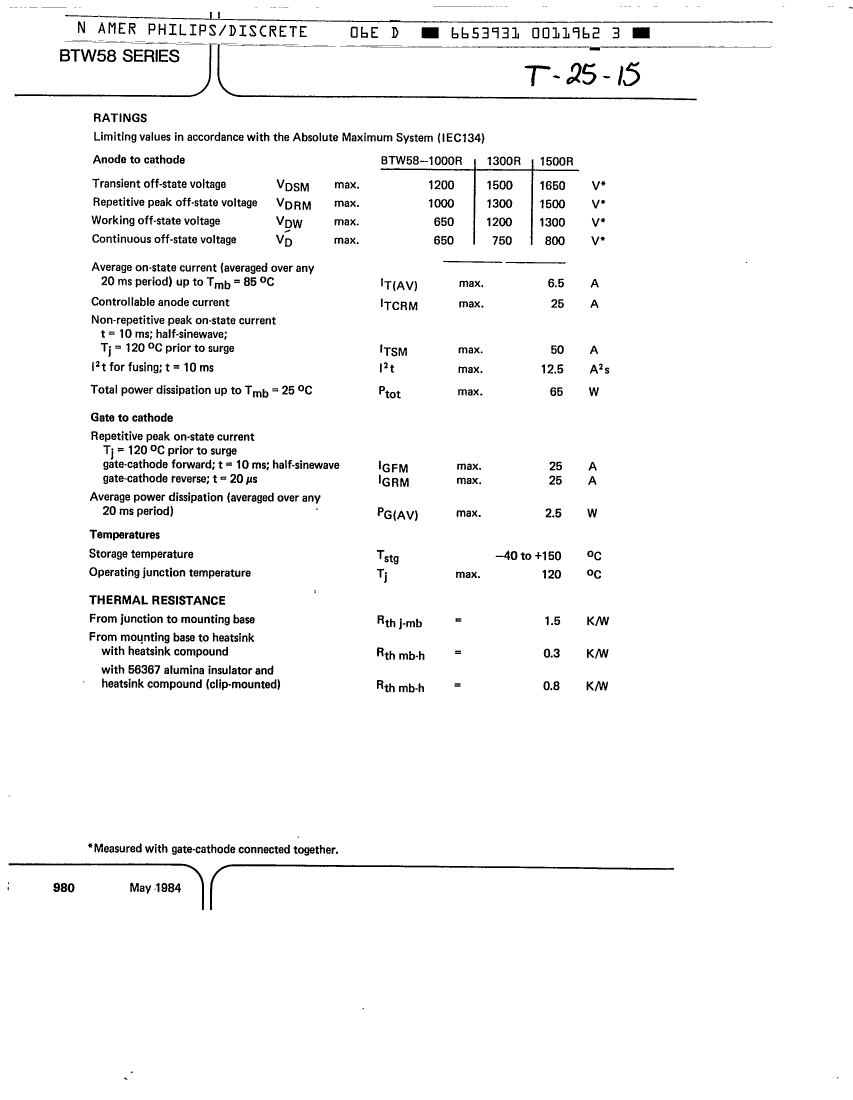

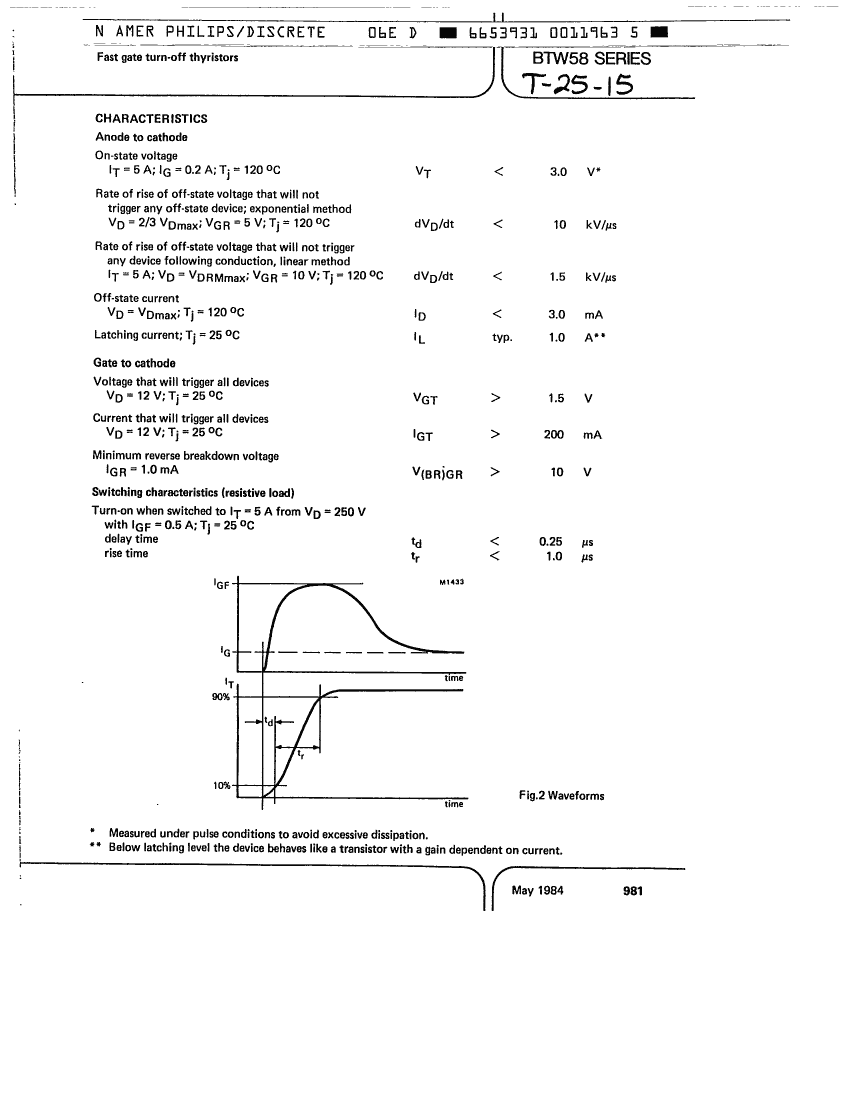

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	1.5 V
JESD-609 code	e0
Maximum leakage current	3 mA
On-state non-repetitive peak current	50 A
Maximum on-state voltage	3 V
Maximum on-state current	6500 A
Maximum operating temperature	120 °C
Off-state repetitive peak voltage	1300 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	GATE TURN-OFF SCR
Base Number Matches	1

	BTW58-1300R	BTW58-1500R
Description	Gate Turn-Off SCR, 6500mA I(T), 1300V V(DRM),	Gate Turn-Off SCR, 6500mA I(T), 1500V V(DRM),
Is it Rohs certified?	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown
Maximum DC gate trigger current	200 mA	200 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V
JESD-609 code	e0	e0
Maximum leakage current	3 mA	3 mA
On-state non-repetitive peak current	50 A	50 A
Maximum on-state voltage	3 V	3 V
Maximum on-state current	6500 A	6500 A
Maximum operating temperature	120 °C	120 °C
Off-state repetitive peak voltage	1300 V	1500 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	GATE TURN-OFF SCR	GATE TURN-OFF SCR
Base Number Matches	1	1
