76443-111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76443-111

76443-111: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

76443-111 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

76443-111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	76443
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

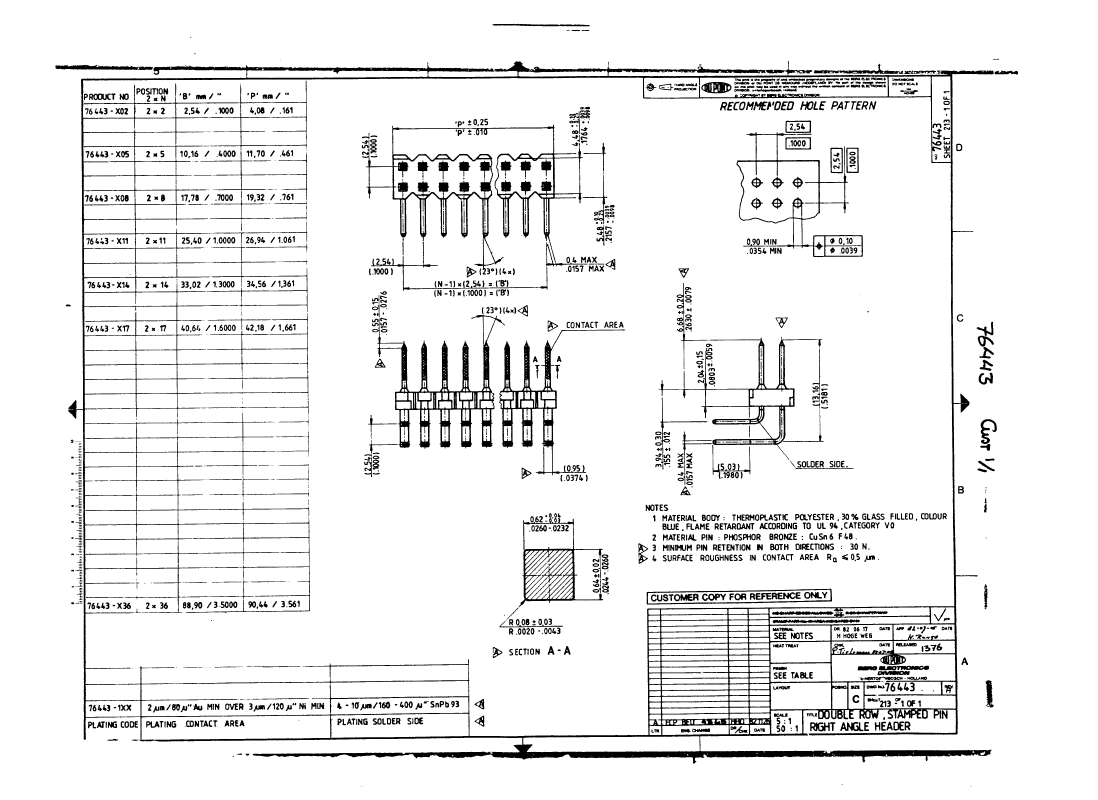

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Jun 05, 2006

76443-111 Related Products

	76443-111	76443-102	76443-105	76443-108	76443-114	76443-117	76443-136
Description	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 28 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 72 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	76443	76443	76443	76443	76443	76443	76443
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	4	10	16	28	34	72
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
