71-533728-34P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71-533728-34P

71-533728-34P: DescriptionMIL Series Connector, 34 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

71-533728-34P Overview

MIL Series Connector, 34 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle

71-533728-34P Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD:MIL-C-26482
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	71-5337
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB, CADMIUM PLATED
Shell material	ALUMINUM
Housing size	22
Termination type	SOLDER
Total number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

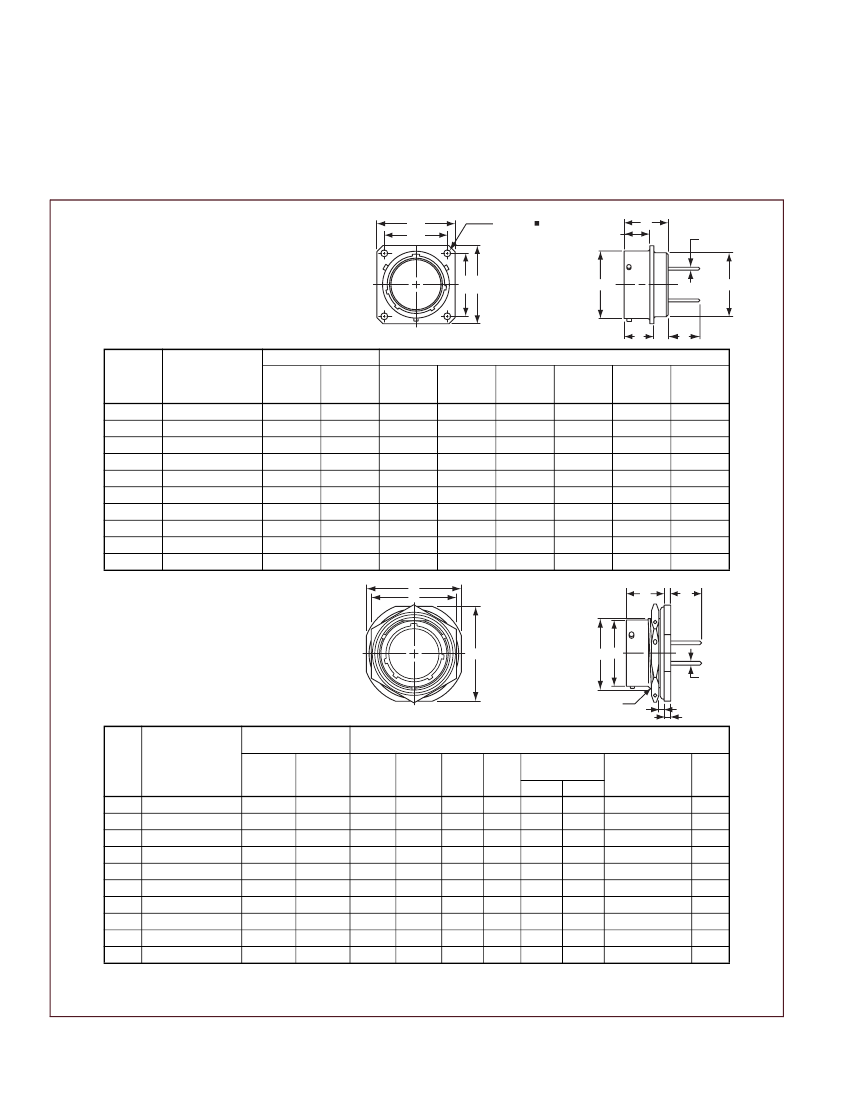

PT Connectors with

Printed Circuit Board Contacts

(TP)

4 HOLES

.120 ± .005 Dia.

(.147 ± .005 Dia., size 24)

.030 ± .001

Box Mounting Receptacle (PT02)

with PCB Contacts

Order by applicable part number in chart below;

add insert arrangement number. Refer to insert availability

on pages 4-11.

■

(MMC) located within .0025 of (TP)

Receptacle Front View

Shell

Size

Part Number*

PT02 with PCB

Contacts

(TP)

+.011

–.010

+.001

–.005

+.021

–.010

(TP)

R S

Receptacle Side View

Max.

+.010

–.000

Dia.

Max.

+.040

–.050

71-570120-XXX

71-570121-XXX

71-570122-XXX

71-570123-XXX

71-570124-XXX

71-570125-XXX

71-570126-XXX

71-570127-XXX

71-570128-XXX

71-570129-XXX

.469

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

.688

.812

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

.348

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

.493

.650

.683

.825

1.076

1.109

.431

.556

.589

.323

.449

.573

.699

.823

.949

1.073

1.199

1.323

1.449

.380

.286

.253

All dimensions for reference only.

Jam Nut Receptacle (PT07)

with PCB Contacts

All lockwire holes are .044 Dia. Min.

Order by applicable part number in chart below;

add insert arrangement number. Refer to insert availability

on pages 4-11.

Receptacle Front

View

Shell

Size

Part Number*

PT07 with PCB

Contacts

+.017

–.016

±.010

A Dia.

+.001

–.005

J Flat

+.000

–.010

J A

.030 ± .001

Receptacle Side View

+.011

–.010

±.010

P Panel

Thickness

Min.

Max.

Thread

Class 2A

+.025

–.035

71-533720-XXX

71-533721-XXX

71-533722-XXX

71-533723-XXX

71-533724-XXX

71-533725-XXX

71-533726-XXX

71-533727-XXX

71-533728-XXX

71-533729-XXX

.625

.750

.875

1.062

1.188

1.312

1.438

1.562

1.688

1.816

.812

.938

1.062

1.250

1.375

1.500

1.625

1.812

1.938

2.062

.348

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

.405

.530

.655

.818

.942

1.066

1.191

1.316

1.441

1.566

.125

.156

.696

.884

.917

.062

.125

.250

.4375-28 UNEF

.5625-24 UNEF

.6875-24 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.1250-18 UNEF

1.2500-18 UNEF

1.3750-18 UNEF

1.5000-18 UNEF

1.6250-18 UNEF

.376

.367

.334

All dimensions for reference only.

* For RoHS compliance connectors with PCB contacts change “71”- to:

“58” designates conductive black zinc cobalt plating

“93” designates non-conductive black zinc cobalt plating
