85351-302LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85351-302LF

85351-302LF: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

85351-302LF Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, ROHS COMPLIANT

85351-302LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.346 inch
subject depth	0.629 inch
body length	0.476 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	GRAY
MIL compliance	NO
Manufacturer's serial number	85351
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	3
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

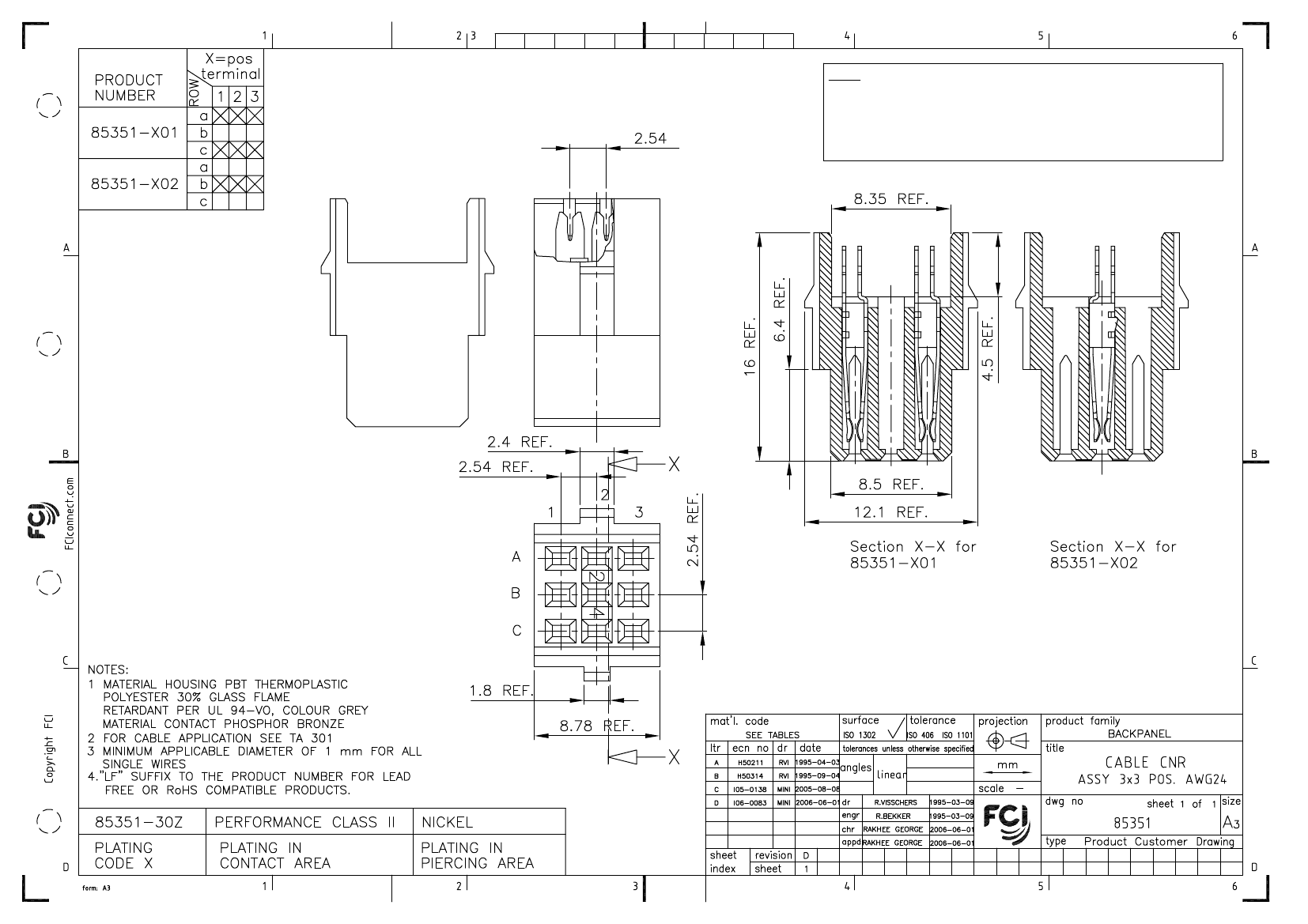

Preview

Download Datasheet

View All

NOTE:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND

OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008.

2. LEAD FREE OR RoHS DIRECTIVE LABELLING TO BE PROVIDED AS

PER GS-14-920 FOR LEAD FREE VERSION.

PDM: Rev:D

STATUS:

Released

Printed: May 14, 2011

85351-302LF Related Products

	85351-302LF	85351-301	85351-302	85351-301LF
Description	Board Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, ROHS COMPLIANT	Board Connector, 6 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator	Board Connector, 3 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator	Board Connector, 6 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, ROHS COMPLIANT
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.346 inch	0.346 inch	0.346 inch	0.346 inch
subject depth	0.629 inch	0.629 inch	0.629 inch	0.629 inch
body length	0.476 inch	0.476 inch	0.476 inch	0.476 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulator color	GRAY	GRAY	GRAY	GRAY
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	85351	85351	85351	85351
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	2	1	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	3	6	3	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG
