858-F050-B212-009X datasheet, PDF

Datasheet> All Categories > The connector> The connector> 858-F050-B212-009X

858-F050-B212-009X: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

858-F050-B212-009X Overview

Telecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT

858-F050-B212-009X Parametric

Parameter Name	Attribute value
Objectid	1039608782
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
YTEOL	7.5
Other features	SHIELDED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact style	BELLOWED TYPE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

Amphenol

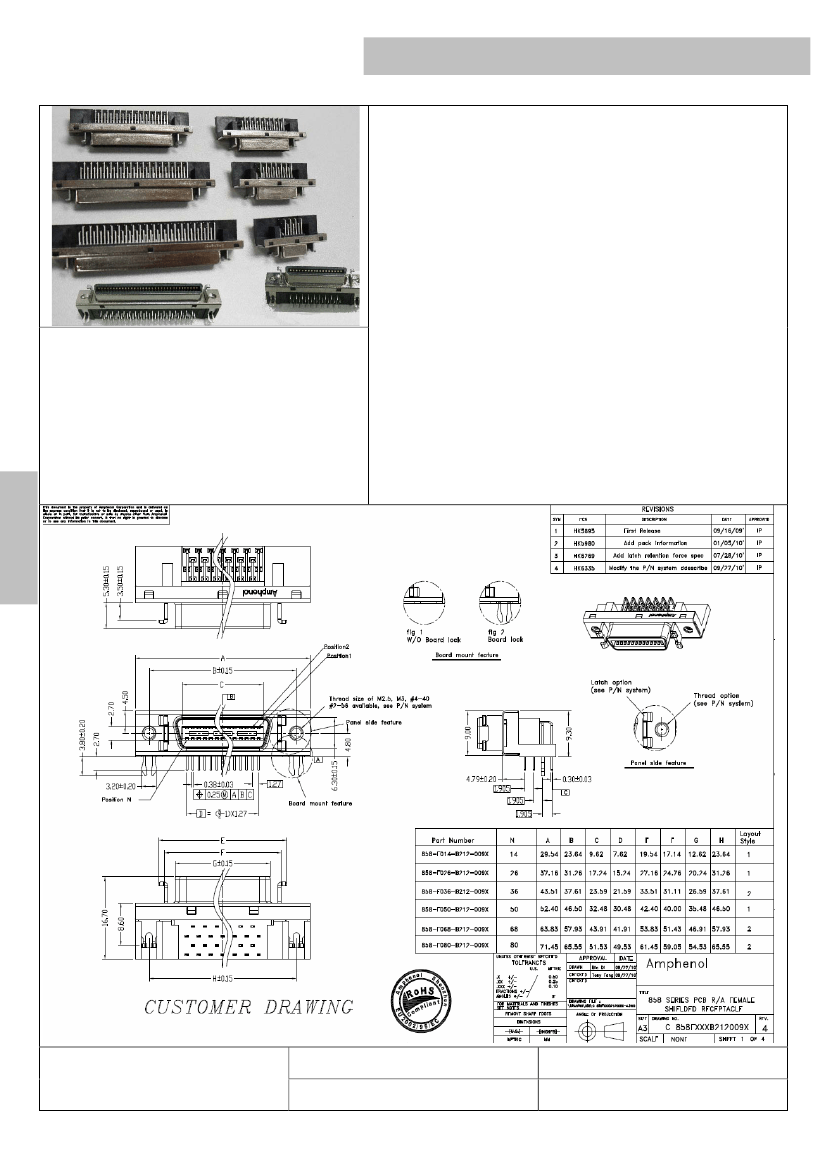

MDR FEMALE R/A PCB CONNECTOR

1.Material:

Contact:Copper Alloy

Insulator:High temperature Thermoplastic.

Shell:Copper Alloy

2.Finish :

Contact:Gold plated on contact area

Nikel plated over all

Tin plated on solder area

Shell:Nikel

3.Electrical specifications:

Current rating:1 A

Contact Resistance:35 milliohms maximum.

Insulator Resistance:100MΩ Min

Dielectric withstanding voltage:500VAC

4.Packaging:

Parts to be packaged in T&R

All packaging materials to be approved by Amphenol

engineering.

Part Number: 858FXXXB212009X

Part Description: MDR FEMALE R/A PCB

MDR

Female

14,26,36,50,68,80 pins;

R/A PCB;

Packing in T&R;

ROHS Compliance.

858 Connector

Amphenol

Website:http//www.amphenol.com.cn

Product Series:

858

Revision A

Part Number:

858FXXXB212009X

Release date: Dec 20,2010

858-F050-B212-009X Related Products

	858-F050-B212-009X	858-F026-B212-009X	858-F014-B212-009X	858-F036-B212-009X	858-F068-B212-009X	858-F080-B212-009X
Description	Telecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 80 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT
Objectid	1039608782	1039608780	1039608779	1039608781	1039608783	1039608784
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	26	14	36	68	80
Manufacturer's serial number	-	858	858	858	858	858
