Part Number

Search

86093968813765E1LF

Description
Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE
CategoryThe connector    The connector
File Size126KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

86093968813765E1LF Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE

86093968813765E1LF Parametric

Parameter NameAttribute value
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresSTANDARD: DIN 41612
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedMATTE TIN OVER NICKEL
Contact point genderFEMALE
DIN complianceYES
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number8609
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts96
UL Flammability Code94V-0
Base Number Matches1

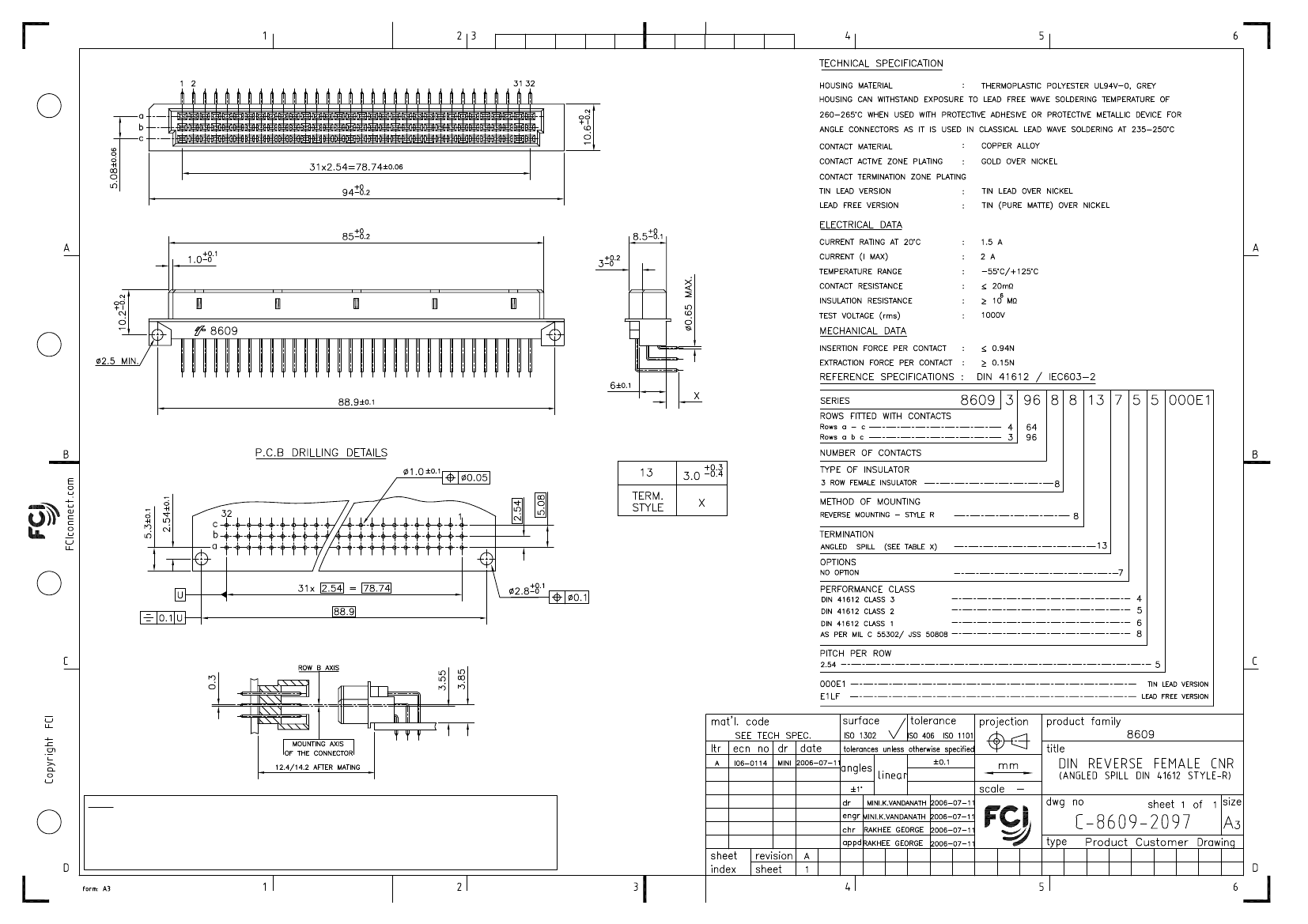

NOTES:-
1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008
2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION
WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD
3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.
PDM: Rev:A
STATUS:
Released
Printed: May 14, 2011
.
