A1440BP-1TQ176I: DescriptionField Programmable Gate Array, 564 CLBs, 4000 Gates, CMOS, PQFP176, 1.40 MM HEIGHT, MO-136, TQFP-176; CategoryProgrammable logic devices Programmable logic; File Size118KB，4 Pages; ManufacturerActel; Websitehttp://www.actel.com/

Download Datasheet Parametric Compare View All

A1440BP-1TQ176I Overview

Field Programmable Gate Array, 564 CLBs, 4000 Gates, CMOS, PQFP176, 1.40 MM HEIGHT, MO-136, TQFP-176

A1440BP-1TQ176I Parametric

Parameter Name	Attribute value
package instruction	LFQFP,
Reach Compliance Code	compli
Other features	MAX 140 I/OS
JESD-30 code	S-PQFP-G176
length	24 mm
Configurable number of logic blocks	564
Equivalent number of gates	4000
Number of terminals	176
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	564 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	24 mm
Base Number Matches	1

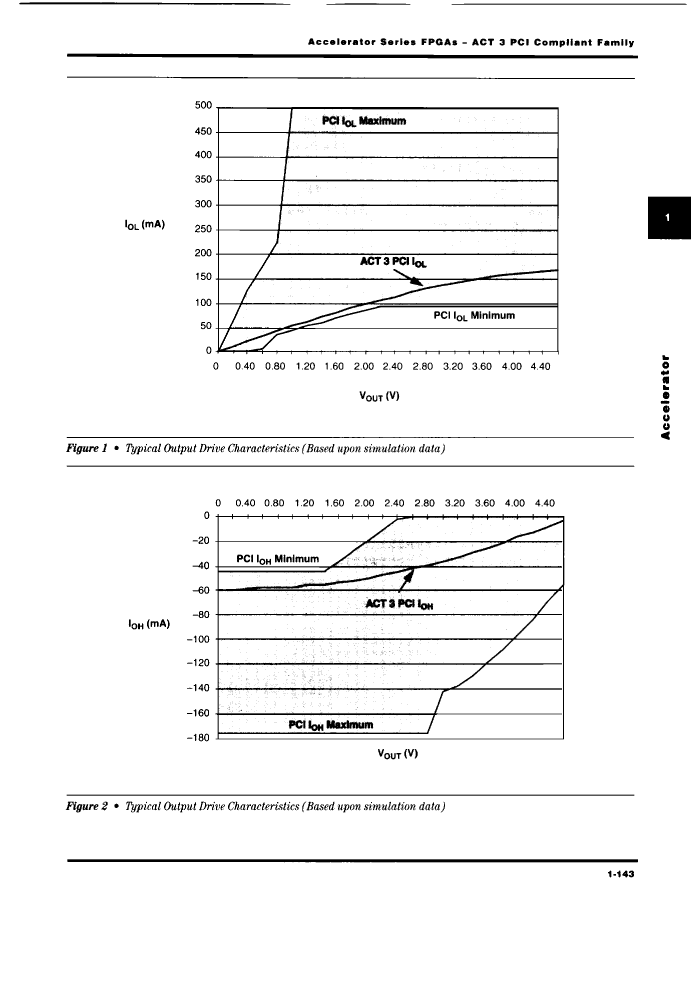

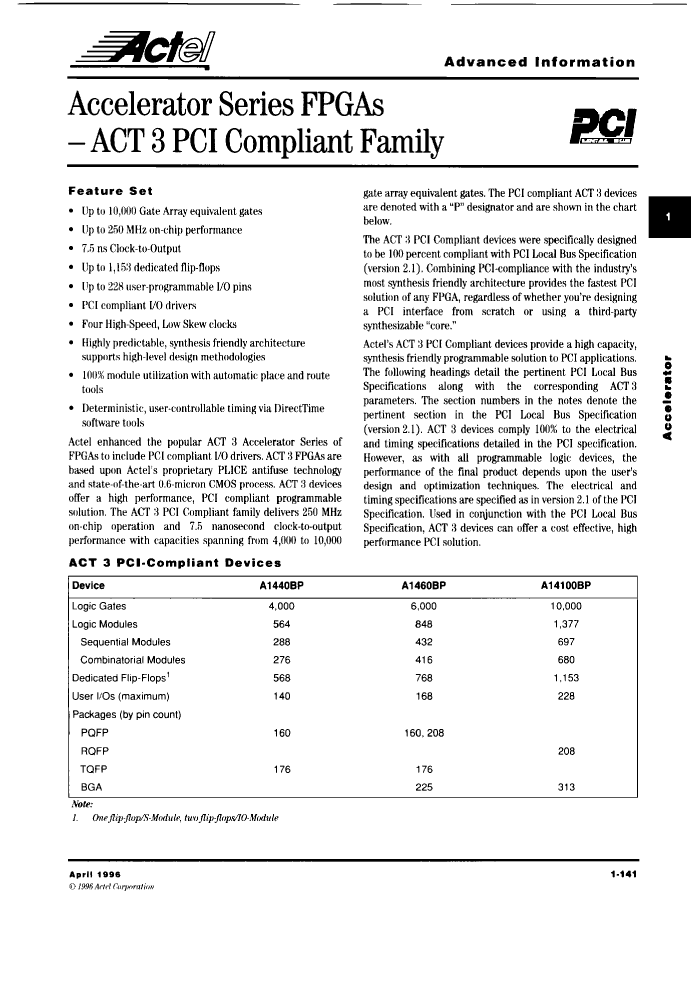

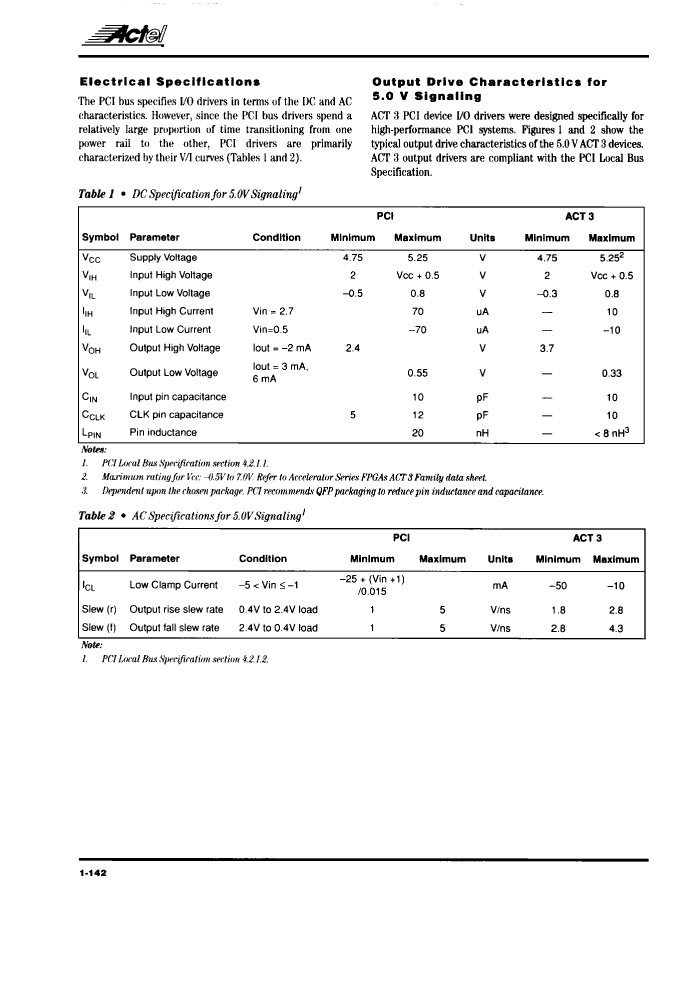

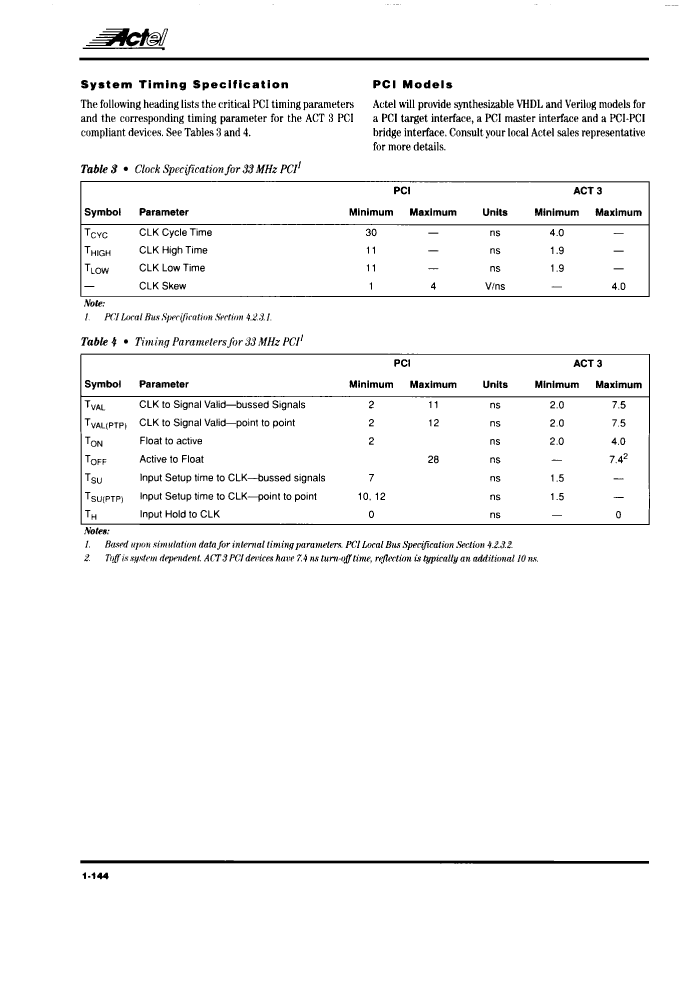

Preview

Download Datasheet

View All

A1440BP-1TQ176I Related Products

	A1440BP-1TQ176I	A1440BP-TQ176C	A1440BP-2TQ176C
Description	Field Programmable Gate Array, 564 CLBs, 4000 Gates, CMOS, PQFP176, 1.40 MM HEIGHT, MO-136, TQFP-176	Field Programmable Gate Array, 564 CLBs, 4000 Gates, CMOS, PQFP176, 1.40 MM HEIGHT, MO-136, TQFP-176	Field Programmable Gate Array, 564 CLBs, 4000 Gates, CMOS, PQFP176, 1.40 MM HEIGHT, MO-136, TQFP-176
package instruction	LFQFP,	LFQFP,	LFQFP,
Reach Compliance Code	compli	compli	compli
Other features	MAX 140 I/OS	MAX 140 I/OS	MAX 140 I/OS
JESD-30 code	S-PQFP-G176	S-PQFP-G176	S-PQFP-G176
length	24 mm	24 mm	24 mm
Configurable number of logic blocks	564	564	564
Equivalent number of gates	4000	4000	4000
Number of terminals	176	176	176
Maximum operating temperature	85 °C	70 °C	70 °C
organize	564 CLBS, 4000 GATES	564 CLBS, 4000 GATES	564 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage	5.5 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD
width	24 mm	24 mm	24 mm
Base Number Matches	1	1	1
