N74ALS245A-1D-T datasheet, PDF

Datasheet> All Categories > logic> logic> N74ALS245A-1D-T

N74ALS245A-1D-T: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDSO20,; Categorylogic logic; File Size386KB，9 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

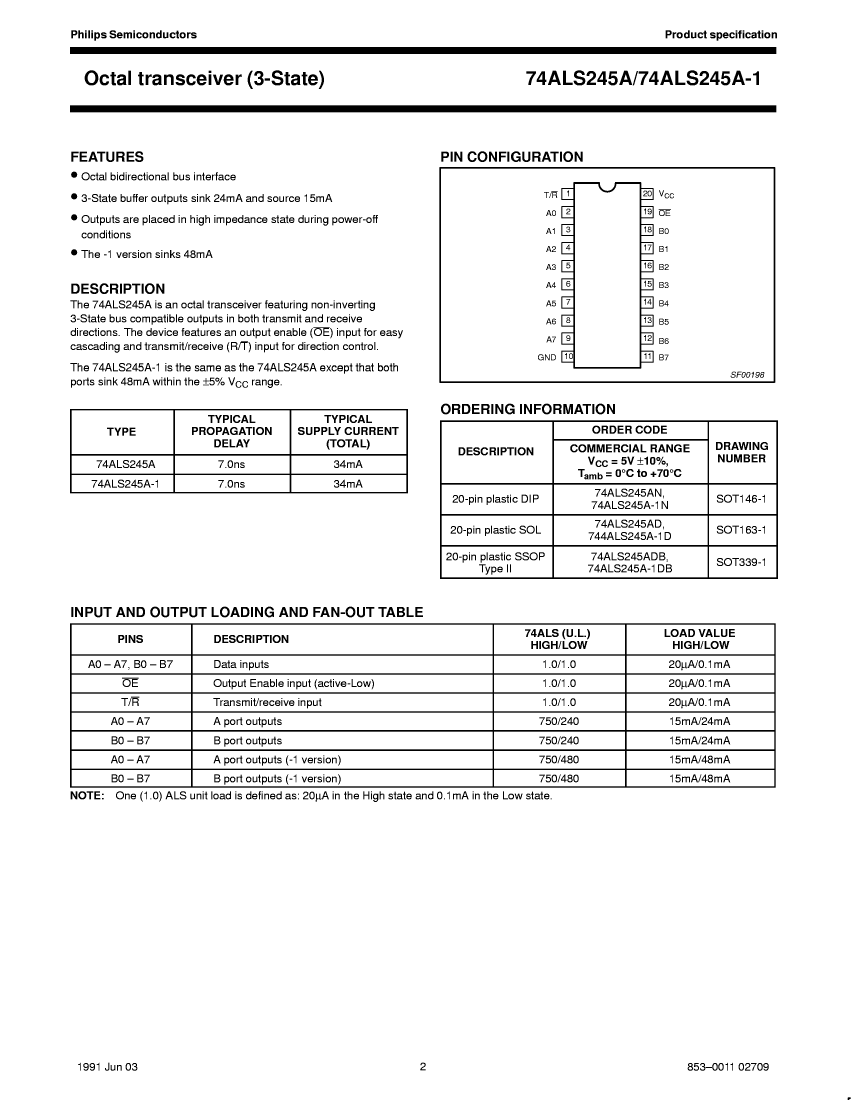

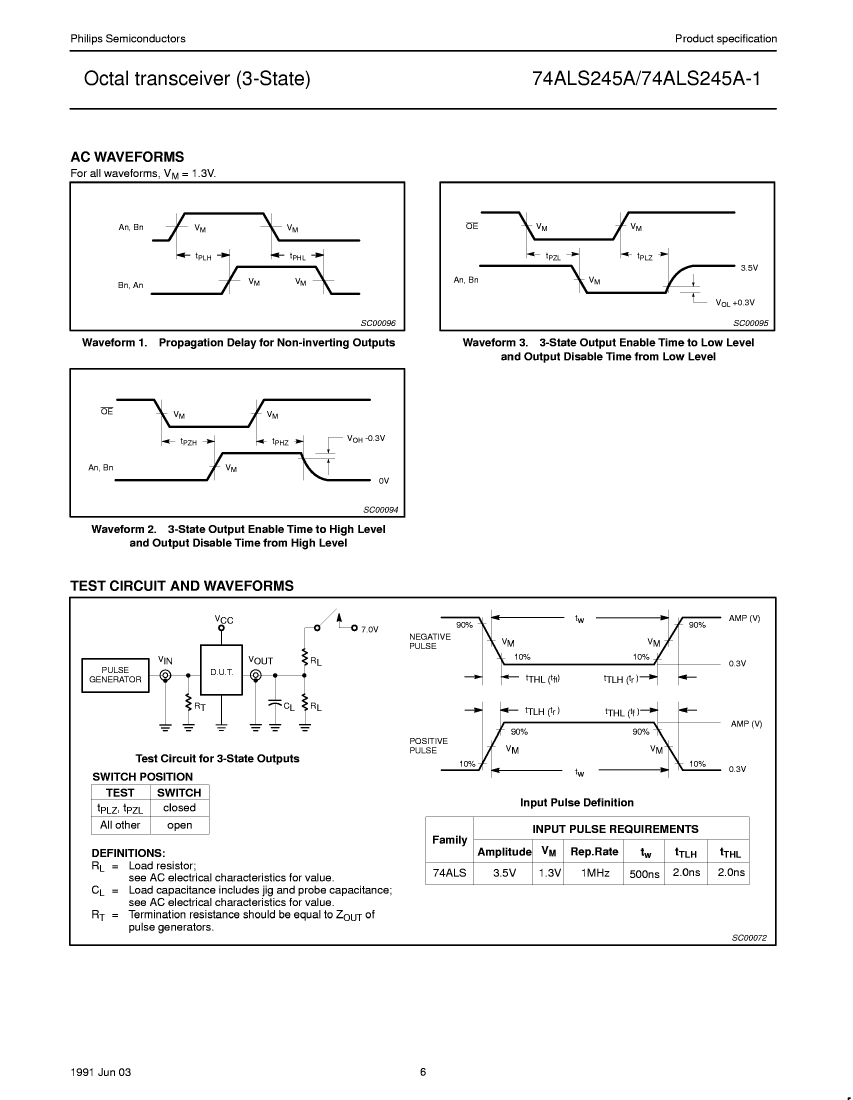

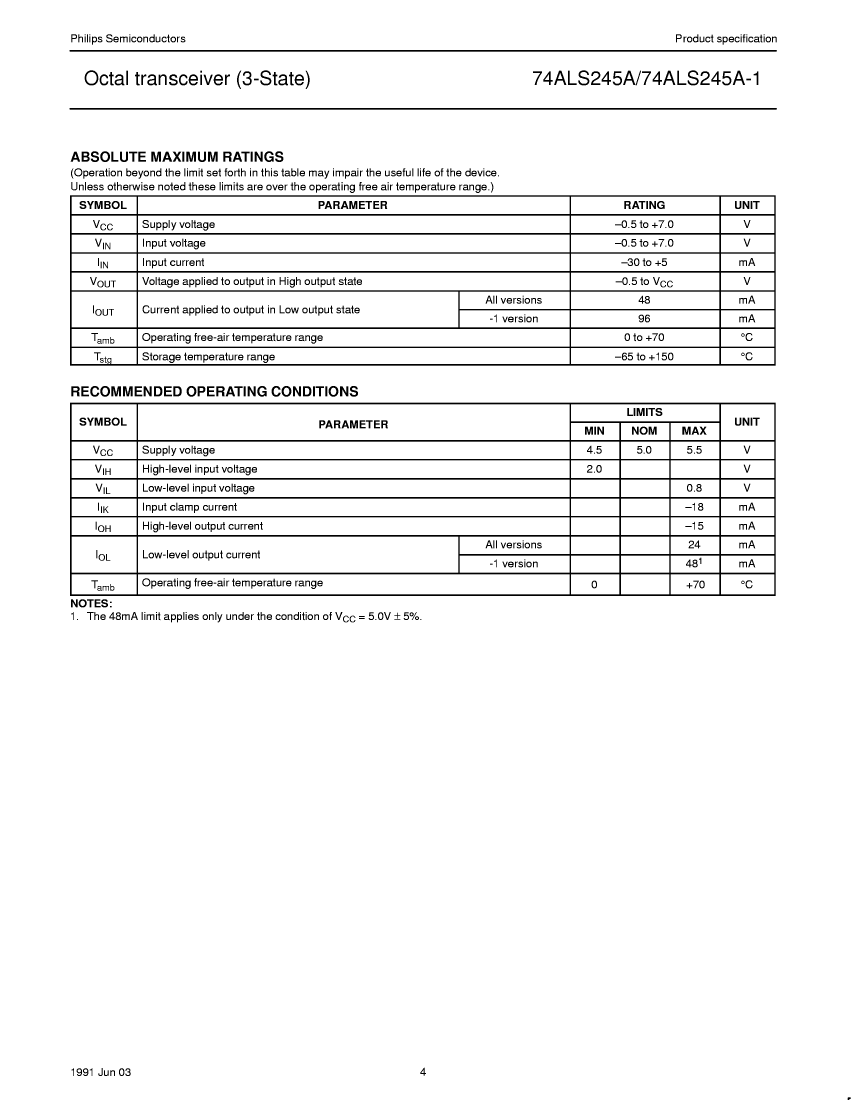

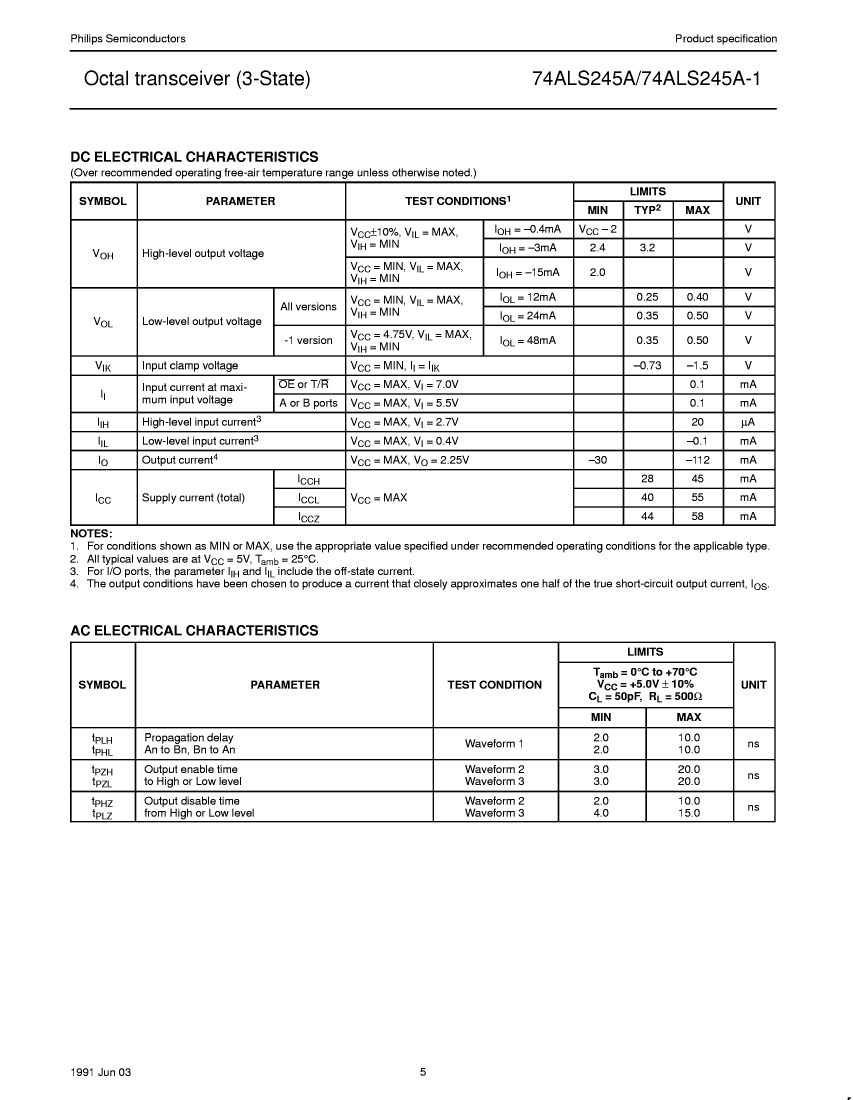

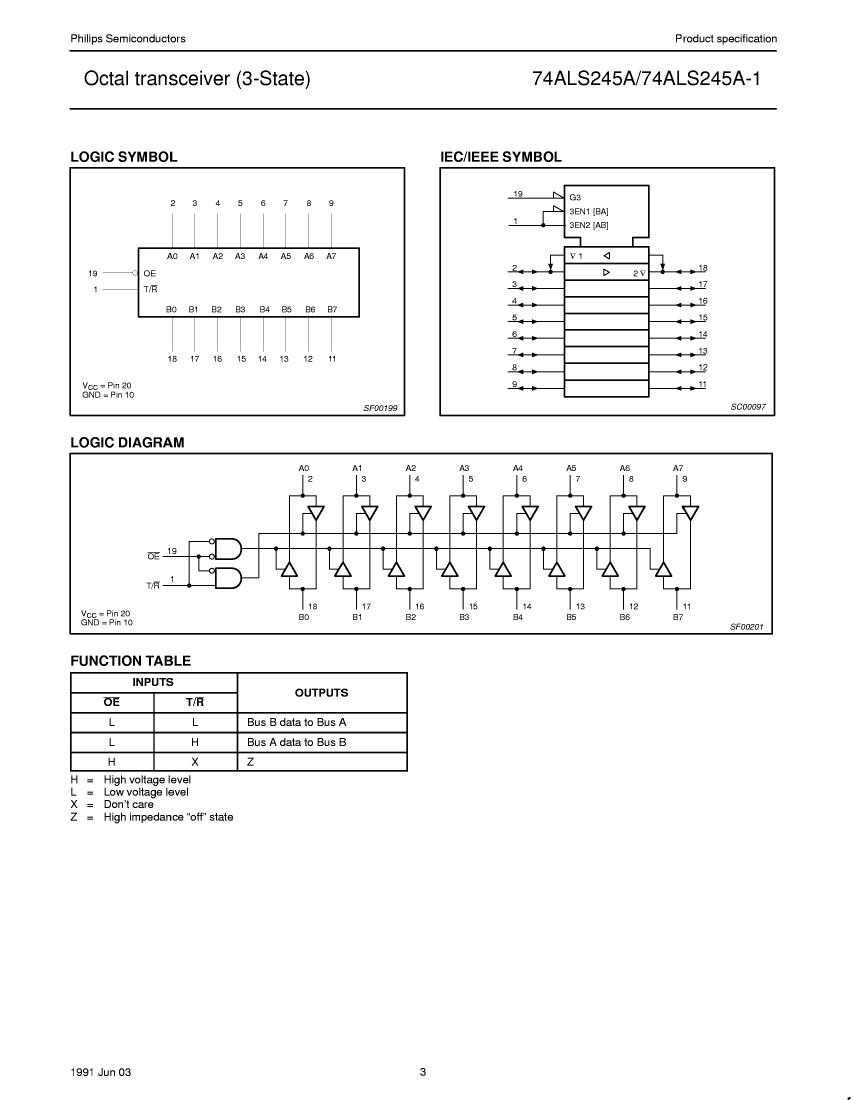

N74ALS245A-1D-T Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDSO20,

N74ALS245A-1D-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	58 mA
Prop。Delay @ Nom-Sup	20 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

N74ALS245A-1D-T Related Products

	N74ALS245A-1D-T	N74ALS245A-1DB-T	N74ALS245A-1N-B
Description	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDSO20,	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDSO20,	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, TTL, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0	e0
MaximumI(ol)	0.048 A	0.048 A	0.048 A
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	SOP20,.4	SOP20,.4	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	58 mA	58 mA	58 mA
Prop。Delay @ Nom-Sup	20 ns	20 ns	20 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
package instruction	SOP, SOP20,.4	SOP, SOP20,.4	-
Certification status	Not Qualified	Not Qualified	-
