74
Note for wire range
A

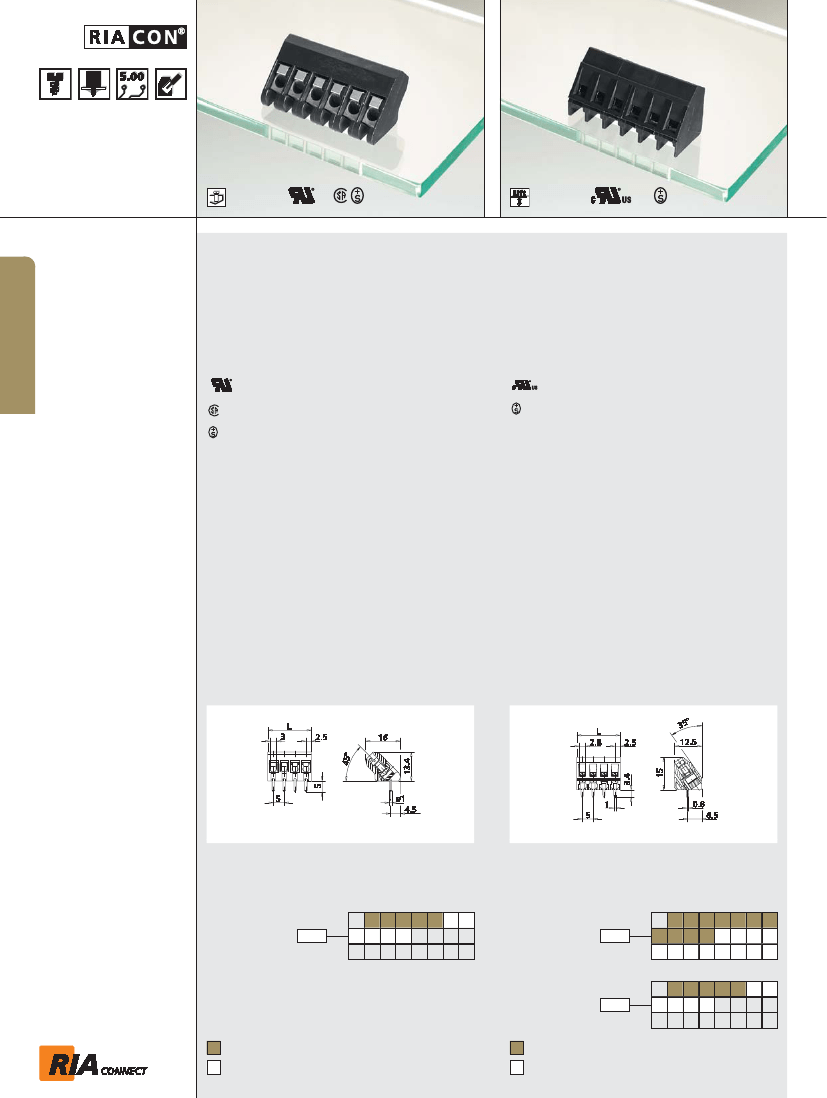

Type 005
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, wire entry 45°, wire protector
Type 205
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, wire entry 35°, lift system
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 05
#(2) Wire range extended
to No. 26 AWG for
factory-wiring.
Two same size wires
22 - 16 AWG Cu,
Sol/Str for field;
No. 26 - 16 AWG Cu,
Sol/Str for factory.
+
Two same size wires
No. 22 - 16 AWG Cu,
Sol/Str for field-wiring;
No. 30 - 16 AWG Cu,
Sol/Str factory-wiring.
Technical Data
V / A / AWG
V / A / AWG
300 / 20 / 22 - 12
300 / 15 / 22 - 12
Technical Data
V / A / AWG
300 / 15 / 28 - 12
0.08 - 2.5 mm² 250 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.2 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
7 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
3.4 mm
Pole size
2 - 24
Color
black
0.33 - 2.5 mm² 250 V / 2.5 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
5 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 005
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 205
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5 mm / 0.197 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
310051
P/N
312051
Type 205
centerline 10 mm / 0.394 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
312052
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
