3119A-AQB70-20.736MHZ: DescriptionTTL Output Clock Oscillator, 20.736MHz Nom, COMPACT, METAL, DIP-3; CategoryPassive components oscillator; File Size27KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric Compare View All

3119A-AQB70-20.736MHZ Overview

TTL Output Clock Oscillator, 20.736MHz Nom, COMPACT, METAL, DIP-3

3119A-AQB70-20.736MHZ Parametric

Parameter Name	Attribute value
Maker	NDK
Reach Compliance Code	unknown
Frequency Adjustment - Mechanical	YES
frequency stability	5%
Manufacturer's serial number	3100
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	20.736 MHz
Maximum operating temperature	60 °C
Minimum operating temperature
Oscillator type	TTL
Output load	2 TTL
physical size	20mm x 13mm x 8mm
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

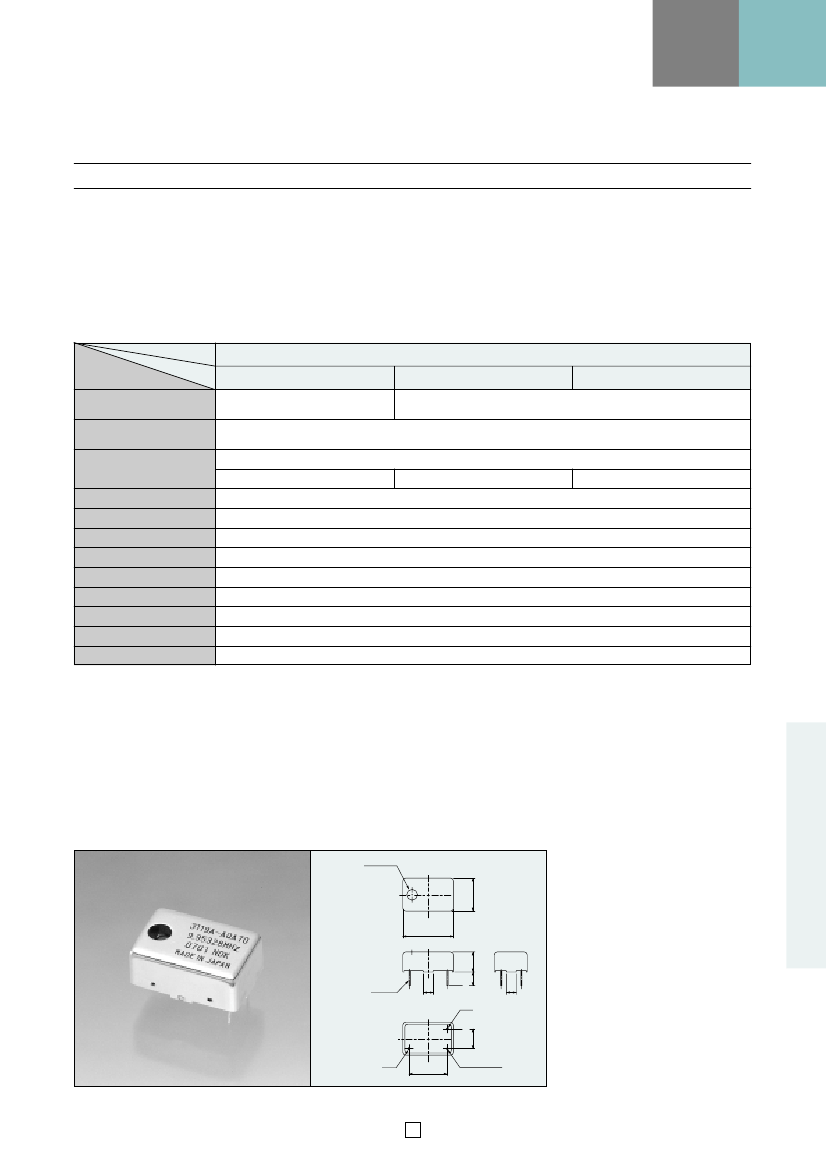

SIMPLE PACKAGED CRYSTAL OSCILLATORS 3100 SERIES

s

Model 3119A

s

Main applications : Facsimilies, OA products

s

Features

8

Compactness and light weight in addition

to the use of DIP14 pin compatible pack-

age.

8

High-reliability metal package (grounded

package)

s

Specification

Model

Item

Spec. Code

AQA70

6.2208

9.95328

4~25

±5×10

–6

0~+50°C

0~+60°C

±1×10

–6

/+5V±10%

+5VDC

20mA max

V

OL

:0.4Vmax V

OH

: 2.4Vmin

40~60% (1.4V)

N–TTL2

±2×10

–6

/year

±5×10

–6

min

19A

–10~+60°C

3119A

AQB70

20.736

24.00014

AQE70

Standard Frequency

(MHz)

Frequency Range

(MHz)

Frequency Stability

Supply Volt Change

Supply Voltage

Current Consumption

V

OL

max/V

OH

min

Duty Cycle

Fanout (gate)

Aging

Frequency Trim Range

Case Code

Note: Frequency adjustment condition

(1) Adjustment is conducted in room temperature (+25±2°C)

This oscillator is shipped after frequency adjustment at NDK. But if you need to trim frequency by trimmer condenser, please make sure that the

driver fits trimmer rotor hole. Also do not apply pressure to trimmer rotor.

If you need NON-standard spec., please contact us.

CRYSTAL OSCILLATORS

s

Dimensions

19A

FREQ.ADJ.

(mm)

13.0

20.0

5±1 8.0

3-ø0.5

4

GND

7.62±0.3

+DC

15.24±0.3

OUTPUT

113
