BZX85B7V5: Description7.5 V, 1.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41; Categorysemiconductor Discrete semiconductor; File Size141KB，2 Pages; ManufacturerSEMTECH_ELEC; Websitehttp://www.semtech.net.cn

Download Datasheet View All

BZX85B7V5 Overview

7.5 V, 1.3 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41

Preview

Download Datasheet

View All

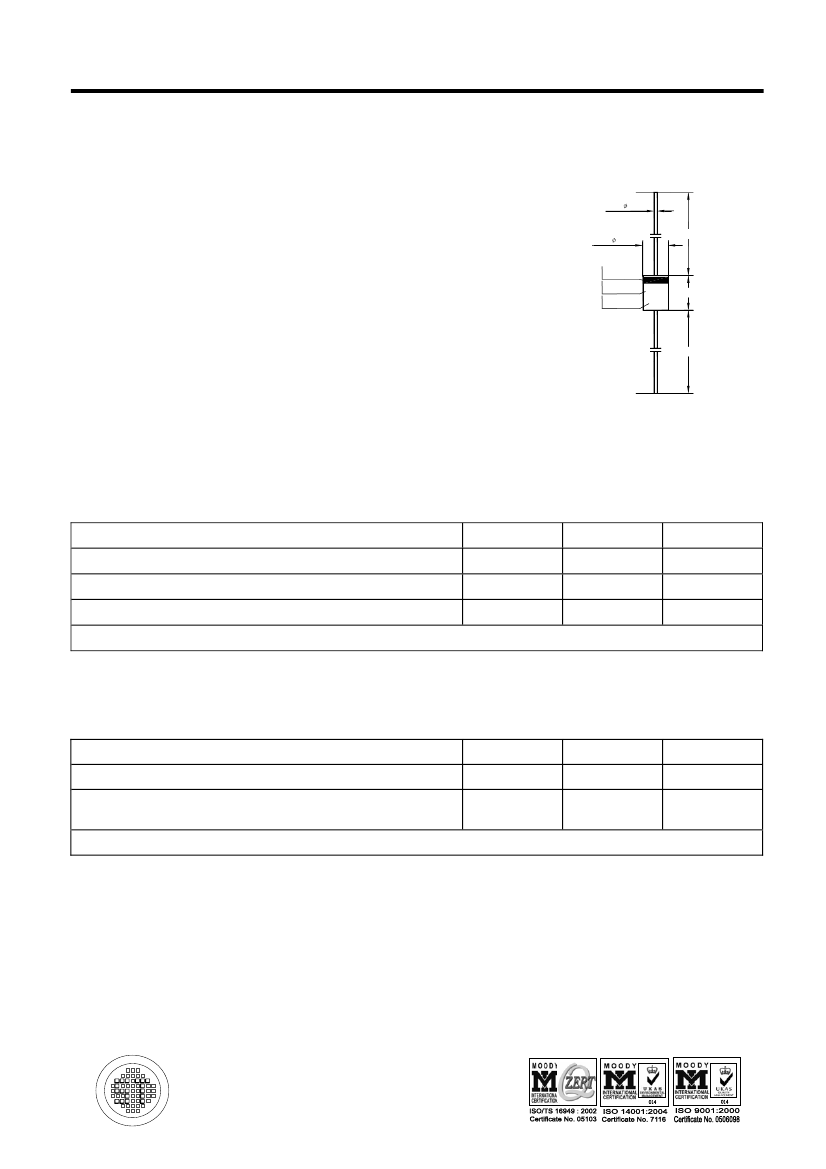

BZX85B

SILICON PLANAR POWER ZENER DIODES

for use in stabilizing and clipping circuits with high

power rating.

Max. 0.7

Max. 2.8

Min. 25.4

Black

Cathode Band

Black

Part No.

Black

"ST" Brand

XXX

Max. 4.2

Min. 25.4

Glass Case DO-41

Dimensions in mm

Absolute Maximum Ratings (T

= 25

Parameter

Power Dissipation

Junction Temperature

Storage Temperature Range

Symbol

tot

Value

1.3

Unit

200

- 55 to + 200

Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature.

Characteristics at T

= 25

Parameter

Thermal Resistance Junction to Ambient Air

Forward Voltage

at I

= 200 mA

Symbol

thA

Max.

130

1.2

Unit

K/W

Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature.

SEMTECH ELECTRONICS LTD.

(Subsidiary

of Sino-Tech International Holdings Limited, a company

listed on the Hong Kong Stock Exchange, Stock Code: 724)

Dated : 12/06/2007
