SCM141100L

Description
Modular Terminal Block, 20A, 2 Row(s), 1 Deck(s)
CategoryThe connector    terminals
File Size69KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

SCM141100L Overview

Modular Terminal Block, 20A, 2 Row(s), 1 Deck(s)

SCM141100L Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresNYLON, UL 94V-0
Fastening methodSPRING LOADED
Manufacturer's serial numberSCM
Installation typeBOARD
Number of layers1
Rows2
Number of channels28
Rated current20 A
Rated voltage300 V
safety certificateUL; VDE; CSA
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Wire gauge12 AWG
Base Number Matches1

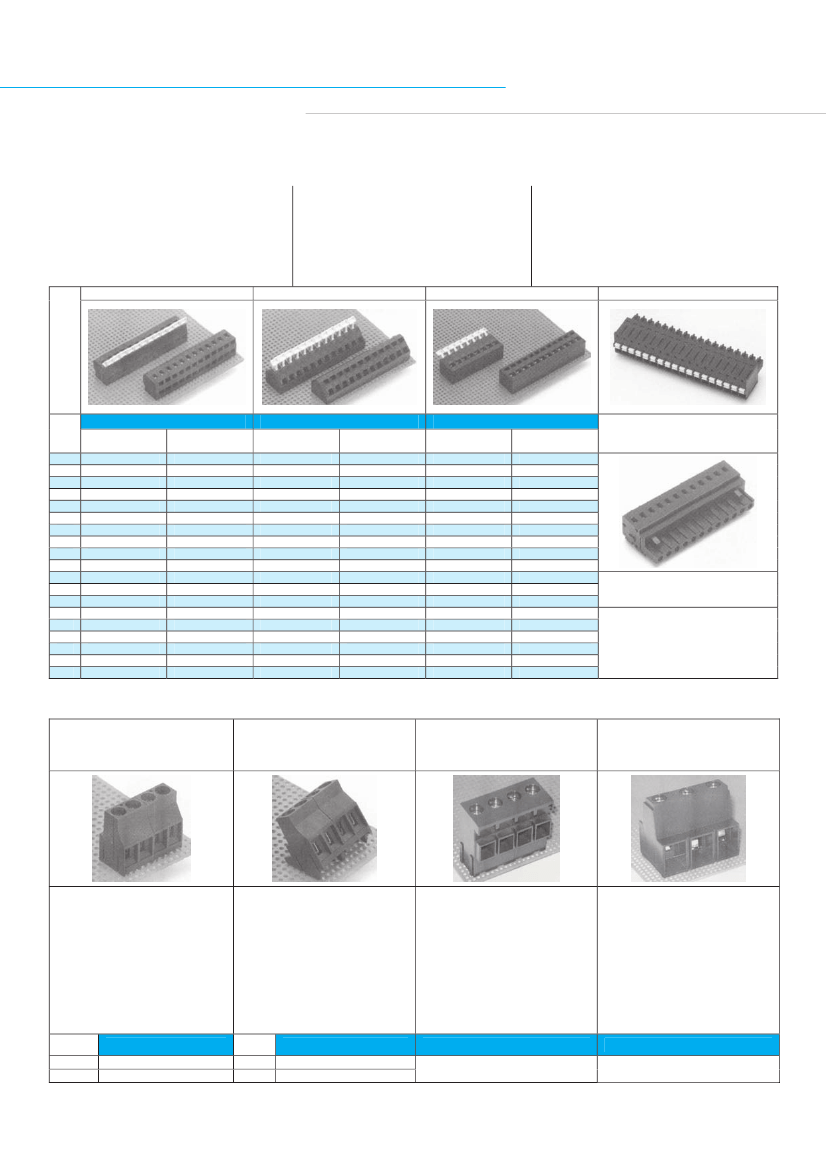

Amphenol
Terminal Blocks
Clamp Blocks
Wire to Board 5mm Pitch (1 piece) Terminal Block
High Density, High Temperature pluggable solutions feature a VISE CLAMP wire termination system. Various mounting options are available as
well as an individual position keying capability. Intermateable with Industry standard systems.
Materials
Housing
Contact
Finish
Spring Clamp
– 94V-0 PA
– Brass
– Tin/Lead
– Stainless Steel
SMT Reflow/Wave Solder
Horizontal
Electrical
Current
– 20A
Voltage
– 300V
Insulation
– 10³ Megaohms
Dielectric Withstand – <1600V
Approvals
UR/CSA/TUV/CE
Angled
Wire Range
Wire Range
Strip Length
Operation
Lever
Lever-Less
Vertical
– #12~28AWG
– 5.6mm
– Finger Operated
– Flat Screw-Driver
Also Available
Features
Solder Suitability
Lever is depressed to insert and remove wire
Lever-Less - Screw-Driver inserted into actuation slot to insert & Remove
Representation
Pos
Part Number
Lever-less
Lever
Part Number
Lever-less
Lever
Part Number
Lever-less
Lever
Pluggable (Plug and Header)
.150” (3.81mm) Spring Clamps with
or without Lever
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SCM021100
SCM031100
SCM041100
SCM051100
SCM061100
SCM071100
SCM081100
SCM091100
SCM101100
SCM111100
SCM121100
SCM131100
SCM141100
SCM151100
SCM161100
SCM171100
SCM181100
SCM191100
SCM201100
SCM021100L
SCM031100L
SCM041100L
SCM051100L
SCM061100L
SCM071100L
SCM081100L
SCM091100L
SCM101100L
SCM111100L
SCM121100L
SCM131100L
SCM141100L
SCM151100L
SCM161100L
SCM171100L
SCM181100L
SCM191100L
SCM201100L
SCM023100
SCM033100
SCM043100
SCM053100
SCM063100
SCM073100
SCM083100
SCM093100
SCM103100
SCM113100
SCM123100
SCM133100
SCM143100
SCM153100
SCM163100
SCM173100
SCM183100
SCM193100
SCM203100
SCM023100L
SCM033100L
SCM043100L
SCM053100L
SCM063100L
SCM073100L
SCM083100L
SCM093100L
SCM103100L
SCM113100L
SCM123100L
SCM133100L
SCM143100L
SCM153100L
SCM163100L
SCM173100L
SCM183100L
SCM193100L
SCM203100L
SCM029100
SCM039100
SCM049100
SCM059100
SCM069100
SCM079100
SCM089100
SCM099100
SCM109100
SCM119100
SCM129100
SCM139100
SCM149100
SCM159100
SCM169100
SCM179100
SCM189100
SCM199100
SCM209100
SCM029100L
SCM039100L
SCM049100L
SCM059100L
SCM069100L
SCM079100L
SCM089100L
SCM099100L
SCM109100L
SCM119100L
SCM129100L
SCM139100L
SCM149100L
SCM159100L
SCM169100L
SCM179100L
SCM189100L
SCM199100L
SCM209100L
Pluggable (Plug and Header)
.200” (5.08mm)
Spring Clamps without Lever
Variations
Various Colours
Markings
Gold Plating
.200” (5.08mm) version available upon request
Power Blocks
Wire to Board (1 piece) Terminal Block
32A/600V
.375” (9.52mm)
Horizontal
Modular
32A/600V
.375” (9.52mm)
Angled
Modular
60A/300V
.400” (10.16mm)
Horizontal
Modular
75A/600V
15mm
Horizontal
Materials
Housing
Contact
Contact Finish
Clamp Screw
Clamp Finish
Wire Clamp
Wire Finish
Features
Wire Range
Approvals
Pos
2
3
PCD
- Polymide
- Copper Alloy
- Tin
- Copper alloy
- Nickel
- Copper Alloy
- Nickel
- 10~24AWG
-
UR/CSA/VDE/CE
Materials
Housing
Contact
Contact Finish
Clamp Screw
Clamp Finish
Wire Clamp
Wire Finish
Features
Wire Range
Approvals
Pos
2
3
- Polymide
- Copper Alloy
- Tin
- Copper alloy
- Nickel
- Copper Alloy
- Nickel
- 10~24AWG
-
UR/CSA/VDE/CE
Materials
Housing
Contact
Contact Finish
Clamp Screw
Clamp Finish
Wire Clamp
Wire Finish
Features
Wire Range
Positions
- Polymide
- Copper Alloy
- Tin
- Steel
- Zinc
- Steel
- Zinc
- 8~18AWG
-4
Materials
Housing
Contact
Contact Finish
Clamp Screw
Clamp Finish
Wire Clamp
Wire Finish
Features
Wire Range
Positions
- Polymide
- Copper Alloy
- Tin
- Steel
- Zinc
- Steel
- Zinc
- 4~16AWG
-3
Part Number
ESPM02200
ESPM03200
Part Number
ESPM02230
ESPM03230
Part Number
ELMP04041
Part Number
ELMP03150
