ATR2812T/CH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ATR2812T/CH

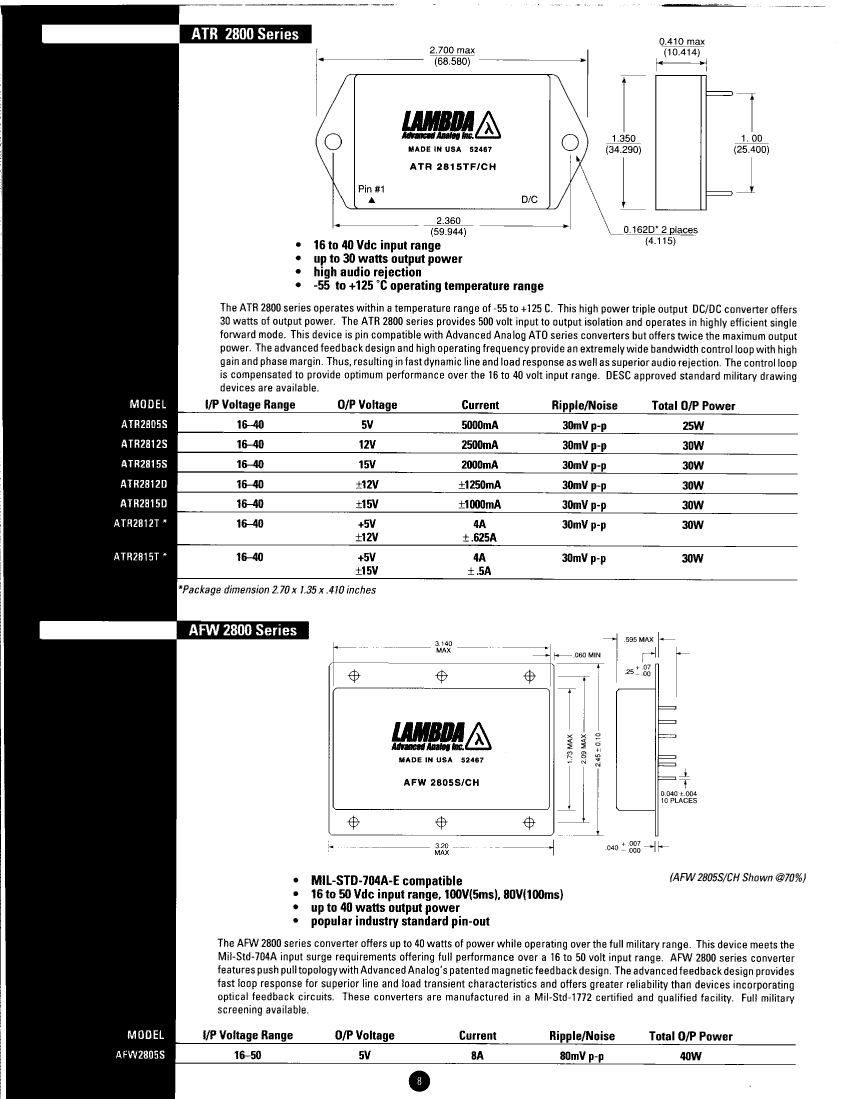

ATR2812T/CH: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid; CategoryPower/power management The power supply circuit; File Size47KB，1 Pages; ManufacturerAdvanced Analog

Download Datasheet Parametric Compare View All

ATR2812T/CH Overview

DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid

ATR2812T/CH Parametric

Parameter Name	Attribute value
Maker	Advanced Analog
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V
Minimum input voltage	16 V
JESD-30 code	R-XDFM-P
Number of functions	1
Output times	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	30 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

ATR2812T/CH Related Products

	ATR2812T/CH	5962-9215901HXX	5962-9215901HXA	5962-9315801HXX	5962-9315801HXA	ATR2815T	ATR2815T/CH	ATR2812T	AFW2805S
Description	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 40W, Hybrid
Maker	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog	Advanced Analog
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	50 V
Minimum input voltage	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V
JESD-30 code	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P	R-XDFM-P10
Number of functions	1	1	1	1	1	1	1	1	1
Output times	3	3	3	3	3	3	3	3	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Nominal output voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	30 W	30 W	30 W	30 W	30 W	30 W	30 W	30 W	40 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	-	-	-	-
