MPC942PFAR2: DescriptionLow Skew Clock Driver, 18 True Output(s), 0 Inverted Output(s), ECL, PQFP32, 7 X 7 MM, 0.80 MM PITCH, PLASTIC, LQFP-32; Categorylogic logic; File Size90KB，8 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

MPC942PFAR2 Overview

Low Skew Clock Driver, 18 True Output(s), 0 Inverted Output(s), ECL, PQFP32, 7 X 7 MM, 0.80 MM PITCH, PLASTIC, LQFP-32

MPC942PFAR2 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	LQFP,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	CAN ALSO OPERATE WITH 3.3V SUPPLY
Input adjustment	DIFFERENTIAL
JESD-30 code	S-PQFP-G32
length	7 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	32
Actual output times	18
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE
propagation delay (tpd)	4.3 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.2 ns
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	ECL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	7 mm
minfmax	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Order this document

by MPC942P/D

Low Voltage 1:18 Clock

Distribution Chip

The MPC942 is a 1:18 low voltage clock distribution chip with 2.5V or

3.3V LVCMOS output capabilities. The device is offered in two versions;

the MPC942C has an LVCMOS input clock while the MPC942P has a

LVPECL input clock. The 18 outputs are 2.5V or 3.3V LVCMOS

compatible and feature the drive strength to drive 50Ω series or parallel

terminated transmission lines. With output–to–output skews of 200ps, the

MPC942 is ideal as a clock distribution chip for the most demanding of

synchronous systems. The 2.5V outputs also make the device ideal for

supplying clocks for a high performance Pentium II™ microprocessor

based design.

MPC942P

LOW VOLTAGE

1:18 CLOCK

DISTRIBUTION CHIP

•

LVPECL Clock Input

2.5V LVCMOS Outputs for Pentium II Microprocessor Support

200ps Maximum Targeted Output–to–Output Skew

Maximum Output Frequency of 250MHz @ 3.3 VCC

32–Lead LQFP Packaging

Single 3.3V or 2.5V Supply

FA SUFFIX

32–LEAD LQFP PACKAGE

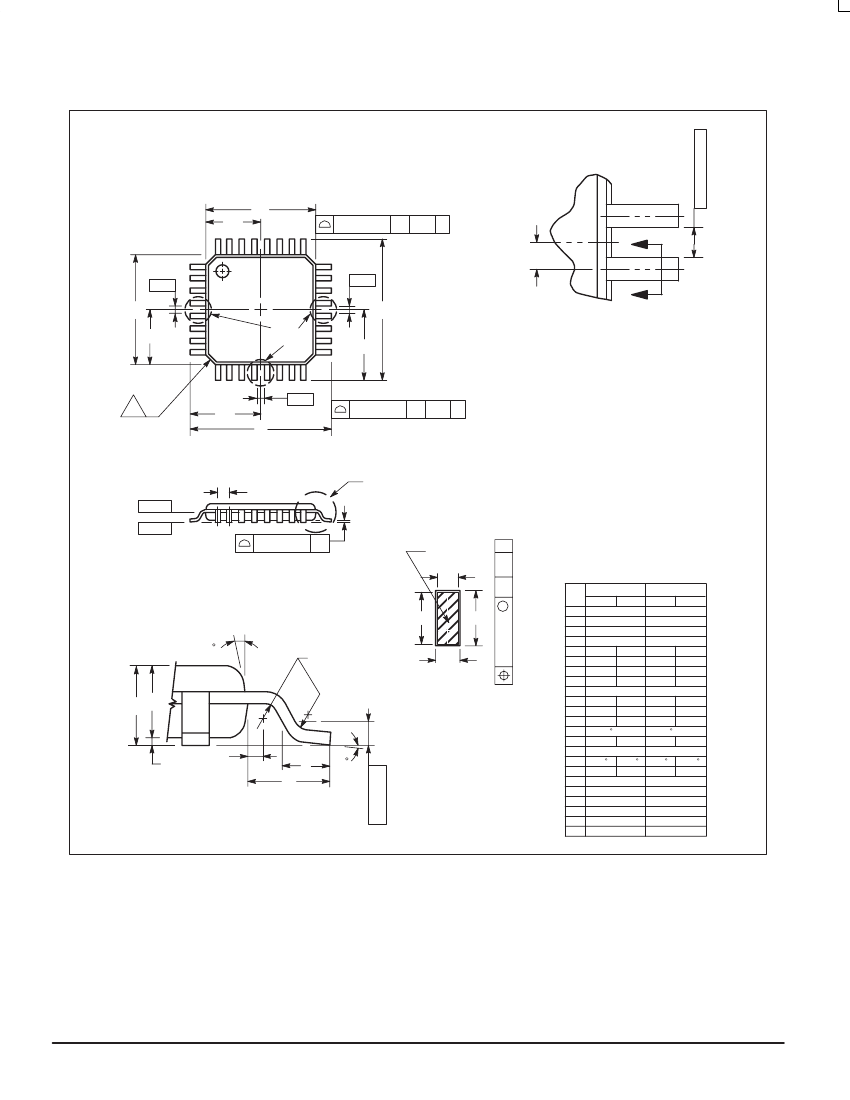

CASE 873A–02

With a low output impedance (≈12Ω), in both the HIGH and LOW logic

states, the output buffers of the MPC942 are ideal for driving series

terminated transmission lines. With an output impedance of 12Ω the

MPC942 can drive two series terminated transmission lines from each

output. This capability gives the MPC942 an effective fanout of 1:36. The

MPC942 provides enough copies of low skew clocks for most high

performance synchronous systems.

The differential LVPECL inputs of the MPC942P allow the device to interface directly with a LVPECL fanout buffer like the

MC100EP111 to build very wide clock fanout trees or to couple to a high frequency clock source. The OE pins will place the

outputs into a high impedance state. The OE pin has an internal pullup resistor.

The MPC942 is a single supply device. The VCC power pins require either 2.5V or 3.3V. The 32–lead LQFP package was

chosen to optimize performance, board space and cost of the device. The 32–lead LQFP has a 7x7mm body size with a

conservative 0.8mm pin spacing.

Pentium II is a trademark of Intel Corporation.

02/01

Motorola, Inc. 2001

REV 1
