MC74HCT374ADWR2 datasheet, PDF

Datasheet> All Categories > logic> logic> MC74HCT374ADWR2

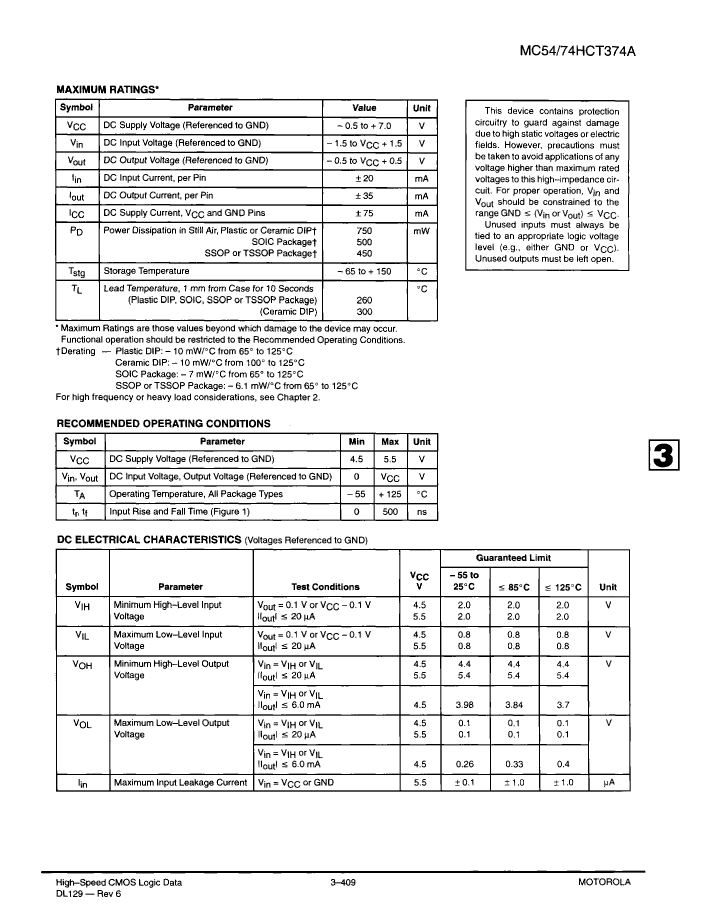

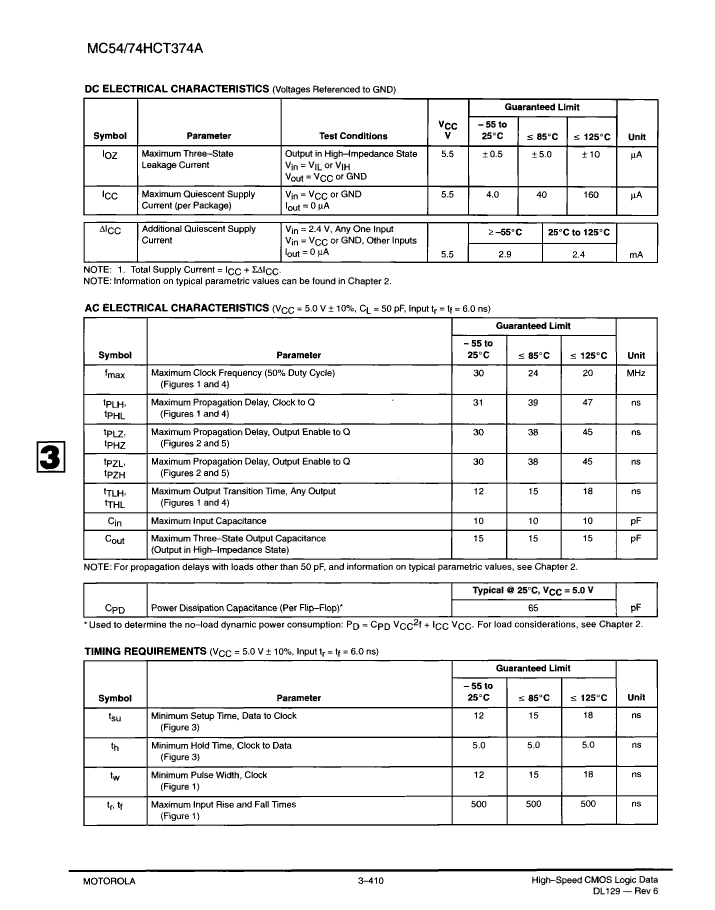

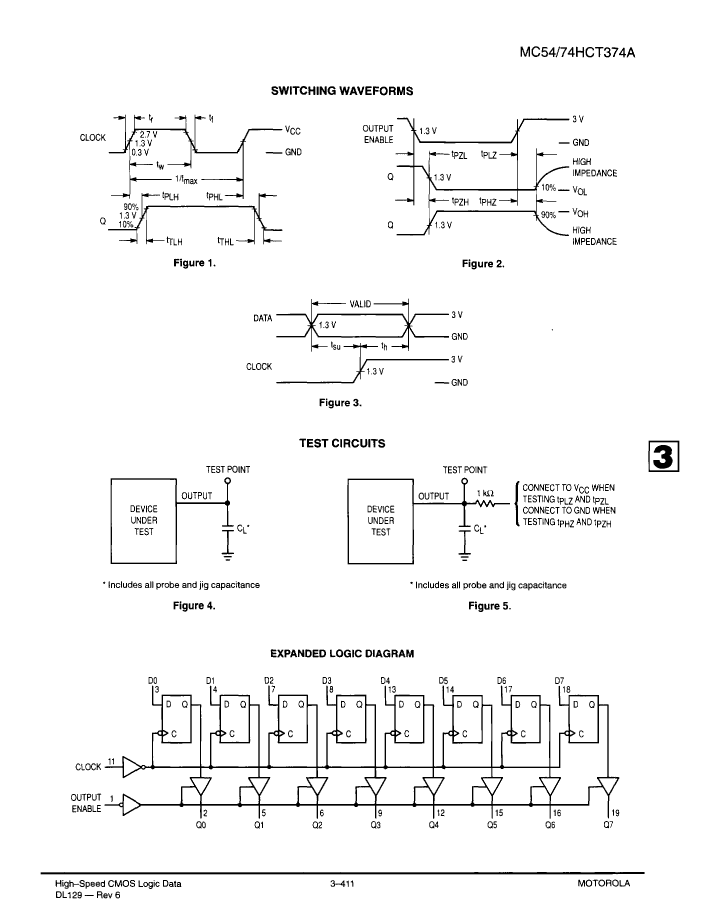

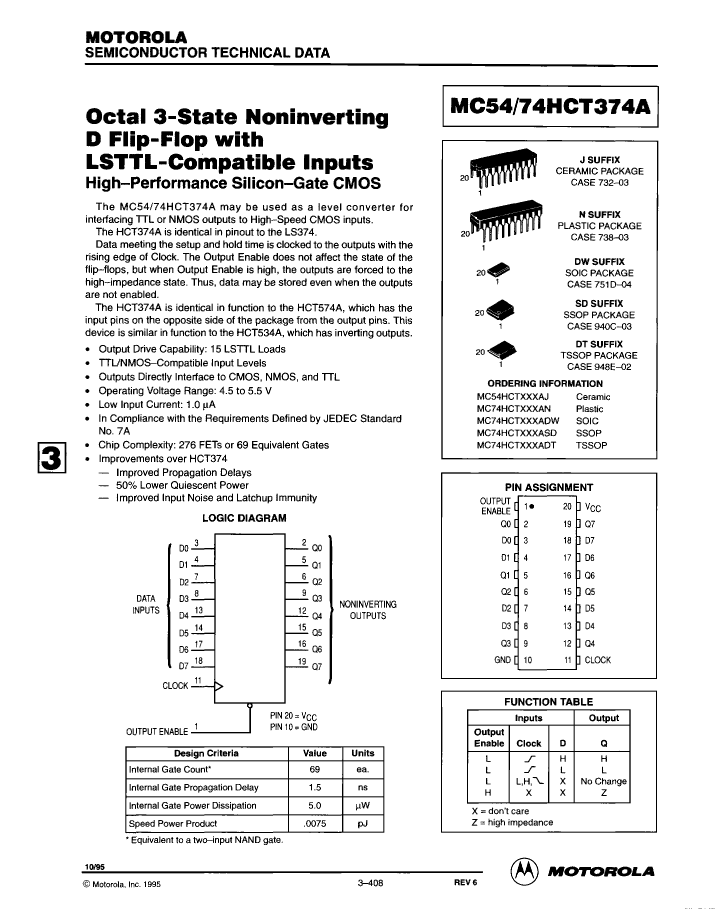

MC74HCT374ADWR2: DescriptionBus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20; Categorylogic logic; File Size133KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74HCT374ADWR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74HCT374ADWR2	-	-	View	Buy Now

MC74HCT374ADWR2 Overview

Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20

MC74HCT374ADWR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
Is Samacsys	N
series	HCT
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.006 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	5 V
propagation delay (tpd)	47 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All
