DATA SHEET
BZT52-C2V4S SERIES
SURFACE MOUNT SILICON ZENER DIODES
VOLTAGE
2.4 to 39 Volts
POWER
200 mWatts
SOD-323
Unit: inch (mm)
FEATURES
• Planar Die construction
.054(1.35)
.045(1.15)
.078(1.95)
.068(1.75)
.014(.35)
.009(.25)
• 200mW Power Dissipation
• Zener Voltages from 2.4~39V
• Ideally Suited for Automated Assembly Processes
• Pb free product are available :
99% Sn above can meet Rohs
.038(.95)
.027(.70)
.006(.15)
.107(2.7)
.090(2.3)
MECHANICAL DATA
• Case: SOD-323, Molded Plastic
• Terminals: Solderable per MIL-STD-202G, Method 208
• Polarity: See Diagram Below
• Approx. Weight: 0.0041 grams
• Mounting Position: Any
.012(.30)MIN.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Parameter
Maximum Forward Voltage Drop at IF=10mA
Maximum Power Dissipation (Notes A) at 25
O
C
Symbol
V
F
.002(.05)
environment substance directive request
Value
0.9
Units
V
P
D
200
2.0
mW
Amps
O
Peak Forward Surge Current, 8.3ms single half
sine-wave superimposed on rated load (JEDEC method) (Notes B)
Operating Junction and StorageTemperature Range
I
FSM
T
J
-55 to +150
C
NOTES:
A. Mounted on 5.0mm
2
(.013mm thick) land areas.
B. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.
STAD-JAN.07.2005
PAGE . 1
Nominal Zener Voltage
Part Number
Marking
C ode
No m. V
Max. Zener Impedance
Z
ZT
@ I
ZT
Z
ZK
@ I
ZK
Ω
mA
Max Reverse
Leakage Current
I
R
@ V
R
µ
A
V
V
Z
@ I
ZT
M i n. V
M a x. V
Ω
mA
200 mWatts Zener D iodes
BZT52-C2V4S
BZT52-C2V7S
BZT52-C3S
BZT52-C3V3S
BZT52-C3V6S
BZT52-C3V9S
BZT52-C4V3S
BZT52-C4V7S
BZT52-C5V1S
BZT52-C5V6S
BZT52-C6V2S
BZT52-C6V8S
BZT52-C7V5S
BZT52-C8V2S
BZT52-C9V1S
BZT52-C10S
BZT52-C11S
BZT52-C12S
BZT52-C13S
BZT52-C15S
BZT52-C16S
BZT52-C18S
BZT52-C20S
BZT52-C22S
BZT52-C24S
BZT52-C27S
BZT52-C30S
BZT52-C33S
BZT52-C36S
BZT52-C39S
W1
W2
W3
W4
W5
W6
W7
W8
W9
WA
WB
WC
WD
WE
WF
WG
WH
WI
WK
WL
WM
WN
WO
WP
WR
WS
WT
WU
WW
WX
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
85
83
95
95
95
95
95
78
60
40
10
8
7
7
10
15
20
20
25
30
40
50
50
55
80
80
80
80
90
90
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
600
500
500
500
500
500
500
500
480
400
200
150
50
50
50
70
70
90
110
110
170
170
220
220
220
250
250
250
250
300
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
100
75
50
25
15
10
5.0
5.0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
0.8
1.0
2.0
3.0
5.0
6.0
7.0
7.5
8.5
9.0
10.0
11.0
12.0
14.0
15.0
17.0
18.0
20.0
22.5
25.0
27.0
29.0
STAD-JAN.07.2005
PAGE . 2

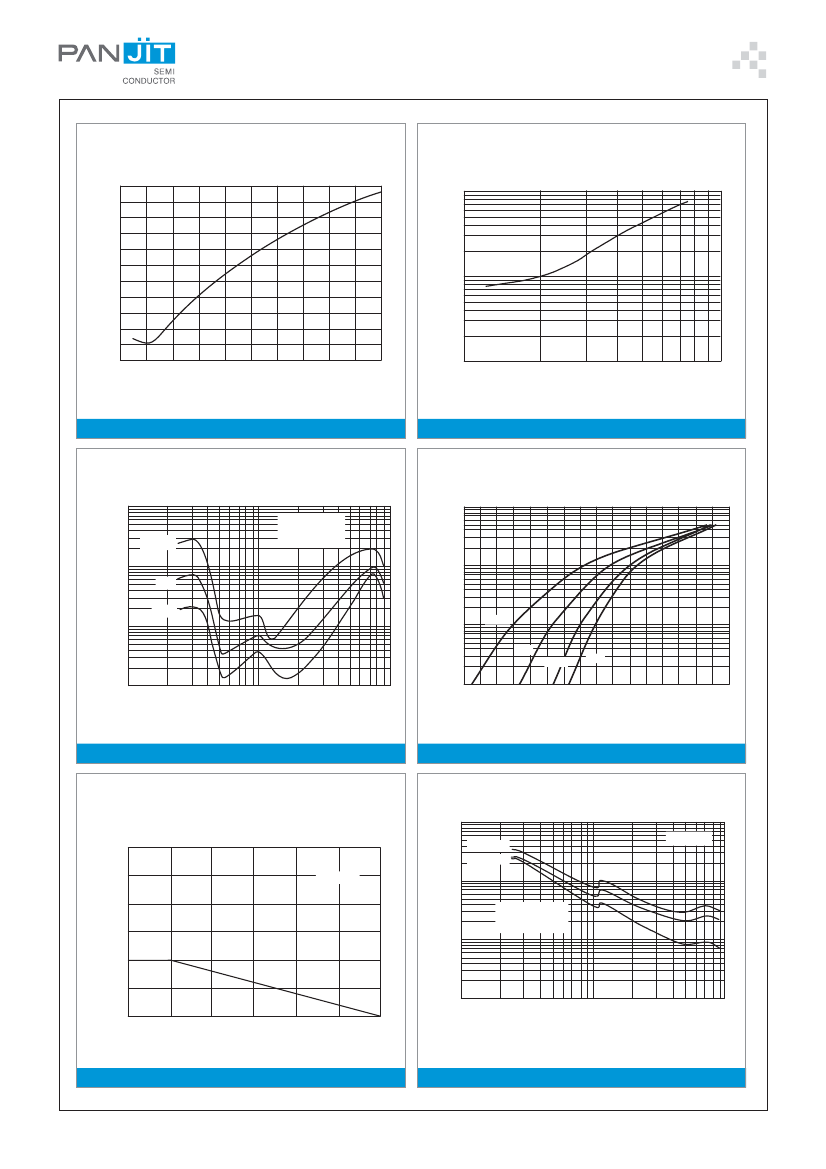

TEMPERATURE COEFFICIENT,(mA/
O
C)
8
7
6
5
4
3
2
1
TEMPERATURE COEFFICIENT,(mA/
O
C)
100
10
0
-1
-2
-3
2
3
4
5
6
7
8
9
10
11
12
1
10
100
NOMINAL ZENER VOLTAGE,VOLTS
NOMINAL ZENER VOLTAGE,VOLTS
Fig.1 TEMPERATURE COEFFICENTS
Fig.2 TEMPERATURE COEFFICENTS
1000
DYNAMIC IMPEDANCE,W
FORWARD CURRENT,mA
T
J
=25 C
I
Z(AC)=0.1
I
Z(DC)
F=1 kHZ
O
1000
IZ = 1 mA
100
5 mA
20 mA
100
10
10
150 C
75
O
C
O
25 C
O
5C
O
1
1
10
NORMAL ZENER VOLTAGE, VOLTS
100
1
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
FORWARD VOLTAGE, VOLTS
Fig.3 EFFECT OF ZENER VOLTAGE ON ZENER IMPEDANCE
Fig.4 TYPICAL FORWARD VOLTAGE
1000
0.6
POWER DISSIPATION, Watts
0 V BIAS
1 V BIAS
T
A
=25
O
C
T
A
=25
o
C
0.5
0.4
0.3
CAPACITANCE,pF
100
BIASAT
50% OF VZ NOM
10
0.2
0.1
1
0
0
25
50
75
100
125
150
1
10
NORMAL ZENER VOLTAGE, VOLTS
100
TEMPERATURE (
O
C)
Fig.5 STEADY STATE POWER DERATING
Fig.6 TYPICAL CAPACITANCE
STAD-JAN.07.2005
PAGE . 3
100
T
A
=25
o
C
100
T
A
=25
o
C
ZENER CURRENT,mA
10
ZENER CURRENT,mA
10
1
1
0.1
0.1
0.01
0
2
4
6
8
10
12
0.01
10
30
50
70
90
ZENER VOLTAGE, VOLTS
Fig.7 ZENER VOLTAGE VERSUS ZENER CURRENT
ZENER VOLTAGE, VOLTS
Fig.8 ZENER VOLTAGE VERSUS ZENER CURRENT
1000
LEAKAGE CURRENT,mA
100
10
1
0.1
0.01
0.001
0.0001
0.00001
0
10
20
30
40
50
60
70
+150 C
O
+25 C
-55 C
80
90
O
O
NORMAL ZENER VOLTAGE, VOLTS
Fig.9 TYPICAL LEAKAGE CURRENT
STAD-JAN.07.2005
PAGE . 4
MOUNTING PAD LAYOUT
SOD-323
Unit: inch (mm)
0.063(1.6)
0.035(0.9)
0.031(0.8)
0.120 (3.04) MAX
ORDER INFORMATION
• Packing information
T/R - 12K per 13" plastic Reel
T/R - 5.0K per 7" plastic Reel
LEGAL STATEMENT
IMPORTANT NOTICE
This information is intended to unambiguously characterize the product in order to facilitate the customer's evaluation
of the device in the application. The information will help the customer's technical experts determine that the device is
compatible and interchangeable with similar devices made by other vendors. The information in this data sheet is believed
to be reliable and accurate. The specifications and information herein are subject to change without notice. New products
and improvements in products and product characterization are constantly in process. Therefore, the factory should be
consulted for the most recent information and for any special characteristics not described or specified.
Copyright Pan Jit International Inc. 2003
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright
owner.
The information presented in this document does not form part of any quotation or contract. The information presented is
believed to be accurate and reliable, and may change without notice in advance. No liability will be accepted by the
publisher for any consequence of use.Publication thereof does not convey nor imply any license under patent or other
industrial or intellectual property rights.
STAD-NOV.15.2004
PAGE .
5
