AP7315
AP7115
150mA LOW DROPOUT LINEAR REGULATOR WITH SHUTDOWN

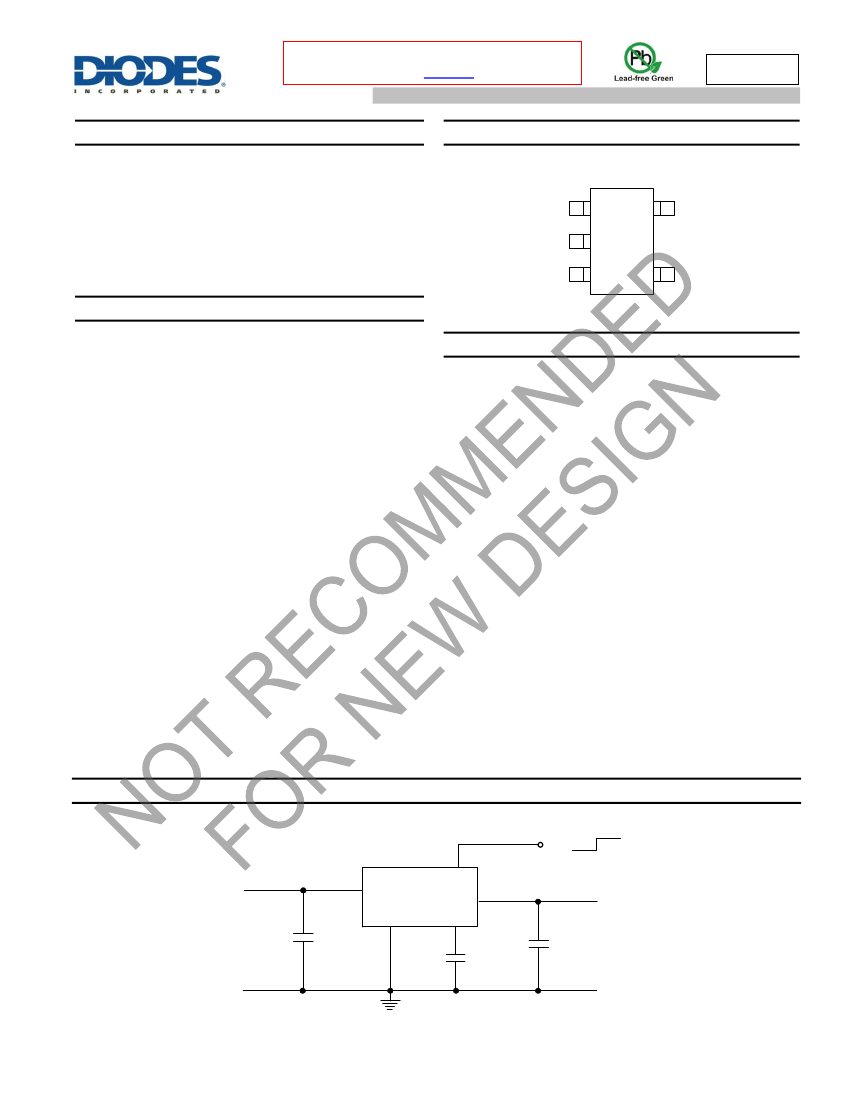

Description
The AP7115 is a 150mA, fixed output voltage, low dropout linear
regulator. The device includes pass element, error amplifier, band
gap reference, current-limit and thermal shutdown circuit. The
characteristics of low dropout voltage and low quiescent current make
it suitable for use in battery powered devices. The typical quiescent
current is approximately 50µA. Several fixed output voltages are
available from 1.0V to 3.5V. Additional protection is provided with
built-in current-limit and thermal-shutdown functions.
Pin Assignments
(Top View)
IN 1
GND 2
EN 3
SOT25 / SOT353
5 OUT
4 BP
Features
Wide Input Voltage Range from 2.5V to 5.5V
200mV Low Dropout Voltage at 150mA Output Current
Guaranteed 150mA Output Current
Low Quiescent Current 50µA
Output Voltage from 1.0V to 3.5V
±2% Output Voltage Accuracy
Low Temperature Drift at Output Voltage
High PSRR
Fast Transient Response
Current Limit Protection
Short Circuit Protection
Thermal Shutdown Protection
SOT25 and SOT353: Available in “Green” Molding Compound
(No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
Wireless Communication
GSM/GPRS Cellular Phones
Handheld Mobile Devices
Battery Powered Devices
CD-ROM, DVD, and LAN Cards
PC and Notebook Peripherals
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
ON
EN
OFF
EN
OUT
BP
C
BP
0.1µF
V
OUT
C
OUT
1µF
AP7115
IN
V
IN
C
IN
1µF
GND
AP7115
Document number: DS31333 Rev. 12 - 3
1 of 12
www.diodes.com
September 2017
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE
AP7315
AP7115

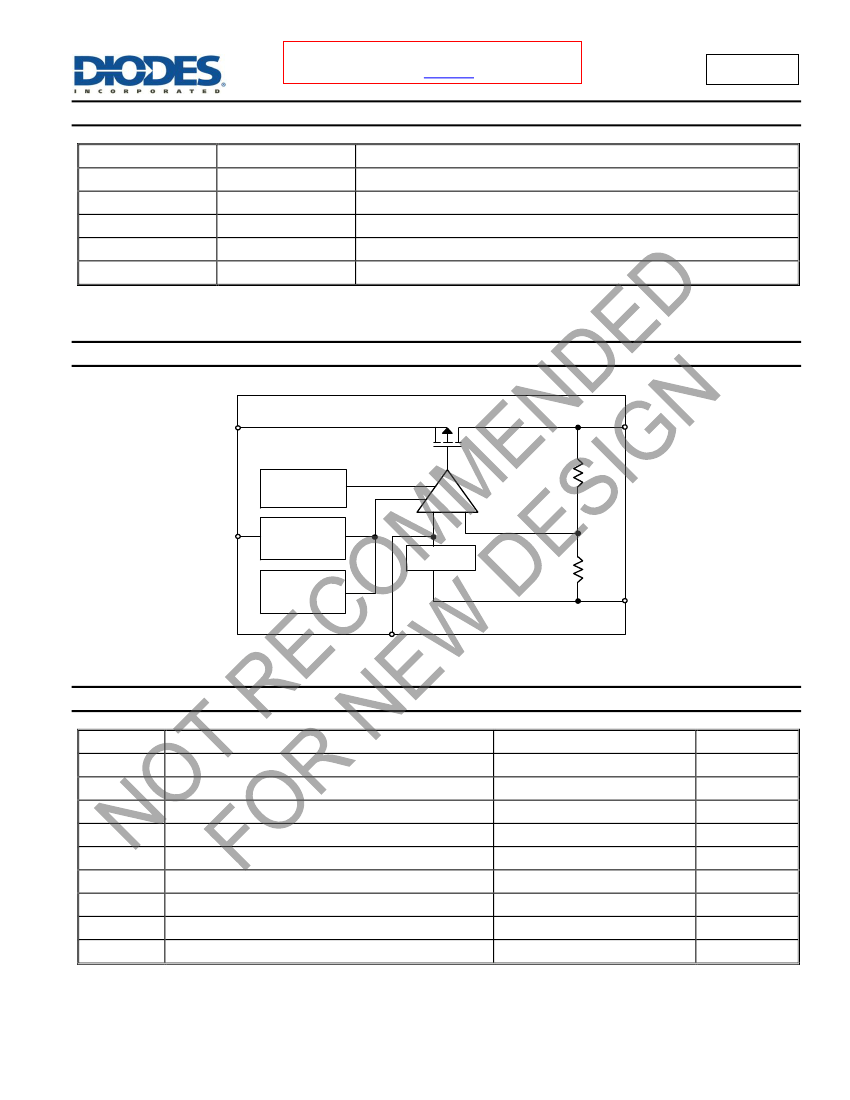

Pin Descriptions
Pin Number
1
2
3
4
5
Pin Name
IN
GND
EN
BP
OUT
Voltage Input
Ground
Chip Enable Control
Band-Gap Bypass
Voltage Output
Description
Functional Block Diagram
IN
Current
Limit
EN
Enable
Bandgap 0.8V
Thermal
Shutdown
BP
Error
Amp
OUT
-
+
GND
Absolute Maximum Ratings
(@T
A
= +25° unless otherwise specified.)
C,
Symbol
ESD HBM
ESD MM
V
IN
V
EN
V
OUT
V
BP
P
D
T
J
T
ST
Parameter
Human Body Model ESD Protection
Machine Model ESD Protection
Input Voltage
EN Pin Voltage
Output Voltage
Band Gap Bypass Pin Voltage
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
Rating
3.5
400
-0.3 to 5.5
-0.3 to 5.5
-0.3 to V
IN
+0.3
-0.3 to 5.5
500
-40 to +125
-65 to +150
Unit
kV
V
V
V
V
V
mW
°
C
°
C
AP7115
Document number: DS31333 Rev. 12 - 3
2 of 12
www.diodes.com
September 2017
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE
AP7315
AP7115
Recommended Operating Conditions
(@T
A
= +25° unless otherwise specified.)
C,
Symbol
V
IN
I
OUT
T
A
Input Voltage
Output Current
Operating Ambient Temperature
Parameter
Min
2.5
—
-40
Max
5.5
150
+85
Unit
V
mA
°
C
Electrical Characteristics
Symbol
System Supply Input
V
IN
V
OUT
/V
OUT
V
DO
I
OUT
I
Q
I
SHUTDOWN
PSRR
I
LIMIT
T
SHUTDOWN
V
REF
/T
V
OUT
/T
V
IH,EN
V
IL,EN
I
EN
Regulation
V
O
/V
IN
V
LOAD
Noise
e
n
Output Noise
Line Regulation
Load Regulation
(@V
CC
= 3.3V, I
L
= 30mA, C
IN
= 1μF, C
OUT
= 1μF, T
A
= +25°
C)
Parameter
Operating Input Voltage
Output Voltage Accuracy
Dropout Voltage
Output Current
Quiescent Current
Shutdown Current
Power Supply Rejection Ratio
Current Limit
Thermal Shutdown
Tempco of Bandgap Reference
Tempco of Output Voltage
—
—
EN Pin Leakage Current
Conditions
I
L
= 0 to 150mA
V
IN
= V
OUT
+ 1V where
1mA
I
OUT
50mA
I
L
= 150mA
V
IN
- V
OUT
= 1V
V
IN
= V
OUT
+ 1V where
I
OUT
= 0 and V
EN
= V
IN
V
IN
= V
OUT
+ 1V where
I
OUT
= 0 and V
EN
= 0
I
OUT
= 30mA, f = 1kHz
—
—
—
I
OUT
= 30mA, -40°
T
A
+85°
C
C
—
—
V
EN
= V
IN
@V
IN
= 5.0V and V
SS
= 0V
V
EN
= V
SS
@V
IN
= 5.0V and V
SS
= 0V
V
OUT
+ 0.5V
V
IN
5.5V where
V
OUT
> 2.0V, I
OUT
= 30mA
1mA
I
L
150mA where
V
IN
= V
OUT
+ 1V
BW = 10Hz to 100kHz
SOT25 (Note 4)
SOT353 (Note 4)
SOT25 (Note 4)
SOT353 (Note 4)
Min
2.5
-2
—
150
—
—
—
200
—
—
—
2.0
—
—
—
Typ
—
—
200
—
50
0.1
70
250
+150
30
50
—
—
0.01
0.01
Max
5.5
2
300
—
80
1
—
—
—
50
100
—
0.7
0.1
0.1
Unit
V
%
mV
mA
µA
µA
dB
mA
°
C
ppm/°
C
ppm/°
C
V
V
µA
µA
Thermal Management
Reference Voltage
Control and Protection
—
—
0.02
0.003
0.1
0.006
%/V
%/mA
—
—
—
—
—
50
200
337
52
121
—
—
—
—
—
µV
rms
°
C/W
°
C/W
°
C/W
°
C/W
Thermal Resistance
θ
JA
θ
JC
Note:
Thermal Resistance Junction-to-
Ambient
Thermal Resistance Junction-to-
Case
4. Test condition for SOT25 and SOT353: Device mounted on FR-4 substrate PC board, 2oz copper, with minimum recommended pad layout.
AP7115
Document number: DS31333 Rev. 12 - 3
3 of 12
www.diodes.com
September 2017
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE
AP7315
AP7115

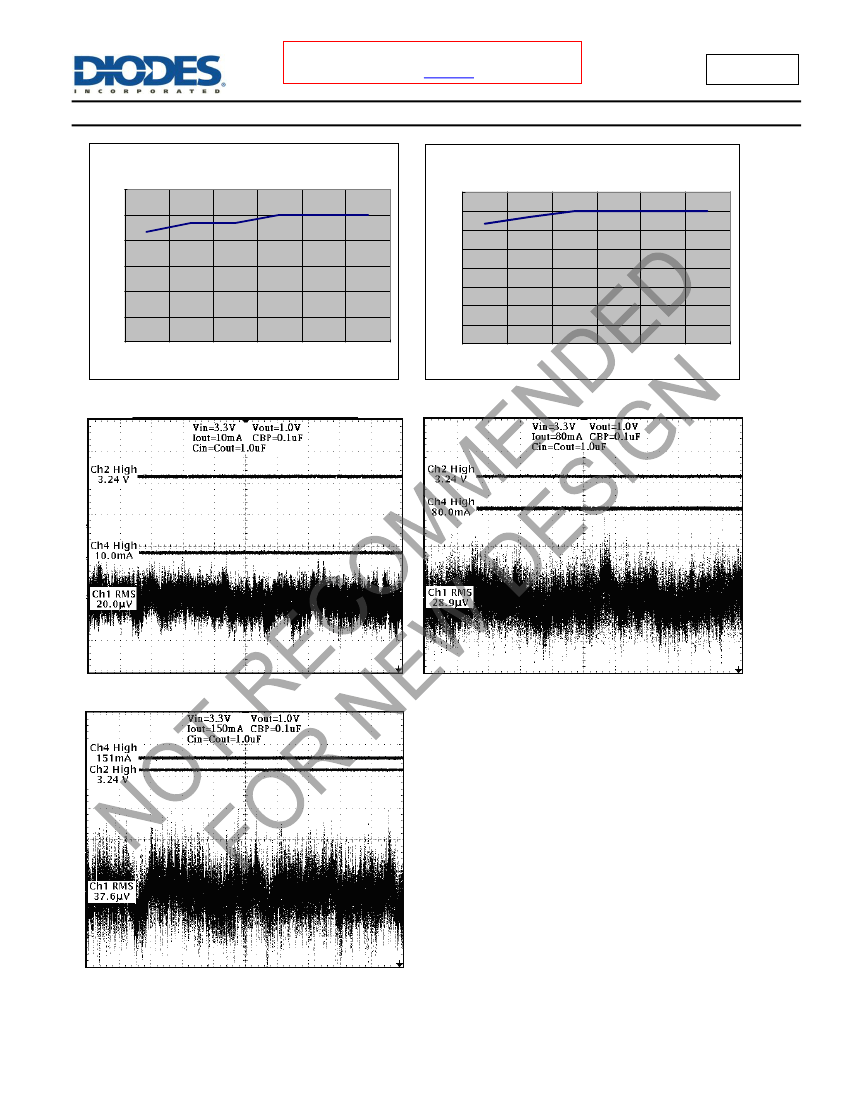

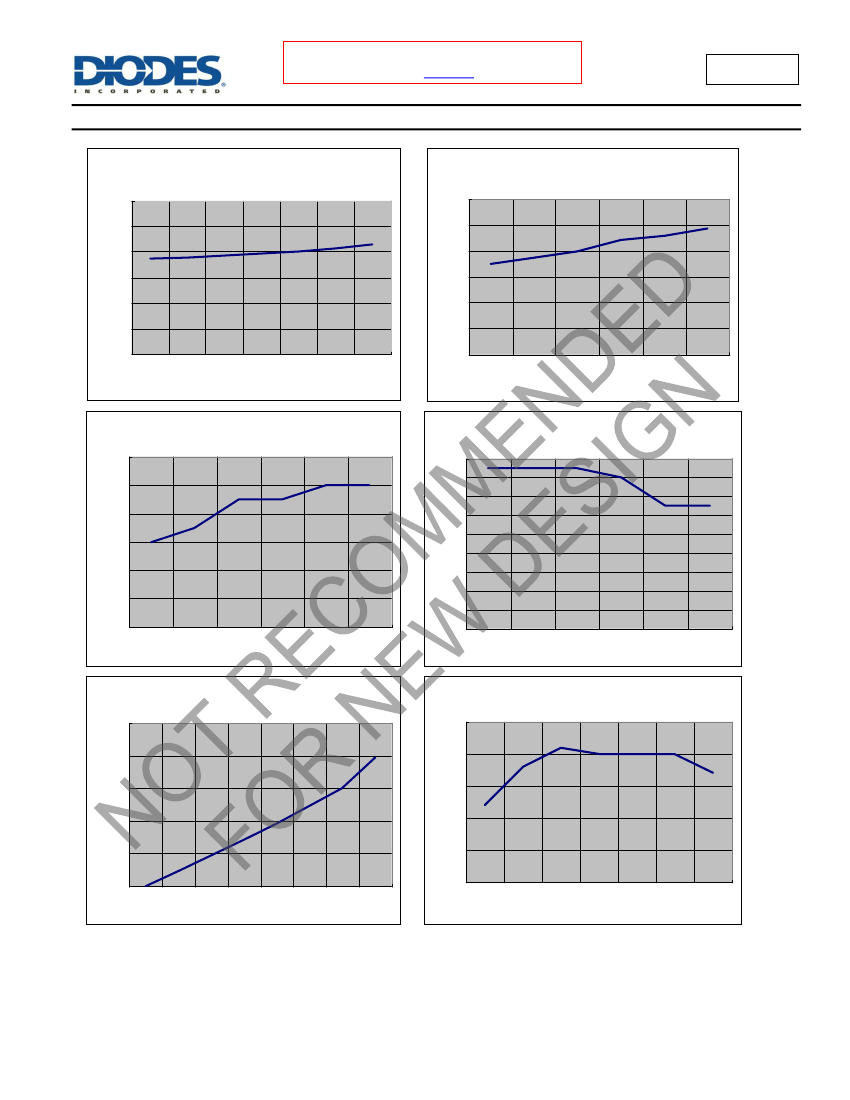

Typical Operating Characteristics
Quiescent current vs. Vcc
( V
IN
=2.5~5.5V, I
OUT
=0mA )
80
Quiescent current vs. Temperature
( V
IN
=5V, I
OUT
=0mA )
80
Quiescent current (uA)
Quiescent current (uA)
4.5V
5.0V
5.5V
70
60
50
40
30
20
2.5V
3.0V
3.5V
4.0V
`
70
60
50
40
30
20
-40℃
-20℃
0℃
25℃
50℃
85℃
Vcc
Tem perature
270
250
Current limit (mA)
Current limit vs. Temperature
( V
IN
=2.5V, V
OUT
=1.0V )
330
310
290
270
250
230
210
190
170
150
Current limit vs. Temperature
( V
IN
=5V, V
OUT
=1.0V )
230
210
190
170
150
-40℃
-20℃
0℃
25℃
Tem perature
50℃
85℃
Current limit (mA)
-40℃
-20℃
0℃
25℃
Tem perature
50℃
85℃
250
Dropout voltage (mV)
Iout vs. Dropout voltage
( T
A
=25℃ )
370
Current limit vs. Input voltage
( T
A
=25℃ )
Current limit (mA)
200
150
100
50
0
0mA
20mA
40mA
60mA
80mA 100mA 120mA 150mA
320
270
220
170
120
2.5V
3.0V
Iout
3.5V
4.0V 4.5V
Input voltage
5.0V
5.5V
AP7115
Document number: DS31333 Rev. 12 - 3
4 of 12
www.diodes.com
September 2017
© Diodes Incorporated
