ANR
•
•
•
•
•
•
•

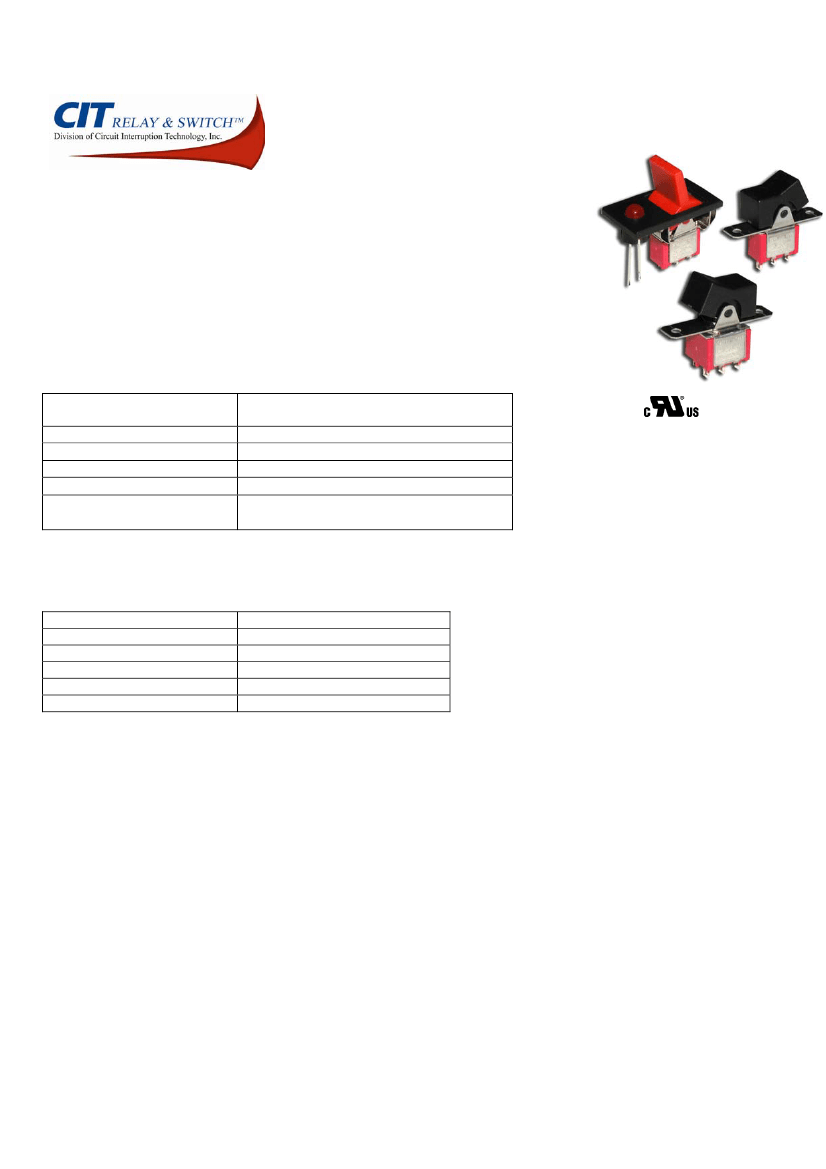

Wide variety of applications from
consumer electronics to commercial
Standard epoxy sealed terminations
Gold contacts available for low power applications
Available support brackets for greater stability
Up to four poles with five functions available
Many rocker and paddle styles to choose from
Wide variety of terminal options
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Dielectric Strength
Insulation Resistance
Operating Temperature
Storage Temperature
5A @ 120VAC, 28VDC; 2A @ 250VAC
See Contact Options
50,000 cycles typical
< 20 mΩ max initial @ 2-4VDC, 100mA
1500Vrms min
> 100MΩ min
-40°C to 85°C
-40°C to 85°C
- E222871
MATERIALS
←
RoHS COMPLIANT
Actuator
Housing
Frame
Bushing
Contacts
Terminals
ABS
DAP – Diallyl Phthalate
6/6 Nylon
Brass or Zinc, Nickel Plated
Copper Alloy, Silver Plated
Brass, Silver Plated
www.citswitch.com
page
142
phone – 763.535.2339 fax – 763.535.2194
ANR
ORDERING INFORMATION
1. Series:
ANR
1
1
R11
ANR

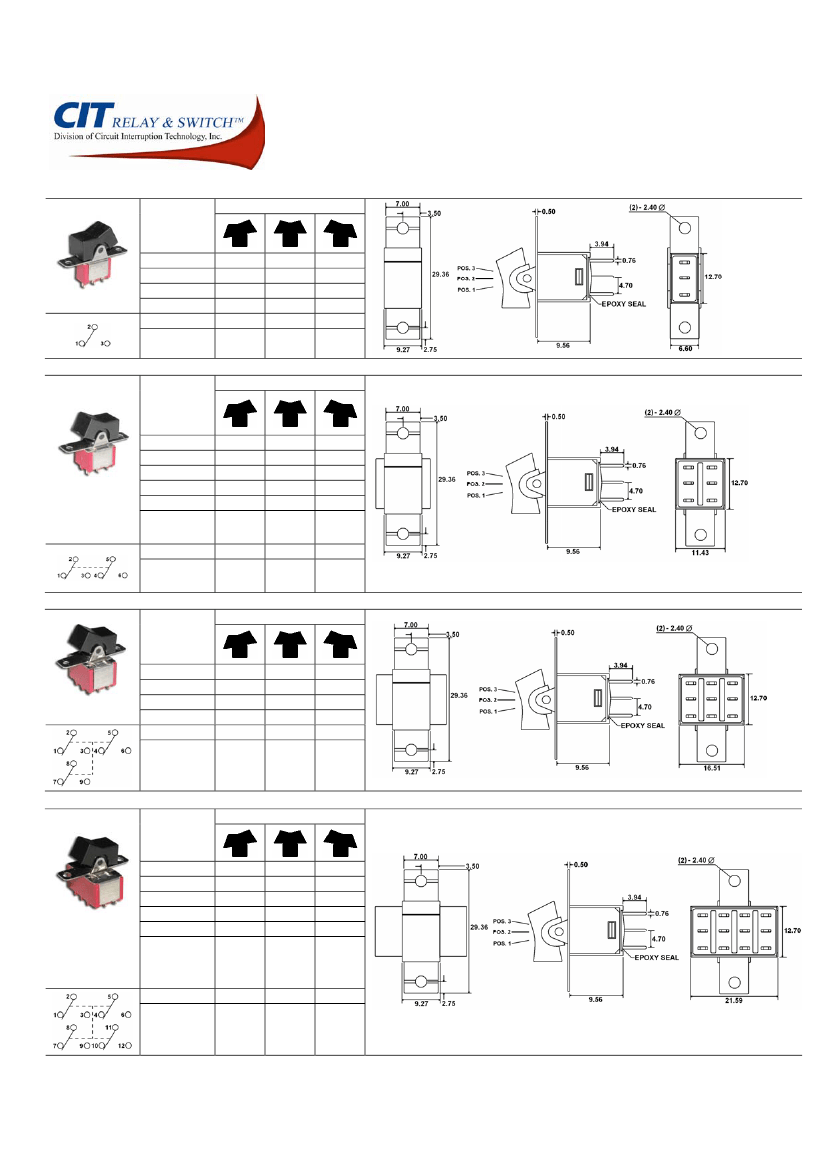

2. Number of Poles:
1 = SPDT
2 = DPDT
3 = 3PDT
4 = 4PDT
3. Switch Function:
1 = ON-NONE-ON
2 = ON-NONE-(ON)
3 = ON-OFF-ON
4 = (ON)-OFF-(ON)
5 = ON-OFF-(ON)
6 = ON-ON-ON
** See Three Way Wiring Section for Details

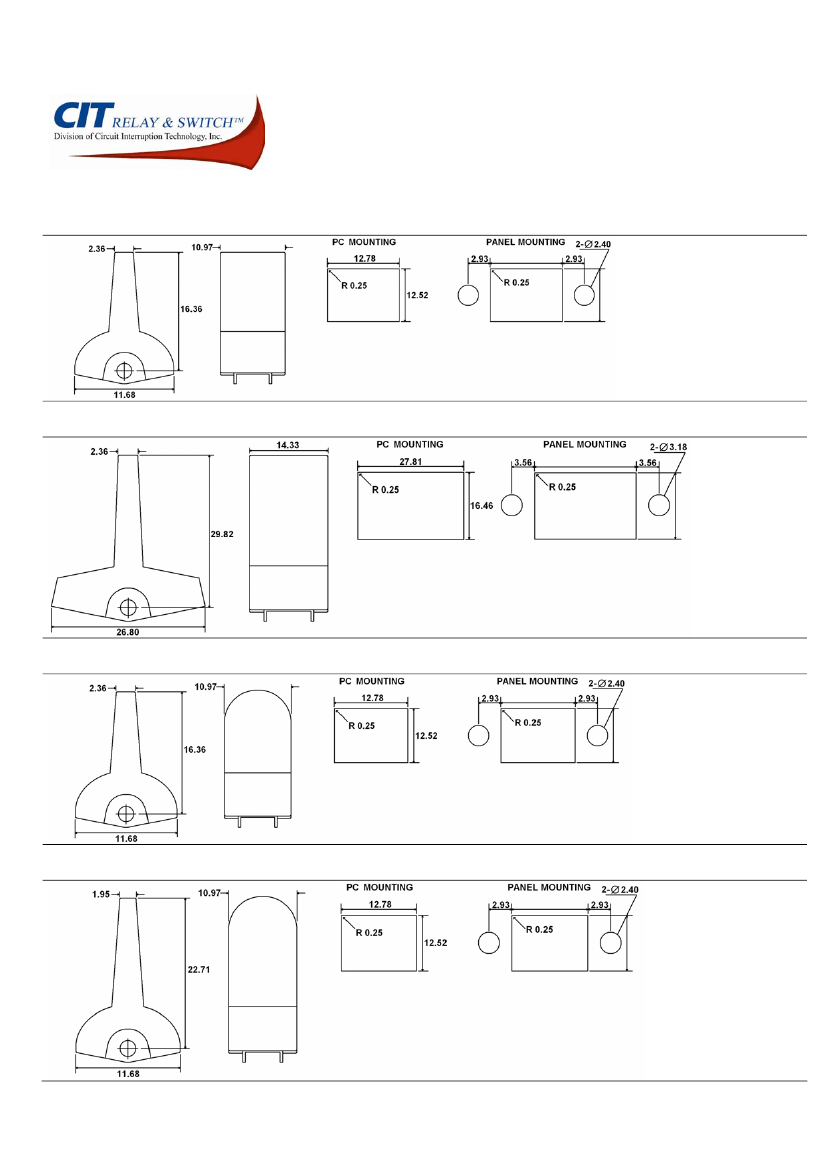

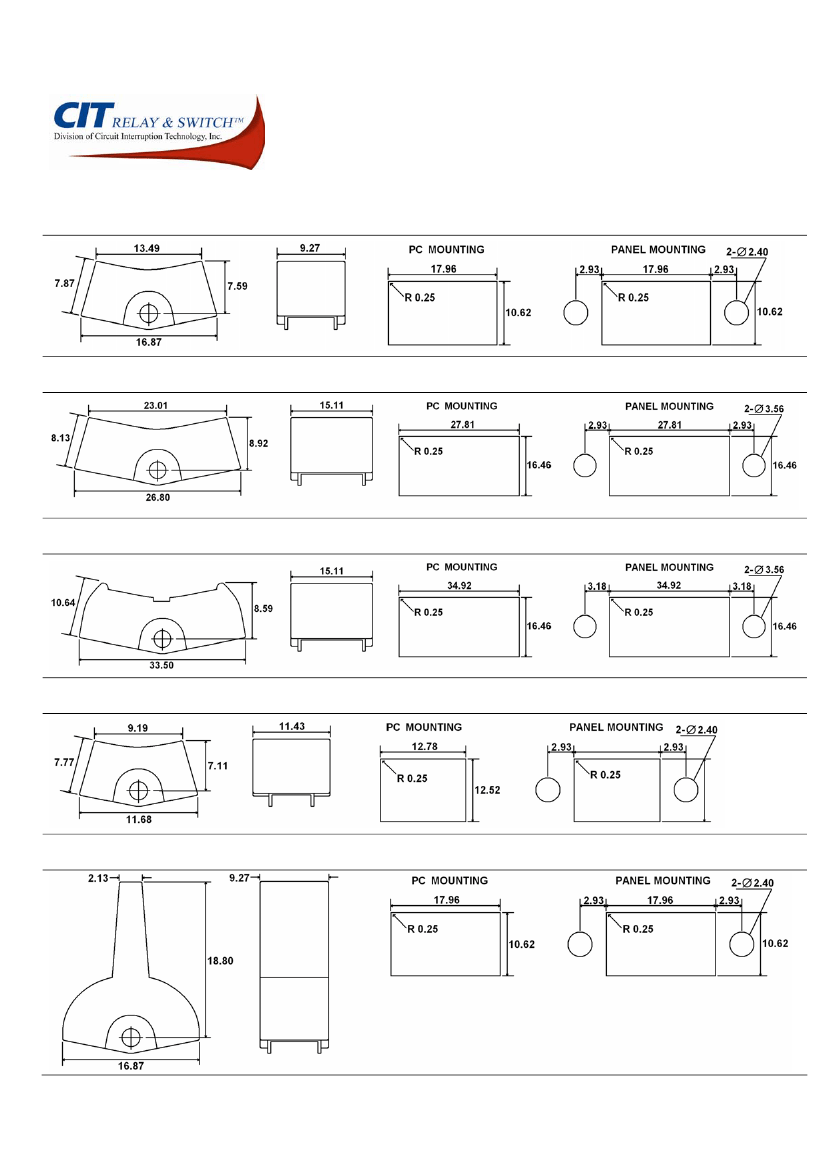

4. Actuator:
R11P / R11 = Rocker, PC Mount / Panel Mount
R15P / R15 = Rocker, PC Mount / Panel Mount
R19P / R19 = Rocker, PC Mount / Panel Mount
R21P / R21 = Rocker, PC Mount / Panel Mount
P13P / P13 = Paddle, PC Mount / Panel Mount
P23P / P23 = Paddle, PC Mount / Panel Mount
P43P / P43 = Paddle, PC Mount / Panel Mount
P47P / P47 = Paddle, PC Mount / Panel Mount
P48P / P48 = Paddle, PC Mount / Panel Mount
R12 / R22 = Rocker, Snap-in Panel Mount w/ Frame / Snap-in Panel Mount w/o Frame
P14 / P24 = Paddle, Snap-in Panel Mount w/ Frame / Snap-in Panel Mount w/o Frame
P17 / P27 = Paddle, Snap-in Panel Mount w/ Frame / Snap-in Panel Mount w/o Frame
P18 / P28 = Paddle, Snap-in Panel Mount w/ Frame / Snap-in Panel Mount w/o Frame
R51R = Rocker, Snap-in Panel Mount w/ Frame and LED (Red LED standard)
P53R = Rocker, Snap-in Panel Mount w/ Frame and LED (Red LED standard)
5. Actuator Color:
1 = White
4 = Yellow
7 = Blue
2 = Black
5 = Green
8 = Brown
3 = Red
6 = Orange
9 = Gray
6. Frame Color:
1 = White
4 = Yellow
7 = Blue
Blank = No Frame
2 = Black
5 = Green
8 = Brown
3 = Red
6 = Orange
9 = Gray
7. Actuator Marking Style:
Blank = No Marking
A, B, C, D, E, F, G
8. Actuator Marking Color:
Blank = No Marking, W = White (Standard), B = Black
9. Terminals:
B = Solder Lug
C = PC Pin
D = Quick Connect
H = Horizontal Mount, Right Angle PC Pin;
HS = Snap-in
V = Vertical Mount, Right Angle PC Pin
S20 or S25 = PC Pin with Support Bracket;
V20 or V25= Snap-in Support Bracket
S35 or S40 = PC Pin with Support Bracket;
S35 or V40 = Snap-in Support Bracket
10. Contacts:
Q = Silver Plated
R = Gold Plated
G = Gold over Silver Plated
11. Epoxy Seal:
E = Epoxy Seal
2
B
Q
E
www.citswitch.com
page
143
phone – 763.535.2339 fax – 763.535.2194
