Datasheet> All Categories > Discrete semiconductor> diode> MBR2050CT

Preview

MBR2050CT: DescriptionSchottky Barrier Rectifier; Configuration: Dual,Common Cathode; VRRM Max (V): 50V; IAV Max (A): 20A; VFM Max (V): 0.8V; @ IF (A): 20A; IFSM Max (A): 150A; IR Max (uA): 100uA; @VR (V): 50V; Package: TO-220AB; CategoryDiscrete semiconductor diode; File Size280KB，3 Pages; ManufacturerGalaxy Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

MBR2050CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBR2050CT	-	-	View	Buy Now

MBR2050CT Overview

Schottky Barrier Rectifier; Configuration: Dual,Common Cathode; VRRM Max (V): 50V; IAV Max (A): 20A; VFM Max (V): 0.8V; @ IF (A): 20A; IFSM Max (A): 150A; IR Max (uA): 100uA; @VR (V): 50V; Package: TO-220AB

MBR2050CT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Microelectronics
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
Is Samacsys	N
Other features	FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	150 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

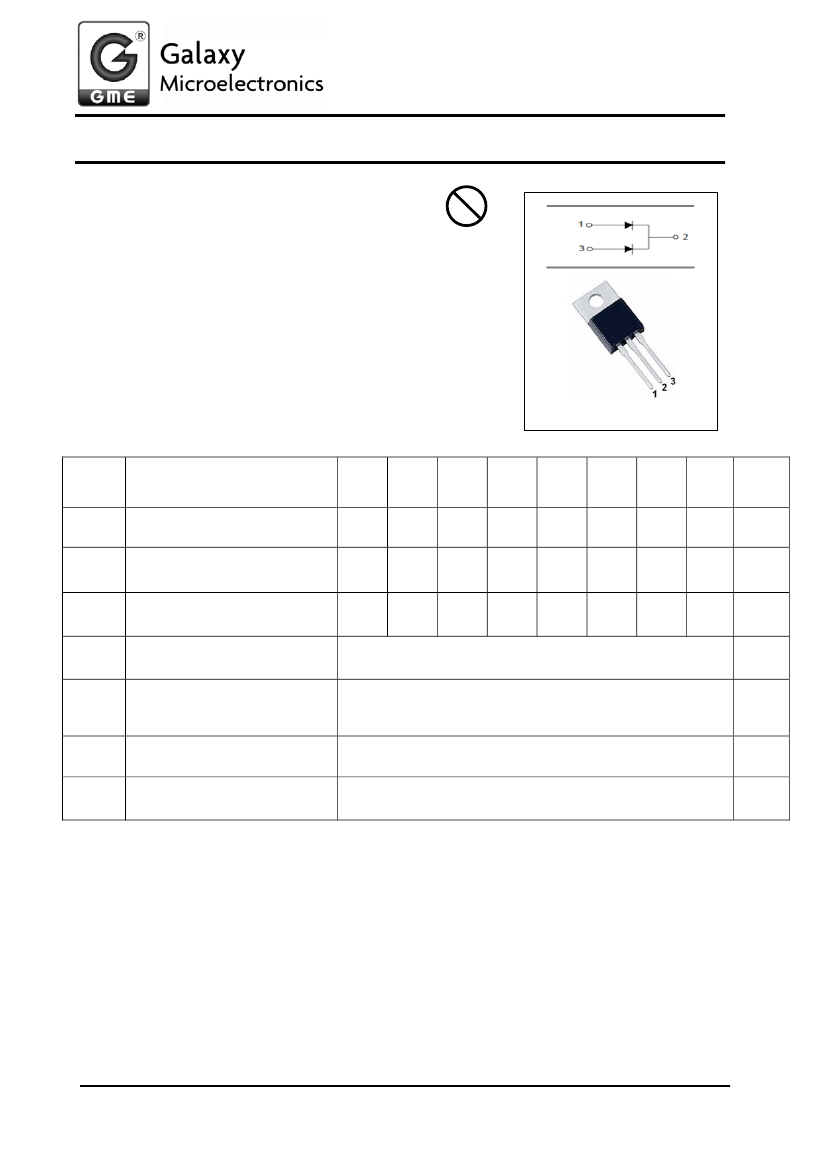

Production specification

Schottky Barrier

Diodes

FEATURES

High Surge Capacity.

MBR2030CT…MBR20100CT

Pb

Lead-free

For Use In Low Voltage,High Frequency Inverters,

Free Wheeling and Polarity Protection Applications.

Metal Silicon Junction,Majority Carrier Conduction.

High Current Capacity,Low Forward Voltage Drop.

Guard Ring for Over Voltage Protection.

TO-220AB

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

V

RRM

V

RMS

V

DC

I

F(AV)

I

FSM

R

θ

JC

T

j

T

stg

Parameter

Repetitive Peak

Reverse Voltage

RMS Voltage

DC Blocking Voltage

Average Forward

Rectified Current@T

A

=100℃

Peak Forward Surge Current

8.3ms Single Half Sine-wave

superimposed on rated load

Thermal Resistance

(Note1)

Operating Junction and

StorageTemperature Range

MBR

2030

CT

30

21

30

MBR

2035

CT

35

25

35

MBR

2040

CT

40

28

40

MBR

2045

CT

45

32

45

20

150

2.0

-55 to +150

MBR

2050

CT

50

35

50

MBR

2060

CT

60

42

60

MBR

2080

CT

80

56

80

MBR

20100

CT

100

70

100

Unit

V

A

℃/W

℃

Note:1.Thermal resistance from junction to case.

X001

Rev.A

www.gmicroelec.com

1

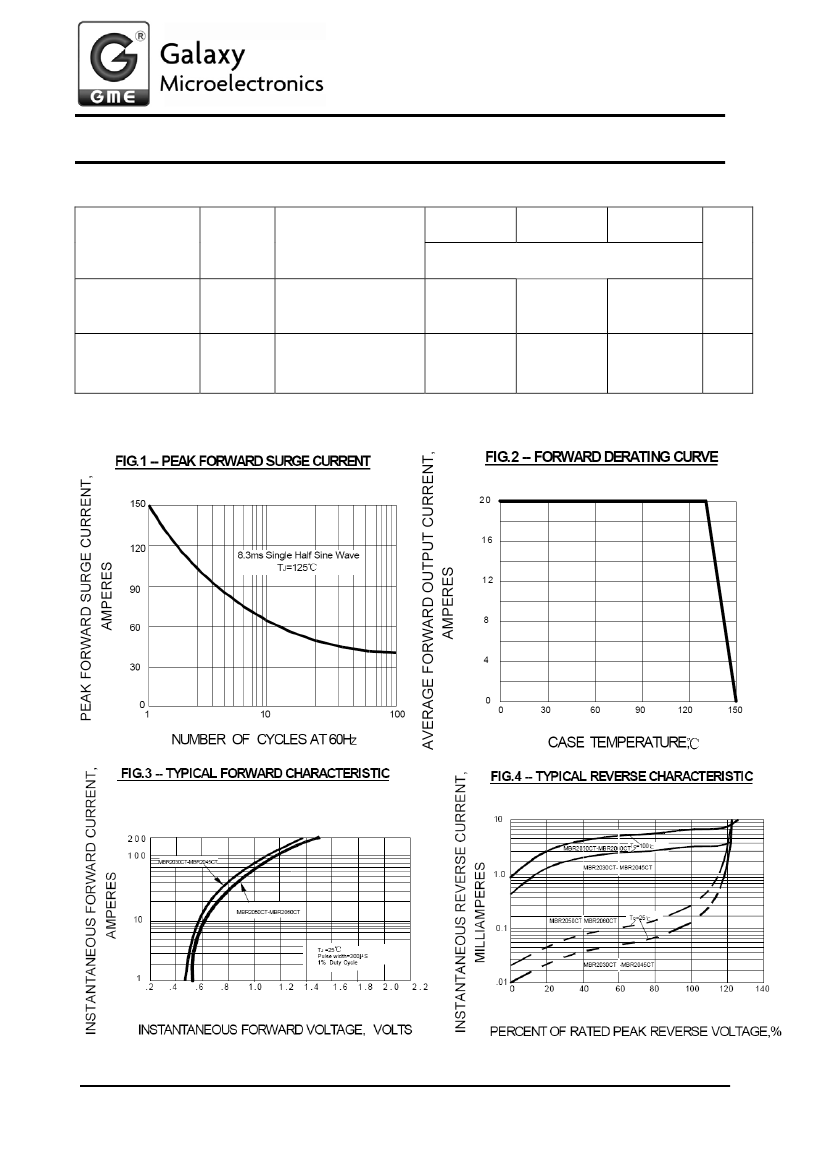

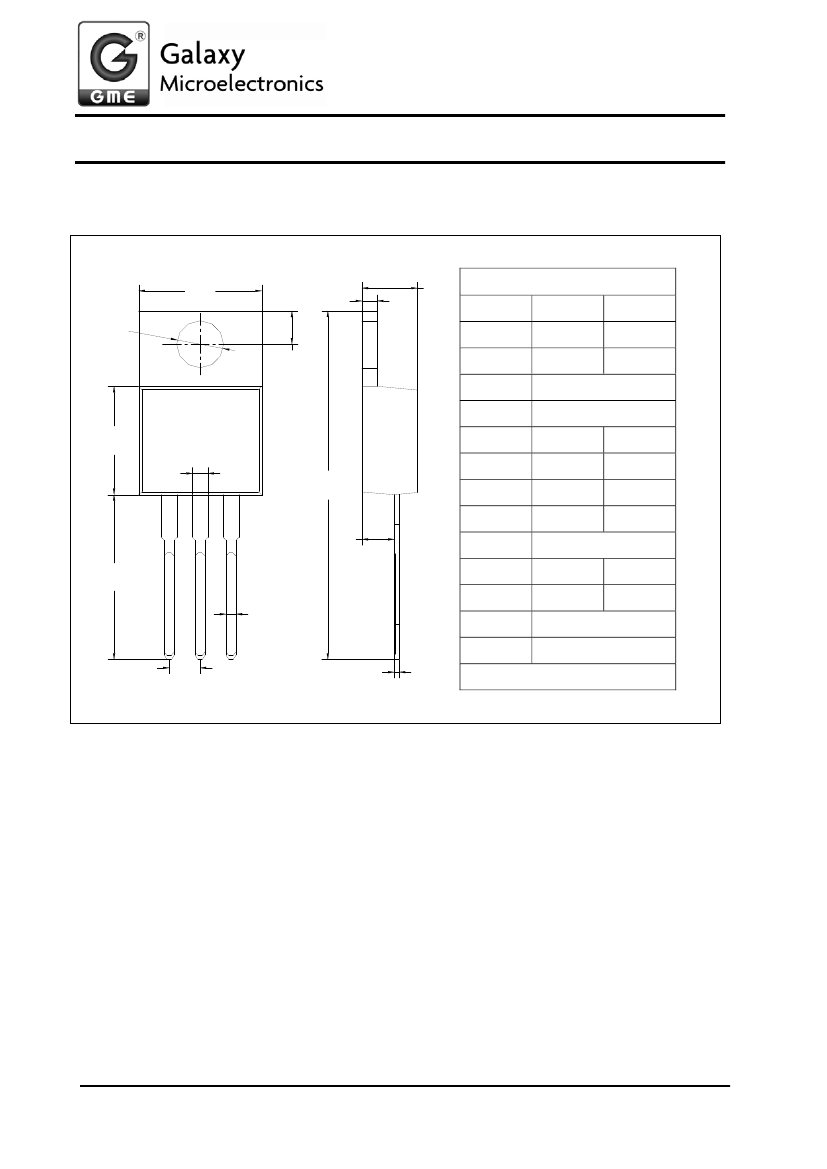

MBR2050CT Related Products

	MBR2050CT	MBR2045CT	MBR2060CT
Description	Schottky Barrier Rectifier; Configuration: Dual,Common Cathode; VRRM Max (V): 50V; IAV Max (A): 20A; VFM Max (V): 0.8V; @ IF (A): 20A; IFSM Max (A): 150A; IR Max (uA): 100uA; @VR (V): 50V; Package: TO-220AB	Schottky Barrier Rectifier; Configuration: Dual,Common Cathode; VRRM Max (V): 45V; IAV Max (A): 20A; VFM Max (V): 0.7V; @ IF (A): 20A; IFSM Max (A): 150A; IR Max (uA): 100uA; @VR (V): 45V; Package: TO-220AB	20A,60V,Schottky Barrier Rectifiers, Diodes, Dual,Common Cathode, 60V, 20A, 0.8V, 10A, 150A
Is it Rohs certified?	conform to	conform to	conform to
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
Parts packaging code	TO-220AB	TO-220AB	TO-220AB
Reach Compliance Code	unknown	unknown	unknown
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.84 V	0.95 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A	150 A	150 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V	45 V	60 V
Maximum reverse current	150 µA	100 µA	150 µA
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum operating temperature	150 °C	150	150
Minimum operating temperature	-55 °C	-55	-55
VRRM (V) max	-	45	60
IF (A) max	-	20	20
VF (V) max	-	0.65	0.8
Condition1_IF (A)	-	10	10
IFSM (A) max	-	150	150
IR (uA) max	-	100	100
Condition2_VR (V)	-	45	60
AEC Qualified	-	NO	NO
MSL level	-	/	/
Is it lead-free?	-	YES	YES
Comply with Reach	-	YES	YES
RoHS compliant	-	YES	YES
ECCN code	-	EAR99	EAR99
Package Outlines	-	TO-220AB	TO-220AB
