BF569-GS08 datasheet, PDF - EEWORLD Datasheet

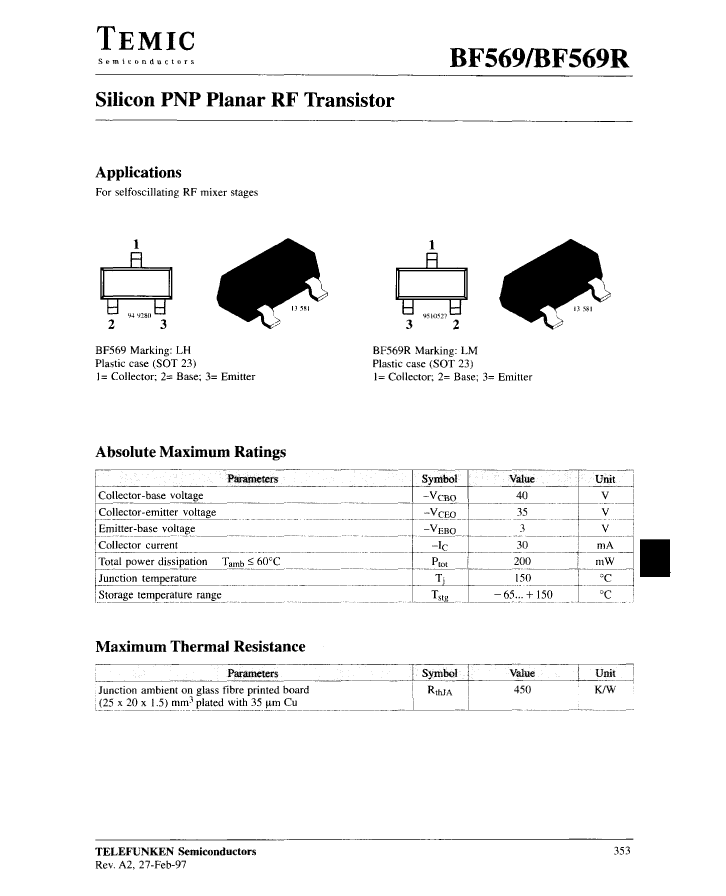

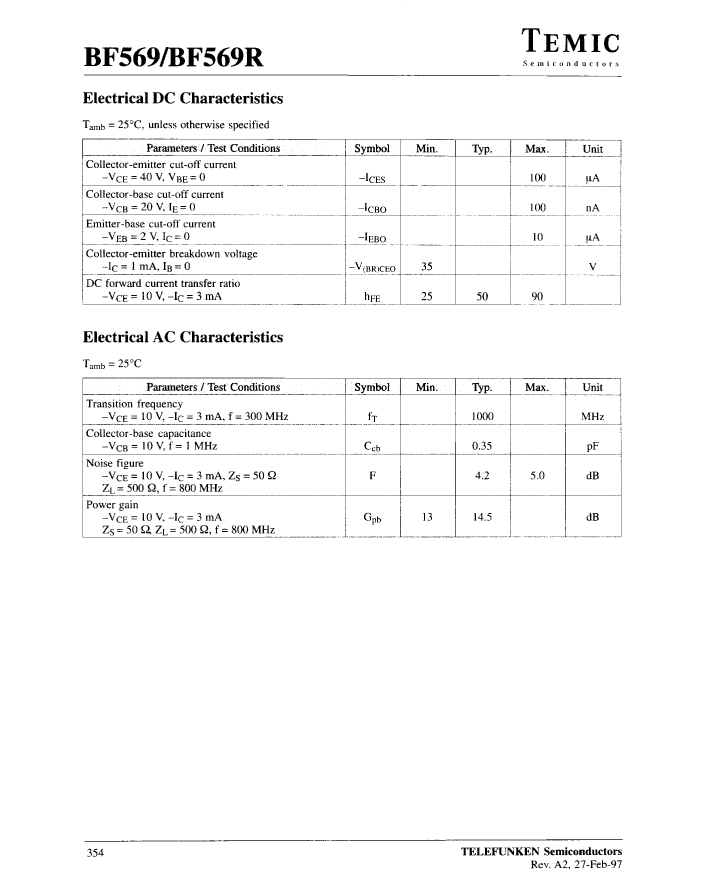

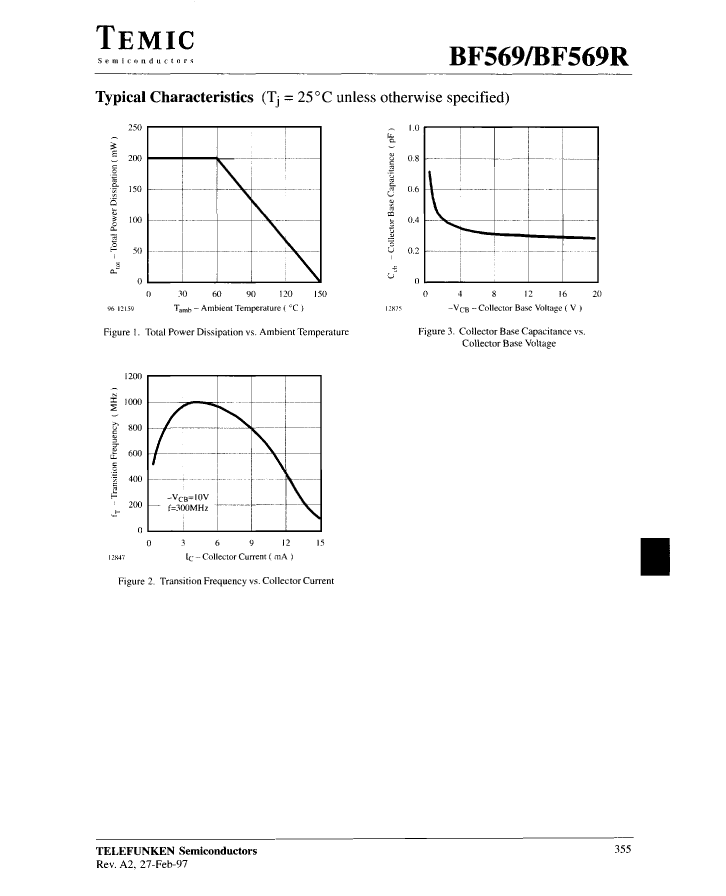

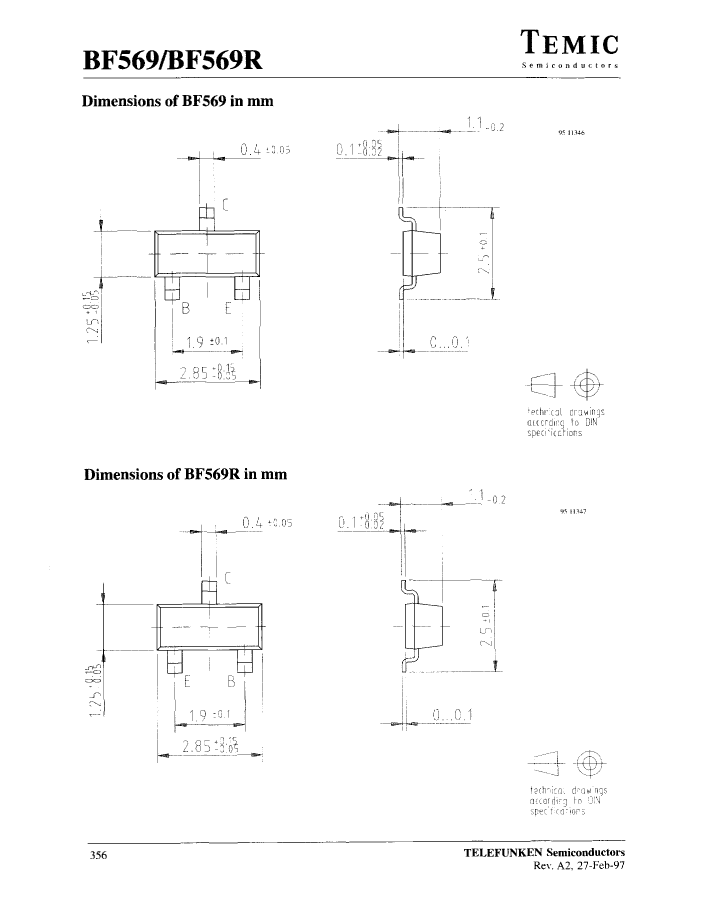

BF569-GS08: DescriptionRF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,; CategoryDiscrete semiconductor The transistor; File Size85KB，4 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BF569-GS08 Overview

RF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	0.03 A
Collector-emitter maximum voltage	35 V
Configuration	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	1000 MHz
Base Number Matches	1

	BF569-GS08	BF569R-GS08	BF569R-GS18	BF569-GS18
Description	RF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,	RF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,	RF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,	RF Small Signal Bipolar Transistor, 0.03A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP,
Maker	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.03 A	0.03 A	0.03 A	0.03 A
Collector-emitter maximum voltage	35 V	35 V	35 V	35 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Base Number Matches	1	1	1	-
