BSS80B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSS80B

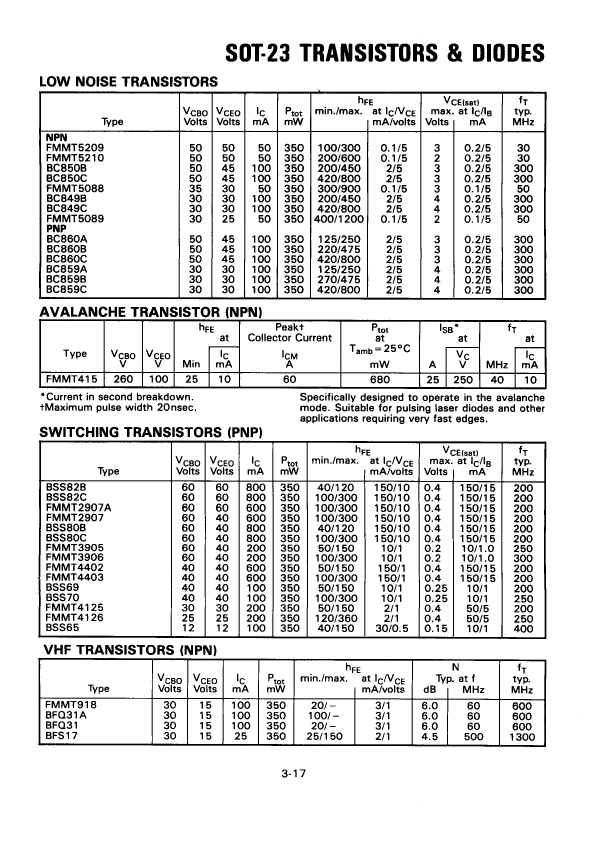

BSS80B: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size46KB，1 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

BSS80B Overview

Small Signal Bipolar Transistor, 0.8A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN

BSS80B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.225 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Maximum off time (toff)	110 ns
Maximum opening time (tons)	50 ns
Base Number Matches	1

Preview

Download Datasheet

View All

BSS80B Related Products

	BSS80B	FMMT4403	BSS80C
Description	Small Signal Bipolar Transistor, 0.8A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.8A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Maximum collector current (IC)	0.8 A	0.6 A	0.8 A
Collector-emitter maximum voltage	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	100	100
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0	e0
Humidity sensitivity level	1	1	1
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.225 W	0.33 W	0.225 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz
Maximum off time (toff)	110 ns	225 ns	110 ns
Maximum opening time (tons)	50 ns	35 ns	50 ns
Base Number Matches	1	1	1
