BDS77 datasheet, PDF - EEWORLD Datasheet

BDS77: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size253KB，6 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

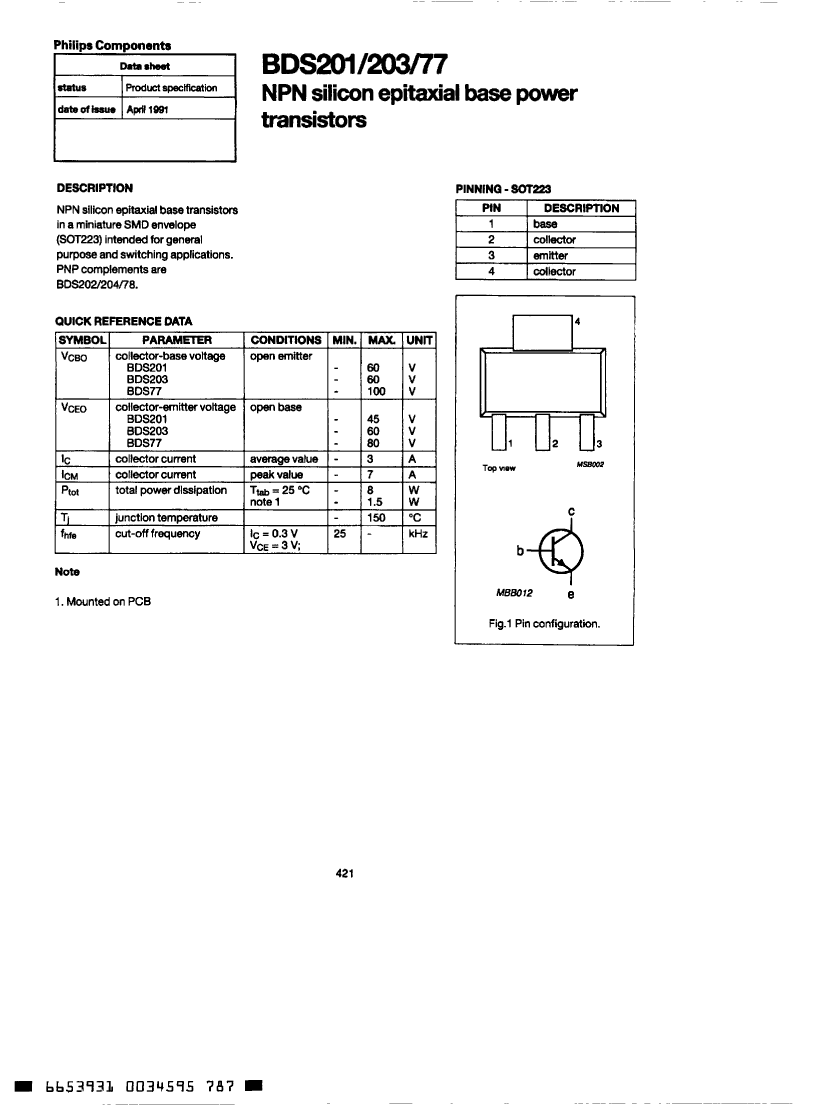

BDS77 Overview

Transistor,

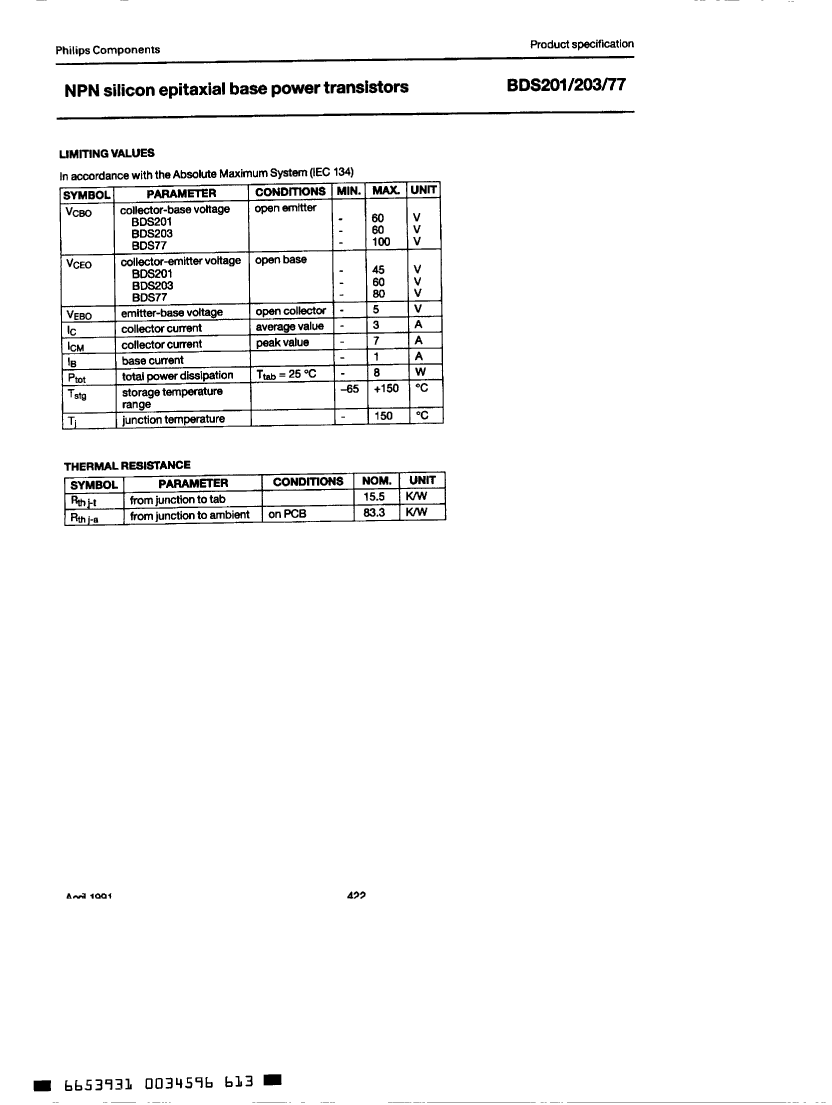

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N

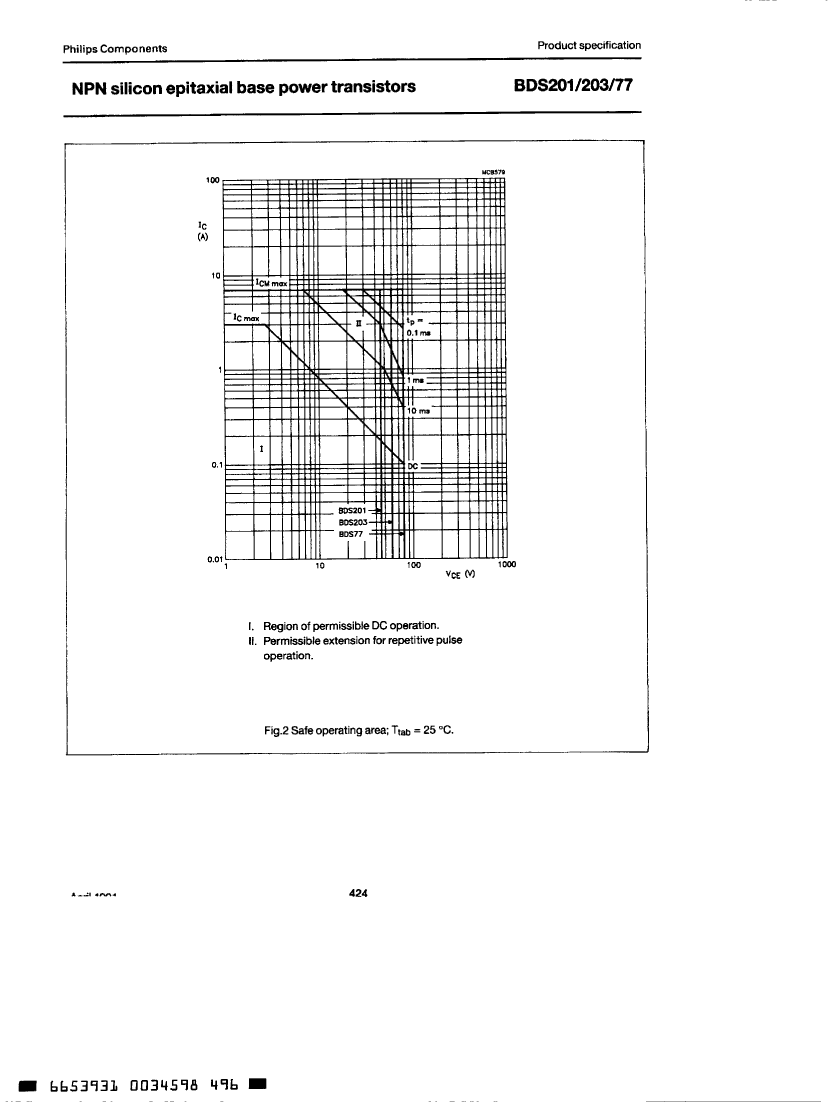

Maximum collector current (IC)	3 A
Configuration	Single

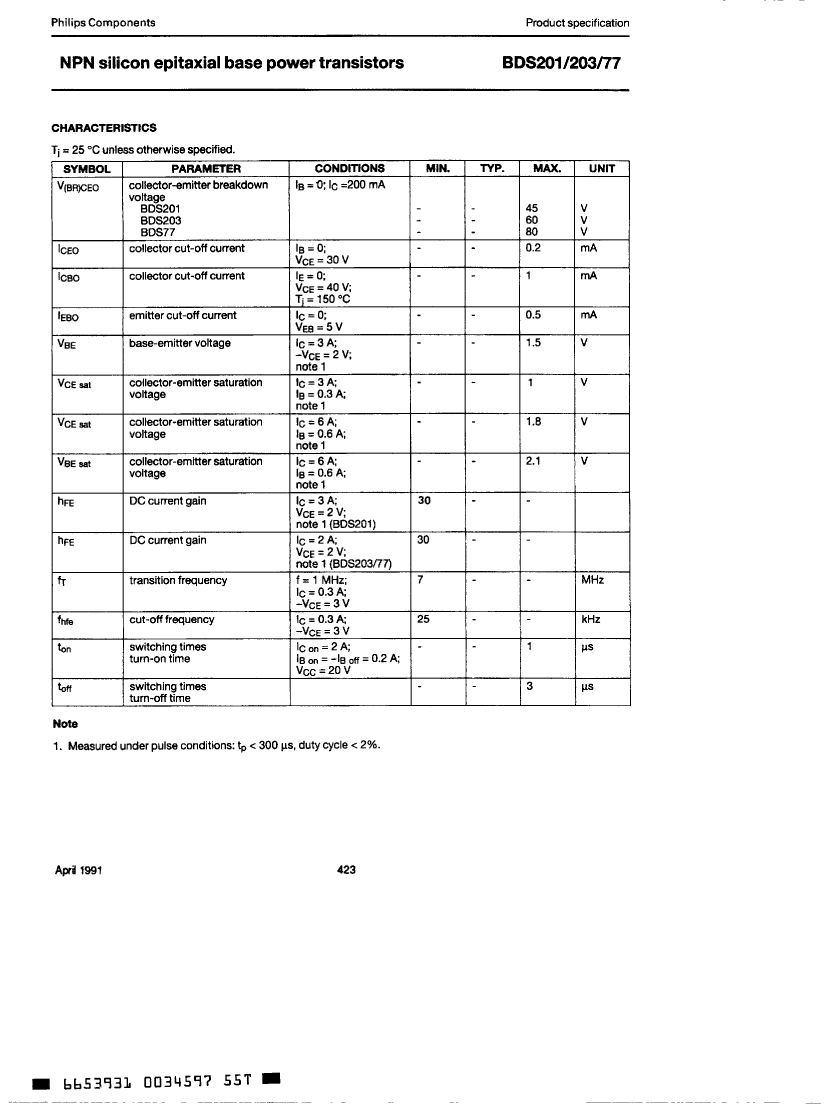

Minimum DC current gain (hFE)	30
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	8 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

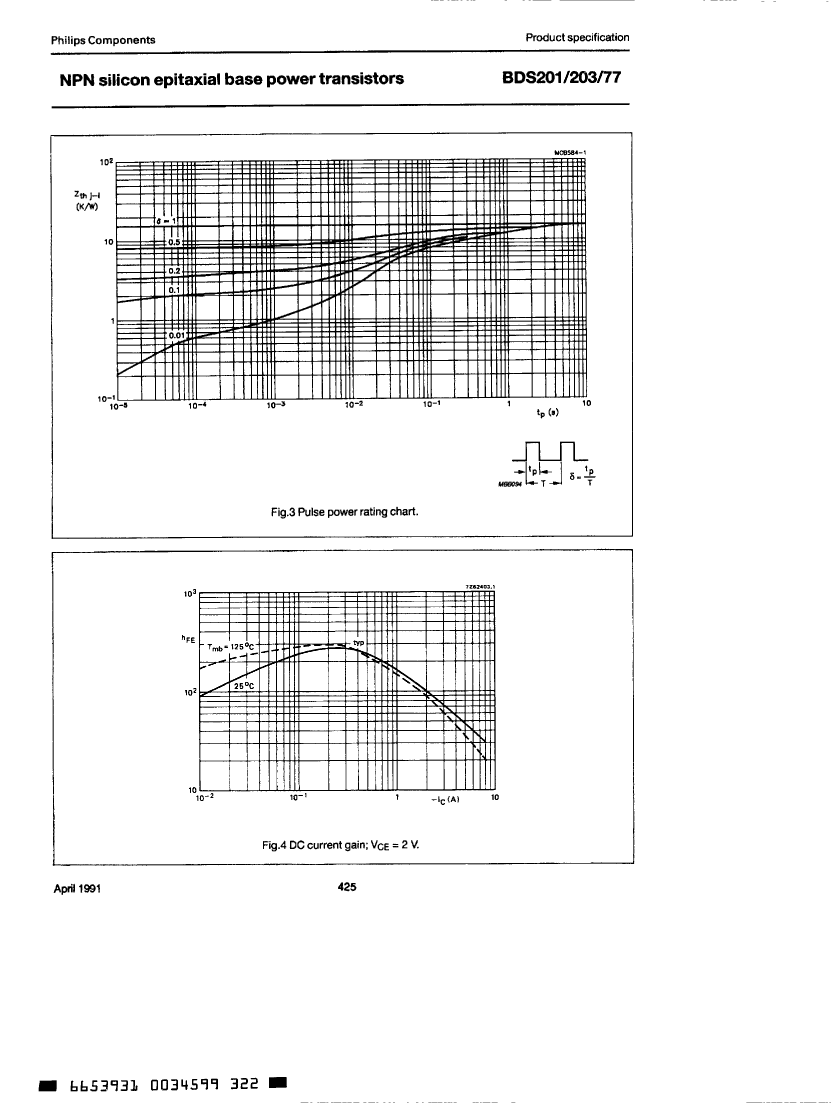

Nominal transition frequency (fT)	7 MHz
Base Number Matches	1

	BDS77	BDS203	BDS201
Description	Transistor,	Transistor,	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Maximum collector current (IC)	3 A	3 A	3 A
Configuration	Single	Single	Single
Minimum DC current gain (hFE)	30	30	30
JESD-609 code	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	8 W	8 W	8 W
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	7 MHz	7 MHz	7 MHz
Base Number Matches	1	1	1
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	-
Is Samacsys	N	N	-
