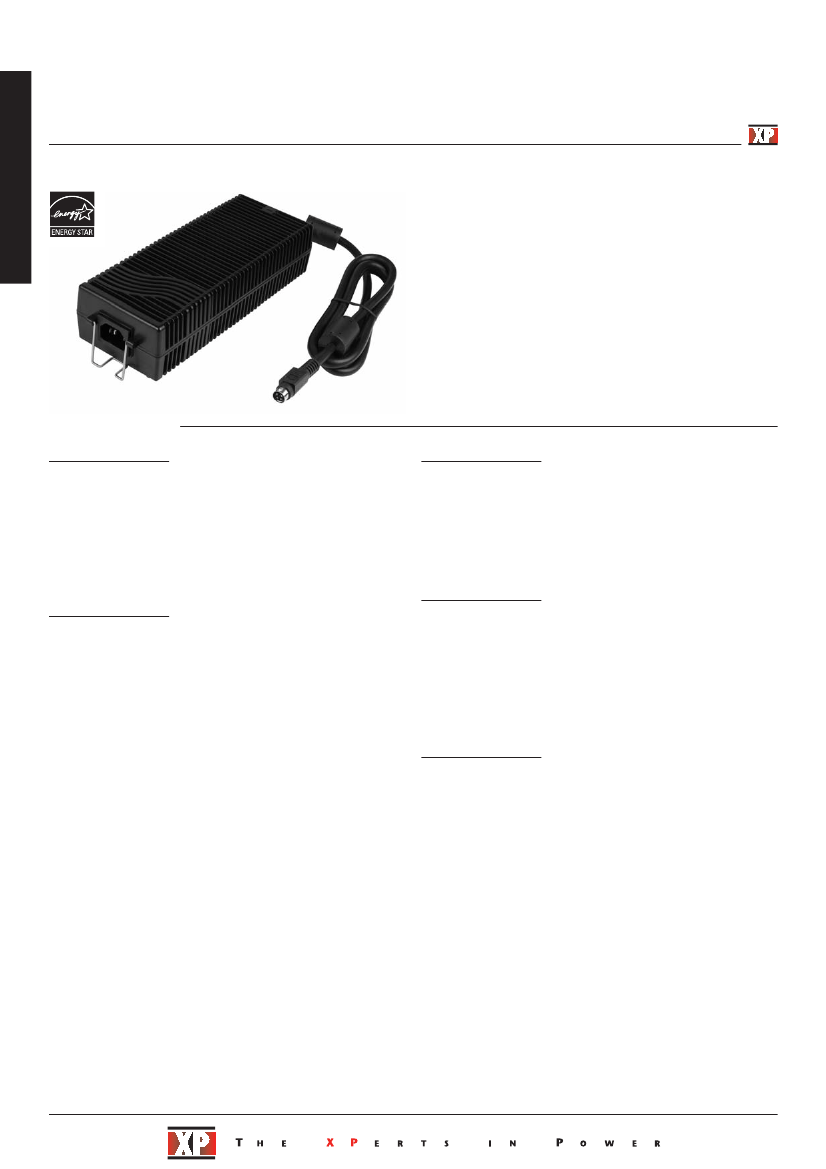

AC-DC
150 Watts
AMM150 Series
•
•
•
•
•
•
•
Energy Star Level V
≥15
V
xppower.com
CEC 2008 & EISA2007 Compliant
Worldwide Medical Approvals
Class I and Class II Versions
Optional AC Cable Restraint
Optional Output Connectors
Low Leakage Current
Specification
Input
• 90-264 VAC
• 47-63 Hz
• 2 A rms at 115 VAC,
1 A rms at 230 VAC
Earth Leakage Current
• 90 µA max at 115 VAC/60 Hz,
(Class I Versions)
150 µA max at 230 VAC/50 Hz
Input Protection
• Internal 3 A fuse in live and neutral lines
No Load Input Power
• <0.5 W
Input Voltage
Input Frequency
Input Current
General
Efficiency
Isolation
• 85% minimum (see note 4)
• 4000 VAC Input to Output
1500 VAC Input to Ground
500 VAC Output to Ground
• 50-110 kHz
• 2.9 W/Inch
3
• 150 kHrs per MIL-HDBK-217F
Switching Frequency
Power Density
MTBF
Environmental
Operating Temperature
• 0 ºC to +60 ºC, derate linearly from
100% load at +40 °C to 50% at +60 °C
• Natural convection
Cooling
Operating Humidity
• 5-95% RH, non-condensing
Storage Temperature
• -40 ºC to +85 ºC
Operating Altitude
• 3000 m
Shock
• 30 g, 10 ms on 3 axes
Vibration
• 5-100 Hz, 2.31 m/s
2
, 20 mins on 3 axes
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Delay
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Transient Response
See table
±2%
No minimum load required
2 s max at 115 VAC
<80 ms at 115 VAC
15 ms at 110 VAC
±0.5%
±5%
4% deviation recovering to <1% within
300 µs for 25% step change
Ripple & Noise
• 2% pk-pk max, see note 1
Overvoltage Protection
• 112-140% of nominal output voltage,
auto recovery
Overtemperature
• Unit shuts down, auto recovery
Protection
Overload Protection
• 130-180% auto recovery
Short Circuit Protection
• Trip & restart (hiccup mode)
Temperature
• ±0.04%/°C
Coefficient
•
•
•
•
•
•
•
•
•
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Magnetic Field
Dips & Interruptions
• EN55011, Class B conducted
EN55011, Class B radiated
• EN61000-3-2, Class A
• EN61000-3-3
• EN61000-4-2, ±8 kV air & ±6 kV indirect
Discharge, Perf Criteria A
• EN61000-4-3, level 2 Perf Criteria A
• EN61000-4-4, level 3 Perf Criteria A
• EN61000-4-5, level 3 Perf Criteria A
• EN61000-4-6, 3 V rms Perf Criteria A
• EN61000-4-8, 1 A/m Perf Criteria A
• EN61000-4-11, >95% U
T
for 10 ms,
60% U
T
for 100 ms, 30% U
T
for 500 ms
Perf Criteria A, B, B
• EN60601-1, UL60601-1, CSA22.2
No. 601-1 per cUL
Safety Approvals
AC-DC
AMM150
Models and Ratings
Output
Power
132 W
144 W
150 W
150 W
150 W
150 W
Notes
1. Ripple and noise measured at 20 MHz bandwidth with a 10 µF tantalum and 0.1 µF ceramic capacitor connected at the measurement point.
2. Total regulation includes set accuracy, line and load regulation.
3. For optional barrel jack connector, add suffix ‘B1’ to the model number e.g. AMM150PS24B1.
4. Efficiency given is the average of efficiencies measured with output loads of 25%, 50%, 75% and 100%. Models with output voltage of 15 V
and higher have 87% minimum.
5. For optional AC cable restraint on the Class I Version, add suffix ‘A’ to the model number e.g. AMM150PS24A or AMM150PS24B1A. AC mains
lead must be Interpower Corporation, part number: 70006020300. Optional AC cable restraint is not available on the Class II Version.
6. For Class II Versions, and ‘C2’ to model number, eg. AMM150PS24C2
Output
Voltage
12 V
15 V
19 V
24 V
27 V
48 V
Output
Current
11.00 A
9.60 A
7.90 A
6.25 A
5.56 A
3.13 A
Total
Regulation
(2)
5%
5%
5%
5%
5%
5%
Model
Number
(5,6)
AMM150PS12
AMM150PS15
AMM150PS19
AMM150PS24
(3)
AMM150PS27
(3)
AMM150PS48
(3)

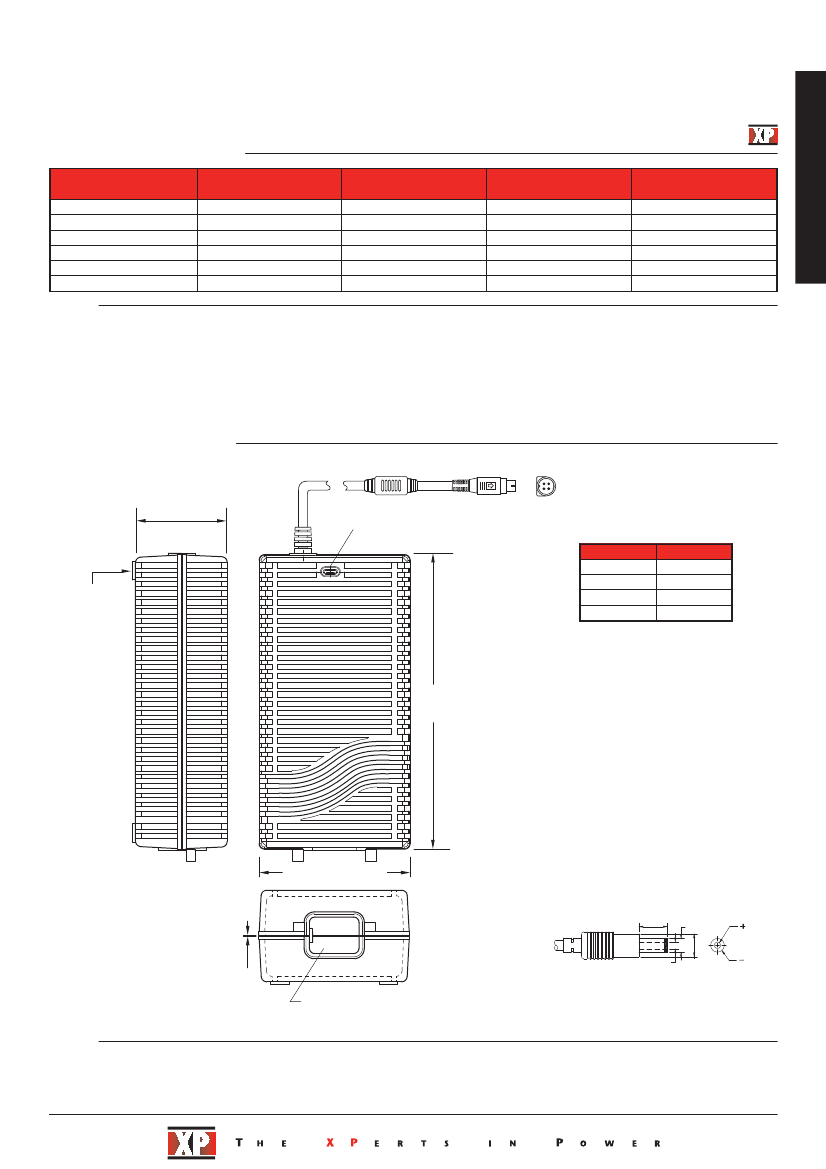

Mechanical Details
Cable length approx 48” (1219 mm)
1 3
2 4
1.96
(49.7)
Power On Indicator
Pin
1
2
3
4
Function
Return
Output+
Return
Output+
Rubber foot
(4 places.)
8.17
(207.6)
3.23 (82.0)
Optional Barrel Jack Connector
0.433 (11.0)
0.217
(5.5)
0.02
(0.5)
0.083 (2.1)
0.413
(10.5)
AC Input
IEC 320/C14 Inlet - For Class I Version
IEC 320/C18 Inlet - For Class II Version
Notes
1. Dimensions shown in inches (mm). Tolerance is 0.02 (0.5) maximum, except output cable length.
2. Weight: 2.16 lbs (980 g).
3. Output connector is KYCON KPPX-4P. For mating half use KYCON KPJX-4S-S or equivalent.
4. For Class I versions shell is connected to ground. For Class II Versions shell is capacitively coupled to input.
