AM3G-1215D-NZ: DescriptionDC/DC Converter; Product Weight (grams): 4.9; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Dual; Output Power (W): 3; Max Output current (A): ±0.1; Efficiency (%): 80; Max Capacitive load (µF): ±330; Package type: SIP8; Mounting: PCB; W (in): 0.37; L (in): 0.87; H (in): 0.47; W (mm): 9.5; L (mm): 22; H (mm): 12; Min Operating temperature: -40; Max operating temperature (°C): 100; Isolation (VDC): 1500; EMC compliance 2: EN 55032 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 250; Short circuit protection: Continuous; On/Off Control: 1; CategoryPower/power management The power supply circuit; File Size194KB，3 Pages; ManufacturerAimtec; Websitehttp://www.aimtec.ca/; Environmental Compliance

Download Datasheet View All

AM3G-1215D-NZ Overview

DC/DC Converter; Product Weight (grams): 4.9; Input voltage min (V): 18; Input voltage max (V): 36; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Dual; Output Power (W): 3; Max Output current (A): ±0.1; Efficiency (%): 80; Max Capacitive load (µF): ±330; Package type: SIP8; Mounting: PCB; W (in): 0.37; L (in): 0.87; H (in): 0.47; W (mm): 9.5; L (mm): 22; H (mm): 12; Min Operating temperature: -40; Max operating temperature (°C): 100; Isolation (VDC): 1500; EMC compliance 2: EN 55032 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 250; Short circuit protection: Continuous; On/Off Control: 1

Preview

Download Datasheet

View All

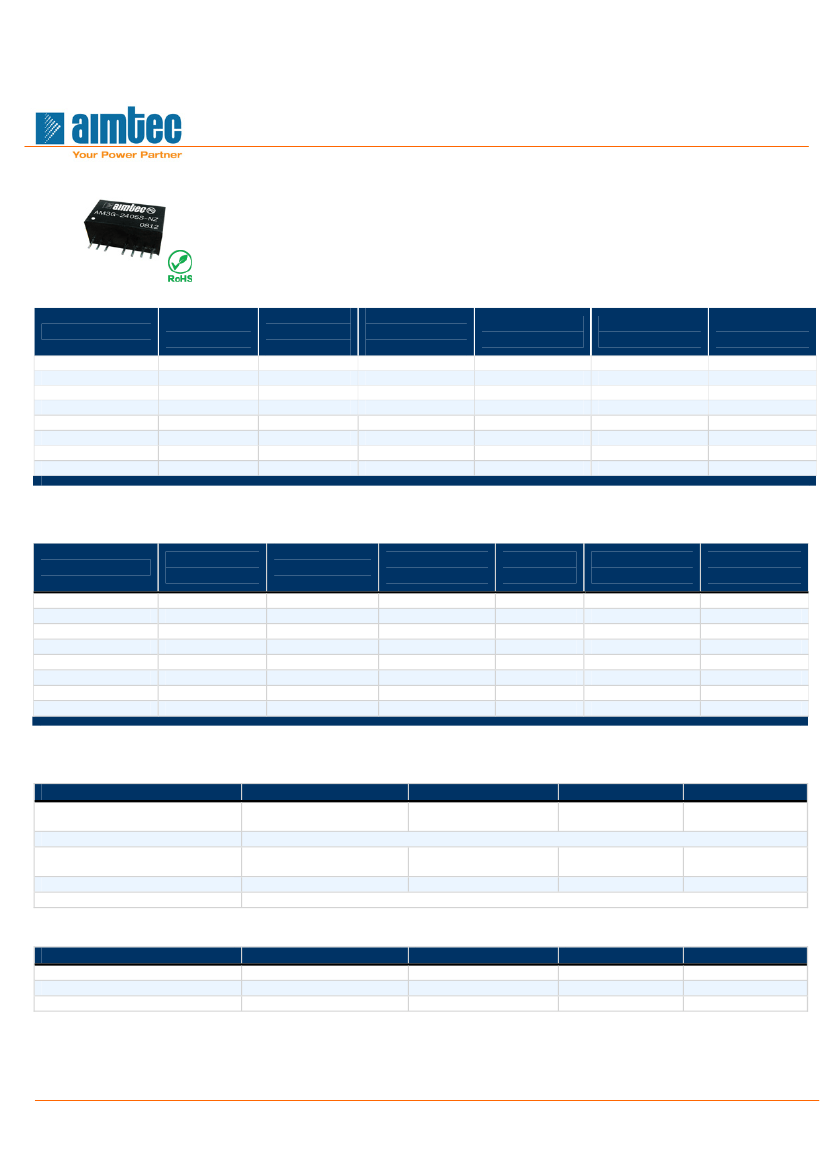

Series AM3G-NZ

3 Watt | DC-DC Converter

FEATURES:

•

RoHS compliant

•

Very low No load consumption

•

Remote On/Off Control

•

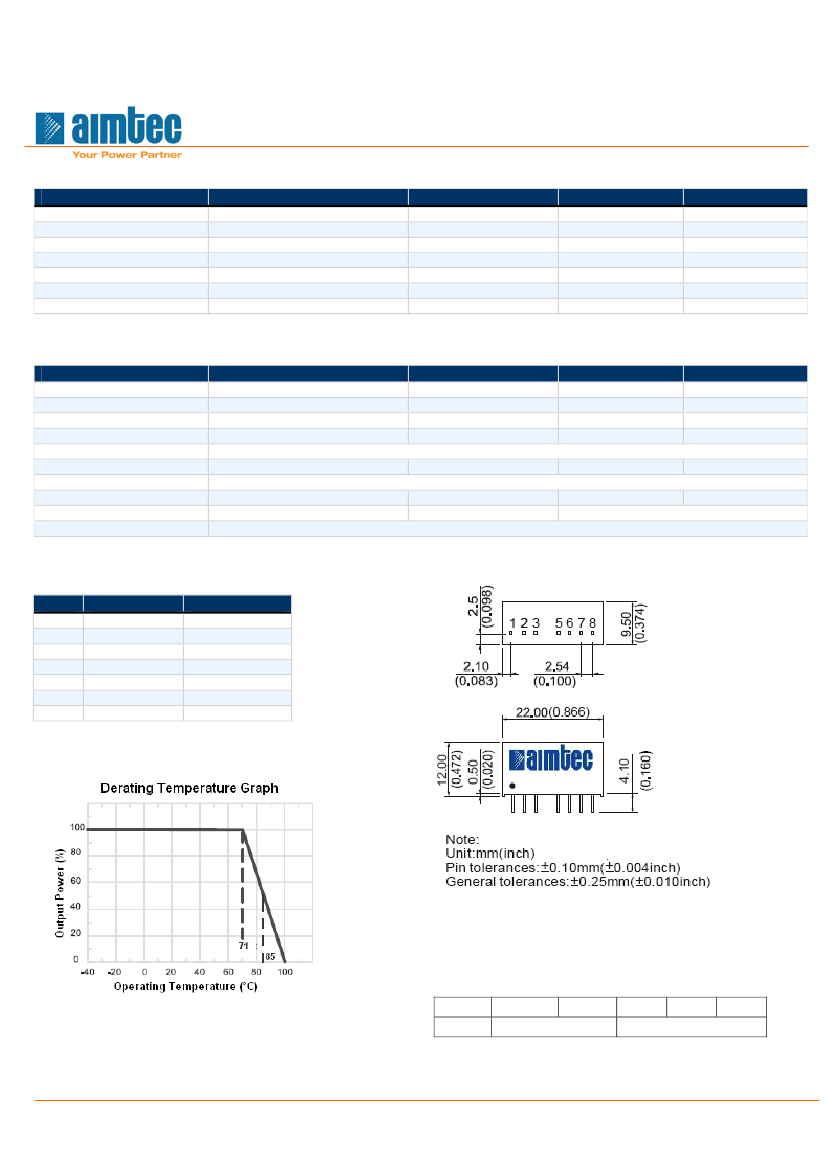

8 pin SIP package

•

Operating temperature -40

o

C to + 85

o

C

Continuous Short circuit protection

Wide 2:1 input range

High efficiency up to 81%

Models

Single output

Model

AM3G-1205S-NZ

AM3G-1209S-NZ

AM3G-1212S-NZ

AM3G-1215S-NZ

AM3G-2405S-NZ

AM3G-2409S-NZ

AM3G-2412S-NZ

AM3G-2415S-NZ

Input

Voltage (V)

9-18

18-36

Output

Voltage

(V)

5

9

12

15

5

9

12

15

Output Current

max

(mA)

600

333

250

200

600

333

250

200

Isolation

(VDC)

1500

Capacitor Load

(μF)

2200

1000

820

680

2200

1000

820

680

Efficiency

78

79

80

78

79

80

81

Models

Dual output

Model

AM3G-1205D-NZ

AM3G-1209D-NZ

AM3G-1212D-NZ

AM3G-1215D-NZ

AM3G-2405D-NZ

AM3G-2409D-NZ

AM3G-2412D-NZ

AM3G-2415D-NZ

Input Voltage

(V)

9-18

18-36

Output

Voltage

(V)

±5

±9

±12

±15

±5

±9

±12

±15

Output Current

max (mA)

±300

±167

±125

±100

±300

±167

±125

±100

Isolation

(VDC)

1500

Capacitor Load

(μF)

±560

±470

±330

±220

±560

±470

±330

±220

Efficiency

(%)

78

79

80

78

79

80

81

Input Specifications

Parameters

Voltage range

Filter

Maximum Rating

Peak Input Voltage time

On/Off Control

12 Vin

24 Vin

Nominal

12

24

Typical

Maximum

Units

VDC

ms

9-18

18-36

Capacitor

22

40

100

ON – low or open; OFF - high

Isolation Specifications

Parameters

Tested voltage

Resistance

Capacitance

Conditions

60 sec

100kHz, 1V

Typical

1500

> 1000

80

Maximum

Units

VDC

MOhm

pF

www.aimtec.com

F 051e R2.A

Tel: +1 514 620 2722

1 of 3

Toll free: + 1 888 9 AIMTEC

(924 6832)

North America only
