HM2P08PDT1W0N9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P08PDT1W0N9LF

HM2P08PDT1W0N9LF: DescriptionBoard Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size281KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PDT1W0N9LF Overview

Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P08PDT1W0N9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2P08PDT1W0
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	63
UL Flammability Code	94V-0
Base Number Matches	1

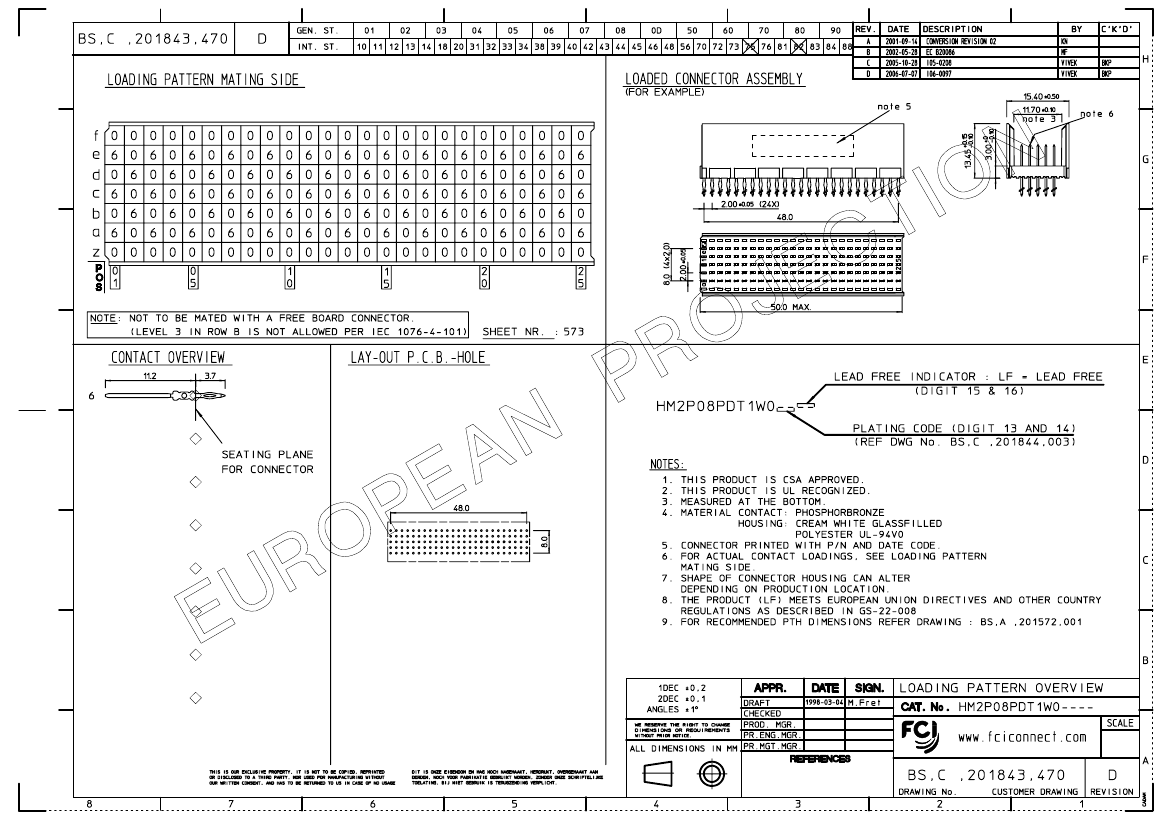

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 01, 2007

HM2P08PDT1W0N9LF Related Products

	HM2P08PDT1W0N9LF	HM2P08PDT1W0E9LF	HM2P08PDT1W0E9	HM2P08PDT1W0N9	HM2P08PDT1W0Z1LF
Description	Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 63 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2P08PDT1W0	HM2P08PDT1W0	HM2P08PDT1W0	HM2P08PDT1W0	HM2P08PDT1W0
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	63	63	63	63	63
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-
package instruction	LEAD FREE	LEAD FREE	-	-	LEAD FREE
ECCN code	EAR99	EAR99	EAR99	EAR99	-
