74F64 Overview

4-2-3-2-input AND-OR-invert gate

Preview

Download Datasheet

View All

74F64 4-2-3-2-Input AND-OR-Invert Gate

April 1988

Revised March 1999

74F64

4-2-3-2-Input AND-OR-Invert Gate

General Description

This device contains gates configured to perform a 4-2-3-2

input AND-OR-INVERT function.

Ordering Code:

Order Number

74F64SC

74F64SJ

74F64PC

Package Number

M14A

M14D

N14A

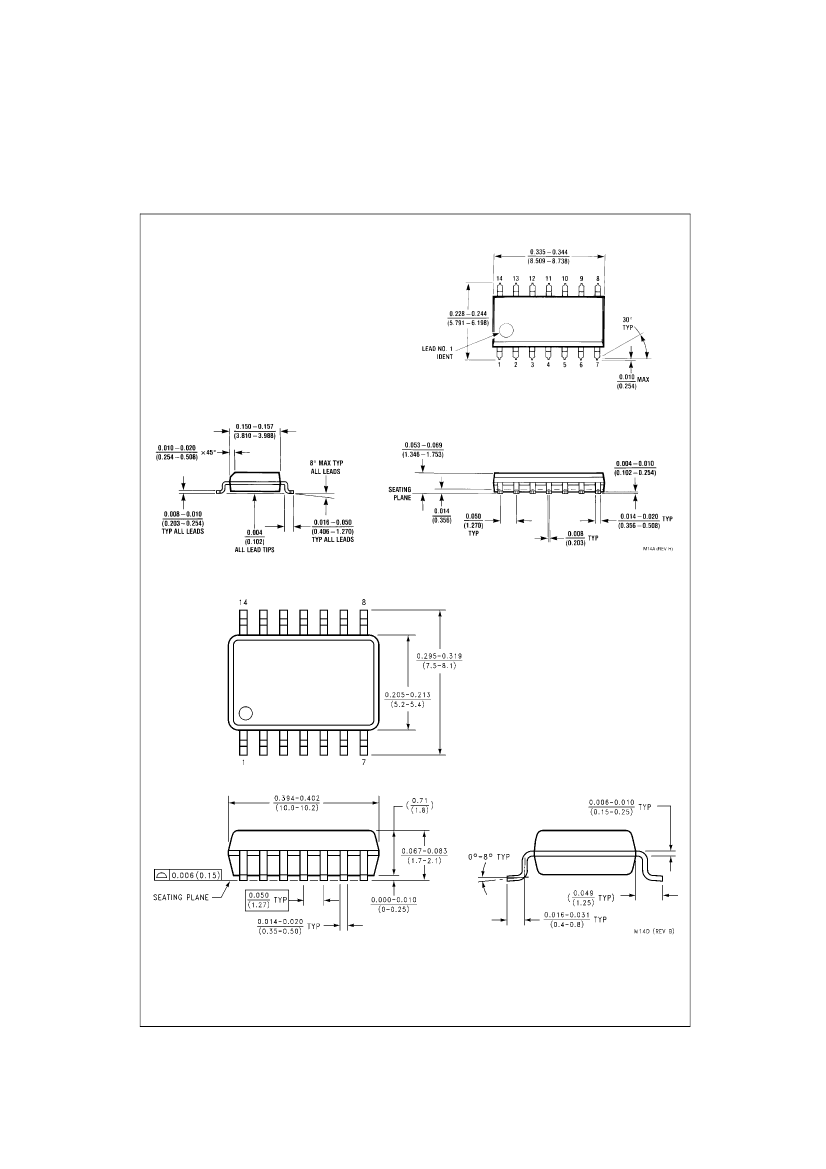

Package Description

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol

IEEE/IEC

Connection Diagram

Unit Loading/Fan Out

U.L.

Pin Names

, B

, C

, D

Description

HIGH/LOW

Inputs

Output

1.0/1.0

50/33.3

Input I

Output I

µA/−0.6

−1

mA/20 mA

DS009467.prf

www.fairchildsemi.com

74F64 Related Products

	74F64	74F64PC	74F64SJ	74F64SC
Description	4-2-3-2-input AND-OR-invert gate	4-2-3-2-input AND-OR-invert gate	4-2-3-2-input AND-OR-invert gate	4-2-3-2-input AND-OR-invert gate
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Maker	-	Fairchild	Fairchild	Fairchild
Parts packaging code	-	DIP	SOIC	SOIC
package instruction	-	0.300 INCH, PLASTIC, MS-001, DIP-14	SOP, SOP14,.3	SOP, SOP14,.25
Contacts	-	14	14	14
Reach Compliance Code	-	unknow	unknow	unknow
series	-	F/FAST	F/FAST	F/FAST
JESD-30 code	-	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	-	e0	e0	e0
length	-	19.18 mm	10.2 mm	8.65 mm
Logic integrated circuit type	-	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
MaximumI(ol)	-	0.02 A	0.02 A	0.02 A
Number of functions	-	1	1	1
Number of entries	-	11	11	11
Number of terminals	-	14	14	14
Maximum operating temperature	-	70 °C	70 °C	70 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	SOP	SOP
Encapsulate equivalent code	-	DIP14,.3	SOP14,.3	SOP14,.25
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5 V	5 V	5 V
Maximum supply current (ICC)	-	4.7 mA	4.7 mA	4.7 mA
Prop。Delay @ Nom-Su	-	7.5 ns	7.5 ns	7.5 ns
propagation delay (tpd)	-	7.5 ns	7.5 ns	7.5 ns
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	-	NO	NO	NO
Maximum seat height	-	5.08 mm	2.1 mm	1.75 mm
Maximum supply voltage (Vsup)	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V
surface mount	-	NO	YES	YES
technology	-	TTL	TTL	TTL
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	2.54 mm	1.27 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	7.62 mm	5.3 mm	3.9 mm
Base Number Matches	-	1	1	1
