90910-001 datasheet, PDF - EEWORLD Datasheet

90910-001: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle; CategoryThe connector The connector; File Size271KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

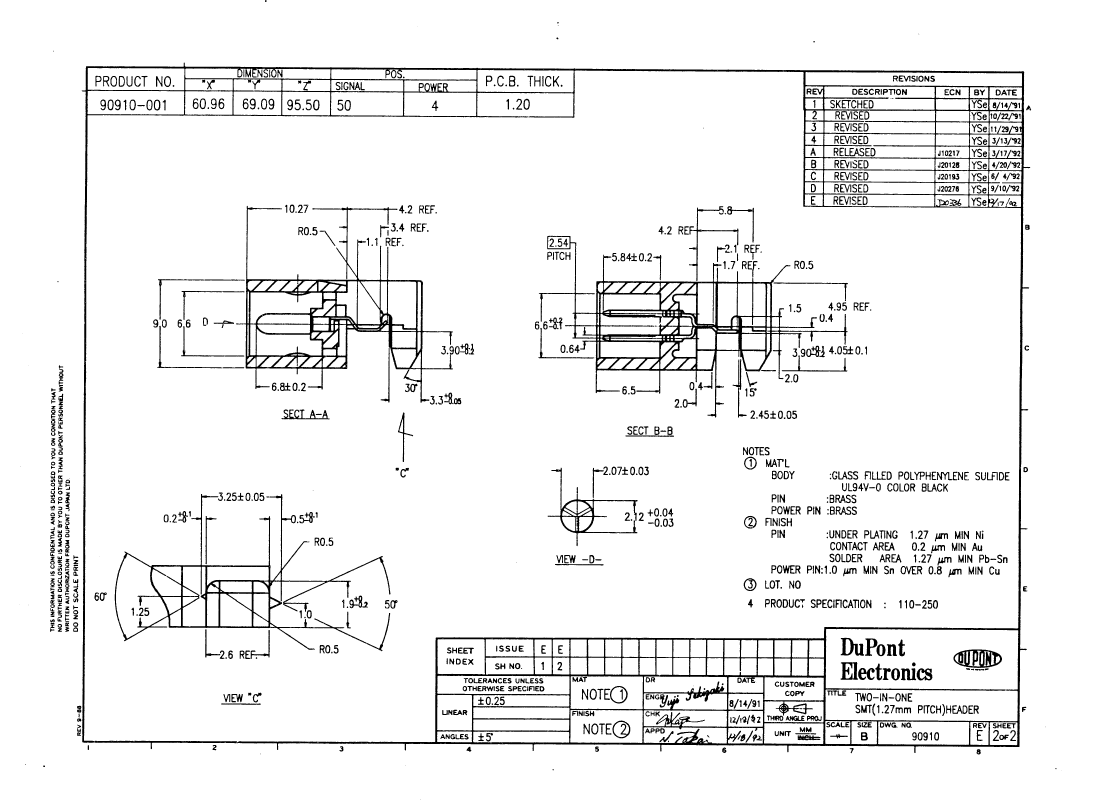

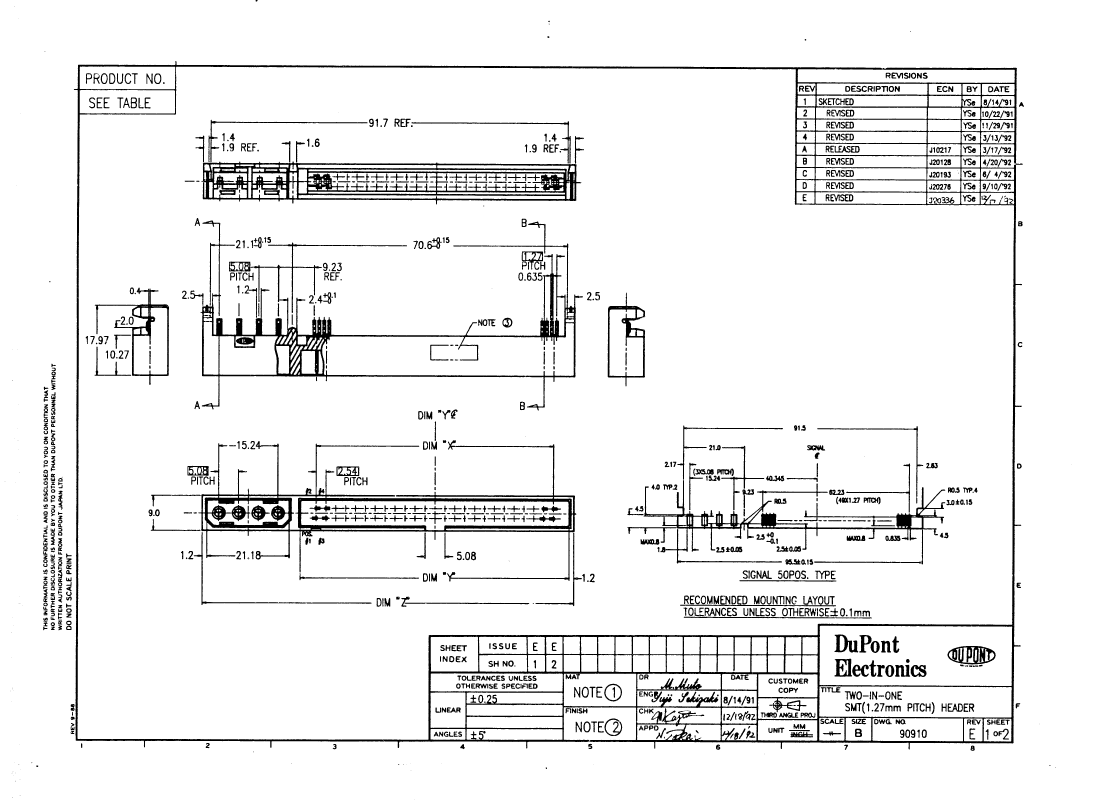

90910-001 Overview

Board Connector, 54 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Board mount options	LOCATING POSTS
body width	0.354 inch
subject depth	0.707 inch
body length	3.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S50P4
Contact to complete cooperation	GOLD (8) OVER NICKEL
Contact completed and terminated	TIN LEAD (50) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	90910
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature
Options	GENERAL PURPOSE
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	54
UL Flammability Code	94V-0
Base Number Matches	1
