Production specification
Transient Voltage Suppressor
Features
Sillicon planar zener diodes.
Low profile surface-mount package.
Zener and surge current specification
Low leakage current
Excellent stability
High temperature soldering guaranteed:
265°C /10 seconds, at terminals
RoHS Compliant
Case: SOD-123FL molded plastic
Molding compound, UL flammability classification rating 94V-0
Polarity: Color band denotes cathode end
BZD27C--SERIES
Mechanical Data
Maximum Ratings
(@T
A
= 25°C unless otherwise specified)
Parameter
Non-repetitive peak pulse power dissipation
with a 10/1000μs waveform (NOTE 1)
Power dissipation at T
A
=25°C (NOTE 2)
Reverse current at stand-off voltage @ V
WM
Maximum instantaneous forward voltage at 0.2A
Thermal resistance junction to ambient
Operating temperature junction range
Storage temperature range
Symbol
P
PPM
P
t o t
I
R
V
F
R
θ JA
T
J
T
STG
Value
150
0.8
SEE TABLE 1
1.2
180
- 55 --- +150
- 55 --- +150
Units
Watts
Watts
μA
Volts
K/W
°C
°C
NOTES:
1.T
J
=25°C prior to surge.
2. Mounted on epoxy-glass PCB with 3×3 mm Cu pads(≥40μm thick)
3. Non-repetitive peak reverse current in accordance with "IEC 60-1,Section 8" (10/1000 μs pulse)
SOD606AA
Rev.B
www.gmesemi.com
Production specification
Transient Voltage Suppressor
BZD27C--SERIES
Electrical Characteristics
(@T
A
= 25°C unless otherwise specified)
Max.
V
BR
, Breakdown
Marking
Part number
code
V
MIN
BZD27C6V8P
BZD27C7V5P
BZD27C8V2P
BZD27C9V1P
BZD27C10P
BZD27C11P
BZD27C12P
BZD27C13P
BZD27C15P
BZD27C16P
BZD27C18P
BZD27C20P
BZD27C22P
BZD27C24P
BZD27C27P
BZD27C30P
BZD27C33P
BZD27C36P
BZD27C39P
BZD27C43P
BZD27C47P
BZD27C51P
BZD27C56P
BZD27C62P
BZD27C68P
BZD27C75P
BZD27C80P
BZD27C82P
BZD27C91P
BZD27C100P
BZD27C110P
BZD27C120P
BZD27C130P
BZD27C150P
BZD27C160P
BZD27C180P
BZD27C200P
J7
J8
J9
K0
K1
K2
K3
K4
K5
K6
K7
K8
K9
L0
L1
L2
L3
L4
L5
L6
L7
L8
L9
M0
M1
M2
N4
M3
M4
M5
M6
M7
M8
M9
N1
N2
N3
6.3
7
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
58
64
70
75
77
85
94
104
114
124
138
153
168
188
NOM
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
80
82
91
100
110
120
130
150
160
180
200
MAX
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
66
72
79
85
87
96
106
116
127
141
156
171
191
212
I
T
mA
100
100
100
50
50
50
50
50
50
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
Voltage
Test
Current
Clamping
Voltage
@I
PP
V
C
V
10.2
11.3
12.3
13.3
14.8
15.7
17
18.9
20.9
22.9
25.6
28.4
31
33.8
38.1
42.2
46.2
50.1
54.1
60.7
65.5
70.8
78.6
86.5
94.4
103.5
111.2
114
126
139
139
152
169
187
205
229
254
Max.
Peak
Pulse
Current
I
PP
A
14.7
13.3
12.2
11.3
10.1
9.6
8.8
7.9
7.2
6.6
5.9
5.3
4.8
4.4
3.9
3.6
3.2
3
2.8
2.5
2.3
2.1
1.9
1.7
1.6
1.4
1.3
1.3
1.2
1.1
1.1
1
0.9
0.8
0.7
0.7
0.6
Max.
Reverse
Leakage@
V
RWM
I
R
uA
1500
1500
1200
100
20
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Reverse
Dynamic
Stand
Resistance
off
Z
Z
at I
ZT1
Voltage
V
RWM
V
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
66
68
75
82
91
100
110
120
130
150
160
（Ω）
TYP
1
1
1
2
2
4
4
5
5
6
6
6
6
7
7
8
8
21
21
24
24
25
25
25
25
30
30
30
60
60
80
80
110
130
150
180
200
MAX
3
2
2
4
4
7
7
10
10
15
15
15
15
15
15
15
15
40
40
45
45
60
60
80
80
100
100
100
200
200
250
250
300
300
350
400
500
%/°C
MIN
0
0
0.03
0.03
0.05
0.05
0.05
0.05
0.05
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.06
0.07
0.07
0.07
0.07
0.08
0.08
0.08
0.08
0.08
0.08
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.09
MAX
0.07
0.07
0.08
0.08
0.09
0.1
0.1
0.1
0.1
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.11
0.12
0.12
0.12
0.12
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
0.13
V
Z
at I
ZT1
coefficient
Temperature
SOD606AA
Rev.B
www.gmesemi.com
Production specification
Transient Voltage Suppressor
BZD27C--SERIES

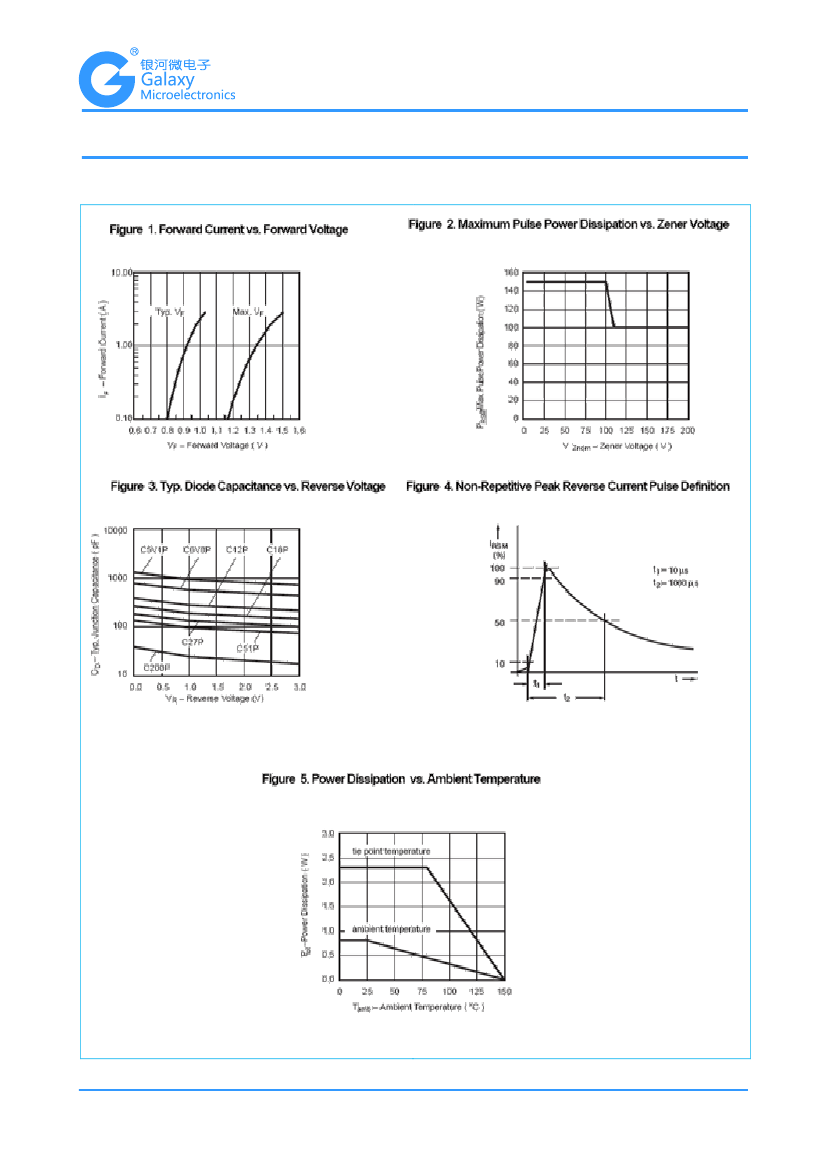

Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
SOD606AA
Rev.B
www.gmesemi.com
