AIF04ZPFC-01NNTL Overview

AC-DC Regulated Power Supply Module, 1 Output, 1600W, Hybrid

AIF04ZPFC-01NNTL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Artysen Embedded Technologies
package instruction	XMA, MODULE,24LEAD,4.1
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	120 TO 370VDC CONFIGURABLE
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	TUV, UL
Efficiency (main output)	95%
Maximum input voltage	264 V
Minimum input voltage	85 V
JESD-30 code	R-XXMA-P24
JESD-609 code	e3
Number of functions	1
Output times	1
Number of terminals	24
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Maximum output voltage	380 V
Minimum output voltage	288.8 V
Nominal output voltage	380 V
Package body material	UNSPECIFIED
encapsulated code	XMA
Encapsulate equivalent code	MODULE,24LEAD,4.1
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	OUTPUT OVER VOLTAGE; THERMAL
Certification status	Not Qualified
surface mount	NO
Maximum switching frequency	125 kHz
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1600 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

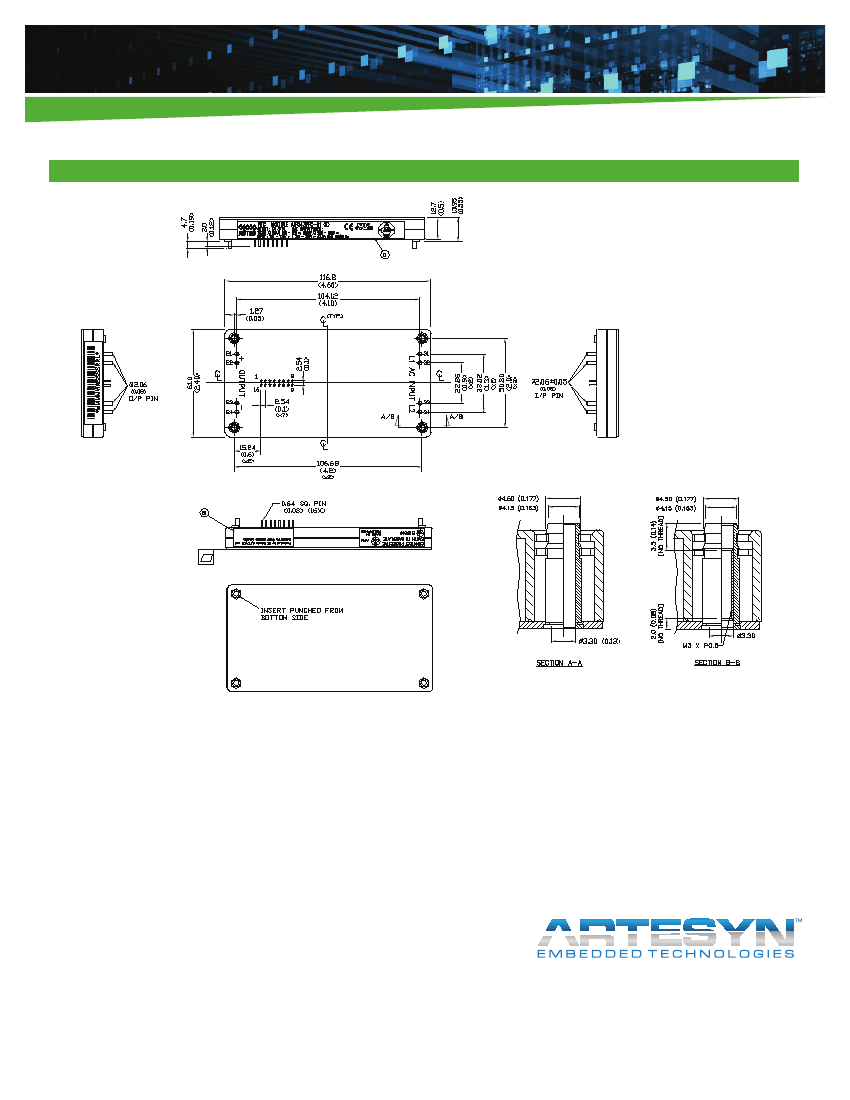

Preview

Download Datasheet

View All

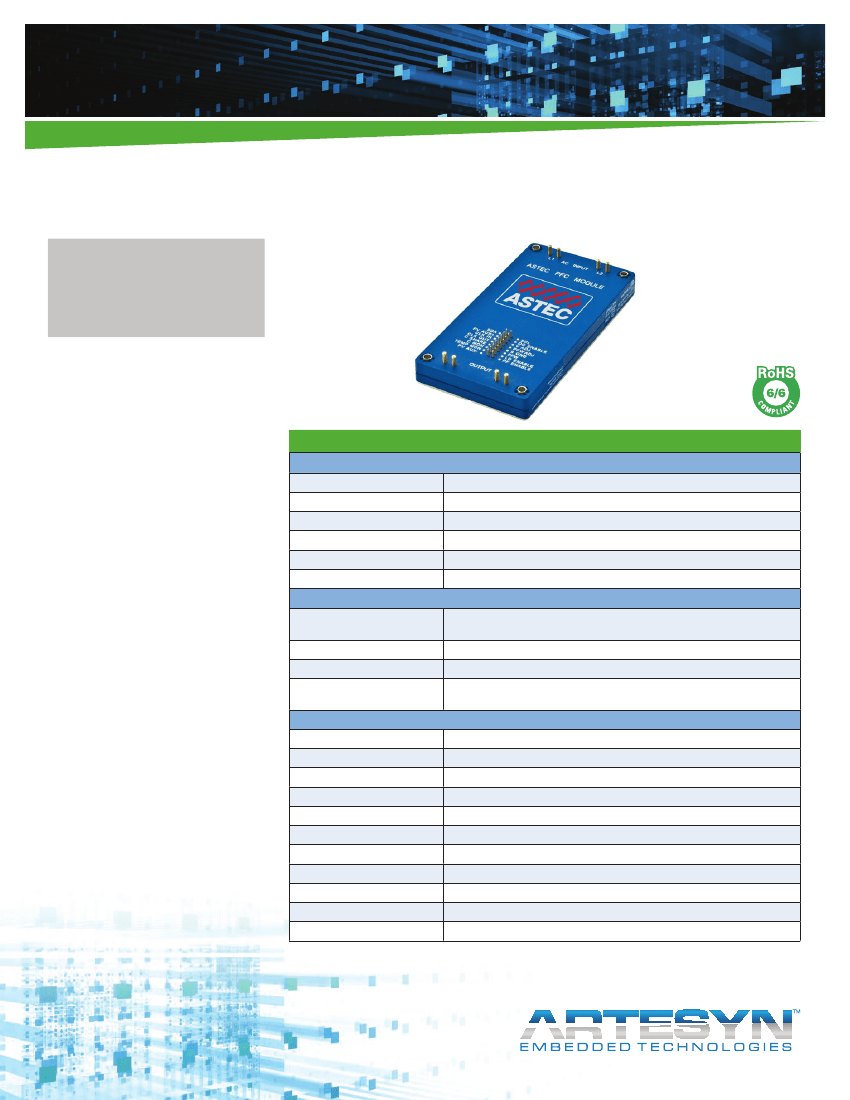

POWER

Data Sheet

Total Power: 1600 Watts

120 - 370 VDC

(Configurable)

Input Voltage: 85 - 264 VAC

# of Outputs: Single

SPECIAL FEATURES

Unity power factor

High efficiency - up to 95%

Universal input voltage and

frequency range

Up to 1600 W output power

Positive and Negative enable

function

Parallelable with accurate current

sharing

<10% harmonic distortion conform-

ing to IEC1000-3-2 Compliance

100°C baseplate operating

temperature

DC Input option

Power fail warning signal

Enable output to control DC-DC

Converter

EEPROM data storage via I

Interface

External inrush current limited

protection

Power density up to 290 W/in

Two year warranty

AIF - PFC Series

1600 Watts

Electrical Specifications

Input

Input range

Input surge

Input Frequency

Efficiency

Total Harmonic Distortion

Power Factor

Output

Output Voltage

Current Share Accuracy

Overvoltage Protection

Power Limit for AC input

for DC input

Control

Power Fail Warning

Power Fail Warning Adjust

LD Enable

PFC Enable

Voltage Adjust

DC Input Enable

Clock Input (external sync)

Clock Output (int. clock)

Current Monitor Output

C Interface

Notes: Nominal values apply with sense pins disconnected and other control pin unconnected.

6 Vp-p typical @ 1 MHz ± 5%

0 to 1 mA (1 mA = 4.2 A output)

Direct drive output to opto-isolator

195 to 355 Vdc adjustable

Direct drive output to opto-isolator

TTL compatiable

76% to 100% Vo

380V typical (Io =4.2 A / Vi > 180 Vac); 393 V typical (Io = 0A)

Note: Vin peak must always be lower than Vout

10% max

430 max

Vin = 85 Vac, Pmax = 1000W; Vin = 230 Vac, Pmax = 1600W Case;

Vin = 370 Vdc, Pmax =1600W

85 - 264 Vac / 120 - 370 Vdc (configurable)

290 Vac / 1s

50/60 Hz

95% @ 230 Vac, 1600 W (typical)

Less than 10%

0.99 typical (Po ± 500 W); 0.97 typical (Po ± 1000 W)

SAFETY

cUL

TUV

60950 Recognized

EN60950 Licensed

Temperature Monitor Output 10 mV/°C
