5W156 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 5W156

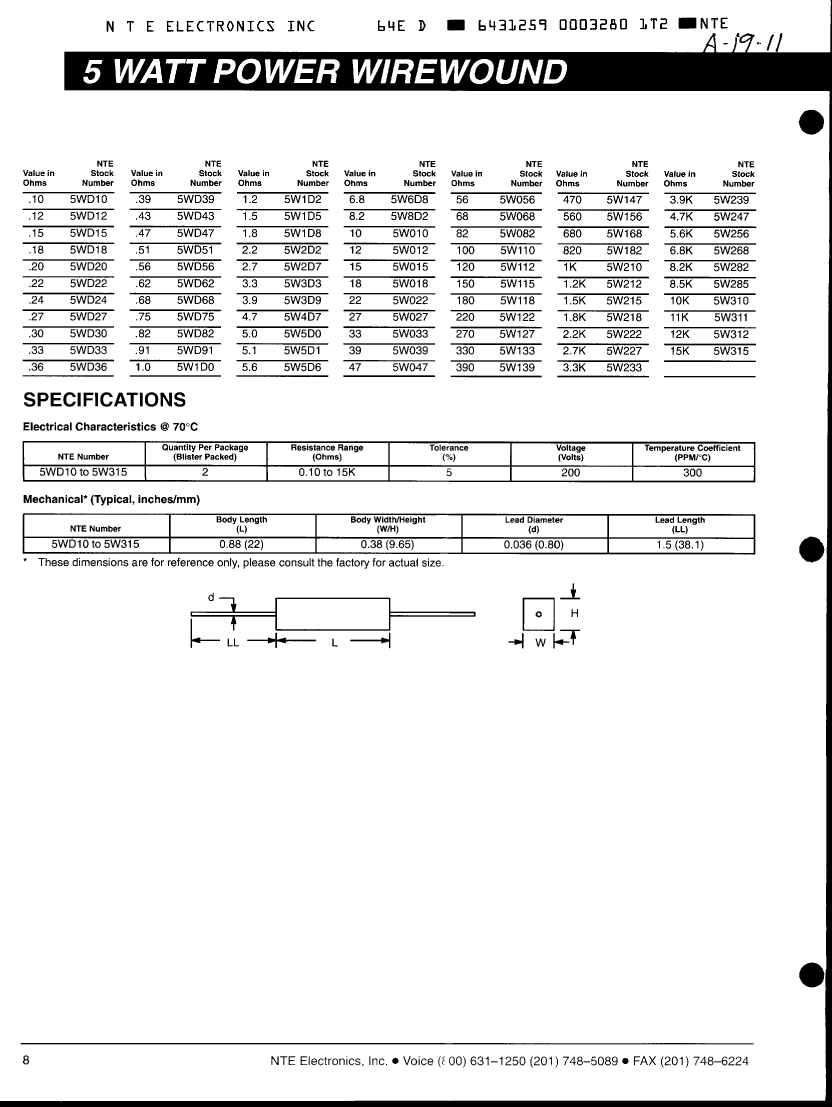

5W156: DescriptionFixed Resistor, Wire Wound, 5W, 560ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738; CategoryPassive components The resistor; File Size62KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com

Download Datasheet Parametric Compare View All

5W156 Overview

Fixed Resistor, Wire Wound, 5W, 560ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738

5W156 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Wirewound
Lead diameter	0.8 mm
Lead length	38.1 mm
Number of terminals	2
Package height	9.65 mm
Package length	22 mm
Package form	Axial
Package width	9.65 mm
Rated power dissipation(P)	5 W
resistance	560 Ω
Resistor type	FIXED RESISTOR
size code	8738
technology	WIRE WOUND
Temperature Coefficient	300 ppm/°C
Tolerance	5%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

5W156 Related Products

	5W156	5WD33	5W210	5W215	5W256	5W127	RNR65C2184BPRJ8	5WD75	5W285	5WD20
Description	Fixed Resistor, Wire Wound, 5W, 560ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 0.33ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 1000ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 1500ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 5600ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 270ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	RESISTOR, METAL FILM, 0.25 W, 0.1 %, 50 ppm, 2180000 ohm, THROUGH HOLE MOUNT, AXIAL LEADED	Fixed Resistor, Wire Wound, 5W, 0.75ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 8500ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738	Fixed Resistor, Wire Wound, 5W, 0.2ohm, 200V, 5% +/-Tol, 300ppm/Cel, 8738
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown
structure	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Tubular	Wirewound	Wirewound	Wirewound
Lead diameter	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.635 mm	0.8 mm	0.8 mm	0.8 mm
Number of terminals	2	2	2	2	2	2	2	2	2	2
Package length	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	15.8 mm	22 mm	22 mm	22 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Rated power dissipation(P)	5 W	5 W	5 W	5 W	5 W	5 W	0.25 W	5 W	5 W	5 W
resistance	560 Ω	0.33 Ω	1000 Ω	1500 Ω	5600 Ω	270 Ω	2180000 Ω	0.75 Ω	8500 Ω	0.2 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	METAL FILM	WIRE WOUND	WIRE WOUND	WIRE WOUND
Temperature Coefficient	300 ppm/°C	300 ppm/°C	300 ppm/°C	300 ppm/°C	300 ppm/°C	300 ppm/°C	50 ppm/°C	300 ppm/°C	300 ppm/°C	300 ppm/°C
Tolerance	5%	5%	5%	5%	5%	5%	0.1%	5%	5%	5%
Operating Voltage	200 V	200 V	200 V	200 V	200 V	200 V	300 V	200 V	200 V	200 V
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Lead length	38.1 mm	38.1 mm	38.1 mm	38.1 mm	38.1 mm	38.1 mm	-	38.1 mm	38.1 mm	38.1 mm
Package height	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	-	9.65 mm	9.65 mm	9.65 mm
Package width	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	-	9.65 mm	9.65 mm	9.65 mm
size code	8738	8738	8738	8738	8738	8738	-	8738	8738	8738
Base Number Matches	1	1	1	1	1	1	-	1	1	1
