BD176 datasheet, PDF - EEWORLD Datasheet

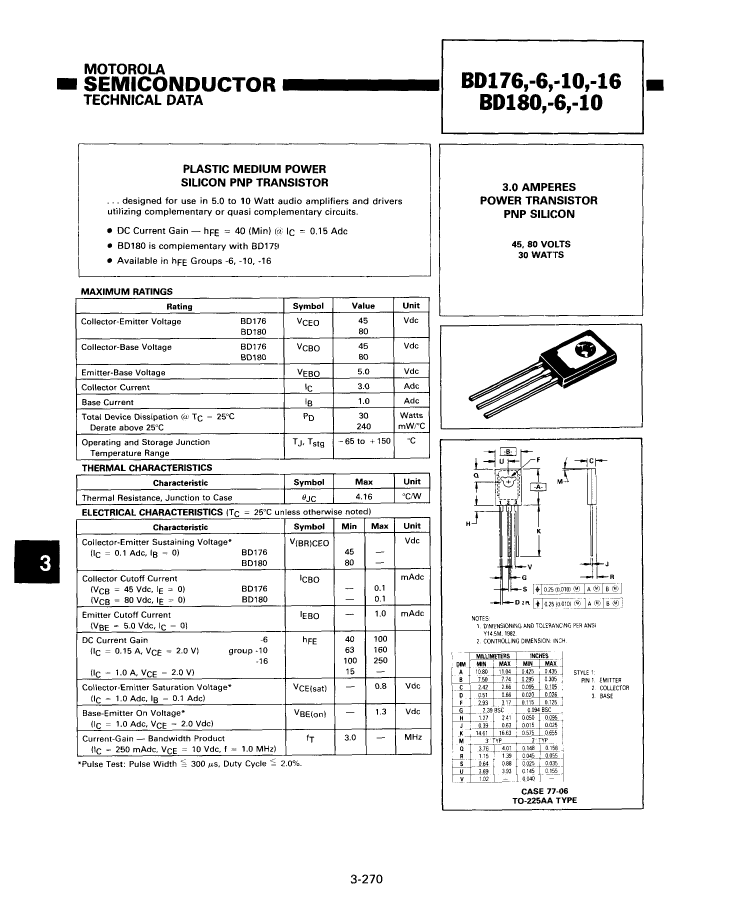

BD176: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size177KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

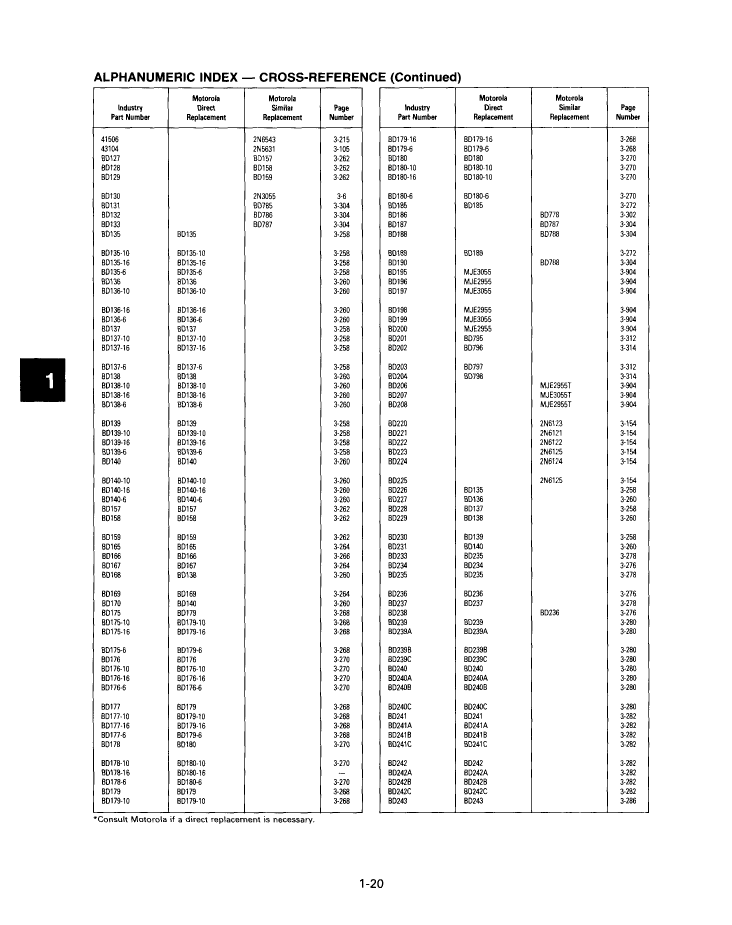

BD176 Overview

Transistor

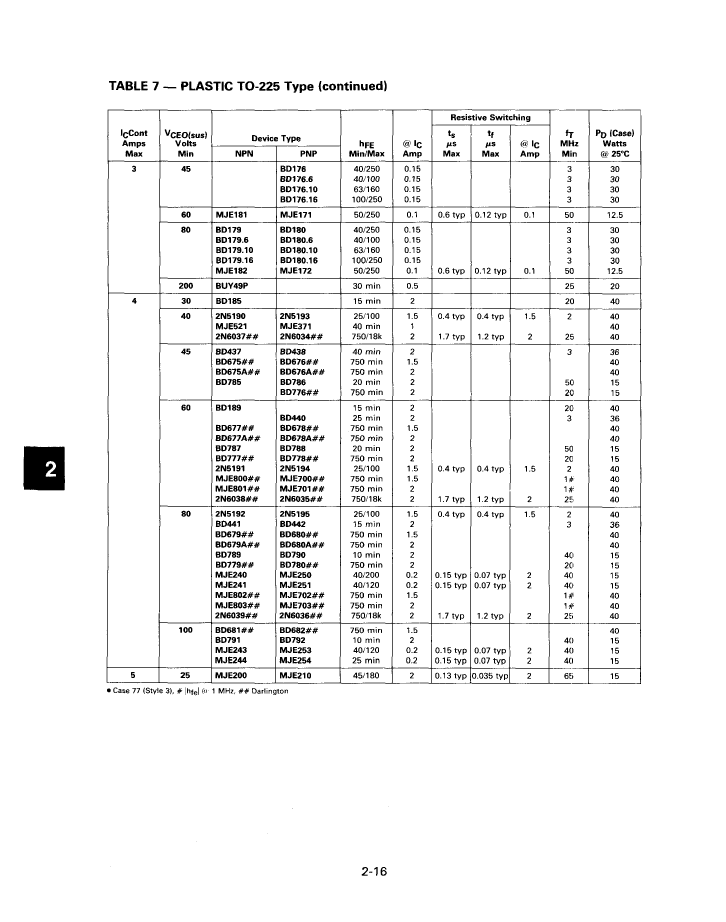

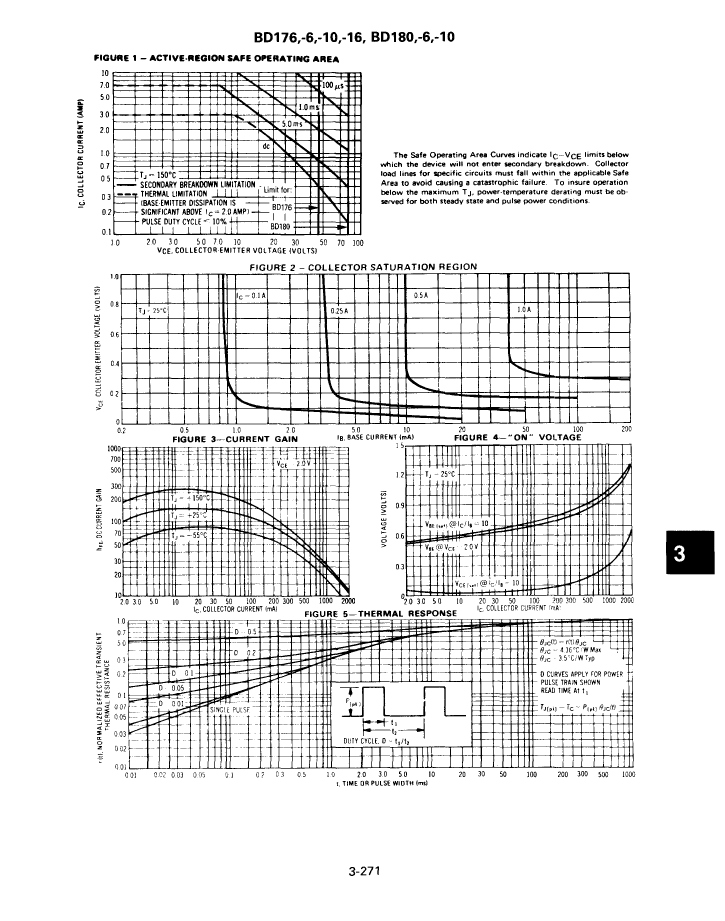

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	3 A
Configuration	Single
Minimum DC current gain (hFE)	15
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	30 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz
Base Number Matches	1
