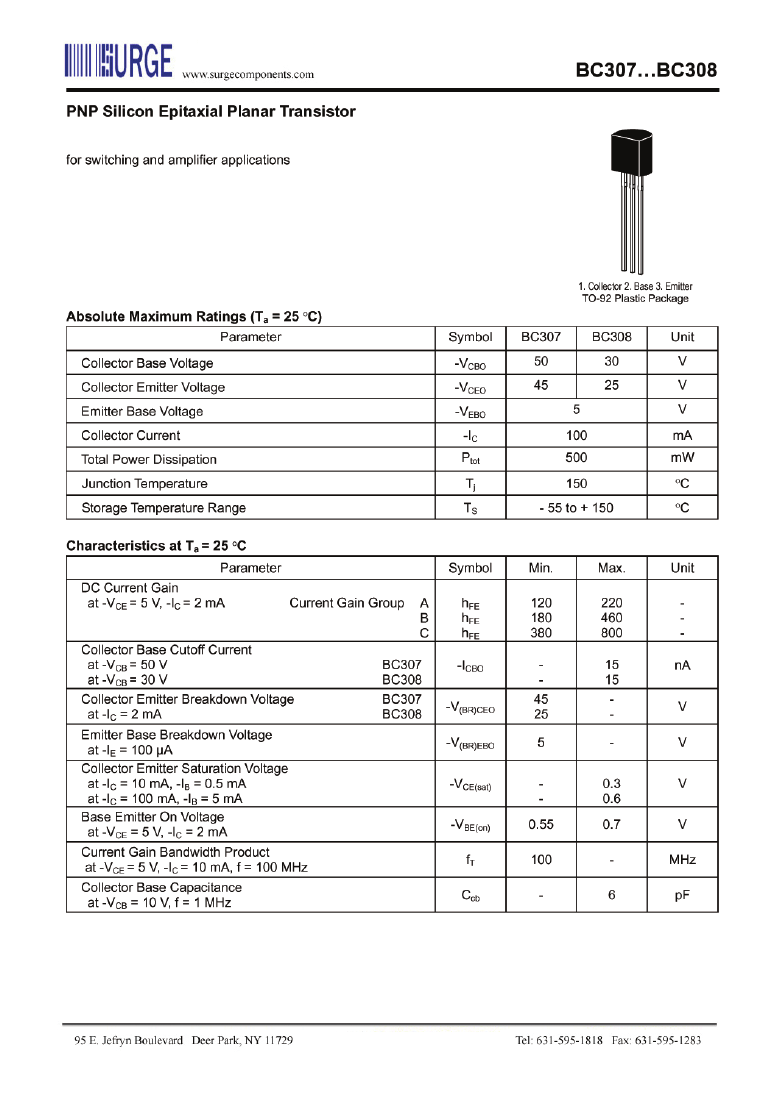

BC308B datasheet, PDF - EEWORLD Datasheet

BC308B: DescriptionSmall Signal Bipolar Transistor,; CategoryDiscrete semiconductor The transistor; File Size1MB，2 Pages; ManufacturerSurge Components; Websitehttp://www.surgecomponents.com/

Download Datasheet Parametric Compare View All

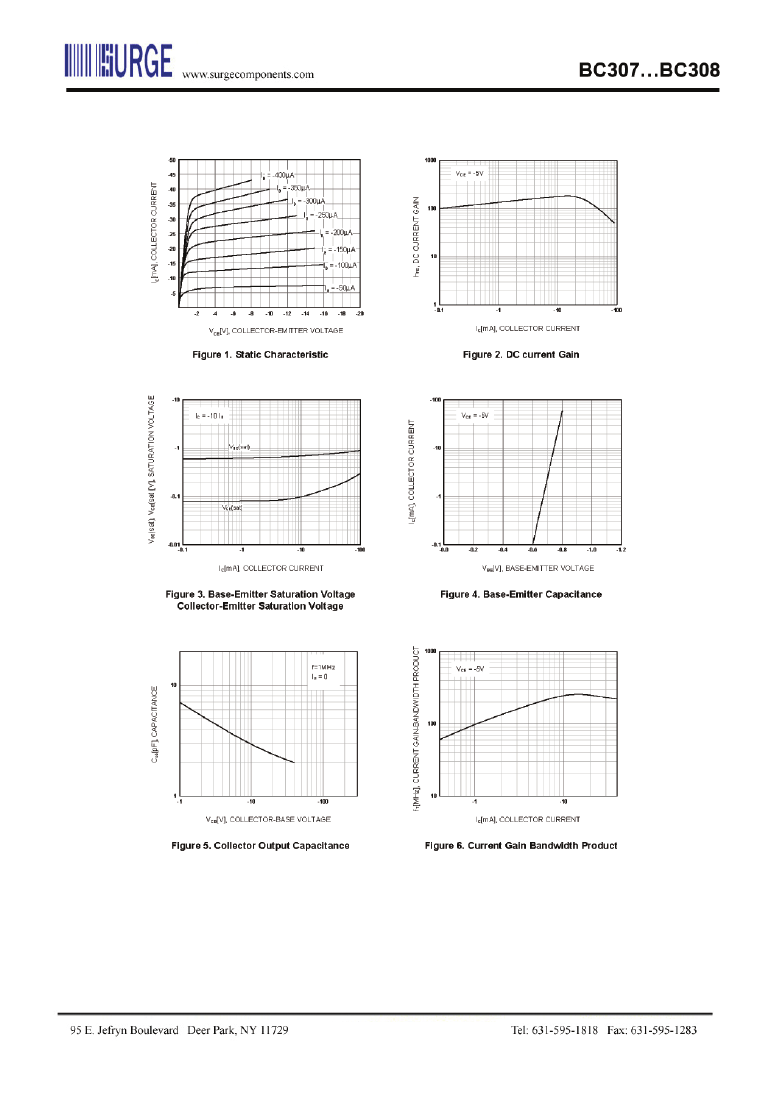

BC308B Overview

Small Signal Bipolar Transistor,

Parameter Name	Attribute value
Maker	Surge Components
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	compliant
Is Samacsys	N
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	180
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

	BC308B	BC307C	BC307B	BC308C
Description	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	compliant	compliant	compliant	compliant
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	25 V	45 V	45 V	25 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	180	380	180	380
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP	PNP
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz
Maker	Surge Components	-	Surge Components	Surge Components
