SM3ZS067U410AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SM3ZS067U410AE

SM3ZS067U410AE: DescriptionCard Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size262KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

SM3ZS067U410AE Overview

Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

SM3ZS067U410AE Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Board mount options	PEG
body width	0.161 inch
subject depth	0.299 inch
body length	0.862 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	55 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	424VAC V
Durability	60 Cycles
maximum insertion force	LIF N
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	7.5438 mm
Plating thickness	5u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	67
Evacuation force-minimum value	LIF N
Base Number Matches	1

Preview

Download Datasheet

View All

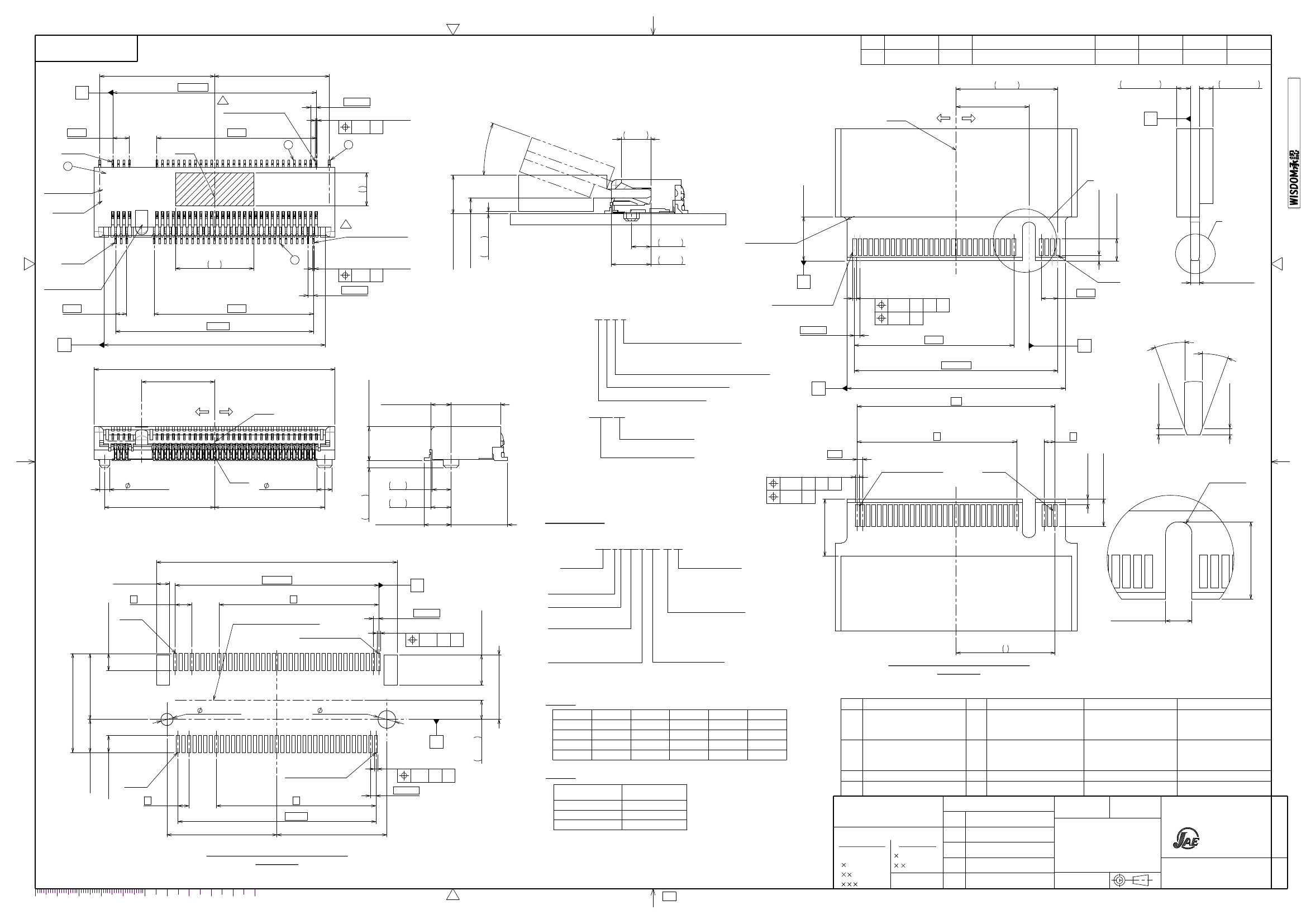

版数

VER.

年月日

D A T E

19/AUG/2013

CN NO.

007107

　　　　　　　　変更内容

　　　　　　　　DESCRIPTION

Correction of errors.

½　図

DR.

担　½

CHK.

S.YAMAGUCHI

査　閲

APPD.

R.KATOU

承　認

APPD.

T.SHINDOU

(COMPONENT HEIGHT)

PIN 75 (NOTE2)

(PIN 67)

0.5

0.15

±0.05

(×34)

0.2 A

±0.05

(COMPONENT

HEIGHT)

G- C

20°

(-)

(+)

2.68

PIN 1

A- C

(VACUUM AREA)

(NOTE4)

(吸着エリア)

0.5

±0.05

±0.15

DESIGNATION

(NOTE5)

LOT NO.

(NOTE5)

min.

× × × ×

J A E

TOP VIEW

0.2

PIN 74 (NOTE2)

(PIN 66)

PIN 2

KEY #(TABLE1)

20.15

±0.1

21.9

±0.1

±0.03

3.1

±0.1

7.1

Z (TABLE2)

1.45

±0.05

1.75

R0.5

±0.15

(VACUUM AREA) (NOTE4)

(吸着エリア)

0.15

±0.05

(×33)

0.2 A

0.5

MATING CONDITION

SCALE (5:1)

3.58

PIN 1

0.35

±0.04

(×34)

0.13 D E F

0.05

18.5

0.3

±0.25

5°

20 °

0.8

±0.08

(PAD AREA)

NOTE5.PRODUCTION LOT No.&MODIFY CODE AS INDICATED.

(Ex. LOT NO.) T 5 Y B

LOT NUMBER OF CURRENT DAY

(SEE TABLE 4)

MONTH (1 TO 9 FOR JAN. TO SEPT,

RESPECTIVELY,

OCT.:0, NOV.:X, DEC.:Y)

YEAR (LAST DIGIT ONLY)

1.83

±0.2

4.5

±0.2

PIN 75 (NOTE2)

(PIN 67)

0.5

(PITCH)

2 0°

5°

(DEFINED BY

DATUM H)

(+)

MANUFACTURE CODE

(DESIGNATION) S M 3 A

KEY POSITION

TYPE:A,B,E,M

SERIES PREFIX

(-)

H- C

0.5

±0.05

2.5

±0.15

(PITCH)

0.5

0.35

±0.04

(×33)

0.13 D E F

0.05

5.2 min.

0.9

±0.05

±0.025

A- C

PIN 74 (NOTE2)

(PIN 66)

PIN 2

DETAIL B

SCALE(10:1)

FULL R

1.4

±0.05

0.62

±0.025

1.72

1.83

2.45

±0.15

5.15

±0.15

DESIGNATION

SM3ZS067U310※※

SERIES

½ﾘ½½½ﾞ

KEY POSITION

TYPE:A,B,E,M

CONTACT FINISH

接点仕上げ

A:Au(0.13μm MIN)

B:Au(0.25μm MIN)

PRODUCT HEIGHT

½品高さ

215:2.15mm

310:3.10mm

410:4.10mm

0.3

±0.25

19.85

±0.15

21.9

±0.1

1.2

±0.03

1.55

±0.03

18.5

Z:LIF TYPE

Z:½挿入ﾀ½ﾌﾟ

2.75

±0.03

0.5

PIN 1

MODULE SEATING PLANE

PIN 75 (NOTE2)

(PIN 67)

0.3

±0.03

0.1 B

S:STANDARD

NO. OF CONTACTS

芯数

MOUNTING TYPE

実装ﾀ½ﾌﾟ

U:ON BOARD TYPE

5.875

±0.05

BOTTOM VIEW

1.2

±0.065

DETAIL A

SCALE(10:1)

9.1 MAX

±0.05

APPLICABLE MODULE DIMENSION(REF.)

SCALE(5:1)

TABLE 1

KEY#

+6.625

+5.625

+2.625

-6.125

14.5

13.5

10.5

1.5

2.5

5.5

14.5

13.5

10.5

1.1

±0.05

1.6

±0.05

HOLD DOWN

TOP SIDE CONTACT

COPPER ALLOY

33 COPPER ALLOY

1.75

1.55

±0.03

±0.05

0.3

±0.03

0.1 B

0.5

BOTTOM SIDE CONTACT

INSULATOR

名　　　称

DESCRIPTION

34 COPPER ALLOY

個　数

QTY.

PIN 2

PIN 74 (NOTE2)

(PIN 66)

TABLE 2

COMPONENT HEGHTS

FOR MODULES

1.2 MAX

1.35 MAX

1.5 MAX

3.55 MAX RSS

3.70 MAX RSS

3.85 MAX RSS

TIN PLATING OVER NI

CONTACT AREA:

REFER TO DESIGNATION

SOLDERING AREA:

Au FLASH OVER Ni

CONTACT AREA:

REFER TO DESIGNATION

SOLDERING AREA:

Au FLASH OVER Ni

仕　上

FINISH

備　　考

REMARKS

THERMO PLASTIC

材　　料

MATERIAL

符号

NO.

仕様書(SPECIFICATION)

第1版(ORIGINAL DATE)

½図

DR.

08/JAN/2013

尺度(SCALE)

名称(TITLE)

DCF-C-213H(12.08)

APPLICABLE P.C.B. DIMENSION(REF.)

SCALE(5:1)

NOTE1.

NOTE2.

NOTE3.

NOTE4.

THE COPLANARITY OF CONTACT AND HOLD DOWN SHALL BE 0.1 MAXIMUM ON THE SURFACE TABLE.

THIS NUMBER IS PIN-OUT NUMBER DEFINED BY NGFF SPECIFICATION.

THIS CONNECTOR IS HALOGEN FREE CORRESPONDENCE PRODUCT.

THIS AREA SHALL NOT SHOW ANY BURRS AND UNEVEN SURFACE BY EJECTOR PIN MARK,

TOOL PARTING LINE, AND ANY OTHER FACTORS.

S/W

寸法(DIMENSION)

．

0.8

0.4

0.1

角度(ANGLES)

’

単½(UNIT)：㎜

担½

CHK.

査閲

APPD.

承認

APPD.

S.YAMAGUCHI

R.KATOU

T.SHINDOU

SM3ZS067U310※※

(NGFF

Double-Sided modules)

質量(MASS)

INDUSTRY,LTD.

図面番号(DRAWING NO.)

版数

(VER.)

SJ113505

100

SIZE

±0.025

一般公差(GENERAL TOLERANCE)

JAPAN AVIATION

Reference Only

ELECTRONICS

JAE-CONNECTOR.COM

シリーズ(SERIES)

5:1

SM3

日本航空電子工業株式会社

3.5

±0.15

2013/08/20

図面番号(DRAWING NO.)

10.45

±0.1

18.5

10.45

±0.1

SJ113505

9.25

1.35

max.

1.35

max.

SM3ZS067U410AE Related Products

	SM3ZS067U410AE	SM3ZS067U410AM	SM3ZS067U310AM	SM3ZS067U410AB	SM3ZS067U215AB	SM3ZS067U310AB	SM3ZS067U310AE	SM3ZS067U215AE
Description	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 67 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N	N	N
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.161 inch	0.161 inch	0.122 inch	0.161 inch	0.085 inch	0.122 inch	0.122 inch	0.085 inch
subject depth	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch
body length	0.862 inch	0.862 inch	0.862 inch	0.862 inch	0.862 inch	0.862 inch	0.862 inch	0.862 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	424VAC V	424VAC V	424VAC V	424VAC V	424VAC V	424VAC V	424VAC V	424VAC V
Durability	60 Cycles	60 Cycles	60 Cycles	60 Cycles	60 Cycles	60 Cycles	60 Cycles	60 Cycles
maximum insertion force	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	7.5438 mm	7.5438 mm	7.5438 mm	7.5438 mm	7.5438 mm	7.5438 mm	7.5438 mm	7.5438 mm
Plating thickness	5u inch	5u inch	5u inch	5u inch	5u inch	5u inch	5u inch	5u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	67	67	67	67	67	67	67	67
Evacuation force-minimum value	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N
Base Number Matches	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
