MC14068BCPDS datasheet, PDF - EEWORLD Datasheet

MC14068BCPDS: Description4000/14000/40000 SERIES, 8-INPUT NAND GATE, PDIP14, 646-06; Categorylogic logic; File Size235KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

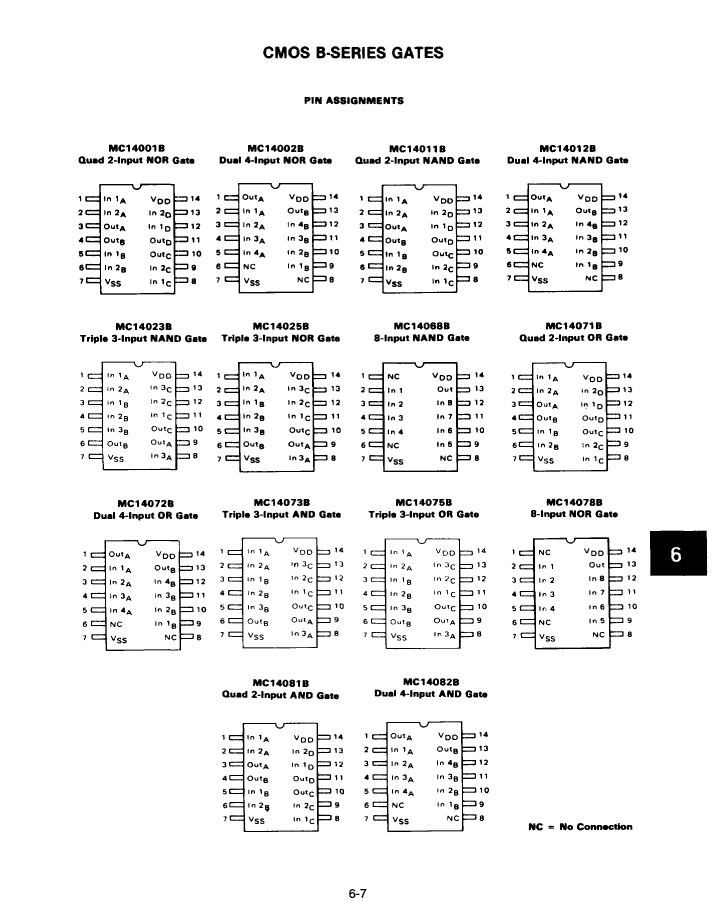

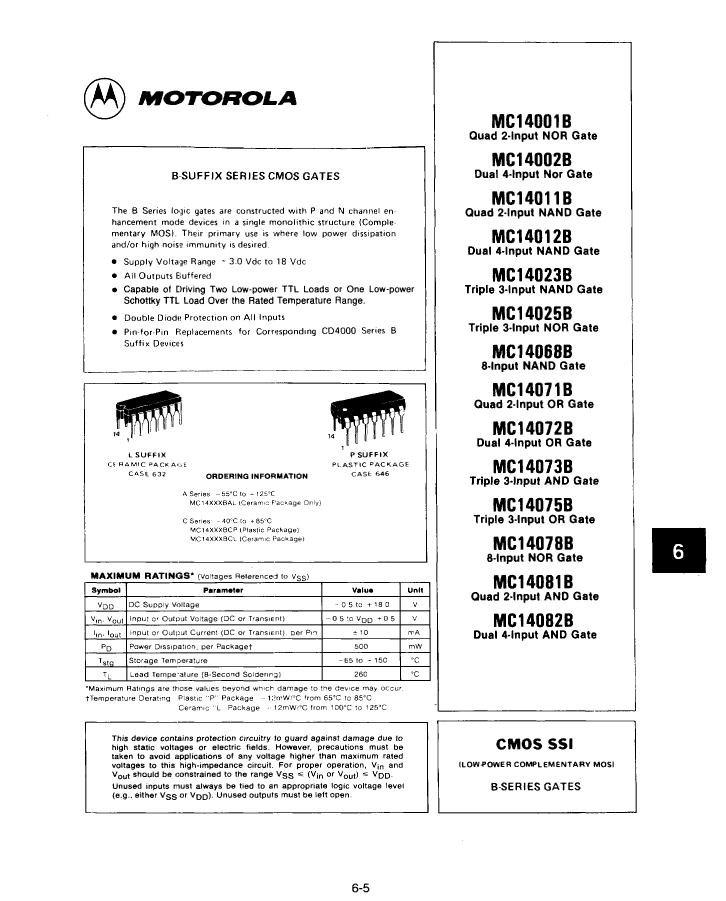

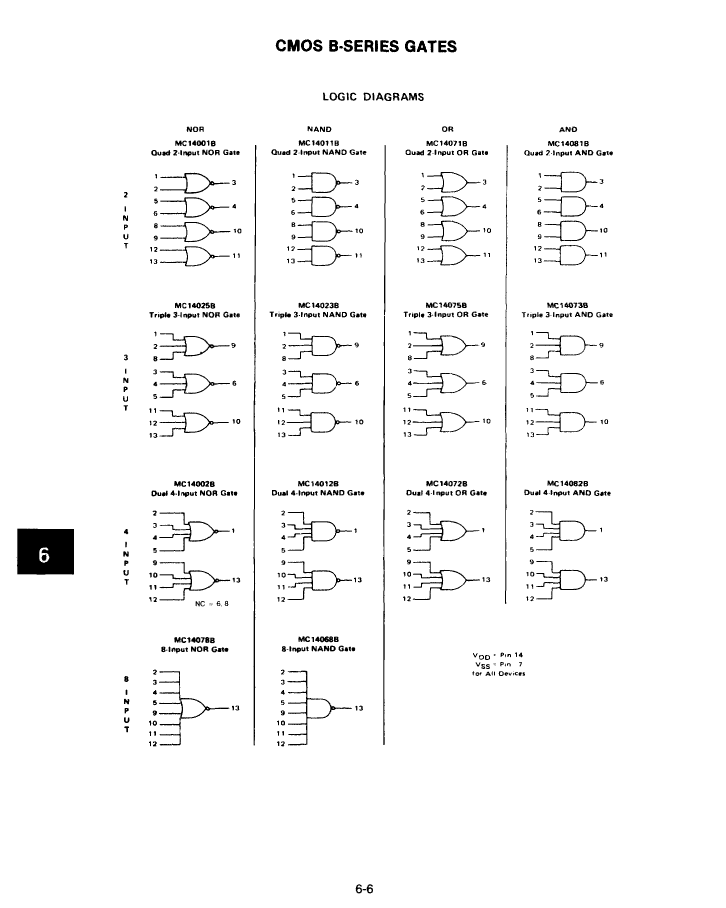

MC14068BCPDS Overview

4000/14000/40000 SERIES, 8-INPUT NAND GATE, PDIP14, 646-06

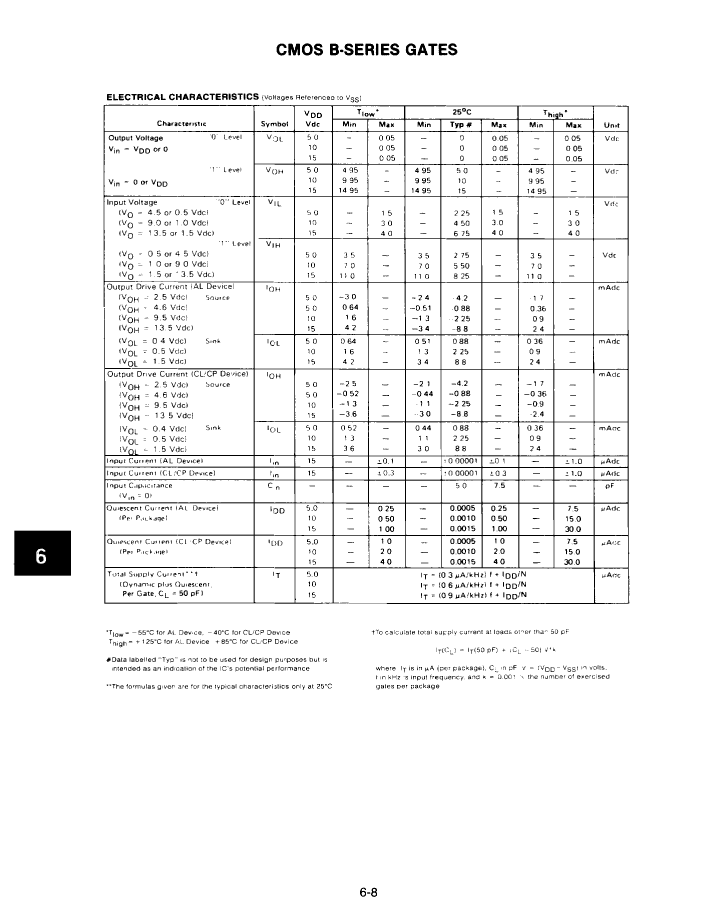

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
series	4000/14000/40000
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	1
Number of entries	8
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V

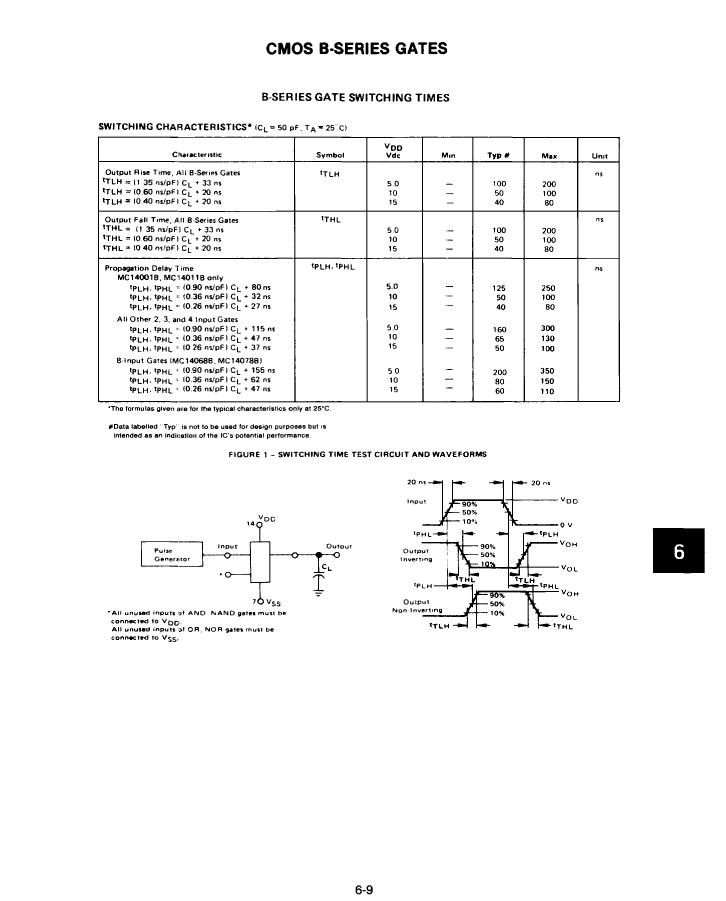

propagation delay (tpd)	350 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
