394331 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 394331

394331: DescriptionCircular Connector, 8 Contact(s), Male, Surface Mount Terminal; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

394331 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	394331	-	-	View	Buy Now

394331 Overview

Circular Connector, 8 Contact(s), Male, Surface Mount Terminal

394331 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

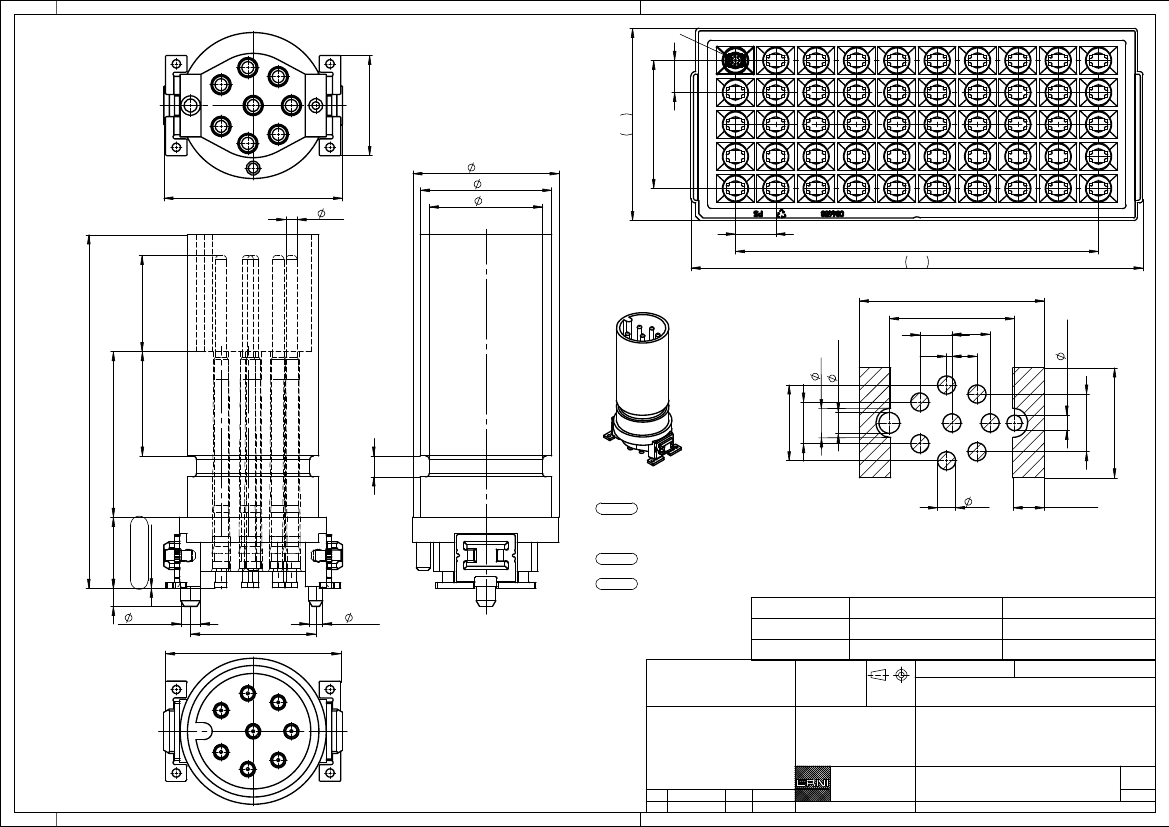

Verpackt im Tray : Verpackungseinheit 50 St

Pin 1

tray packaging: packaging unit 50 pcs

7,2

10,5

-0,5

12,84

±0,25

0,8

9 x 29 = 261

325

6,9

±0,2

9,45

8,15

4 x 23 = 92

138

PCB - Layout proposal

Layout - Vorschlag

13,3

2,31

1,5

-0,03

0,38

2,1

+0,02

±0,05

1,8

+0,1

25,4

-0,35

7,5

5,45

4,15

1,1

-0,03

2,75

11,9

1,5

SPC-Maß: Prüfmerkmale der Kategorie /1

/1 Für SPC-Maße muss eine x/s Regelkarte geführt werden mit

Nachweis der Prozessfähigkeit in der Serie (Cpk) oder 100% - Prüfung

1,3

2,25

+0,1

0,03

-0,03

Prüfmerkmal: Prüfmerkmale der Kategorie /2 und /3

/2 Für Prüfmerkmale muss eine x/s Regelkarte geführt werden

/3 Prüfmerkmale werden serienbegleitend geprüft

1,3

5,1

+0,07

1,4

-0,05

±0,1

max. 12,6

-0,05

484968

Koplanarität aller Kontakte und Clip <=0,1mm

8 Pol A Cod. o.D. mit Einstich

Typ

Scale

All Dimensions

in mm

Tray 50 St. / tray 50 pcs.

Schüttgut 100 St./ bulk 100 pcs.

Bemerkung

coplanarity of all contacts and clips <= 0,1mm

Proprietary notice pursuant to ISO 16016 to be observed.

394331

Ident.-Nr.:

Tolerances

Information:

5:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

04.12.2015

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste M12 A Cod.

8 polig 17 mm o.D. m.E. Type SMD V

www.ERNI.com

Class

394332

M12

7,9
