AXIAL FIXED INDUCTORS
1. PART NO. EXPRESSION :
AIB1020 SERIES
AIB1020100KZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10uH
(d) Tolerance code : K = ±10%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
B
C
ØA
ØW
E
Unit:m/m
E
3.0 Max.
ØW
0.65±0.10
ØA
B
C
10.0 Max. 20.00 Max. 25.0±5.0
3. SCHEMATIC :
4. MATERIALS :
(a) Core : DR Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Lead : Tinned Copper Wire
b
a
d
c
(d) Tube : Shrinkable Tube
5. GENERAL SPECIFICATION :
a) The inductance drop at rated current is 10% max.
b) Temp. rise : 45°C max. at rated current
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +80°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
AXIAL FIXED INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Inductance
( µH )
10 ±10%
25 ±10%
50 ±10%
100 ±10%
250 ±10%
500 ±10%
1000 ±10%
Test Frequency
( Hz )
1K / 1V
1K / 1V
1K / 1V
1K / 1V
1K / 1V
1K / 1V
1K / 1V
RDC
( )
Max.
0.050
0.085
0.120
0.180
0.500
1.000
2.200
AIB1020 SERIES
Part No.
AIB1020100KZF
AIB1020250KZF
AIB1020500KZF
AIB1020101KZF
AIB1020251KZF
AIB1020501KZF
AIB1020102KZF
IDC
(A)
Max.
3.50
2.50
2.00
1.40
0.80
0.60
0.40
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
AXIAL FIXED INDUCTORS

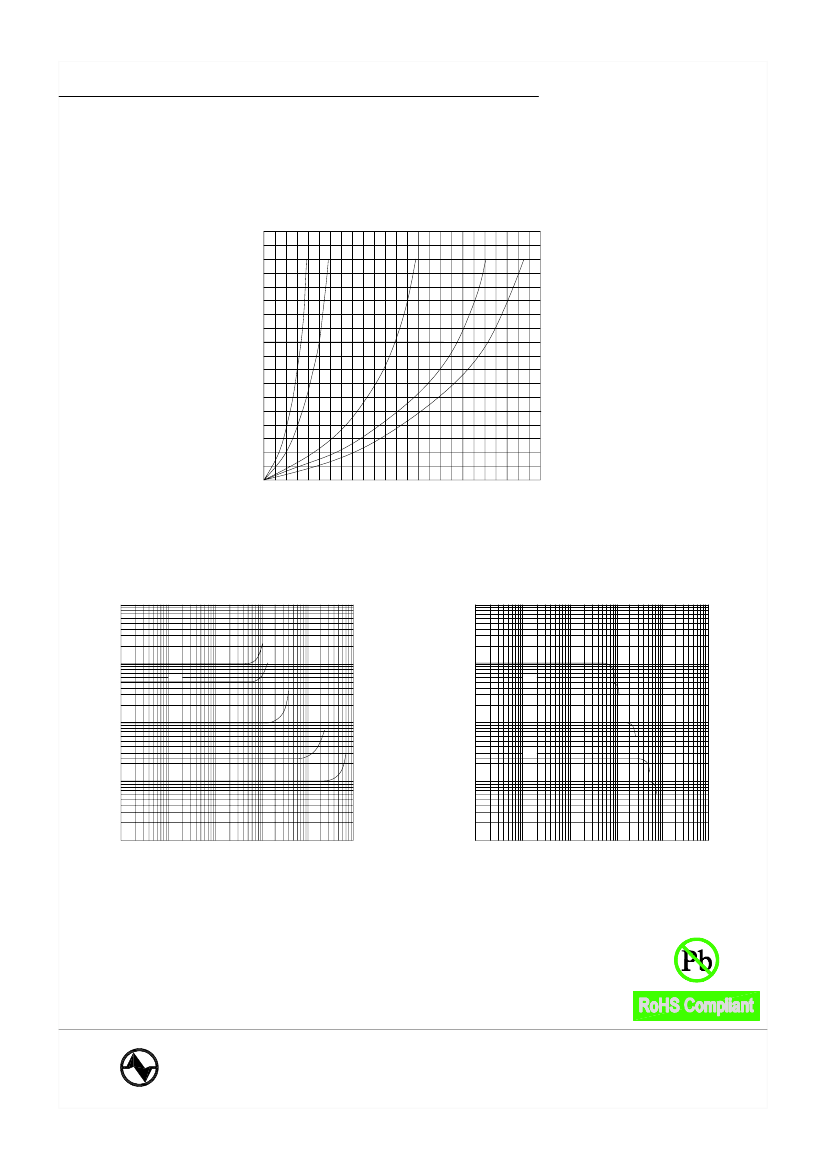

7. CHARACTERISTICS CURVES :
AIB1020 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
40
30
20
10
0 0
1
2
3
4
5
102K
501K
101K
250K
100K
t
(°C)
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
102K
501K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
102K
501K
L
(uH)
102
5
3
101K
L
(uH)
102
5
101K
250K
3
1
10
5
3
100
10 -3
250K
10
5
3
1
100K
100K
100
10 -3
3 5
10 -2 3 5
10
-1
3 5
10
0
3 5
10
1
3 5
10 2
3 5
10 -2 3 5
10
-1
3 5
10
0
3 5
10
1
3 5
10 2
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
AXIAL FIXED INDUCTORS

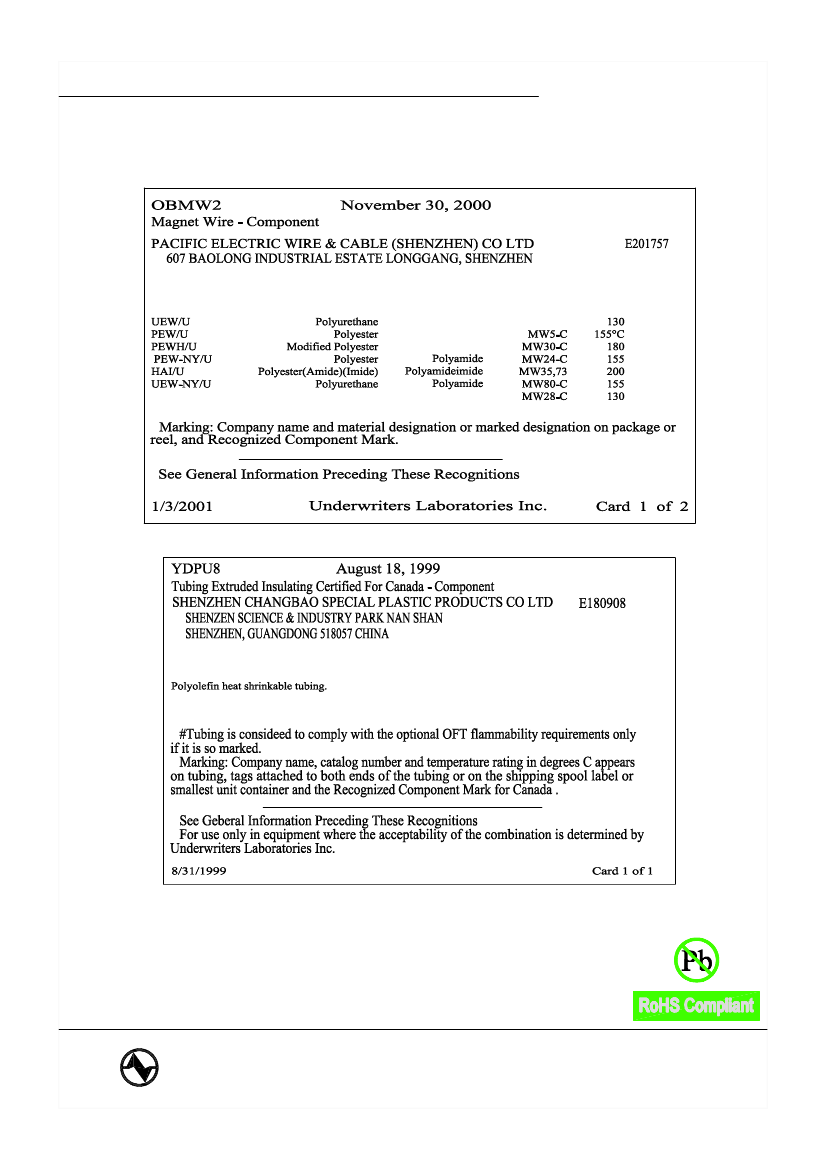

8. UL CARD :
AIB1020 SERIES
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
Cat.
No.
Changbao 102
Max
V
600
Max
Temp C
125
Col
Recognized
All
Max
Temp Rated Oil
Resistance *C
__
OFT
Rated #
Yes
Underwriters Laboratories Inc.
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
