BGY33 datasheet, PDF - EEWORLD Datasheet

BGY33: DescriptionRF/Microwave Amplifier, 80 MHz - 108 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size89KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

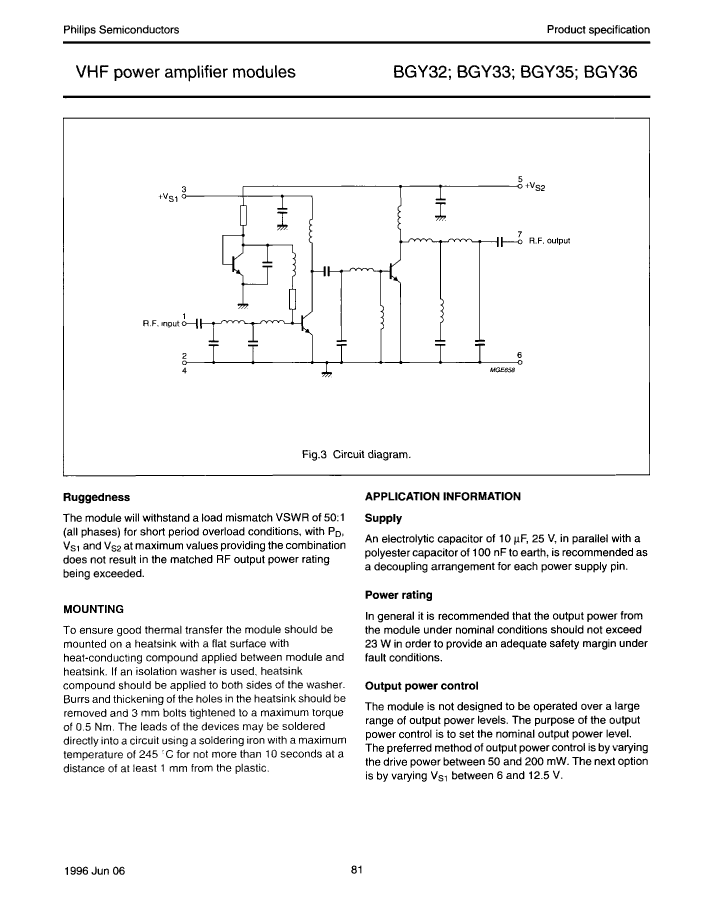

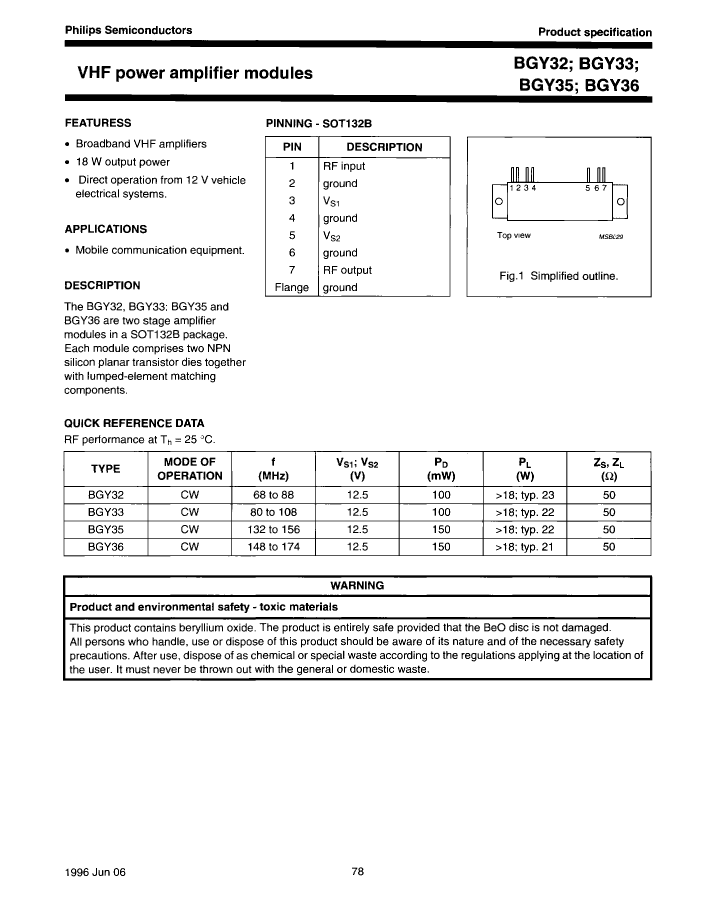

BGY33 Overview

RF/Microwave Amplifier, 80 MHz - 108 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER

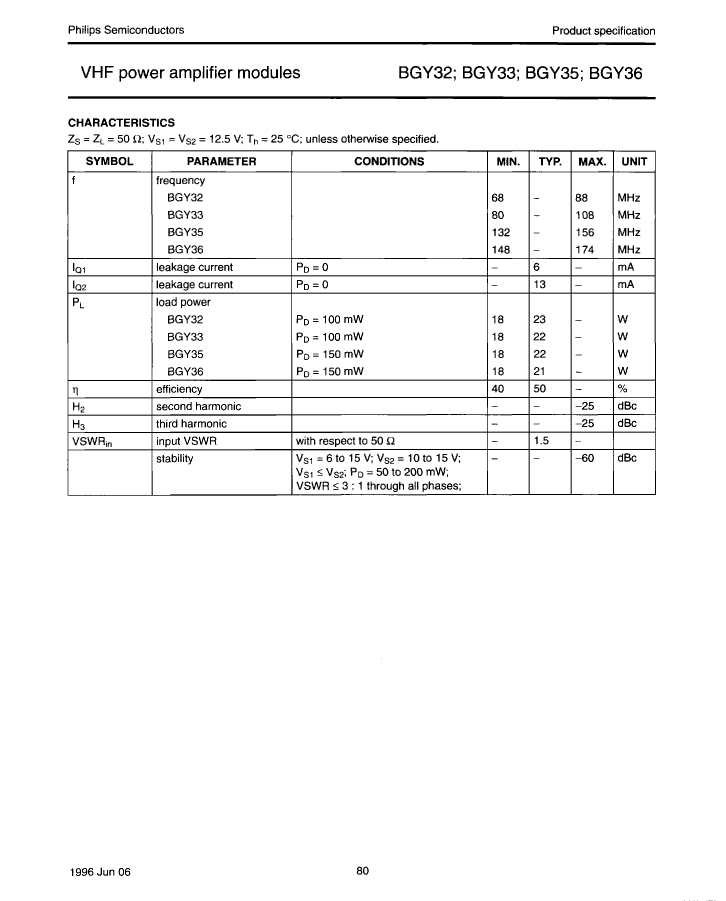

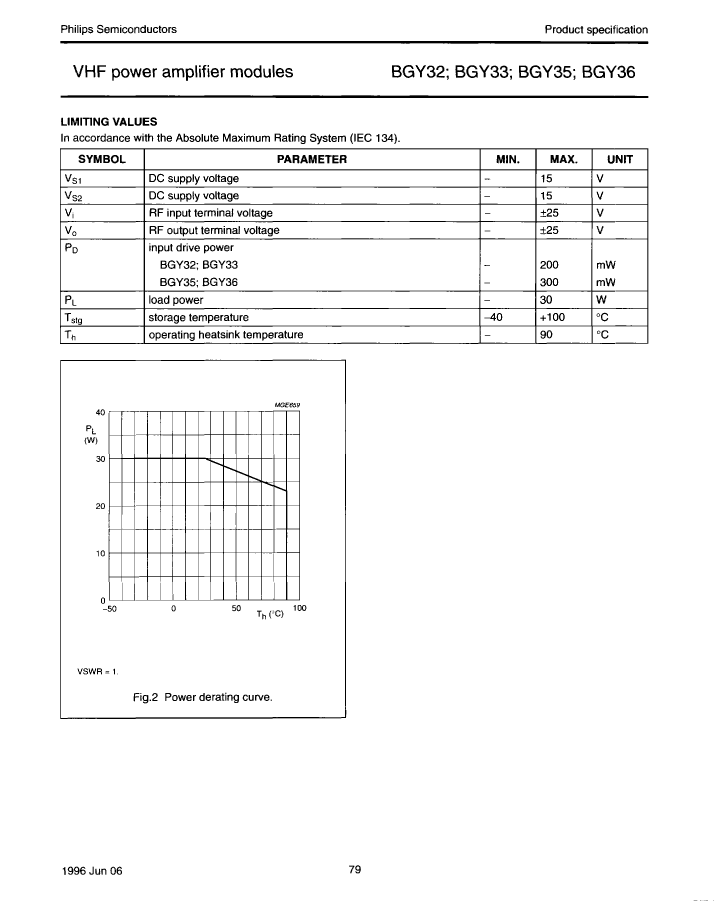

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	23 dBm
Maximum operating frequency	108 MHz
Minimum operating frequency	80 MHz
Maximum operating temperature	90 °C
RF/Microwave Device Types	NARROW BAND HIGH POWER
Maximum voltage standing wave ratio	1.5

	BGY33	BGY32	BGY35	BGY36
Description	RF/Microwave Amplifier, 80 MHz - 108 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER	RF/Microwave Amplifier, 68 MHz - 88 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER	RF/Microwave Amplifier, 132 MHz - 156 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER	RF/Microwave Amplifier, 148 MHz - 174 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER
Maker	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	23 dBm	23 dBm	24.77 dBm	24.77 dBm
Maximum operating frequency	108 MHz	88 MHz	156 MHz	174 MHz
Minimum operating frequency	80 MHz	68 MHz	132 MHz	148 MHz
Maximum operating temperature	90 °C	90 °C	90 °C	90 °C
RF/Microwave Device Types	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER	NARROW BAND HIGH POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
