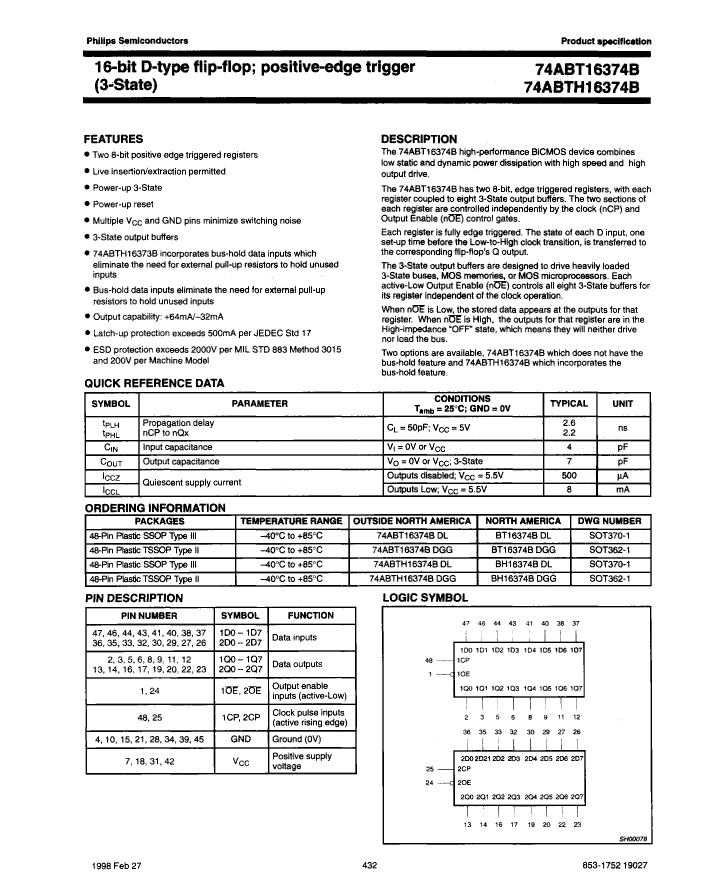

IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, SOT-370-1, SSOP3-48, Bus Driver/Transceiver

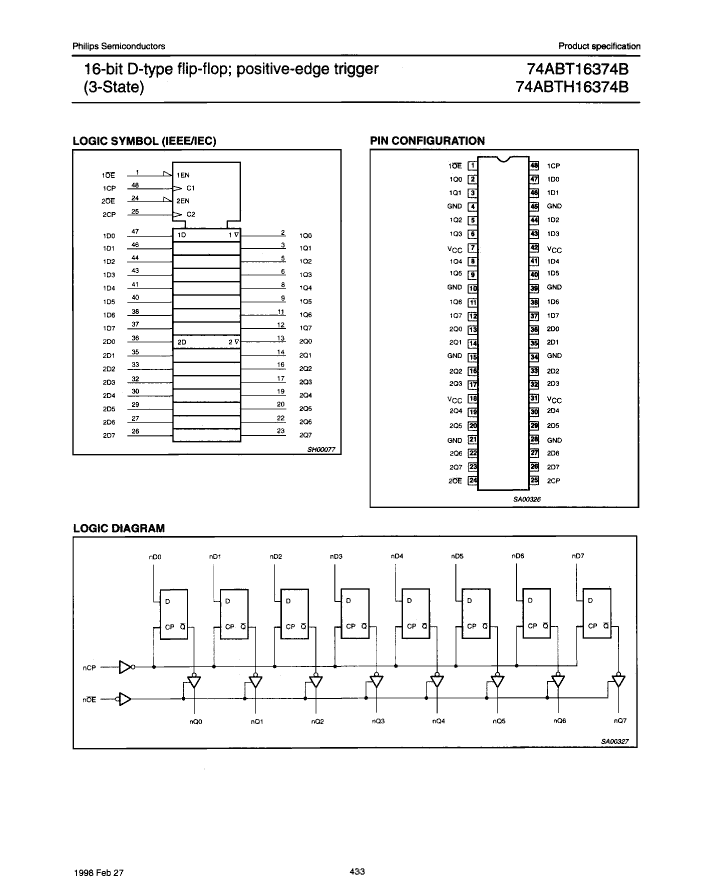

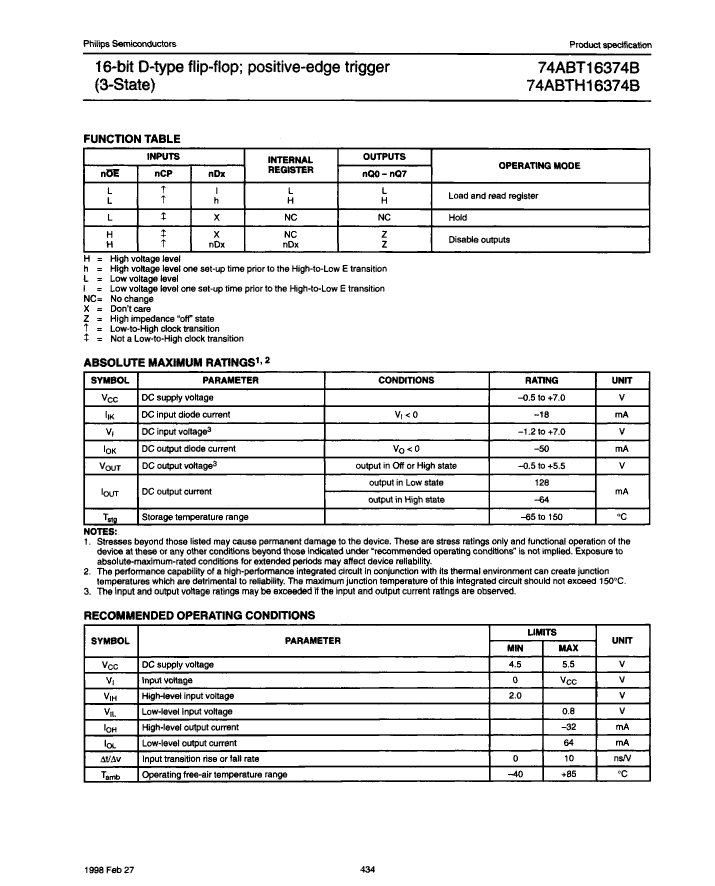

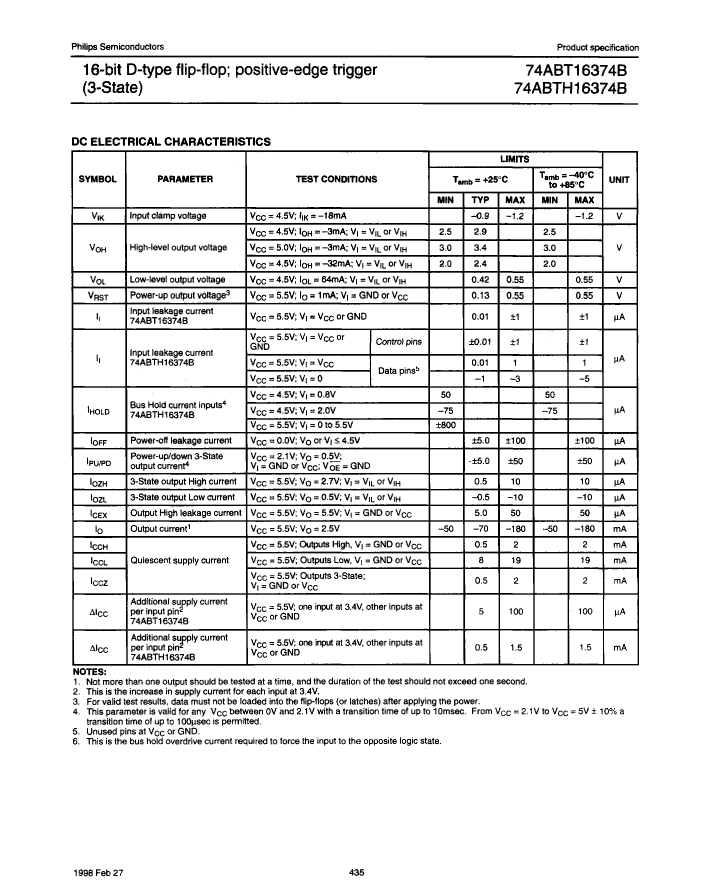

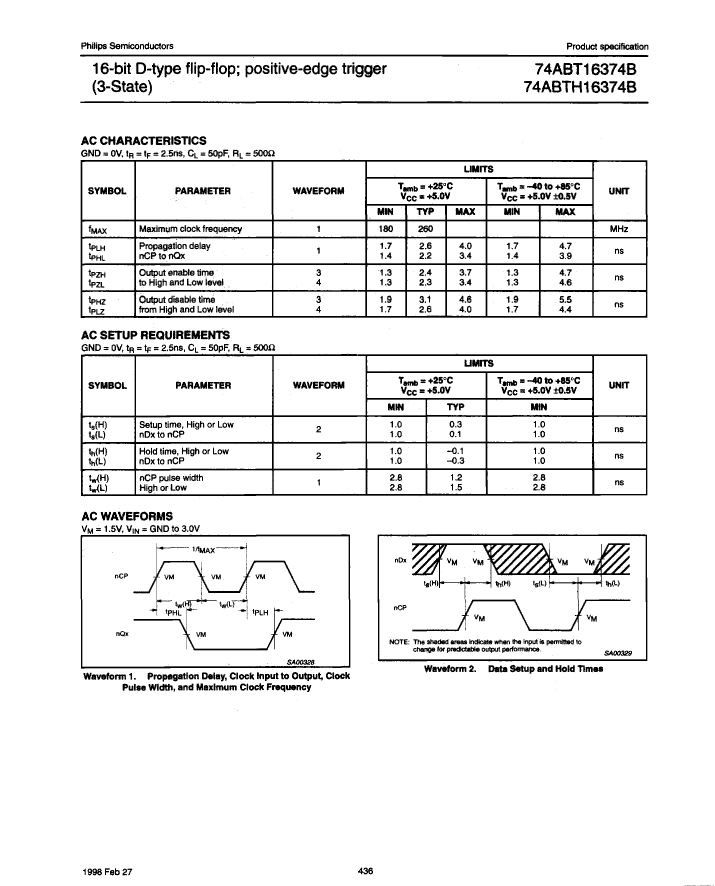

| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | SSOP |
| package instruction | SSOP, |
| Contacts | 48 |
| Reach Compliance Code | unknown |
| series | ABT |
| JESD-30 code | R-PDSO-G48 |
| length | 15.875 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 2 |
| Number of ports | 2 |
| Number of terminals | 48 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Maximum supply current (ICC) | 19 mA |
| propagation delay (tpd) | 3.9 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.8 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BICMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| width | 7.5 mm |
| BH16374BDL | 74ABTH16374BDGG | 74ABTH16374BDGG-T | 74ABTH16374BDL | BH16374BDGG | 74ABTH16374BDL-T | BH16374BDGG-T | BH16374BDL-T | |
|---|---|---|---|---|---|---|---|---|
| Description | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, SOT-370-1, SSOP3-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, PLASTIC, SOT-362-1, TSSOP2-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, PLASTIC, SOT-362-1, TSSOP2-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, SOT-370-1, SSOP3-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, PLASTIC, SOT-362-1, TSSOP2-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, SOT-370-1, SSOP3-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 6.10 MM, PLASTIC, SOT-362-1, TSSOP2-48, Bus Driver/Transceiver | IC ABT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, SOT-370-1, SSOP3-48, Bus Driver/Transceiver |
| Maker | NXP | NXP | NXP | NXP | NXP | NXP | NXP | NXP |
| Parts packaging code | SSOP | TSSOP | TSSOP | SSOP | TSSOP | SSOP | TSSOP | SSOP |
| package instruction | SSOP, | TSSOP, | TSSOP, | SSOP, | TSSOP, | SSOP, | TSSOP, | SSOP, |
| Contacts | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| series | ABT | ABT | ABT | ABT | ABT | ABT | ABT | ABT |
| JESD-30 code | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 | R-PDSO-G48 |
| length | 15.875 mm | 12.5 mm | 12.5 mm | 15.875 mm | 12.5 mm | 15.875 mm | 12.5 mm | 15.875 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | TSSOP | TSSOP | SSOP | TSSOP | SSOP | TSSOP | SSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| Maximum supply current (ICC) | 19 mA | 19 mA | 19 mA | 19 mA | 19 mA | 19 mA | 19 mA | 19 mA |
| propagation delay (tpd) | 3.9 ns | 3.9 ns | 3.9 ns | 3.9 ns | 3.9 ns | 3.9 ns | 3.9 ns | 3.9 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.8 mm | 1.2 mm | 1.2 mm | 2.8 mm | 1.2 mm | 2.8 mm | 1.2 mm | 2.8 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 0.5 mm | 0.5 mm | 0.635 mm | 0.5 mm | 0.635 mm | 0.5 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 7.5 mm | 6.1 mm | 6.1 mm | 7.5 mm | 6.1 mm | 7.5 mm | 6.1 mm | 7.5 mm |
