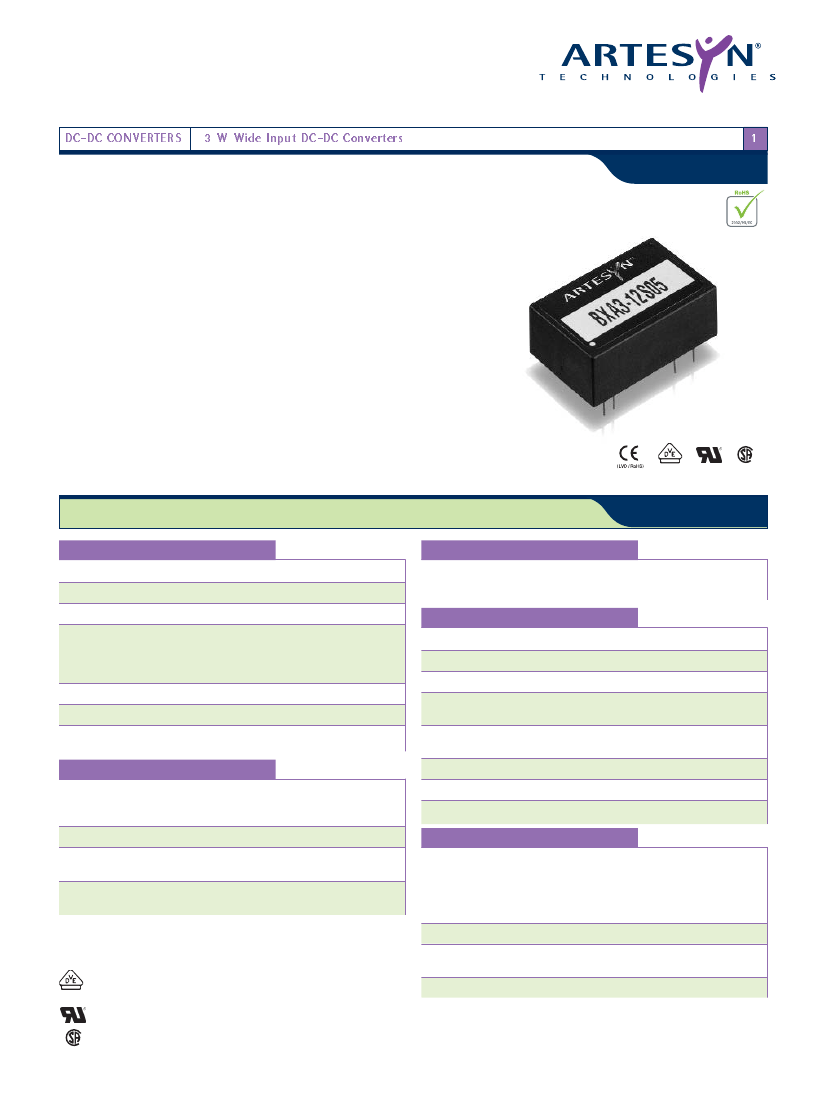

BXA3 Series
DC-DC CONVERTERS
Single and dual output
3 W Wide Input DC-DC Converters
1
•
3 Watts in DIL Package
•
9 models including 3.3 Vdc output
•
Wide input ranges 9 Vdc to 18 Vdc, 18 Vdc to 36 Vdc,
36 Vdc to 75 Vdc
•
EN55022 conducted emissions level A (optional)
•
Continuous short circuit protection
•
Operating temperature range -25 °C to +105 °C
•
Input voltage range to ETS300-132-2
•
UL, VDE and CSA safety approvals
•
Available RoHS compliant
The BXA3 Series of dc-dc converters is designed to offer the optimum
cost/benefit power solution for a wide variety of applications including public
and private telecommunications, industrial systems and process and test
equipment. The series consists of 9 models with input voltages of 9 Vdc to
18 Vdc, 18 Vdc to 36 Vdc and 36 Vdc to 75 Vdc, and offers standard output
voltages of 3.3 V, 5 V, 12 V and 15 V in single and dual output configurations.
Continuous short-circuit protection, overvoltage protection, 60 mV output ripple
and EN55022 level A conducted noise compliance minimize design-in time, cost
and eliminate the need for external components.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple and noise
(5 Hz to 20 MHz)
LL to HL, all outputs
Full load to no load
+5 V output
All others
Temperature coefficient
Over voltage protection
Short circuit protection
INPUT SPECIFICATIONS
Input voltage range
12 Vdc
24 Vdc
48 Vdc
Suffix ‘-F’ (See Note 5)
(See Note 7)
Output remains within
specification
9-18 Vdc
18-36 Vdc
36-75 Vdc
Pi type
Yes
5 V/ms
Clamp diode
±1.0%
±2.5%
±2.5%
60 mV pk-pk, max.,
15 mV rms
100 mV pk-pk, max.,
15 mV rms
±0.02%/°C, max.
135% Vout
Continuous
automatic recovery
EMC CHARACTERISTICS
Conducted emissions
EN55022, FCC part 15
Suffix ‘-F’ versions
(See Notes 5 and 6)
Level A
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards
Case material
Material flammability
Weight
MTBF
MIL-HDBK-217F
Input/output
Variable
See table
500 Vdc
200 kHz to1 MHz
VDE0805, EN60950, IEC950
UL1950, CSA C22.2 No. 950
Non-conductive
black plastic
UL94V-0 min.
15 g (0.53 oz)
800,000 hours
Input filter
Reverse voltage
protection
Max. input rise
and fall time
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient
-25 °C to +105 °C
(See derating curve)
Non-operating amb -40 °C to +105 °C
Cooling
Free air convection
cooled
Non-condensing
Operating
Non operating
5 Hz to 500 Hz
5% to 95% RH
10,000 feet max.
40,000 feet max.
2.5 G rms (approx.)
Relative humidity
International Safety Standard Approvals
VDE0805/EN60950/IEC950 file No. 10401-3336-0098
Licence No. 5856
UL1950 File No. E136005
CSA C22.2 No. 950 File No. LR41062C
Altitude
Vibration
File Name: bxa3.pdf Rev (02): 08 Dec 2005
BXA3 Series
DC-DC CONVERTERS
INPUT
VOLTAGE
9-18 Vdc
9-18 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
OUTPUT
VOLTAGE
3.3 V
15 V
3.3 V
5V
±5 V
3.3 V
5V
12 V
15 V
OUTPUT
CURRENT
600 mA
200 mA
600 mA
500 mA
±250 mA
600 mA
500 mA
250 mA
200 mA
(1)
Single and dual output
3 W Wide Input DC-DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
CURRENT
245 mA
335 mA
122 mA
140 mA
140 mA
61 mA
69 mA
83 mA
83 mA
(2)
TYPICAL
EFFICIENCY
68%
75%
68%
76%
76%
68%
76%
76%
76%
REGULATION
LINE
(3)
MODEL
(4)
LOAD
NUMBER
(5,8,9)
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
BXA3-12S3V3J
BXA3-12S15J
BXA3-24S3V3J
BXA3-24S05J
BXA3-24D05J
BXA3-48S3V3J
BXA3-48S05J
BXA3-48S12J
BXA3-48S15J
Notes
1
2
3
4
5
Maximum.
Maximum figure at full load (nominal).
Low line to high line.
Full load to no load.
An optional internal filter is available. When the filter is added, the BXA3 will
meet VDE0871-A, VDE0878-A and EN55022-A. Add the suffix ‘-F’ to the
model number, e.g.
BXA3-12S15-FJ.
Conducted noise filtering to EN55022 level B may be accomplished by
putting the following capacitors across the input pins.
12 Vdc
5 µF ceramic X7R dielectric type
24 Vdc
3 µF ceramic X7R dielectric type
48 Vdc
1 µF ceramic X7R dielectric type
Reverse voltage protection can be implemented by putting a fast blow fuse
on the positive input rail. Rate the fuse for 250 mA at 48 Vdc input, 500 mA
at 24 Vdc input and 1000 mA at 12 Vdc input.
The ‘J’ suffix indicates that these parts are Pb-free (RoHS 6/6) compliant.
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on
special request, please contact your local sales representative for details.
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
6
7
8
9
File Name: bxa3.pdf Rev (02): 08 Dec 2005
BXA3 Series
DC-DC CONVERTERS
Single and dual output
3 W Wide Input DC-DC Converters
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
0.12 Typ
(3.0)
0.1
(2.5)
23
22
2
3
0.020 Dia.
(0.5)
DOT ON TOP
REFERENCES
PIN 2
1.25
(31.8)
0.6
(15.2)
BOTTOM VIEW
0.1
(2.5)
0.1
(2.5)
0.175
(4.5)
0.1
(2.5)
16
15
14
9
10
11
0.03
(0.762)
0.60
(15.2)
0.02
(0.5)
0.50
(12.7)
0.80
(20.3)
ALL DIMENSIONS IN Inches (mm)
ALL PINS ARE IN TRUE POSITION WITHIN .010 DIA. @ M.M.C.
TOLERANCE
.XX =
±
0.02
(INCHES)
.XXX =
±
0.005
PIN CONNECTIONS
PIN NUMBER
2
3
22
23
9
10
11
14
15
16
SINGLE OUTPUT
–Vin
–Vin
+Vin
+Vin
No Pin
No Pin
No Connection
+Vout
No Pin
-Vout
DUAL OUTPUT
–Vin
–Vin
+Vin
+Vin
Common
No Pin
-Vout
+Vout
No Pin
Common
0W
2.5/3W
DERATING CURVE
Output Power (Watts)
71°C
85°C
105°C
0°C 10°C
20°C
30°C 40°C
50°C
60°C 70°C 80°C
90°C 100°C 110°C
-25°C -20°C -10°C
Datasheet © Artesyn Technologies® 2005
