Type AHA
SMT Aluminum Electrolytic Capacitors 55 °C to 105 °C - Long Life
Long Life Filtering, Bypassing, Power Supply Decoupling
Type AHA Capacitors deliver twice the life of many
SMT aluminum capacitor types, and they handle high
levels of ripple current. The AHA can handle the ripple
current of Type AVS at 20 °C higher temperature. The
vertical cylindrical cases facilitate automatic mounting
and reflow soldering and Type AHA offers a significant
cost savings over tantalum capacitors.
Highlights
•
•
•
+105 °C, Up to 2000 Hour Load Life
Capacitance Range: 0.1 µF to 1500 µF
Voltage Range: 6.3 Vdc to 100 Vdc
Specifications
OperatingTemperature:
Rated Voltage:
Capacitance:
D.F. (@ 20 °C):
Capacitance Tolerance:
Leakage Current:
Ripple Current Multipliers:
−55 °C to +105 °C
6.3, 10, 16, 25, 35, 50, 63 & 100 Vdc
0.1 µF to 1500 µF
See Ratings Table
20% @ 120 Hz and +20 °C
0.01 CV or 3 µA @ +20°C after two minutes (whichever is greater)
Frequency
50/60 Hz
0.7
120 Hz
1
1 kHz
1.3
10 kHz & up
1.7
Load Life:
1000 h @ +105 °C, 4.0 - 6.3 mm dia.
2000 h @ +105 °C, 8.0 - 10.0 mm dia.
∆ Capacitance ±20%
DF: < 200% of limit
DCL: ≤100% of limit
W.V. Vdc
–25 °C +20 °C
–40 °C +20 °C
6.3
4
8
10
3
6
16
2
4
25
2
4
Shelf Life:
1000 h @ +105 °C, 4.0 - 6.3 mm dia.
∆ Capacitance ±20%
DF: < 200% of limit
DCL: ≤100% of limit
Maximum Impedance Ratio
35
2
3
50
2
3
63
3
4
100
3
4

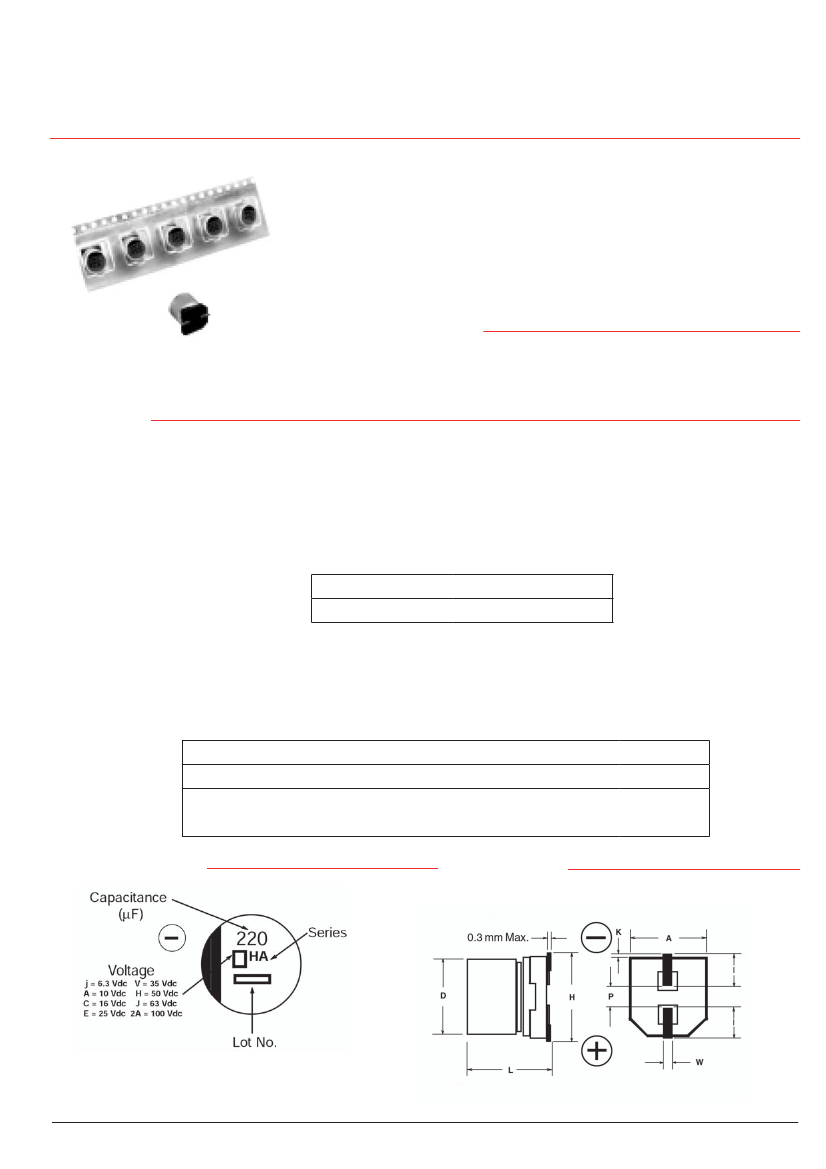

AHA Series Marking
Outline Drawing
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AHA
SMT Aluminum Electrolytic Capacitors 55 °C to 105 °C - Long Life
Case Dimensions
Case
Code
B
C
D
X
E
F
G
D ± 0.5
4
5
6.3
6.3
8
8
10
L
5.4 +.1,-.2
5.4 +.1,-.2
5.4 +.1,-.2
7.9 ±.3
6.2 ±.3
10.2 ±.3
10.2 ±.3
A ± 0.2
4.3
5.3
6.6
6.6
8.3
8.3
10.3
H (max) I (ref)
5.5
6.5
7.8
7.8
9.5
10
12
1.8
2.2
2.4
2.6
3.4
3.4
3.5
W
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.90 ± 0.2
0.90 ± 0.2
P (ref)
1
1.5
1.8
1.8
2.2
3.1
4.6
K
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.35 + 0.15/-0.20
0.70 ± 0.20
0.70 ± 0.20
Ratings
Cap
(µF)
22.0
33.0
47.0
47.0
100.0
100.0
220.0
330.0
330.0
470.0
1000.0
1000.0
1500.0
22.0
33.0
33.0
47.0
100.0
100.0
220.0
220.0
470.0
470.0
1000.0
10.0
22.0
22.0
33.0
47.0
47.0
100.0
220.0
220.0
220.0
330.0
330.0
470.0
470.0
4.7
10.0
10.0
22.0
22.0
33.0
33.0
47.0
47.0
100.0
100.0
220.0
220.0
330.0
330.0
470.0
Catalog
Part Number
AHA226M06B12T
AHA336M06B12T
AHA476M06B12T
AHA476M06C12T
AHA107M06C12T
AHA107M06D16T
AHA227M06D16T
AHA337M06X16T
AHA337M06F24T
AHA477M06F24T
AHA108M06F24T
AHA108M06G24T
AHA158M06G24T
AHA226M10B12T
AHA336M10B12T
AHA336M10C12T
AHA476M10C12T
AHA107M10D16T
AHA107M10E16T
AHA227M10X16T
AHA227M10F24T
AHA477M10F24T
AHA477M10G24T
AHA108M10G24T
AHA106M16B12T
AHA226M16B12T
AHA226M16C12T
AHA336M16C12T
AHA476M16C12T
AHA476M16D16T
AHA107M16D16T
AHA227M16X16T
AHA227M16F24T
AHA227M16G24T
AHA337M16F24T
AHA337M16G24T
AHA477M16F24T
AHA477M16G24T
AHA475M25B12T
AHA106M25B12T
AHA106M25C12T
AHA226M25C12T
AHA226M25D16T
AHA336M25C12T
AHA336M25D16T
AHA476M25D16T
AHA476M25E16T
AHA107M25E16T
AHA107M25F24T
AHA227M25F24T
AHA227M25G24T
AHA337M25F24T
AHA337M25G24T
AHA477M25G24T
Max
DCL
2 min.
(µA)
3.0
3.0
3.0
3.0
6.3
6.3
13.9
20.8
20.8
29.6
63.0
63.0
94.5
3.0
3.3
3.3
4.7
10.0
10.0
22.0
22.0
47.0
47.0
100.0
3.0
3.5
3.5
5.3
7.5
7.5
16.0
35.2
35.2
35.2
52.8
52.8
75.2
75.2
3.0
3.0
3.0
5.5
5.5
8.3
8.3
11.8
11.8
25.0
25.0
55.0
55.0
82.5
82.5
117.5
Max
DF
120 Hz 20 ºC
0.30
0.35
0.35
0.30
0.35
0.30
0.35
0.30
0.35
0.35
0.35
0.35
0.35
0.30
0.30
0.22
0.30
0.30
0.26
0.22
0.26
0.26
0.26
0.26
0.16
0.26
0.16
0.26
0.26
0.16
0.26
0.16
0.20
0.20
0.20
0.20
0.20
0.20
0.14
0.20
0.14
0.20
0.14
0.20
0.14
0.20
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
Max
Max
ESR
Ripple Current
100 kHz 20 ºC
120 Hz 105 °C
(
Ω
)
(mA)
6.3 Vdc ( 8 Vdc Surge)
22.6
29
17.6
29
12.3
36
10.6
46
5.8
47
5.0
71
2.6
74
1.5
105
1.8
230
1.2
300
0.6
300
0.6
400
0.4
480
10 Vdc ( 13 Vdc Surge)
22.6
28
15.1
29
11.1
43
10.6
43
5.0
70
4.3
110
1.7
105
2.0
160
0.9
200
0.9
270
0.4
580
16 Vdc ( 20 Vdc Surge)
26.5
28
19.6
28
12.1
39
13.1
35
9.2
39
5.6
70
4.3
70
1.2
105
1.5
150
1.5
210
1.0
170
1.0
230
0.7
190
0.7
340
25 Vdc ( 31 Vdc Surge)
49.4
22
33.2
22
23.2
28
15.1
35
10.6
55
10.0
42
7.0
65
7.1
70
5.6
91
2.7
91
2.7
130
1.2
160
1.2
190
0.8
180
0.8
340
0.6
360
Case
Code
B
B
B
C
C
D
D
X
F
F
F
G
G
B
B
C
C
D
E
X
F
F
G
G
B
B
C
C
C
D
D
X
F
G
F
G
F
G
B
B
C
C
D
C
D
D
E
E
F
F
G
F
G
G
Size
DxL
(mm)
4 x 5.4
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.9
8 x 10.2
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
8 x 6.2
6.3 x 7.9
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.9
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
8 x 6.2
8 x 6.2
8 x 10.2
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
Quantity
per Reel
2000
2000
2000
1000
1000
1000
1000
900
500
500
500
500
500
2000
2000
1000
1000
1000
1000
900
500
500
500
500
2000
2000
1000
1000
1000
1000
1000
900
500
500
500
500
500
500
2000
2000
1000
1000
1000
1000
1000
1000
1000
1000
500
500
500
500
500
500
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AHA
SMT Aluminum Electrolytic Capacitors 55 °C to 105 °C - Long Life
Cap
(µF)
4.7
10.0
10.0
22.0
22.0
33.0
33.0
47.0
47.0
100.0
100.0
100.0
220.0
220.0
330.0
0.1
0.2
0.3
0.5
1.0
2.2
3.3
4.7
10.0
22.0
33.0
33.0
33.0
47.0
47.0
47.0
100.0
100.0
220.0
10.0
22.0
22.0
33.0
47.0
47.0
3.3
4.7
4.7
10.0
22.0
22.0
33.0
Catalog
Part Number
AHA475M35B12T
AHA106M35B12T
AHA106M35C12T
AHA226M35C12T
AHA226M35D16T
AHA336M35D16T
AHA336M35E16T
AHA476M35E16T
AHA476M35F24T
AHA107M35X16T
AHA107M35F24T
AHA107M35G24T
AHA227M35F24T
AHA227M35G24T
AHA337M35G24T
AHA104M50B12T
AHA224M50B12T
AHA334M50B12T
AHA474M50B12T
AHA105M50B12T
AHA225M50B12T
AHA335M50B12T
AHA475M50C12T
AHA106M50D16T
AHA226M50E16T
AHA336M50X16T
AHA336M50E16T
AHA336M50F24T
AHA476M50X16T
AHA476M50F24T
AHA476M50G24T
AHA107M50F24T
AHA107M50G24T
AHA227M50G24T
AHA106M63E16T
AHA226M63E16T
AHA226M63F24T
AHA336M63G24T
AHA476M63F24T
AHA476M63G24T
AHA335M2AE16T
AHA475M2AE16T
AHA475M2AF24T
AHA106M2AF24T
AHA226M2AF24T
AHA226M2AG24T
AHA336M2AG24T
Max
DCL
2 min.
(µA)
3.0
3.6
3.6
7.7
7.7
11.6
11.6
16.5
16.5
35.0
35.0
35.0
77.0
77.0
115.5
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
5.0
11.0
16.5
16.5
16.5
23.5
23.5
23.5
50.0
50.0
110.0
6.3
13.9
13.9
20.8
29.6
29.6
3.3
4.7
4.7
10.0
22.0
22.0
33.0
Max
DF
120 Hz 20 ºC
0.12
0.16
0.12
0.16
0.12
0.16
0.14
0.14
0.14
0.12
0.14
0.14
0.14
0.14
0.14
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
0.18
35
Max
Max
ESR
Ripple Current
100 kHz 20 ºC
120 Hz 105 °C
(
Ω
)
(mA)
Vdc (44 Vdc Surge)
42.3
22
26.5
22
19.9
30
12.1
35
9.0
60
8.0
42
7.0
84
4.9
84
4.9
98
2.0
84
2.3
120
2.3
160
1.1
170
1.1
210
0.7
250
Vdc (63 Vdc Surge)
1990.0
1
905.0
2
603.0
3
424.0
5
199.0
10
90.5
16
60.3
16
42.4
23
19.9
35
9.0
70
6.0
60
6.0
70
6.0
91
4.2
63
4.2
95
4.2
100
2.0
110
2.0
120
0.9
150
Vdc (75 Vdc Surge)
29.9
25
13.6
30
13.6
30
9.0
45
6.3
50
6.3
50
Vdc (125 Vdc Surge)
90.5
30
63.5
30
63.5
50
29.8
55
13.6
55
13.6
60
9.0
65
Case
Code
B
B
C
C
D
D
E
E
F
X
F
G
F
G
G
B
B
B
B
B
B
B
C
D
E
X
E
F
X
F
G
F
G
G
E
E
F
G
F
G
E
E
F
F
F
G
G
Size
DxL
(mm)
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
8 x 6.2
8 x 6.2
8 x 10.2
6.3 x 7.9
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
4 x 5.4
4 x 5.4
4 x 5.4
4 x 5.4
4 x 5.4
5 x 5.4
6.3 x 5.4
8 x 6.2
6.3 x 7.9
8 x 6.2
8 x 10.2
6.3 x 7.9
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
8 x 6.2
8 x 6.2
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
8 x 6.2
8 x 6.2
8 x 10.2
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
Quantity
per Reel
2000
2000
1000
1000
1000
1000
1000
1000
500
900
500
500
500
500
500
2000
2000
2000
2000
2000
2000
2000
1000
1000
1000
900
1000
500
900
500
500
500
500
500
1000
1000
500
500
500
500
1000
1000
500
500
500
500
500
50
63
100
Part Numbering System
AHA
I
106
I
104 = 0.1 µF
105 = 1.0 µF
106 = 10.0 µF
107 = 100.0 µF
108 = 1000.0 µF
M
I
Capacitance
Tolerance
M = ±20%
16
I
Voltage
06 = 6.3 Vdc 35 = 35 Vdc
10 = 10 Vdc 50 = 50 Vdc
16 = 16 Vdc 63 = 63 Vdc
25 = 25 Vdc 2A = 100 Vdc
B
I
Case
Code
B=B
12T
I
Packaging
Information
12 = Carrier Tape
Width (mm)
T = Tape & Reel
B = Bulk
–F
I
RoHS
Compliant
Series Capacitance
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AHA
SMT Aluminum Electrolytic Capacitors 55 °C to 105 °C - Long Life
Typical Performance Curves

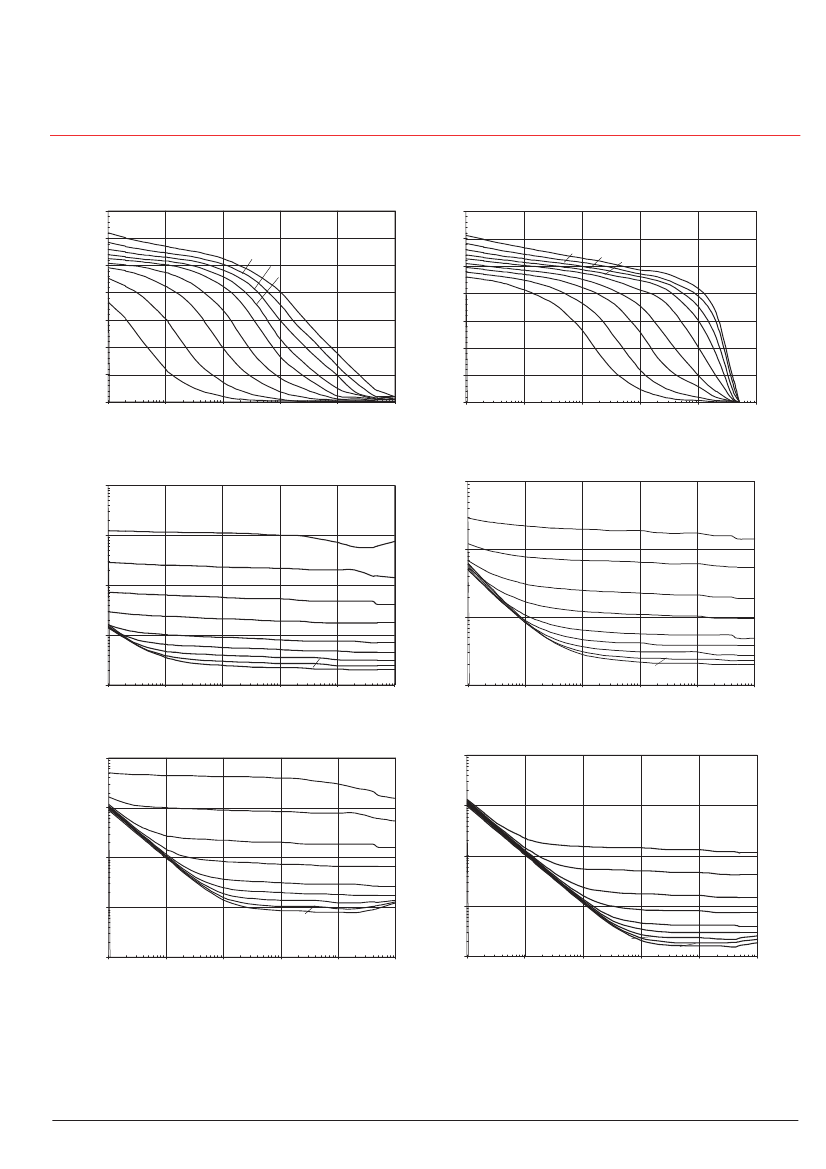

Capacitance vs. Temperature & Frequency
1.4
Capacitance vs. Temperature & Frequency
1.4
1500
µ
F @ 6.3 Vdc (10 X 10.2 mm)
470
µ
F @ 16 Vdc (10 X 10.2 mm)
1.2
105°C
1.2
105°C
Ratio to 25°C, 120 Hz Value
Ratio to 25
°
C, 120 Hz Value
85° C
1
85°C
65° C
45°
65°C
1
45°
0.8
0.8
25°C
0°C
0.6
25°C
0.4
0°C
0.2
–20°C
–40
°C
–55°C
0
10
100
1,000
10,000
100,000
1,000,000
0.6
–20°C
0.4
–40°C
–55°C
0.2
0
10
100
1,000
10,000
100,000
1,000,000
Frequency (Hz)
Frequency (Hz)
ESR vs. Temperature and Frequency
1000
ESR vs. Temperature and Frequency
100
1500
µF
@ 6.3 Vdc (10 X 10.2 mm)
470
µF
@ 16 Vdc (10 X 10.2 mm)
Ratio to 25
°
C, 120 Hz Value
Ratio to 25
°
C, 120 Hz Value
100
–55°C
–55°C
10
–40°C
10
–20°C
0°C
1
25°C
45°C
65°C
85°C
0.1
10
100
1,000
10,000
100,000
1,000,000
105°C
–40°C
–20°C
0°C
1
25°C
45°C
65°C
105°C
85°C
0.1
10
100
1,000
10,000
100,000
1,000,000
Frequency (Hz)
Frequency (Hz)
Impedance vs. Temperature and Frequency
100
1500
µ
F @ 6.3 Vdc (10 X 10.2 mm)
–55°C
Impedance vs. Temperature and Frequency
100
470
µF
@ 16 Vdc (10 X 10.2 mm)
Ratio to 25
°
C, 120 Hz Value
Ratio to 25
°
C, 120 Hz Value
10
–40°C
10
–20°C
1
0°C
25°C
45°C
65°C
0.1
85°C
–55°C
1
–40°C
–20°C
0.1
0°C
25°C
45°C
65°C
85°C
105°C
100,000
1,000,000
105°C
0.01
10
100
1,000
10,000
100,000
1,000,000
0.01
10
100
1,000
10,000
Frequency (Hz)
Frequency (Hz)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type AHA
SMT Aluminum Electrolytic Capacitors 55 °C to 105 °C - Long Life

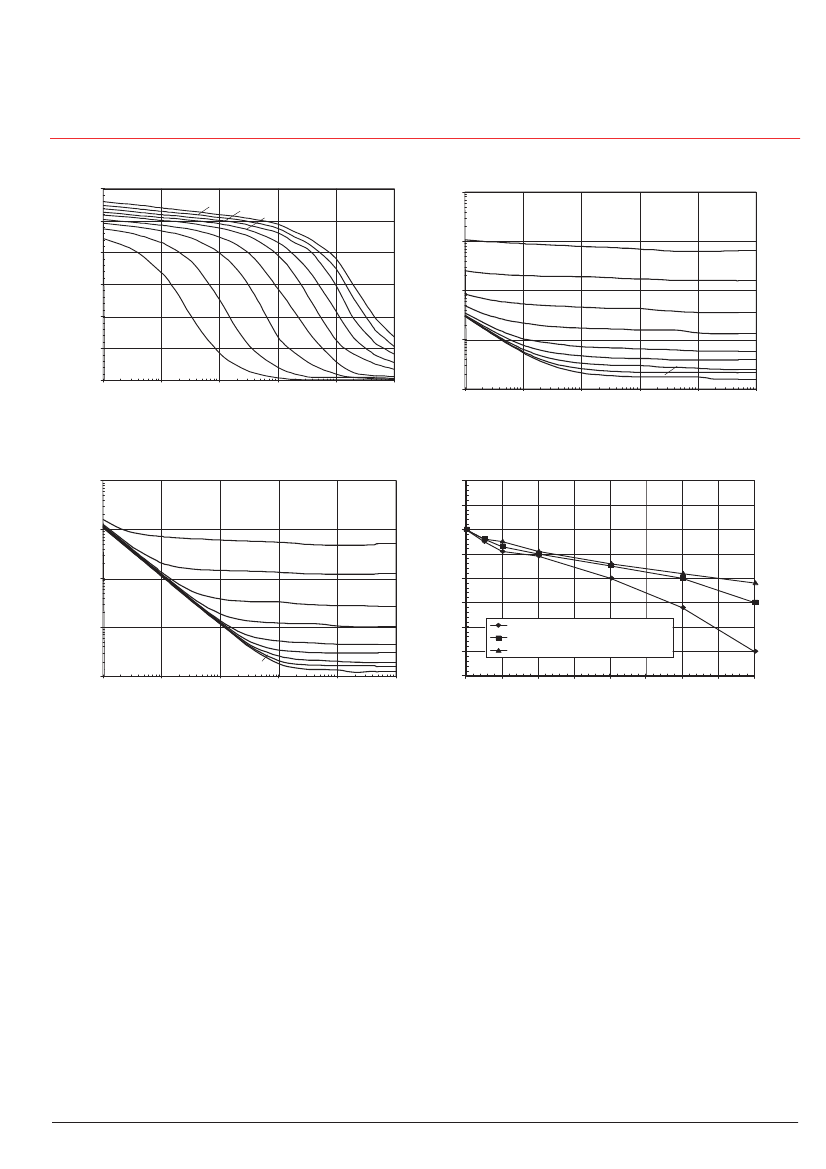

Capacitance vs. Temperature & Frequency
1.2
220
µF
@ 50 Vdc (10 X 10.2 mm)
105°C
85°C
65°C
45°C
ESR vs. Temperature and Frequency
1000
220µF @ 50 Vdc (10 X 10.2 mm)
1
Ratio to 25
°
C, 120 Hz Value
0.8
25°C
Ratio to 25
°
C, 120 Hz Value
100
–55°C
–40°C
10
–20°C
0°C
1
25°C
45°C
65°C
85°C
10
100
1,000
10,000
105°C
100,000
1,000,000
0.6
0°C
0.4
–20°C
0.2
–40°C
–55°C
10
100
1,000
10,000
100,000
1,000,000
0.1
0
Frequency (Hz)
Frequency (Hz)
Impedance vs. Temperature and Frequency
100
220
µF
@ 50 Vdc (10 X 10.2 mm)
Capacitance Change vs Time
10
5
Capacitance Change (%)
Ratio to 25
°
C, 120 Hz Value
10
–55°C
0
-5
-10
-15
-20
-25
-30
10
µF@
16 Vdc (4 x 5.4 mm)
47
µF@
16 Vdc ( 6.3 x 5.4 mm)
330
µF
@ 16 Vdc (10 x 10.2 mm)
–40°C
1
–20°C
0°C
25°C
45°C
65°C
85°C
0.1
0.01
10
100
1,000
105°C
10,000
100,000
1,000,000
0
250
500
750
1,000
1,250
1,500
1,750
2,000
Frequency (Hz)
Time (Hours)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Embedded System
京公网安备 11010802033920号
EEWORLD
