BSH299115 datasheet, PDF - EEWORLD Datasheet

BSH299115: DescriptionTRANSISTOR 200 mA, 50 V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size140KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

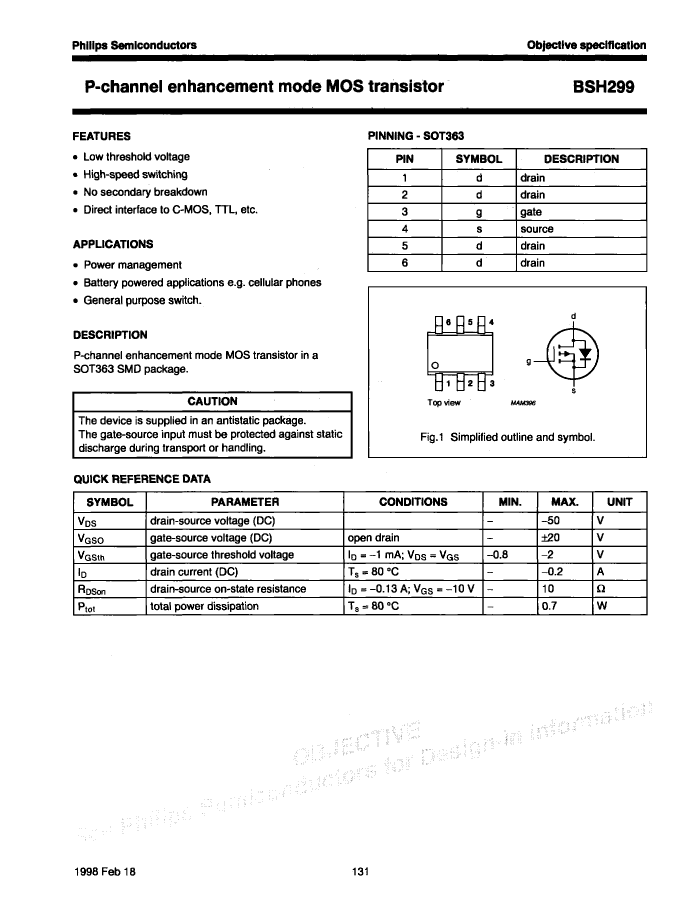

BSH299115 Overview

TRANSISTOR 200 mA, 50 V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal

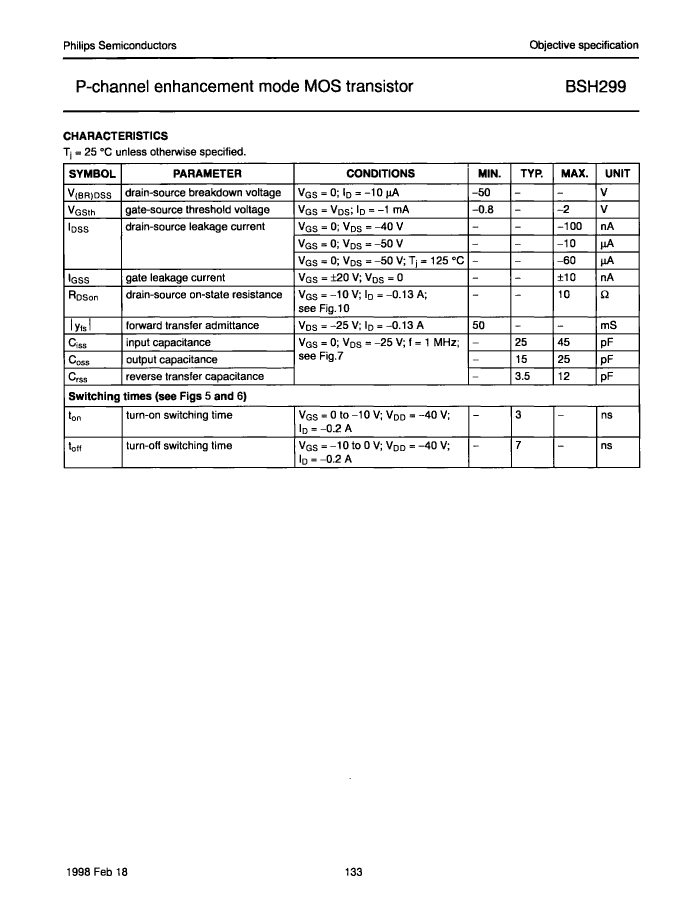

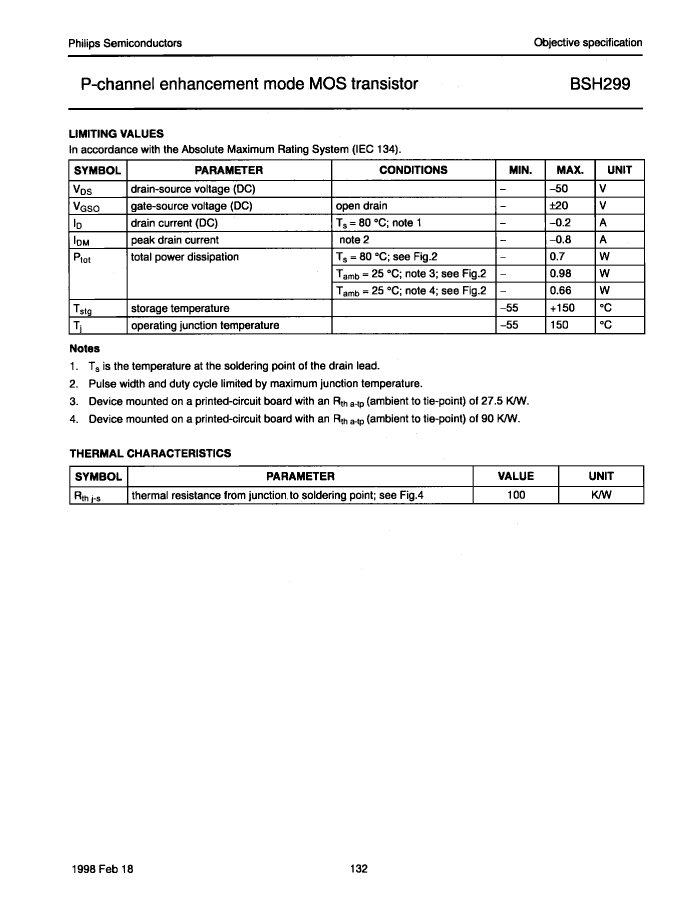

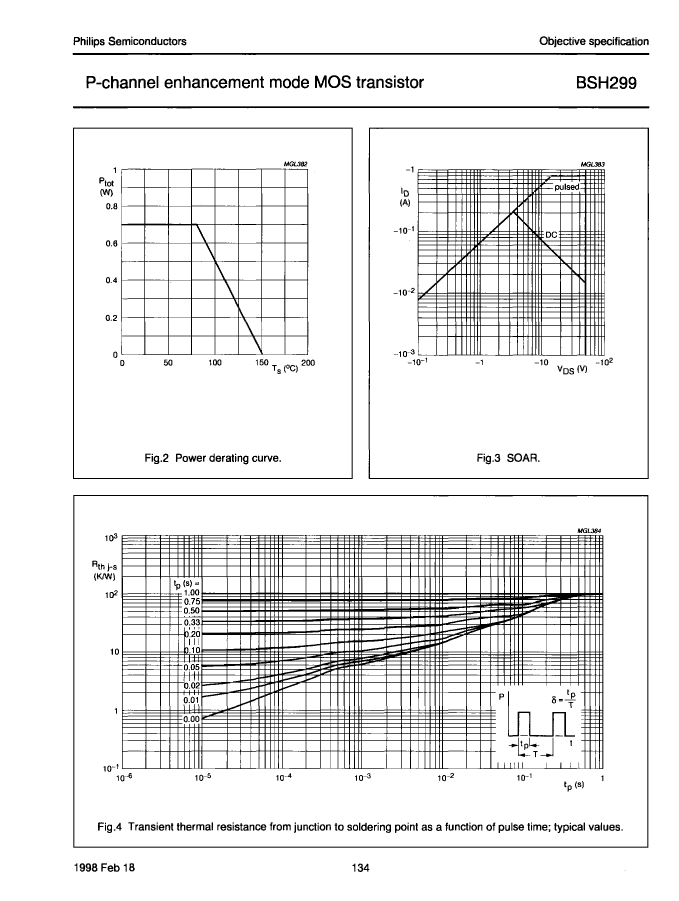

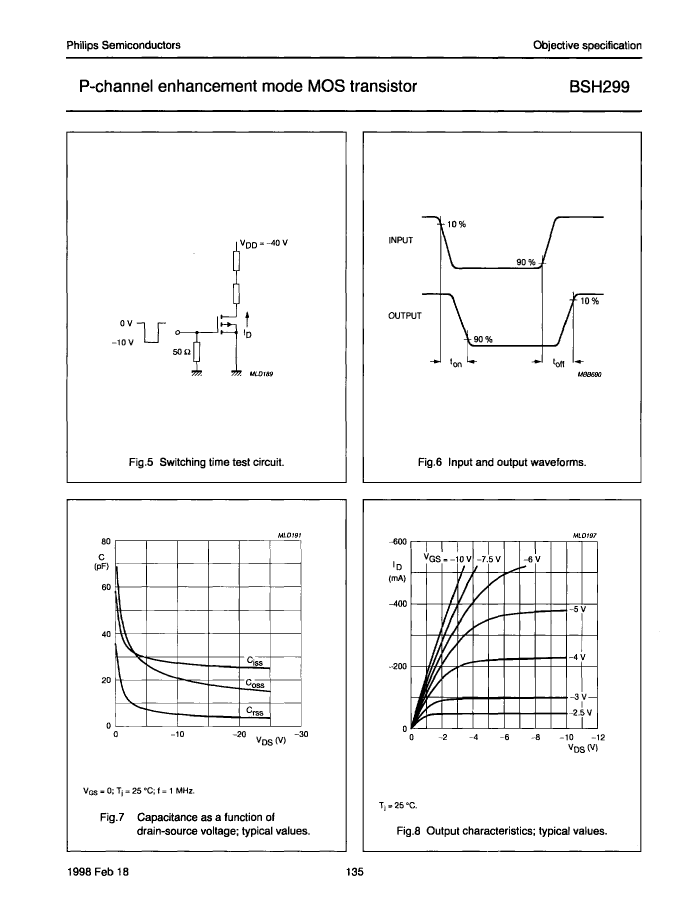

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW THRESHOLD, LOGIC LEVEL COMPATIBLE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V
Maximum drain current (ID)	0.2 A
Maximum drain-source on-resistance	10 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	12 pF
JESD-30 code	R-PDSO-G6
Number of components	1
Number of terminals	6
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	P-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

	BSH299115	BSH299135
Description	TRANSISTOR 200 mA, 50 V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal	TRANSISTOR 200 mA, 50 V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, FET General Purpose Small Signal
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G6	SMALL OUTLINE, R-PDSO-G6
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	LOW THRESHOLD, LOGIC LEVEL COMPATIBLE	LOW THRESHOLD, LOGIC LEVEL COMPATIBLE
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	50 V	50 V
Maximum drain current (ID)	0.2 A	0.2 A
Maximum drain-source on-resistance	10 Ω	10 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	12 pF	12 pF
JESD-30 code	R-PDSO-G6	R-PDSO-G6
Number of components	1	1
Number of terminals	6	6
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	P-CHANNEL	P-CHANNEL
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
